1. Produk Lebihview
The Steinel NightmatIQ Twilight Sensor is an intelligent light sensor designed for automatic control of outdoor lighting. It detects ambient light levels and switches connected luminaires on at dusk and off at dawn, providing convenience and energy efficiency for your home, garden, driveway, or commercial premises.
Image 1.1: The Steinel NightmatIQ Twilight Sensor in anthracite, showcasing reka bentuknya yang anggun.
Image 1.2: Visual representation of the sensor's function: light on at night, light off during the day.
2. Arahan Keselamatan
Please read these instructions carefully before installing or operating the device. Failure to follow these instructions may result in property damage or personal injury.
- Installation must be carried out by a qualified electrician in accordance with national wiring regulations and installation conditions.
- Disconnect the power supply before performing any work on the device.
- Jangan buka peranti. Tiada bahagian yang boleh diservis pengguna di dalamnya.
- Ensure the device is protected from direct water jets. The IP54 rating indicates protection against splashing water, not submersion.
- Jangan ubah suai produk dalam apa jua cara.
3. Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- Steinel NightmatIQ Twilight Sensor unit
- Mounting material (2x screws, 2x dowels, 2x sealing plugs)
- Manual Arahan (dokumen ini)
4. Persediaan dan Pemasangan
The NightmatIQ Twilight Sensor is designed for wall mounting outdoors. Ensure the mounting surface is stable and suitable for the device's weight.
4.1 Lokasi Pemasangan
Choose a location where the sensor can accurately detect ambient light without being obstructed by eaves, trees, or other structures. Avoid direct exposure to artificial light sources (e.g., streetlights) that could interfere with its operation.
Image 4.1: The sensor discreetly mounted on an exterior wall, blending with the architecture.
4.2 Pendawaian
The cable connection can be flush-mounted or surface-mounted. Ensure all wiring is done with the power supply disconnected. Connect the sensor to your existing outdoor lighting circuit. The sensor supports loads up to 1000 W (max. 250 W for LED luminaires).
Refer to the internal wiring diagram on the device or within the packaging for specific connection points. Ensure proper grounding.
Imej 4.2: Cthample wiring diagram for connecting the twilight sensor to the power supply and lighting circuit. Consult a qualified electrician for installation.
4.3 Dimensi
The compact design of the NightmatIQ sensor allows for discreet installation.

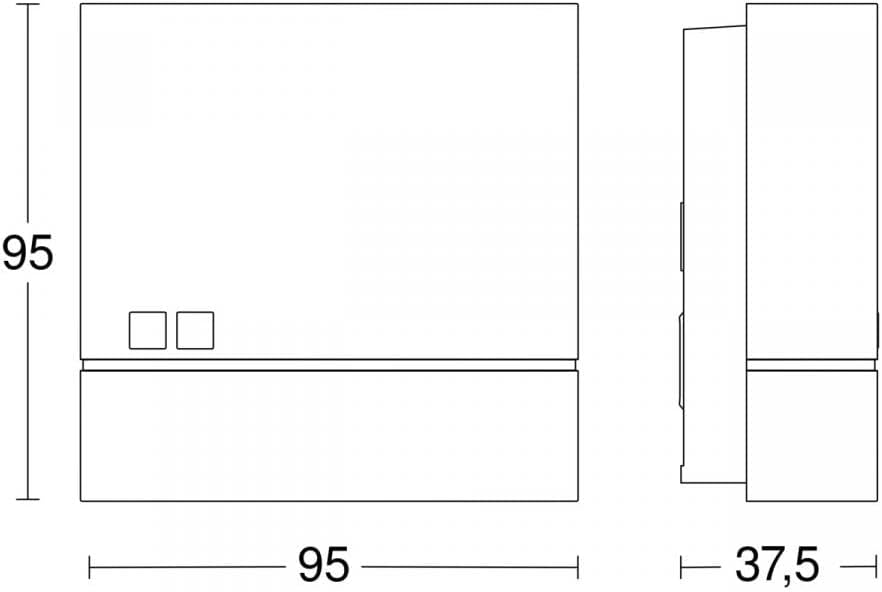

Image 4.3: Dimensions of the sensor: 95mm (width) x 95mm (height) x 37.5mm (depth).
5. Arahan Operasi
The NightmatIQ Twilight Sensor operates automatically once installed and configured. The primary setting is the twilight value, which determines the ambient light level at which the connected lights will switch on or off.
5.1 Setting the Twilight Value (Lux)
The twilight value can be individually selected between 1 and 75 lux (lx) of ambient brightness. A lower lux value means the lights will switch on when it's darker, while a higher lux value means they will switch on when it's still relatively bright.
- Locate the adjustment dial or setting mechanism on the sensor (refer to the product diagram for exact location).
- Rotate the dial to select your desired lux level. Start with a mid-range setting and adjust as needed based on your preference and local light conditions.
- Test the setting by observing the sensor's behavior at dusk and dawn.
Image 5.1: Key features of the NightmatIQ sensor, including the adjustable twilight range of 1-75 lux.
6. Penyelenggaraan
The Steinel NightmatIQ Twilight Sensor requires minimal maintenance.
- Pembersihan: Bersihkan kanta sensor secara berkala dengan kain lembutamp cloth to ensure accurate light detection. Do not use abrasive cleaners or solvents.
- Pemeriksaan: Regularly check the device for any signs of damage or loose connections.
7. Penyelesaian masalah
If you experience issues with your NightmatIQ Twilight Sensor, consider the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Lights do not switch on at dusk. |
|
|
| Lights do not switch off at dawn. |
|
|
| Device not functioning at all. |
|
|
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 066130 |
| Dimensi (L x W x H) | 3.8 x 9.5 x 9.5 cm (1.5 x 3.7 x 3.7 inci) |
| Berat badan | 128 gram (0.28 lbs) |
| bahan | plastik |
| Voltage | 220 - 240 V, 50 - 60 Hz |
| Maks. Kapasiti Penukaran | 1000 W (resistive load), max. 250 W (LED) |
| Twilight Setting Range | 1 - 75 lux |
| Kelas Perlindungan | IP54 (kalis percikan) |
| Jenis Pemasangan | dipasang di dinding |
| Kegunaan Khusus | Balcony, Home, Garage, Garden, Shop |
9. Waranti
Produk ini disertakan dengan a Waranti pengilang selama 3 tahun. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
10. Sokongan Pelanggan
For further assistance, technical support, or warranty inquiries, please contact Steinel customer service or visit their official webtapak.
You can also visit the official Steinel store on Amazon for more product information and support:
