N'OVEEN Electric Faucet with LED Temperature Display, 3600W Instant Water Heater - User Manual

1. Pengenalan

Terima kasih kerana membeliasing the N'OVEEN Electric Faucet with LED Temperature Display. This instant water heater is designed to provide hot water quickly and efficiently for various applications. Please read this manual carefully before installation and operation to ensure safe and optimal performance of the product. Keep this manual for future reference.

2. Arahan Keselamatan

AMARAN: Kegagalan mematuhi arahan keselamatan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

• Perkakas ini bertujuan untuk kegunaan isi rumah sahaja.
• Installation must be performed by a qualified electrician or plumber in accordance with local electrical and plumbing codes.
• Pastikan bekalan kuasa voltage matches the rating specified on the appliance.
• Jangan kendalikan perkakas jika kord kuasa atau palam rosak.
• Jangan rendamkan perkakas dalam air atau cecair lain.
• Always disconnect the power supply before cleaning or performing any maintenance.
• Do not block the water outlet during operation.
• Jauhkan kanak-kanak daripada perkakas semasa operasi.
• Ensure proper grounding of the electrical circuit.
• Do not use extension cords or adapters with this appliance.

3. Produk Lebihview

The N'OVEEN Electric Faucet is an instant water heater featuring an LED temperature display and a durable design. It is available with both rigid and flexible spout options.

Rajah 1: Utama view of the N'OVEEN Electric Faucet with a rigid spout, featuring an integrated LED temperature display showing '60'.

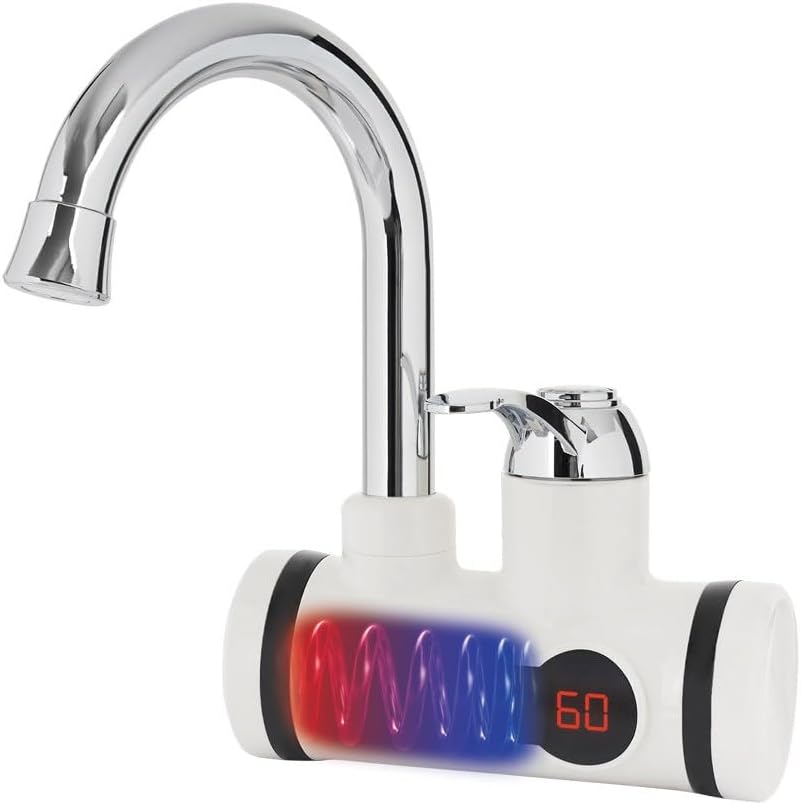

Figure 2: Diagram illustrating the internal heating process within the faucet, showing water flowing through a heated coil.

Figure 3: The N'OVEEN Electric Faucet equipped with a flexible gooseneck spout, offering versatile water direction.

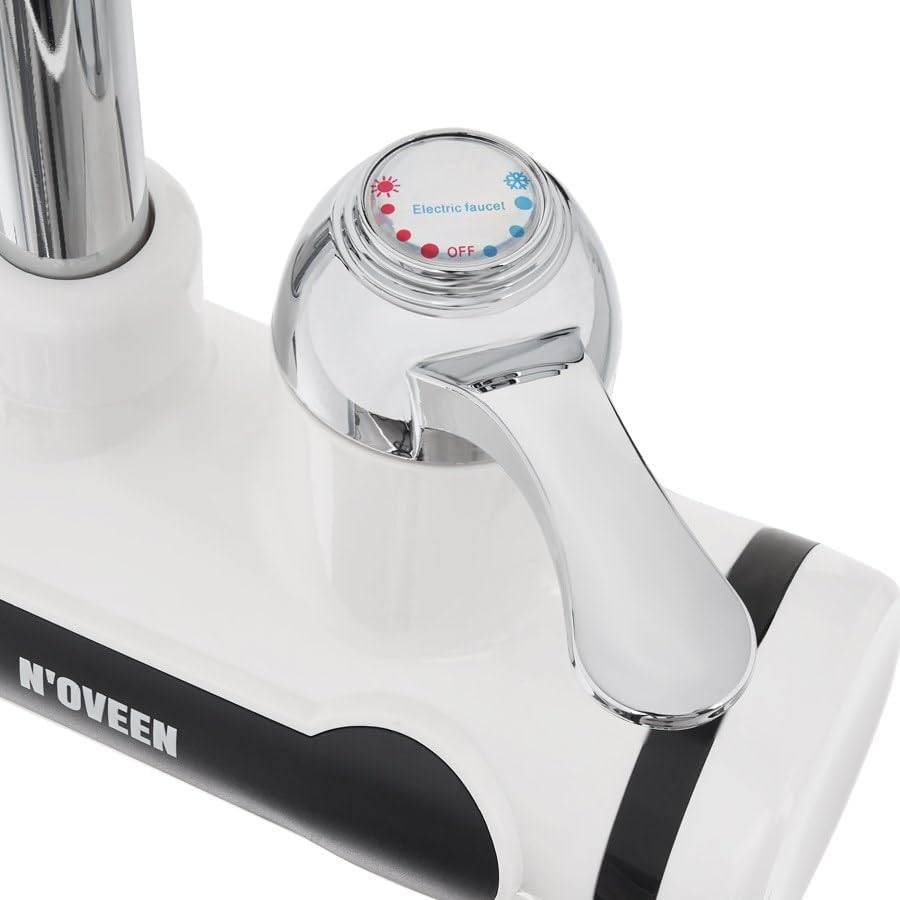

Rajah 4: Terperinci view of the faucet's control lever, indicating settings for 'Electric faucet' (hot water) and 'OFF', with red and blue indicators for temperature.

4. Persediaan dan Pemasangan

Proper installation is crucial for the safe and efficient operation of your N'OVEEN Electric Faucet. It is highly recommended that installation be carried out by a certified professional.

4.1 Kandungan Pakej

Please verify that all components are present before beginning installation. Refer to your product packaging for a complete list of included items. Typically, the package includes:

• N'OVEEN Electric Faucet unit (with rigid or flexible spout)
• Perkakasan pemasangan
• Gasket pengedap
• Manual arahan

Figure 5: The flexible spout component, which can be attached to the main faucet unit.

Figure 6: A water filter screen and a threaded adapter, essential components for proper water connection and filtration.

4.2 Langkah Pemasangan

1. Sediakan Kawasan Pemasangan: Ensure the water supply is turned off and the area under the sink is clear.
2. Pasang Faucet: Insert the faucet base into the mounting hole on your sink or countertop. Secure it from underneath using the provided mounting hardware and gaskets.
3. Sambungkan Bekalan Air: Connect the cold water inlet hose of the faucet to your cold water supply line. Ensure all connections are tight to prevent leaks.
4. Sambungkan Kuasa: Plug the power cord into a properly grounded electrical outlet. Ensure the circuit can handle a 3600W load.
5. Ujian untuk Kebocoran: Slowly turn on the main water supply and check for any leaks around the connections.
6. Siram Awal: Before first use, run cold water through the faucet for a few minutes to flush out any air or debris from the system.

5. Arahan Operasi

The N'OVEEN Electric Faucet is designed for straightforward operation, providing instant hot water on demand.

5.1 Water Temperature Control

• The faucet features a side lever for controlling water flow and temperature.
• Move the lever to the left for hot water. The further left you move it, the hotter the water will become, up to 60°C.
• Gerakkan tuil ke kanan untuk air sejuk.
• The temperature can be adjusted between 30°C and 60°C when in hot water mode.
• The heating element activates automatically when the lever is moved to the hot water position.

5.2 LED Temperature Display

• The integrated LED display shows the current water temperature in real-time.
• This allows for precise monitoring and adjustment of the water temperature for comfort and safety.

6. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your electric faucet.

6.1 Pembersihan

• Sentiasa putuskan sambungan bekalan kuasa sebelum membersihkan.
• Clean the exterior of the faucet with a soft, damp kain. Jangan gunakan pembersih yang melelas, pelarut atau bahan kimia yang keras, kerana ini boleh merosakkan kemasan.
• Periodically clean the aerator at the end of the spout to remove any mineral deposits or debris that may affect water flow. Unscrew the aerator, rinse it, and reattach.

6.2 Penyahkelasan

• In areas with hard water, mineral deposits (limescale) can build up inside the heating element and affect efficiency.
• If you notice reduced hot water flow or heating efficiency, descaling may be necessary. This procedure should ideally be performed by a qualified technician.

7. Penyelesaian masalah

If you encounter issues with your N'OVEEN Electric Faucet, refer to the following common problems and solutions.

For problems not listed here or if solutions do not resolve the issue, please contact N'OVEEN customer support or a qualified service technician.

8. Spesifikasi

9. Waranti dan Sokongan

For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official N'OVEEN website. If you require technical assistance or have questions about your product, please contact N'OVEEN customer support through the contact details provided in your purchase documentation.
