Lorex 4K 8MP IP Bullet PoE Wired Security Camera

1. Pengenalan

This user manual provides essential information for the installation, operation, and maintenance of your Lorex 4K 8MP IP Bullet PoE Wired Security Camera (Model E842CA). This camera is designed for outdoor surveillance, offering high-resolution video, advanced motion detection, and reliable performance in various weather conditions.

Please read this manual thoroughly before using the product to ensure proper setup and functionality. Keep this manual for future reference.

2. Apa yang ada di dalam Kotak

Sahkan bahawa semua komponen terdapat dalam pakej anda:

• 1x Lorex 4K Ultra HD Bullet Camera (E842CA)
• 1x Cat5 Ethernet Extension Cable
• 1x Mounting Bracket & Kit

Rajah 2.1: Depan view of the Lorex E842CA camera.

Rajah 2.2: Sisi view of the Lorex E842CA camera, showing its bullet form factor.

Rajah 2.3: Belakang view of the Lorex E842CA camera, including the adjustable mounting arm.

3. Persediaan

3.1. Pemasangan Fizikal

The Lorex E842CA camera is designed for outdoor use and can be mounted on a ceiling or wall. Choose a location that provides the desired viewing angle and is within reach of your Power over Ethernet (PoE) connection.

1. Sediakan Permukaan Pemasangan: Gunakan templat pelekap yang disertakan (jika disediakan) untuk menandakan lubang gerudi.
2. Selamatkan Pendakap Pelekap: Attach the mounting bracket to the surface using the screws and anchors from the mounting kit. Ensure it is securely fastened.
3. Pasang Kamera: Connect the camera to the mounting bracket. Adjust the camera's angle to cover the desired area.

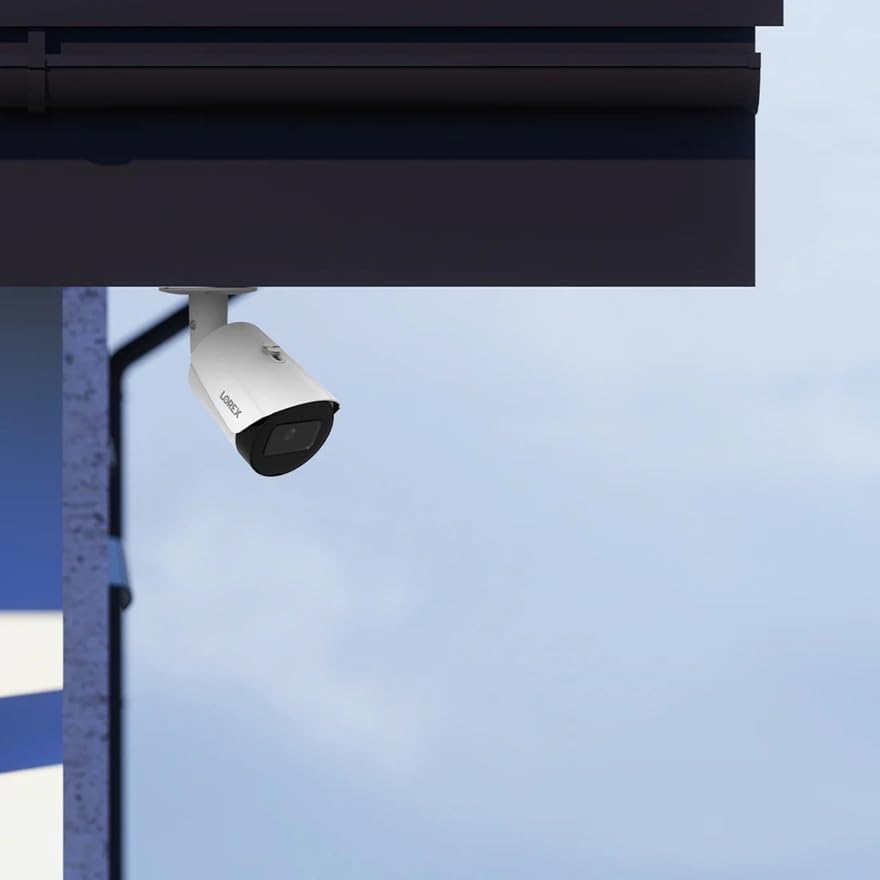

Gambar 3.1: Cthample of the Lorex E842CA camera mounted under an overhang for optimal coverage and protection.

3.2. Power and Network Connection (PoE)

This camera utilizes Power over Ethernet (PoE) for both power and data transmission, simplifying installation. A PoE injector or a PoE-enabled Network Video Recorder (NVR) is required and not included with this add-on camera.

1. Sambungkan Kabel Ethernet: Connect one end of the included Cat5 Ethernet extension cable to the camera's Ethernet port.
2. Connect to PoE Source: Connect the other end of the Ethernet cable to a PoE port on your NVR or a PoE injector.
3. Sambungan Selamat: For outdoor installations, ensure all Ethernet connections at the camera are properly protected from weather to prevent failure.

Figure 3.2: Ethernet cables connected to a network device, illustrating the wired PoE connection.

3.3. Konfigurasi Awal

The camera is designed to integrate with a Lorex NVR system. Refer to your NVR's manual for instructions on adding new IP cameras. For standalone use or integration with third-party systems, consult the Lorex support website for specific software and configuration tools.

Figure 3.3: The Lorex Fusion system, demonstrating how wired and Wi-Fi cameras can integrate with an NVR.

4. Operasi

4.1. 4K Ultra HD Video

The E842CA camera features an 8MP image sensor, providing 4K Ultra HD resolution. This high resolution ensures exceptional detail and clarity in recorded footage. The increased pixel count also enhances digital zoom capabilities, allowing for clearer identification of distant objects during post-recording analysis.

Figure 4.1: A comparison showing the enhanced detail available with 4K Ultra HD resolution, particularly when digitally zoomed.

4.2. Color Night Vision (CNV)

This camera is equipped with Color Night Vision (CNV) technology, which provides full-color video in low-light conditions. CNV performs optimally with ambient lighting present. In environments with total darkness, the camera will automatically switch to its infrared LEDs for clear black and white night vision footage.

Figure 4.2: A split image illustrating the difference between traditional infrared night vision (black and white) and Color Night Vision.

4.3. Smart Motion Detection (Person/Vehicle)

The E842CA features advanced Smart Motion Detection, capable of distinguishing between people and vehicles. This technology helps reduce false alerts by only sending notifications when a person or vehicle is detected within the camera's field of view, focusing on relevant events.

Figure 4.3: A smartphone displaying a push notification for person detection, enabled by Smart Motion Detection.

4.4. Listen-in Audio

Equipped with a built-in microphone, this camera provides listen-in audio recording. This feature captures sound from the surveillance area, offering an additional layer of information or evidence, such as voices, that complements the video footage.

Figure 4.4: An illustration of the listen-in audio feature capturing conversations within the camera's range.

4.5. Kaedah Kawalan

The camera can be controlled and monitored via a compatible NVR and the Lorex Connect or Lorex Classic mobile applications. These apps are available for Android devices and allow for remote viewmain balik dan konfigurasi tetapan kamera.

5. Penyelenggaraan

5.1. Rintangan Cuaca

The E842CA camera has an IP67 weatherproof rating, ensuring its functionality in extreme hot or freezing temperatures, as well as protection against dust and water ingress. This rating guarantees year-round outdoor coverage.

Figure 5.1: The camera operating reliably in rainy conditions, highlighting its IP67 weatherproof rating.

5.2. Pembersihan dan Pemeriksaan

Periodically inspect the camera lens for dirt or obstructions and clean with a soft, damp cloth. Avoid abrasive cleaners. Regularly check cable connections, especially outdoor Ethernet connections, to ensure they remain sealed and protected from moisture to prevent signal loss or damage.

6. Penyelesaian masalah

6.1. No Video Feed

• Semak Kuasa: Ensure the camera is receiving power via the PoE connection. Verify the PoE injector or NVR port is active.
• Semak Kabel: Inspect the Ethernet cable for damage. Try a different cable if necessary.
• Keserasian NVR: Confirm the camera is compatible with your NVR system. Refer to your NVR's documentation.

6.2. Kualiti Imej Lemah

• Kanta Bersih: Pastikan kanta kamera bersih dan bebas daripada kotoran, habuk atau comot.
• Keadaan Pencahayaan: Verify adequate lighting for Color Night Vision. In very dark conditions, the camera will switch to black and white infrared.
• Jalur Lebar Rangkaian: Ensure your network has sufficient bandwidth for 4K video streaming.

6.3. False Motion Alerts

• Laraskan Kepekaan: Reduce the motion detection sensitivity settings in your NVR or app.
• Konfigurasikan Zon Pengesanan: Set up specific detection zones to exclude areas with frequent irrelevant motion (e.g., moving trees, public pathways).
• Verify Smart Detection: Ensure Person/Vehicle detection is enabled and configured correctly.

6.4. Remote Access Issues

• Konfigurasi Rangkaian: Ensure your NVR or camera is properly connected to the internet and network settings (e.g., port forwarding) are correctly configured if not using Lorex Cloud services.
• Sambungan Apl: Verify your mobile device has a stable internet connection and the Lorex app is updated.

7. Spesifikasi

Figure 7.1: Product label for the Lorex E842CA camera, displaying key identification information.

8. Waranti & Sokongan

8.1. Maklumat Waranti

Lorex products typically come with a limited warranty. For specific details regarding the warranty period and terms for your E842CA camera, please refer to the warranty card included with your product or visit the official Lorex webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.

8.2. Sokongan Teknikal

For technical assistance, product registration, software updates, and additional resources, please visit the official Lorex support webtapak di www.lorex.com. You can also find FAQs, troubleshooting guides, and contact information for customer service there.
