1. Pengenalan
Terima kasih kerana membeliasing the Godox DP400III-V Studio Flash Light. This professional studio flash is designed for various photography applications, including wedding, portrait, fashion, advertising, and product shooting. It features a built-in Godox 2.4G wireless X system, offering precise power control and versatile lighting options. Please read this manual carefully before use to ensure proper operation and safety.
Image 1.1: The Godox DP400III-V Studio Flash Light, a powerful and versatile lighting solution for professional photography.
2. Langkah-langkah Keselamatan
- Do not disassemble or modify the unit. If the product fails, it must be repaired by an authorized maintenance center.
- Pastikan produk ini kering. Jangan kendalikan dengan tangan basah atau rendam dalam air.
- Do not use the flash unit in the presence of flammable gases, chemicals, or other similar materials.
- Do not touch the flash tube or modeling lamp immediately after use, as they can be hot.
- Pastikan bekalan kuasa voltage matches the unit's requirements before plugging in.
- Cabut palam unit daripada salur keluar kuasa apabila tidak digunakan atau sebelum dibersihkan.
- Protect the flash tube and modeling lamp from impact to prevent damage.
3. Produk Lebihview
The Godox DP400III-V features a robust design with intuitive controls for ease of use. Familiarize yourself with the key components:
Image 3.1: Key features of the DP400III-V, including the Bowens mount for accessories, wireless control port, sturdy handle, and various display options for power and wireless settings.
- Gunung Bowens: Standard mount for attaching various light modifiers like softboxes, reflectors, and snoots.
- Wireless Control Port: For connecting external wireless triggers or receivers.
- Solid Handle: Provides a secure grip for positioning the flash.
- Panel Kawalan: Features a large LCD display, rotary dial, and buttons for adjusting settings such as power, group, channel, and modeling lamp mod.
- Pemodelan Lamp: LED 30W lamp with adjustable brightness for previewkesan pencahayaan.
4. Persediaan
4.1 Memasang Denyar
- Attach the DP400III-V to a sturdy light stand using the mounting bracket. Ensure it is securely tightened.
- Connect the power cable to the flash unit and then to a suitable power outlet (100-240V, 50/60Hz).
4.2 Memasang Pengubahsuai Cahaya
The DP400III-V uses a Bowens mount, allowing for a wide range of accessories.
- Align the modifier (e.g., reflector, softbox) with the Bowens mount on the flash head.
- Twist the modifier clockwise until it clicks into place, ensuring it is firmly attached.
- To remove, press the release button on the mount and twist the modifier counter-clockwise.
Image 4.1: The DP400III-V with a standard reflector, demonstrating the Bowens mount compatibility.
5. Arahan Operasi
5.1 Hidupkan/Mati Kuasa
Locate the power switch on the control panel and flip it to the 'ON' position to power on the flash. Flip to 'OFF' to power down.
5.2 Melaraskan Kuasa Denyar
The flash power can be adjusted from 1/64 to 1/1 in 61 steps. Use the rotary dial on the control panel to increase or decrease the power output. The display shows the current power setting, which can be switched between decimal and fraction display.
Image 5.1: The control panel displaying wireless settings and power adjustment options.
5.3 Pemodelan Lamp Operasi
Pemodelan LED 30W lamp assists in previewing lighting effects. It has three modes: OFF, PROP (proportional), and Percentage.
- MATI: Pemodelan lamp dimatikan.
- PROP: Permodelan lamp brightness changes proportionally with the flash output power.
- Peratustage: The brightness of the modeling lamp is adjustable from 5% to 100% independently.

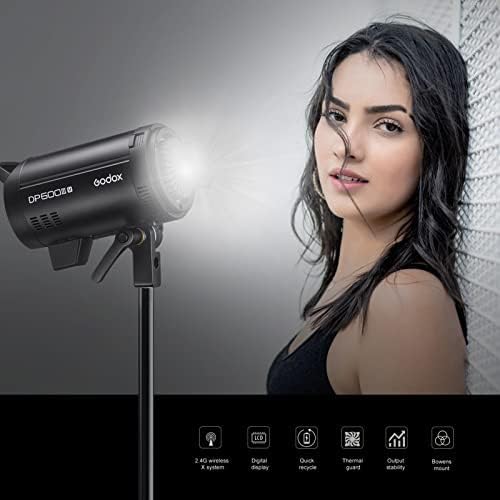

Image 5.2: The modeling lamp in action, demonstrating its ability to illuminate subjects for light preview.
Image 5.3: The modeling lamp providing continuous light for a portrait setup.
5.4 Sistem Godox 2.4G Wireless X
The DP400III-V features a built-in 2.4G wireless X system for remote control. This system allows for wireless control of flash power ratio, modeling lamp, and buzzer, as well as flash triggering.
- Use Godox X2 or XPro TTL wireless flash triggers, or the XT16/FT-16 remote control (sold separately) to achieve wireless triggering and control.
- The system supports 16 groups (0-9, A-F) and 32 channels (1-32).
- Adjusted settings are remembered after 3 seconds and recovered after a restart.
Video: Godox DP Series Upgraded Studio Flash Light Strobe Lighting
Video 5.1: An official video demonstrating the features and operation of the Godox DP Series Studio Flash Light, including its wireless capabilities and various applications.
6. Penyelenggaraan
- Clean the unit regularly with a soft, dry cloth. Avoid using solvents or harsh chemicals.
- Store the flash in a dry, dust-free environment when not in use.
- Replace the flash tube and modeling lamp only with genuine Godox parts to ensure compatibility and performance.
- Elakkan daripada mendedahkan unit kepada suhu yang melampau atau kelembapan yang tinggi.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Flash tidak menyala. |
|
|
| Pemodelan lamp tidak bekerja. |
|
|
| Output denyar yang tidak konsisten. |
|
|
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | DP400III-V |
| Kuasa Maks | 400Ws |
| Nombor Panduan (GN) | 87 (m ISO 100, with standard reflector) |
| Suhu Warna | 5600K ± 200K |
| Kawalan Keluaran Kuasa | 61 steps from 1/64 to 1/1 |
| Masa Kitar Semula | 0.1-1s |
| Tempoh Kilat | 1/2000 hingga 1/800 saat |
| Pemodelan Lamp | 30W LED, adjustable brightness (5%-100%) |
| Sistem Tanpa Wayar | Sistem Godox 2.4G Wireless X Terbina Dalam |
| Channels/Groups | 32 Channels (1-32), 16 Groups (0-9, A-F) |
| Mod Penyegerakan | Sync cord jack, optical slave triggering, wireless control port |
| Gunung Bowens | ya |
| Berat Barang | 8.91 paun (lebih kurang 4.04 kg) |
| Dimensi | 16.5 x 9.06 x 7.83 inci (lebih kurang 41.9 x 23 x 19.9 cm) |
9. Waranti & Sokongan
Godox products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims.
- Tempoh Waranti: Typically one year from the date of purchase. Specific terms may vary by region.
- Pengecualian: The warranty does not cover damage caused by misuse, unauthorized modification, accident, or normal wear and tear. Consumable parts like flash tubes and modeling lamps may have a shorter warranty period or be excluded.
- Sokongan: For technical assistance, troubleshooting, or warranty service, please contact your authorized Godox dealer or visit the official Godox webtapak untuk maklumat hubungan sokongan.
