Manual Pengguna Fon Telinga Tanpa Wayar Instiwitt K65

1. Pengenalan

Welcome to the Instiwitt K65 Wireless Earbuds User Manual. This guide provides comprehensive instructions on how to set up, operate, maintain, and troubleshoot your new earbuds. Please read this manual carefully before using the product to ensure optimal performance and longevity.

2. Produk Lebihview

The Instiwitt K65 Wireless Earbuds are designed for comfortable and enjoyable audio experiences, especially for children, featuring a unique and playful charging case. They offer wireless connectivity and intuitive controls.

2.1 Komponen

• Instiwitt K65 Wireless Earbuds (Left and Right)
• Kes Pengecasan
• Kabel Pengecas USB
• Berbilang saiz hujung telinga (S, M, L)

Figure 2.1: Instiwitt K65 Wireless Earbuds and Charging Case. The earbuds are white with light-up indicators, and the charging case is pink, shaped like a cartoon character's head.

Figure 2.2: Ergonomic Ear Gels and Design. The earbuds feature a three-point fixation for secure fit during activity and an oval sound outlet for comfortable wear.

Figure 2.3: Child wearing Instiwitt K65 Earbuds. The earbuds are designed to be comfortable and gentle for children's ears, offering noise reduction and adjustability.

Figure 2.4: Instiwitt K65 Earbuds in various scenarios. The earbuds are suitable for diverse activities such as travel, studying, and entertainment.

Figure 2.5: Fashionable Design and Comfort. The earbuds are lightweight (only 3.5g) and designed to fit children's ear canal size comfortably, providing deep bass audio.

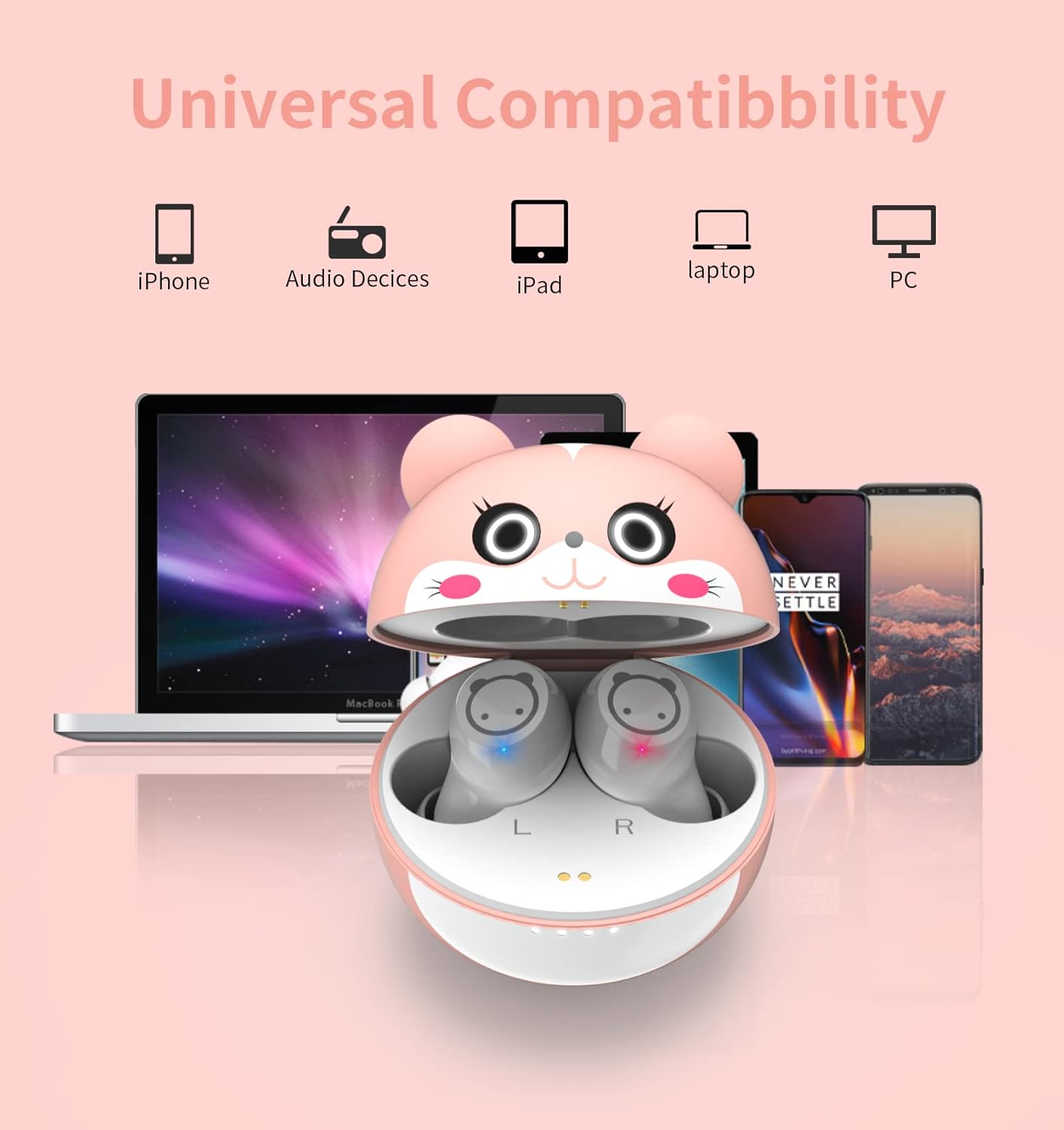

Figure 2.6: Universal Compatibility. The Instiwitt K65 earbuds are compatible with various Bluetooth-enabled devices including iPhones, audio devices, iPads, laptops, and PCs.

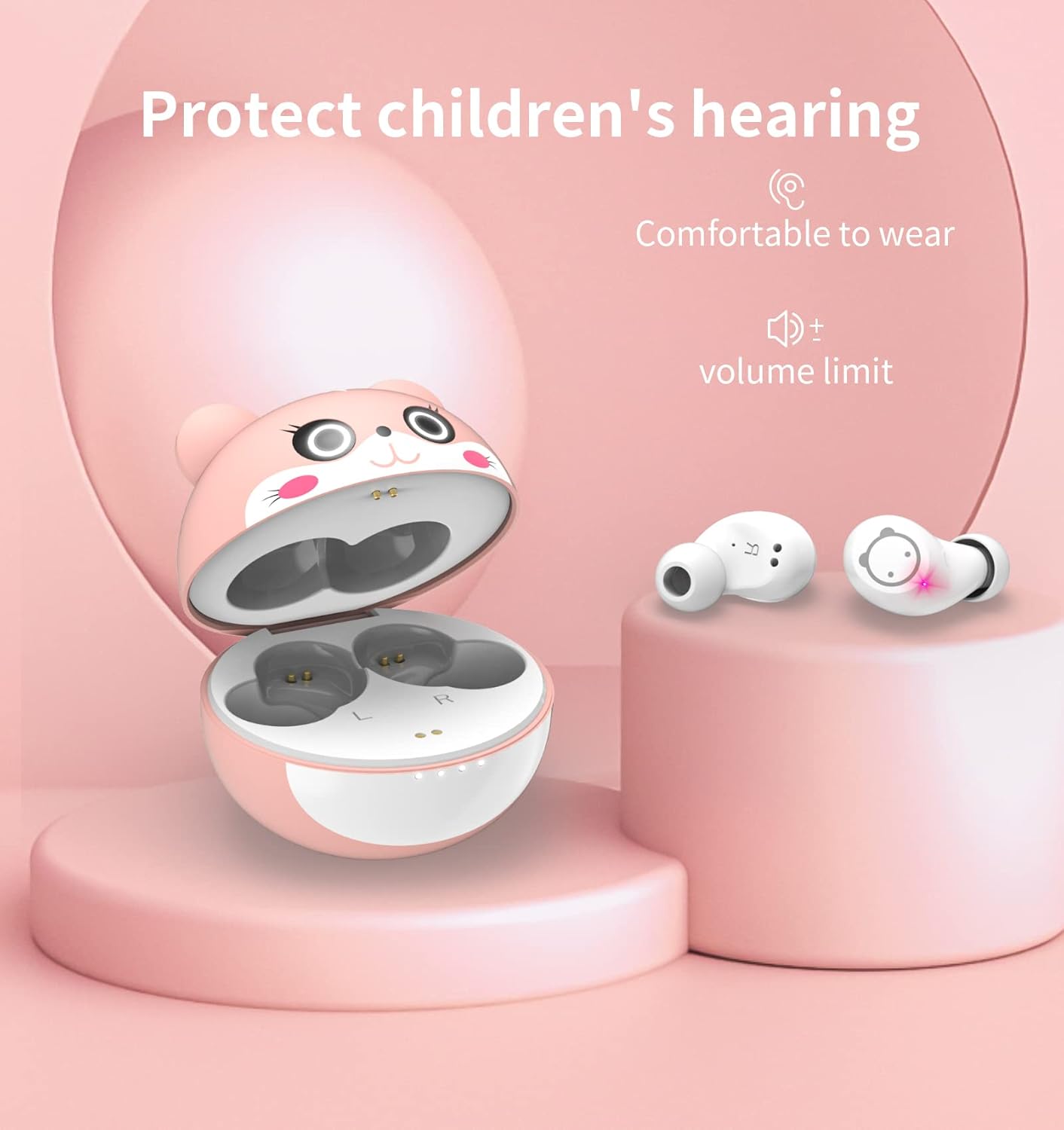

Figure 2.7: Hearing Protection Feature. The earbuds are designed with a volume limit to protect children's hearing, ensuring comfortable and safe listening levels.

3. Persediaan

3.1 Pengecasan Awal

Before first use, fully charge the earbuds and the charging case. Place both earbuds into the charging case. Connect the charging case to a USB power source using the provided charging cable. The indicator lights on the case will show charging status.

• A single charge provides approximately 4-5 hours of listening time.
• With the charging case, total listening time can exceed 32 hours.
• Approximately 2 hours of charging provides 36 hours of listening time.

Figure 3.1: Instiwitt K65 Earbuds in Charging Case. The earbuds are placed inside the case for charging and storage. The case has indicator lights to show battery level.

Figure 3.2: Battery Life and Dynamic Driver Unit. Illustrates the extended battery life with the charging case and highlights the 6mm dynamic driver unit for deep bass and clear sound.

3.2 Berpasangan dengan Peranti

1. Pastikan fon telinga dicas sepenuhnya.
2. Buka bekas pengecas. Fon telinga akan memasuki mod berpasangan secara automatik (lampu penunjuk akan berkelip).
3. Pada peranti anda (telefon pintar, tablet, komputer riba), dayakan Bluetooth.
4. Cari untuk "Instiwitt K65" or similar in the list of available Bluetooth devices.
5. Select "Instiwitt K65" to connect. Once connected, the earbud indicator lights will stop flashing.
6. Jika pemasangan gagal, letakkan semula fon telinga ke dalam bekas, tutupnya dan ulangi langkah-langkah tersebut.

4. Arahan Operasi

The Instiwitt K65 earbuds feature smart touch controls for easy management of audio playback and calls.

Figure 4.1: Smart Touch Control Guide. This image illustrates the touch gestures for various functions, though the earbuds shown are black, the controls apply to the K65 model.

4.1 Main balik Muzik

• Main/Jeda: Double-tap the touch area on either the Left (L) or Right (R) earbud.
• Lagu Seterusnya: Single-tap the touch area on the Right (R) earbud.
• Trek Sebelumnya: Single-tap the touch area on the Left (L) earbud.
• Kelantangan: Double-tap the touch area on the Right (R) earbud.
• Perlahankan suara: Double-tap the touch area on the Left (L) earbud.

Note: The provided image indicates single tap for volume control. Please refer to the specific product behavior for accurate volume adjustment.

4.2 Pengurusan Panggilan

• Jawab/Tutup Panggilan: Double-tap the touch area on either the Left (L) or Right (R) earbud during an incoming call or to end an active call.
• Tolak Panggilan: Double-tap the touch area on either the Left (L) or Right (R) earbud during an incoming call.

4.3 Pembantu Suara

• Aktifkan Pembantu Suara (Siri, Pembantu Google, dll.): Triple-tap the touch area on the Left (L) earbud.

4.4 Single and Dual Earbud Use

The Instiwitt K65 earbuds support both single and dual earbud modes. You can use either the left or right earbud independently, or both together for a stereo experience.

Figure 4.2: Single and Dual Earbud Use. This image illustrates the flexibility of using one or both earbuds, allowing for single or dual earbud operation.

5. Penyelenggaraan

Proper maintenance ensures the longevity and optimal performance of your Instiwitt K65 earbuds.

5.1 Pembersihan

• Regularly clean the charging contacts on both the earbuds and inside the charging case using a dry, lint-free cloth or a toothpick. This prevents charging issues.
• Clean the ear tips and the mesh covers of the earbuds to prevent wax buildup, which can affect sound quality. Remove the ear tips and gently wipe them. Use a soft, dry brush or cotton swab for the mesh.

Figure 5.1: Cleaning Charging Contacts and Ear Tips. Demonstrates how to clean the charging contacts to resolve charging issues and how to clean ear tips and mesh for optimal sound quality.

5.2 Penyimpanan

• Sentiasa simpan fon telinga dalam bekas pengecas apabila tidak digunakan untuk melindunginya dan memastikan ia dicas.
• Simpan peranti di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.

6. Penyelesaian masalah

If you encounter issues with your Instiwitt K65 earbuds, refer to the following common problems and solutions.

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information or technical support, please contact Instiwitt customer service through the retailer where you purchased the product or visit the official Instiwitt webtapak. Sila simpan bukti pembelian anda untuk tuntutan waranti.
