1. Pengenalan
This manual provides essential information for the safe and effective operation, setup, and maintenance of your HITBOX MIG250 Multi-Process Welder. The MIG250 is a versatile 5-in-1 welding machine designed for various applications, offering MIG (Gas/Gasless), ARC (MMA), and Lift TIG welding capabilities. It features a 250A output, 240V input, and an intuitive LCD digital display for precise control.
Image 1.1: The HITBOX MIG250 Multi-Process Welder with included accessories, showcasing its compact design and various connection points.
2. Arahan Keselamatan
Sentiasa utamakan keselamatan semasa mengendalikan peralatan kimpalan. Kegagalan mematuhi arahan ini boleh mengakibatkan kecederaan serius atau kematian.
- Perlindungan Mata dan Muka: Sentiasa pakai topi keledar kimpalan dengan kanta pelindung yang sesuai untuk melindungi mata dan muka anda daripada sinaran arka dan percikan api.
- Pakaian Pelindung: Wear flame-resistant clothing, gloves, and sturdy footwear to protect against burns and electrical shock.
- Pengudaraan: Ensure adequate ventilation to remove welding fumes and gases from the work area. Welding fumes can be hazardous to your health.
- Keselamatan Elektrik: Pastikan mesin kimpal dibumikan dengan betul. Jangan kendalikan dalam keadaan basah. Periksa kabel dan sambungan untuk kerosakan sebelum setiap penggunaan.
- Pencegahan Kebakaran: Keep a fire extinguisher nearby. Remove flammable materials from the welding area. Hot sparks and slag can cause fires.
- Gas Cylinder Safety: Secure gas cylinders to prevent them from falling. Handle cylinders with care and ensure proper connections.
- Kawasan Kerja: Pastikan kawasan kerja bersih dan bebas daripada kekusutan. Pastikan tapak kaki stabil.
- Kanak-kanak dan Penonton: Jauhkan kanak-kanak dan kakitangan yang tidak dibenarkan dari kawasan kimpalan.
3. Produk Lebihview
3.1. Komponen yang Disertakan
The HITBOX MIG250 package typically includes the following items:
- 1x MIG Welder Unit
- 1x MIG Welding Torch
- 1x Cl Tanahamp
- 1x Manual Welder Clamp (Electrode Holder)
- 1x Gas Hose
- 1x Conductive Nozzle
- 1x Wire Feed Roller
3.2. Panel Kawalan dan Paparan
The welder features a large, interactive LCD display for clear visualization of welding parameters. This display allows for precise adjustment of settings such as welding function, wire diameter, metal type, wire feed speed, and voltage faktor.
Image 3.1: Close-up of the HITBOX MIG250's large LCD control panel, showing various settings and indicators.
Image 3.2: The large operating window on the HITBOX MIG250, illustrating the display of various metals, welding wires, and 2T/4T switching options.
3.3. Welder Features
The HITBOX MIG250 incorporates advanced features for enhanced performance and safety:
- 6-in-1 Multi-Process Capability: Supports MIG MIX, MIG CO2, Flux Cored, Lift TIG, MMA, and Aluminum Welding.
- Teknologi Inverter IGBT: Provides more efficient and stable welding compared to traditional MOS transistors.
- Dwi Voltage: Operates on 110V/220V power supplies.
- Kawalan Sinergik: Simplifies parameter setup for various welding tasks.
- Integrated VRD Function: Voltage Reduction Device for increased safety, especially in ARC and Lift TIG modes.
- Kipas Penyejuk Berkelajuan Tinggi: Ensures efficient heat dissipation, operating only when necessary to reduce noise.
- Ciri-ciri perlindungan: Includes overload, overcurrent, and overheating protection.
Image 3.3: Illustration of the HITBOX MIG250's 6-in-1 multi-function capabilities, including MIG with gas, gasless MIG, MIG MIX, aluminum welding, ARC/MMA, and Lift TIG.
Image 3.4: The HITBOX MIG250's cooling system, highlighting the high-speed fan and various protection features like VRD, quiet operation, overload, overcurrent, and overheating protection.
3.4. Dimensi dan Berat
The compact design of the MIG250 makes it portable and easy to handle.
- Dimensi Pakej: 49.4 x 45.7 x 26.2 cm
- Berat Barang: 12.2 kg (kira-kira 27.5 lbs)

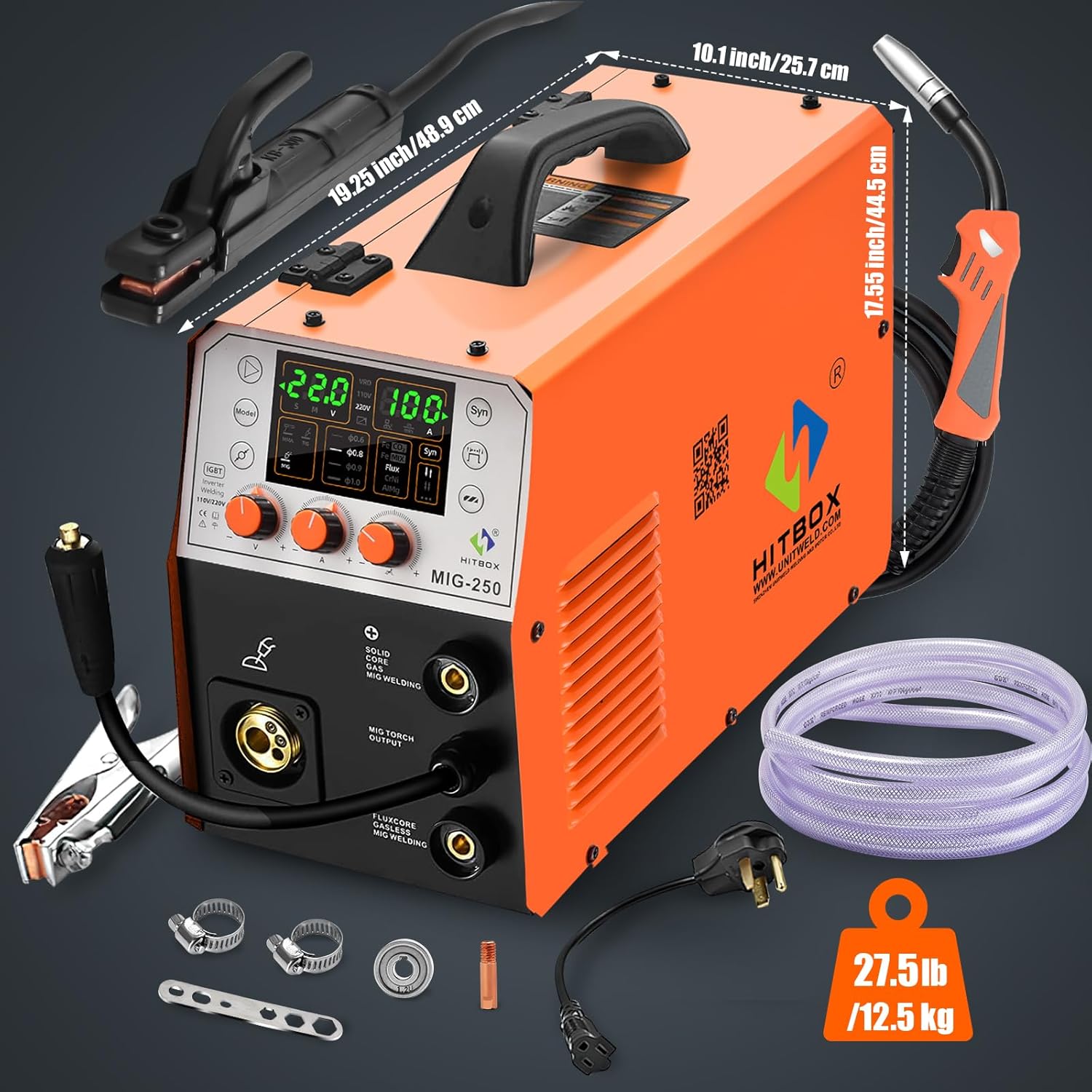

Imej 3.5: Terperinci view of the HITBOX MIG250's dimensions and included components, such as the ground clamp, electrode holder, gas hose, and wire feed roller.
4. Persediaan
4.1. Sambungan Kuasa
Connect the welder to a suitable 240V (or 110V/220V compatible) power outlet. Ensure the power supply matches the welder's requirements to prevent damage.
4.2. Pemasangan Wayar
The MIG250 supports various welding wire types and diameters, including 0.6mm, 0.8mm, 0.9mm, and 1.0mm solid wire, as well as 0.8mm and 1.0mm aluminum wire. It can accommodate 1kg or 5kg spools of filler wire.
- Buka petak kili wayar.
- Letakkan gelendong wayar pada gelendong, pastikan ia berputar dengan bebas.
- Thread the welding wire through the wire feed mechanism, ensuring it passes through the correct groove on the feed roller for the chosen wire diameter.
- Close the compartment and adjust the wire tension as needed.

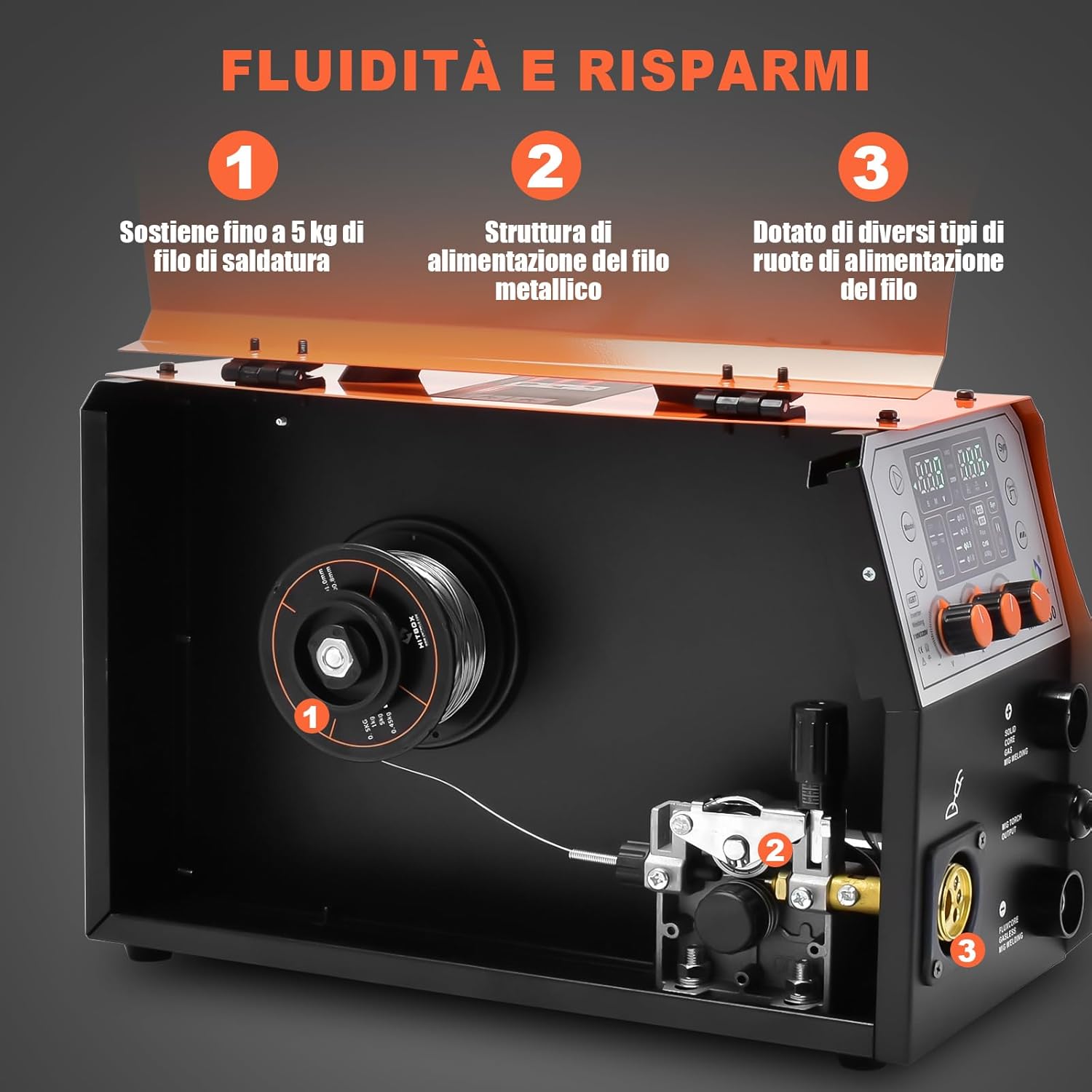

Imej 4.1: Dalaman view of the HITBOX MIG250, illustrating the wire feed mechanism, support for up to 5kg wire spools, and different types of wire feed rollers.
4.3. Gas Connection (for MIG with Gas)
For MIG welding with gas (MIG CO2 or MIG MIX), connect the gas hose from your gas cylinder to the gas inlet on the welder. Ensure all connections are secure and leak-free. Use appropriate shielding gas for your welding application (e.g., CO2 for steel, Argon/CO2 mix for stainless steel).
4.4. Obor dan Tanah Clamp Sambungan
Connect the MIG torch to the designated MIG torch output. Connect the ground clamp cable to the ground terminal and securely attach the clamp ke bahan kerja, memastikan sentuhan elektrik yang baik.
5. Mod Operasi
The HITBOX MIG250 offers multiple welding processes. Select the desired mode on the control panel.
5.1. Kimpalan MIG (Gas/Tanpa Gas)
MIG welding is suitable for various metals including iron, stainless steel, alloy steel, carbon steel, cadmium metal, cadmium-copper metal, and aluminum-magnesium metal. The current range for MIG welding is 30-180A, with a voltage adjustment range of 11-26V.
- MIG CO2: Uses CO2 shielding gas for welding steel.
- MIG MIX: Uses a mixed shielding gas (e.g., Argon/CO2) for various metals.
- Flux Cored (Gasless MIG): Uses flux-cored wire, eliminating the need for external shielding gas.
- Mod 2T/4T: Select 2T for short, intermittent welds or 4T for longer, continuous welds.
- Kawalan Induktans: Adjust the inductance effect to fine-tune the arc width and improve weld quality.
5.2. ARC/MMA Welding
The MMA mode supports welding with electrodes from 1.6mm to 4.0mm in diameter, with a current range of 30-180A. Common electrode types like 6013 and 7018 are supported.
- Fungsi VRD: The built-in VRD (Voltage Reduction Device) enhances safety by reducing the open-circuit voltage when not welding.
- Anti-Stick Process: Prevents the electrode from sticking to the workpiece, ensuring smoother arc initiation.
5.3. Angkat Kimpalan TIG
The Lift TIG mode offers a current range of 20-180A. This machine uses a scratch-start (Lift TIG) ignition method.
- Fungsi VRD: The VRD light illuminates in Lift TIG mode to prevent the tungsten needle from sticking to the workpiece.
- Obor TIG: A TIG torch is not included and must be purchased separately. Gas for TIG welding must be connected directly to the TIG torch, as there are no dedicated gas connections for TIG on the machine.
6. Penyelenggaraan
Penyelenggaraan tetap memastikan umur panjang dan prestasi optimum pengimpal anda.
- Pembersihan: Periodically clean the welder's exterior and internal components (if accessible and safe to do so) to remove dust and debris. Use compressed air for internal cleaning.
- Pemeriksaan Kabel: Regularly inspect all welding cables, torches, and ground clamps for cuts, fraying, or damage. Replace damaged components immediately.
- Sistem Suapan Kawat: Check the wire feed rollers and liner for wear. Clean any debris from the wire feed path to ensure smooth wire delivery.
- Nozzles and Contact Tips: Replace MIG nozzles and contact tips as they wear out to maintain consistent arc performance.
- Storan: Simpan mesin kimpal di persekitaran yang bersih dan kering apabila tidak digunakan.
7. Penyelesaian masalah
Rujuk jadual berikut untuk isu-isu lazim dan potensi penyelesaiannya:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kimpalan tidak boleh dihidupkan | No power supply; damaged power cable; internal fault | Check power connection and circuit breaker; inspect power cable; contact support if fault persists. |
| No arc in MIG mode | No wire feed; poor ground connection; incorrect settings; clogged contact tip | Check wire spool and feed mechanism; ensure ground clamp is secure; verify welding parameters; clean/replace contact tip. |
| No arc in ARC/MMA mode | Sambungan pembumian yang lemah; tetapan arus yang salah; damp elektrod | Pastikan tanah clamp is secure; adjust current; use dry electrodes. |
| Kualiti kimpalan yang tidak baik | Incorrect parameters; improper technique; contaminated workpiece; insufficient gas flow (MIG) | Laraskan arus/volumtage/wire speed; practice technique; clean workpiece; check gas cylinder and flow rate. |
| Isu pemakanan wayar | Incorrect roller size; tension too loose/tight; clogged liner; bent wire | Ensure correct roller for wire diameter; adjust tension; clean/replace liner; check wire spool for tangles. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact HITBOX customer support.
8. Spesifikasi Teknikal
| Spesifikasi | Nilai |
|---|---|
| Pengeluar | HITBOX |
| Nombor Model Item | MIG250 |
| Kuasa Input Dinilai | 5.9 kW |
| Arus Input Dinilai | 26.2 A |
| Julat Arus Kimpalan (MMA) | 30 – 180 A |
| Julat Arus Kimpalan (TIG) | 20 – 180 A |
| Julat Arus Kimpalan (MIG) | 30 – 180 A |
| Voltage Adjustment Range (MIG) | 11 – 26 V |
| Jumlah Kecekapan | 75% |
| Jenis Perlindungan | IP21S |
| Kelas Penebat | H |
| Suitable Welding Wire Diameter | 0.6/0.8/0.9/1.0 mm |
| Suitable Electrode Diameter | 1.6 – 4.0 mm |
| Berat Barang | 12.2 Kilogram |
| Jenis Kuasa | AC DC |
9. Waranti dan Sokongan
The HITBOX MIG250 Welder comes with a Waranti 2 tahun, memastikan ketenangan fikiran mengenai kualiti dan prestasi produk.
For any questions, technical assistance, or troubleshooting beyond this manual, please contact HITBOX customer service. Our 24-hour online customer service team is available to assist you with any issues you may encounter.
For more information, visit the official HITBOX webtapak: www.unitweld.com
