YOSE POWER Ebike Hailong 36V14.5Ah Battery Instruction Manual

1. Maklumat Keselamatan Penting

Please read all safety instructions carefully before using the battery. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always keep the battery in a dry and isolated environment.
• Avoid strong pressure and contact with children.
• Do not disassemble, modify, or attempt to repair the battery.
• Do not expose the battery to extreme temperatures (above 60°C or below -20°C).
• Use only the specified charger (42V 2A) for this battery.
• Dispose of lithium batteries properly according to local laws and regulations.
• If the battery is not used for an extended period, charge it every three months to maintain its health.

2. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• YOSE POWER Ebike Battery Pack (36V14.5Ah)
• Battery Charger (42V 2A)
• Keys (for battery lock)
• Manual Pengguna (dokumen ini)
• Fuses (spare)
• Discharge Cable (JST interface, red for positive, black for negative)
• Mounting Rail/Bracket

Image: Package contents showing the battery, charger, keys, fuses, and user manual.

3. Persediaan dan Pemasangan

Before installation, ensure the battery voltage and dimensions are compatible with your electric bicycle. The battery dimensions are approximately 361mm x 92mm x 90mm.

3.1 Memasang Bateri

The battery features a robust aluminum cover with a dedicated guide rail for easy installation and removal. Secure the mounting rail to your e-bike frame using appropriate fasteners (not included, typically part of the e-bike kit).

1. Attach the mounting rail securely to your e-bike frame.
2. Slide the battery onto the mounting rail until it clicks into place.
3. Use the provided key to lock the battery to the frame. This mechanical lock helps protect against theft.

Image: Detail of the battery's safe lock and battery level lights.

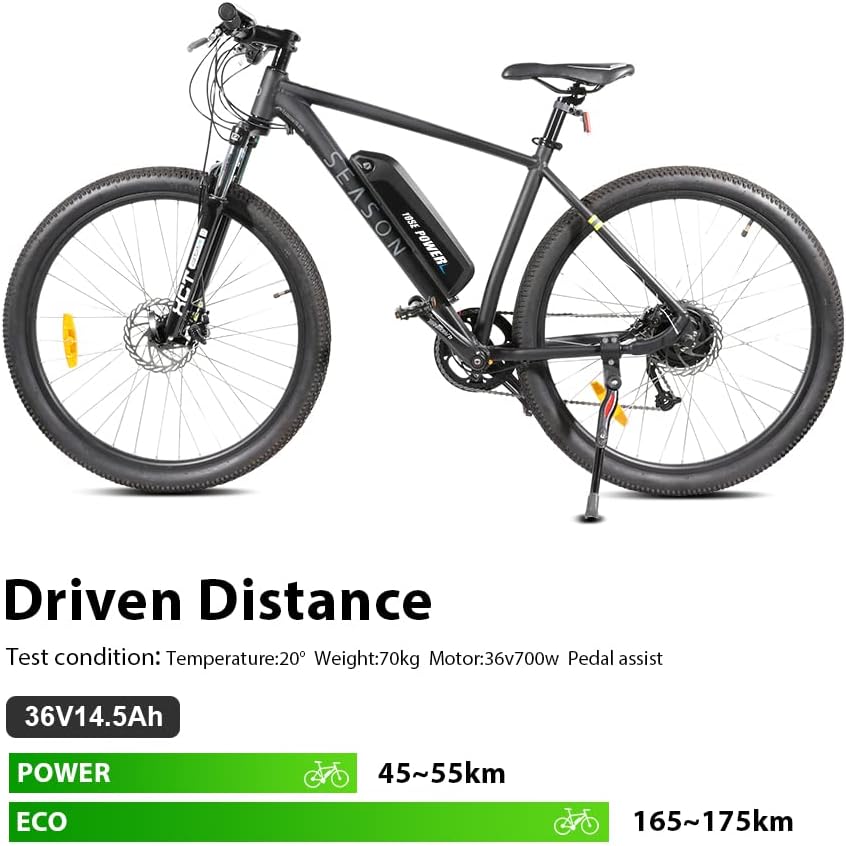

Image: The YOSE POWER battery installed on an electric bicycle.

3.2 Menyambung Bateri

The battery is equipped with a discharge socket and a power switch.

Image: Details of the discharge socket, charge socket, and power switch on the battery.

• Discharge Socket: Connect the discharge cable (JST interface) from the battery to your e-bike controller's power cable. The red wire is for positive (+), and the black wire is for negative (-).
• Suis kuasa: The power switch is located near the charge socket. "O" indicates power off, and "-" indicates power on.

4. Arahan Operasi

4.1 Mengecas Bateri

Use only the provided 42V 2A charger. The charge current for the charge socket should not exceed 5 amps.

1. Ensure the battery is turned off before charging.
2. Connect the charger to the battery's charge socket.
3. Palamkan pengecas ke salur keluar dinding standard.
4. The charging indicator on the charger will show the charging status.
5. Pengecasan penuh biasanya mengambil masa lebih kurang 8 jam.
6. Once fully charged, disconnect the charger from the battery and then from the wall outlet.

4.2 Menyemak Tahap Bateri

The battery is equipped with a battery level indicator light.

Image: Detail of the battery's safe lock and battery level lights.

Press the power button on the battery to illuminate the battery level lights, providing an instant visual indication of the remaining charge.

4.3 Menghidupkan/Mematikan

Use the power switch located near the charge socket to turn the battery on or off. Set to "-" for power on and "O" for power off.

5. Penyelenggaraan dan Penjagaan

• Pengecasan Biasa: If the battery is not in use, charge it every three months to prevent deep discharge and prolong its lifespan.
• Storan: Store the battery in a cool, dry, and well-ventilated area, away from direct sunlight and extreme temperatures.
• Pembersihan: Wipe the battery exterior with a soft, dry cloth. Do not use water or cleaning agents.
• Julat Suhu:
  • Suhu Pengecasan: 0°C hingga 45°C (32°F hingga 113°F)
  • Discharge Temperature: -20°C to 60°C (-4°F to 140°F)
  • Suhu Penyimpanan: -20 ° C hingga 45 ° C (-4 ° F hingga 113 ° F)
• Perlindungan BMS: The intelligent Battery Management System (BMS) prevents overcharge, over-discharge, over-current, and short circuits, ensuring a long service life.

6. Penyelesaian masalah

If you encounter issues with your YOSE POWER battery, refer to the following common problems and solutions:

If the problem persists, please contact YOSE POWER customer support for assistance.

7. Spesifikasi

Image: Technical specifications and dimensions of the YOSE POWER Ebike Battery.

Imej: Depan view of the YOSE POWER Ebike Battery.

8. Waranti dan Sokongan

YOSE POWER provides the following warranty for this product:

• Bateri: Waranti 18 bulan dari tarikh pembelian.
• Pengecas: Waranti 12 bulan dari tarikh pembelian.
• Polisi Pemulangan: 30-day no-reason return from the date of purchase.

All batteries undergo quality control testing before leaving the factory to ensure reliability.

Even after the warranty period, YOSE POWER continues to offer technical support and accessory purchasing pilihan.

For returns or exchanges, please contact YOSE POWER customer service before sending any package. Unauthorized returns may be rejected or delay refunds.

For further assistance or inquiries, please visit the official YOSE POWER webtapak atau hubungi sokongan pelanggan mereka.

9. Pelupusan Alam Sekitar

Please adhere to local laws and regulations for the proper disposal of lithium batteries. Do not dispose of the battery with household waste.

WEEE-Reg-No: DE 31838004

Packcke: DE5677895103216

Confirm that the packaging is reusable according to the new German "Act de l'emballage" (Packaging Act).
