Coleman Tough Wide Dome IV/300 Hexa Tarp Set Instruction Manual

1. Produk Lebihview

This Coleman Tough Wide Dome IV/300 Hexa Tarp Set (Model: 2190861) is designed for outdoor enthusiasts seeking a reliable and spacious shelter solution. It includes a dome tent and a hexa tarp, offering versatile configurations for various camping scenarios. The tent features a large sleeping area, a spacious vestibule, and an advanced ventilation system to enhance comfort and reduce condensation.

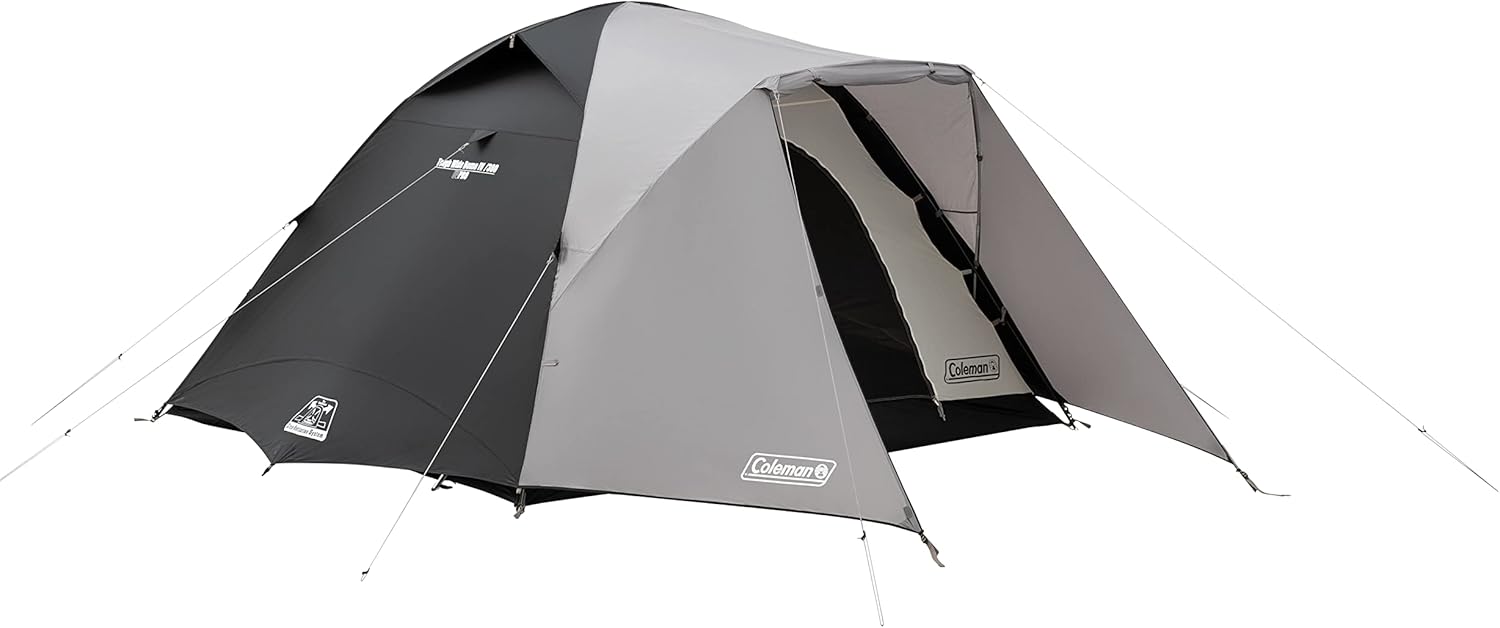

Image 1.1: The Coleman Tough Wide Dome IV/300 Hexa Tarp Set, showcasing both the tent and the accompanying tarp.

2. Maklumat Keselamatan

Please read and understand all safety instructions before setting up and using this product. Failure to follow these instructions may result in injury or damage to the product.

• Keselamatan Kebakaran: Keep all flame and heat sources away from the tent and tarp fabric. The fabric is not fireproof and will burn if exposed to open flame.
• Pengudaraan: Ensure adequate ventilation to prevent suffocation and carbon monoxide poisoning. Do not use fuel-burning appliances inside the tent.
• Keadaan Cuaca: Do not set up the tent or tarp in extreme weather conditions such as strong winds, heavy rain, or lightning. Disassemble and store the product if severe weather is anticipated.
• Pemilihan Tapak: Choose a level, clear area free of sharp objects, rocks, and debris. Avoid setting up under trees with dead branches.
• Berlabuh: Always use all provided pegs and guy ropes to securely anchor the tent and tarp. Loose anchoring can lead to collapse in windy conditions.
• Kanak-kanak: Keep children away from the tent and tarp during setup and takedown. Do not allow children to play with packaging materials.

3. Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• Tent Flysheet
• Khemah Dalam
• Hexa Tarp Skin
• Tent Main Poles (Aluminum Alloy)
• Tent Front Pole (FRP)
• Tarp Main Poles (Steel, with lantern hanger) - 2 pieces
• Tarp Side Poles (Steel) - 2 pieces
• Pasak
• Tali
• tukul
• Bawa Beg

4. Arahan Persediaan

4.1. Tent Setup

1. Unpack all components from the carry bag and lay them out on a clean, flat surface.
2. Spread out the inner tent.
3. Assemble the two aluminum alloy main poles. Thread each main pole through the corresponding sleeves on the inner tent.
4. Insert the ends of the main poles into the end pins located at the corners of the inner tent. This will raise the inner tent structure.
5. Drape the tent flysheet over the erected inner tent, ensuring the front and rear are correctly oriented.
6. Attach the flysheet to the inner tent poles using the clips or ties provided.
7. Assemble the FRP front pole and insert it into the designated sleeve at the front of the flysheet to create the vestibule. Secure it with pins.
8. Secure the tent to the ground using pegs at all anchor points.
9. Attach and tension all guy ropes to provide stability, especially in windy conditions.

Imej 4.1: Depan view of the erected tent, showing the vestibule area.

Imej 4.2: Belakang view of the erected tent, demonstrating overall structure.

Image 4.3: The inner tent structure before the flysheet is applied.

4.2. Hexa Tarp Setup

1. Unfold the hexa tarp skin on a clear area.
2. Assemble the two steel main poles.
3. Insert the main poles into the grommets or reinforced points on the tarp, raising the center of the tarp.
4. Secure the main poles with guy ropes, pegging them firmly into the ground.
5. Attach and tension additional guy ropes from the tarp's edges to create the desired shape and stability.
6. Utilize the two included side poles to create extended shade areas or different configurations as needed.

Image 4.4: The Coleman Hexa Tarp set up independently.

5. Operasi dan Penggunaan

5.1. Tent Usage

• Kawasan Tidur: The inner tent provides a spacious sleeping area of approximately 300 x 300 x 185 (h) cm, comfortably accommodating 4 to 5 people.
• Vestibule: The large front vestibule, created by the front pole, offers a sheltered space for gear storage or as a dry entry point during rain.
• Sistem Pengudaraan: The tent is equipped with a ventilation system at the top. This system draws in cool air from outside the sleeping area and expels warm, humid air, which helps to reduce stuffiness and minimize condensation inside the tent. Ensure vents are open for optimal airflow.

Image 5.1: The spacious front vestibule of the tent, ideal for gear or sheltered entry.

5.2. Tarp Usage

• Ruang Hidup: When set up with the tent, the hexa tarp creates a comfortable and shaded living space, ideal for cooking, dining, or relaxing outdoors.
• Versatile Arrangement: The included side poles allow for various configurations, enabling you to adjust the tarp's shape and coverage based on sun direction or weather conditions.
• Penggunaan Bebas: The tarp can also be used independently as a standalone shelter for day trips or as an additional shade structure.

6. Penyelenggaraan

6.1. Pembersihan

• Clean the tent and tarp with a soft brush or sponge and mild soap. Do not use harsh detergents, bleach, or solvents.
• Rinse thoroughly with water and allow to air dry completely before packing.
• Clean poles and pegs with a damp cloth and dry them before storage.

6.2. Penyimpanan

• Ensure the tent, tarp, and all components are completely dry before packing to prevent mildew and damage.
• Fold the tent and tarp neatly and place them back into the carry bag.
• Simpan di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.

7. Penyelesaian masalah

• pemeluwapan: If condensation occurs, ensure all ventilation openings are fully open. Proper airflow is crucial to minimize moisture buildup.
• Bocor: Check all seams for proper sealing. If leaks persist, a seam sealer may be applied (sold separately). Ensure the flysheet is properly tensioned and not touching the inner tent.
• Poles Not Fitting: Verify that you are using the correct poles for each section (main tent poles, front tent pole, tarp main poles, tarp side poles). Ensure poles are fully assembled and free of bends or damage.
• Ketidakstabilan: Ensure all pegs are securely driven into the ground and all guy ropes are properly attached and tensioned. Adjust tension as needed for changing wind conditions.

8. Spesifikasi

Image 8.1: Dimensions of the Coleman Tough Wide Dome IV/300 Tent.

9. Waranti dan Sokongan

For warranty information, product support, or to purchase replacement parts, please refer to the official Coleman website or contact Coleman customer service directly. Keep your proof of purchase for warranty claims.

Official Coleman Webtapak: www.coleman.com

Perkhidmatan Pelanggan: Please check the Coleman webtapak untuk maklumat hubungan serantau.
