1. Pengenalan
This manual provides essential information for the proper installation, operation, and maintenance of the All States Baler Starter Flap Belt, Model 128006. This component is designed as a replacement part for specific agricultural baler models to ensure efficient baling operations. Please read these instructions carefully before attempting any installation or maintenance procedures.
2. Produk Lebihview

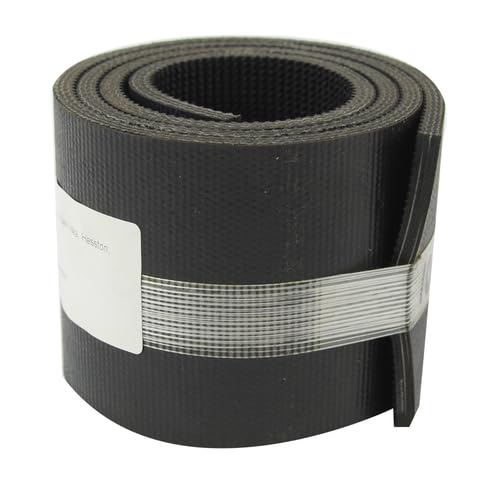

Rajah 1: The All States Baler Starter Flap Belt, rolled for packaging. This belt features a 3-ply mini rough top construction, designed for durability and effective material handling within a baler.
The All States Baler Starter Flap Belt is a critical component in agricultural balers, responsible for initiating the baling process by guiding crop material into the bale chamber. Its robust 3-ply mini rough top construction ensures reliable performance and longevity under demanding agricultural conditions.
3. Keserasian
This Baler Starter Flap Belt (Model 128006) is compatible with the following baler models:
- Case IH Baler(s): RS451
- Challenger Baler(s): RB44, RB46
- Hesston Baler(s): 845, 846, 945, 946
- New Idea Baler(s): 6345, 6364
It replaces manufacturer part numbers 1005824 and 700716010.
4. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 128006 |
| Dimensi | 3.5" (width) x 43.31" (length) |
| Pembinaan | 3 Ply Mini Rough Top |
| Berat badan | Kira-kira 3 paun |
| Pengeluar | Semua Negeri |
5. Pemasangan
Installation of the Baler Starter Flap Belt should only be performed by qualified personnel with experience in agricultural machinery maintenance. Always refer to your specific baler's service manual for detailed, model-specific instructions and safety precautions.
Langkah Keselamatan:
- Putuskan Kuasa: Ensure the baler's engine is off and the ignition key is removed. Disconnect all power sources before beginning any work.
- Pasangkan Kunci Keselamatan: Use all available safety locks and stands to prevent accidental movement of machinery parts.
- Pakai Alat Pelindung: Always wear appropriate personal protective equipment (PPE), including gloves and eye protection.
- Rujuk Manual: Refer to your baler's original equipment manufacturer (OEM) manual for precise installation steps and torque specifications.
General Installation Steps (Consult OEM Manual for Specifics):
- Access the Baler Mechanism: Open the necessary guards and access panels to reach the starter flap belt assembly.
- Melegakan Ketegangan: Locate and relieve tension on the existing belt system, typically involving idler pulleys or tensioning mechanisms.
- Tanggalkan Tali Pinggang Lama: Carefully remove the worn or damaged starter flap belt. Inspect surrounding components for wear or damage.
- Pasang Tali Pinggang Baharu: Route the new All States Baler Starter Flap Belt (Model 128006) according to the baler's design. Ensure it is correctly seated on all pulleys and guides.
- Gunakan Tegangan: Re-tension the belt system to the specifications outlined in your baler's OEM manual. Incorrect tension can lead to premature wear or operational issues.
- Komponen Selamat: Reinstall all guards and access panels.
- Operasi Ujian: Before full operation, perform a slow, controlled test run to ensure the belt functions correctly and without interference.
6. Penyelenggaraan
Regular maintenance extends the life of your baler components and ensures optimal performance. Follow these general guidelines:
- Pemeriksaan Harian: Before each use, visually inspect the belt for signs of wear, cracks, fraying, or damage. Check for proper tension.
- Kebersihan: Keep the belt and surrounding areas free from crop debris, dirt, and other foreign materials that can cause abrasion or slippage.
- Pemeriksaan Ketegangan: Periodically check and adjust belt tension as recommended in your baler's OEM manual. Over-tensioning or under-tensioning can lead to problems.
- Storan: When not in use for extended periods, store the baler in a dry, protected environment to prevent degradation of rubber components due to UV exposure or extreme temperatures.
- Penggantian: Replace the belt immediately if significant wear or damage is observed to prevent operational failures and potential damage to other baler components.
7. Penyelesaian masalah
This section addresses common issues related to baler starter flap belts. For complex problems, consult a qualified service technician or your baler's OEM manual.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tali Pinggang Tergelincir | Incorrect tension, worn belt surface, debris on pulleys. | Adjust tension, clean pulleys, replace worn belt. |
| Kehausan Tali Pinggang Pramatang | Misalignment, excessive tension, abrasive material, worn pulleys. | Check alignment, adjust tension, ensure clean operation, inspect and replace worn pulleys. |
| Baler Not Starting Bales Properly | Damaged or worn starter flap belt, incorrect belt tension, other baler mechanism issues. | Inspect and replace starter flap belt if damaged, verify correct belt tension, consult baler manual for other potential causes. |
8. Waranti dan Sokongan
For specific warranty information regarding your All States Baler Starter Flap Belt, please refer to the product packaging or contact your authorized dealer. For technical support or further assistance, please reach out to the manufacturer or your product supplier.
Note: This manual provides general guidance. Always prioritize the safety instructions and procedures outlined in your specific baler's original equipment manufacturer (OEM) manual.
