Pengenalan dan Maklumat Keselamatan
Thank you for choosing the Litheli 20V Cordless Tire Inflator Air Compressor. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.
Garis Panduan Keselamatan Am
- Always wear appropriate eye protection when operating the inflator.
- Jangan tinggalkan inflator tanpa pengawasan semasa operasi.
- Jauhkan kanak-kanak dan orang ramai dari kawasan kerja.
- Ensure the inflator is stored in a dry, secure location away from extreme temperatures.
- Do not attempt to inflate items beyond their recommended pressure limits.
- Use only Litheli 20V batteries and chargers with this device.
Kandungan Pakej
Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:
- Smart Electric Air Pump
- Hos Tekanan
- French Nozzle Adapter
- Ball-shaped Needles
- Long Conical Nozzle
- Kabel Pengecas USB-C
- Pek Bateri Li-ion 20V
Image: Components included in the Litheli 20V Cordless Tire Inflator package.
Persediaan
1. Pemasangan Bateri
- Ensure the battery is fully charged using the provided USB-C charging cable and charger.
- Align the battery pack with the battery slot on the bottom of the inflator.
- Slide the battery into the slot until it clicks securely into place. To remove, press the release button on the battery and slide it out.
2. Attaching the Air Hose and Adapters
- Screw the air hose securely onto the inflator's air outlet.
- Select the appropriate nozzle adapter for the item you wish to inflate (e.g., French nozzle adapter for bicycles, ball needle for sports balls, conical nozzle for inflatable toys).
- Attach the selected adapter to the end of the air hose.
Video: This video demonstrates how to install the battery and attach various adapters to the Litheli Tire Inflator.
Arahan Operasi
1. Power On and Pressure Setting
- Tekan butang kuasa (U) to turn on the inflator. The LCD digital display will illuminate.
- Use the 'M' button to cycle through pressure units: PSI, BAR, KPA, and kg/cm².
- Gunakan butang '+' dan '-' untuk menetapkan tekanan sasaran yang anda inginkan.
Image: The digital display shows real-time pressure and allows for preset adjustments.
2. Proses Inflasi
- Connect the air hose with the appropriate adapter to the valve of the item you wish to inflate. Ensure a secure connection to prevent air leakage.
- Press the start/stop button (II) to begin inflation. The inflator will automatically stop once the preset pressure is reached.
- Monitor the real-time pressure on the LCD display during inflation.
- Once inflation is complete, disconnect the hose from the item and turn off the inflator by pressing the power button.
Image: The inflator features an automatic shut-off function when the target pressure is reached.
3. Mod Pencahayaan LED
The inflator is equipped with an LED light for improved visibility in low-light conditions.
- Press the light button once for a steady bright light (Working Mode).
- Press the light button a second time for a flashing light (SOS Mode) for emergency signaling.
- Tekan butang lampu untuk kali ketiga untuk mematikan lampu LED.

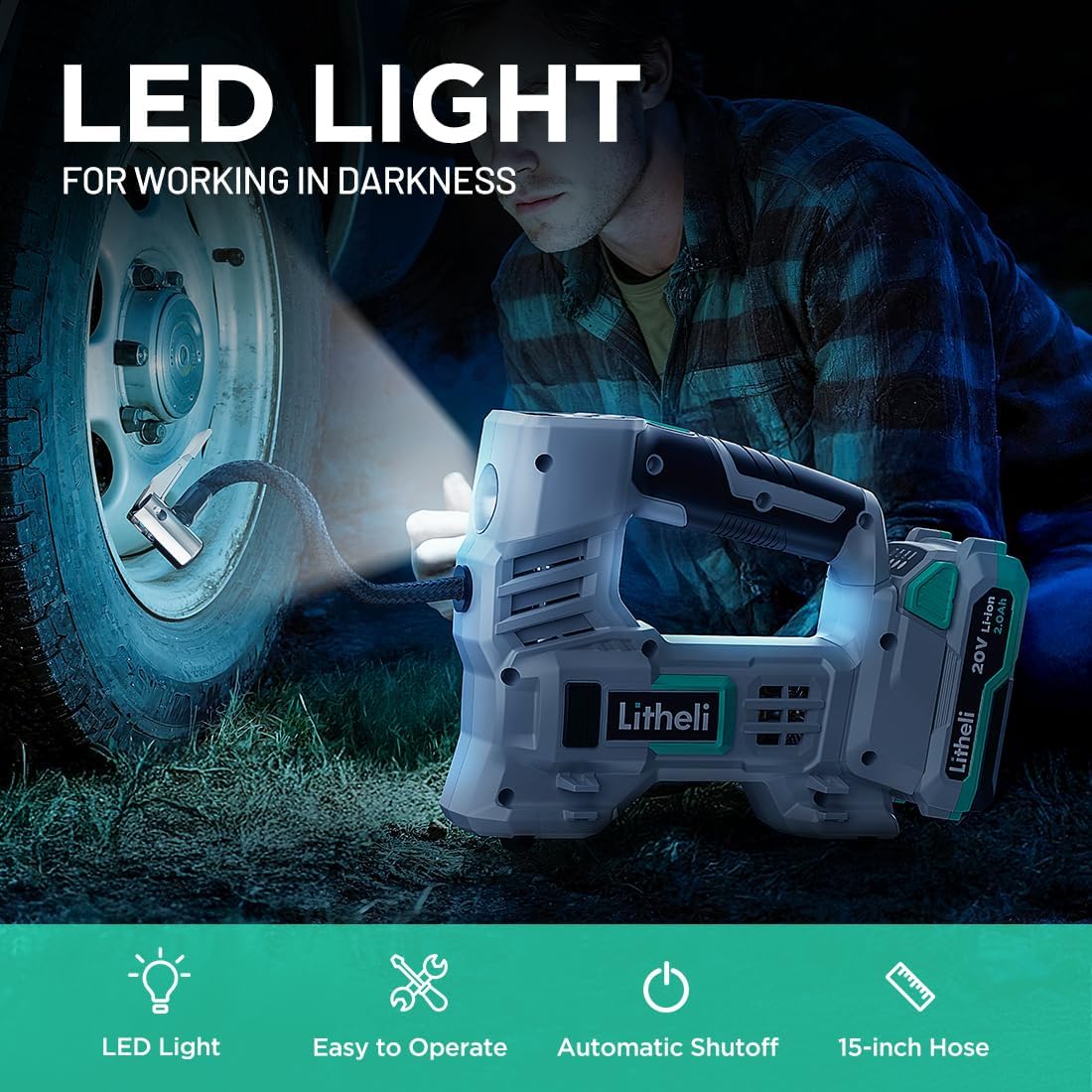

Image: The integrated LED light assists with operation in dark environments.
Video: Video ini memberikan penamatview of the Litheli Tire Inflator Air Compressor's features and operation.
Aplikasi
The Litheli 20V Cordless Tire Inflator is versatile and suitable for a variety of inflation needs:
- Tayar Kereta: Recommended pressure range 29-43 PSI.
- Tayar Motosikal: Recommended pressure range 29-43 PSI.
- Tayar Basikal: Recommended pressure range 3-22 PSI.
- Bola Sukan: Recommended pressure range 4-16 PSI.
- Swimming Rings/Inflatables: Recommended pressure range 2-12 PSI.
Note: This inflator is not suitable for large truck tires.
Image: The inflator is compatible with a wide range of items, from vehicle tires to sports equipment.
Penyelenggaraan
Pembersihan
- Before cleaning, ensure the inflator is turned off and the battery is removed.
- Lap bahagian luar inflator dengan lembut, damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
- Ensure no moisture enters the air vents or charging port.
Penyimpanan
- Store the inflator and its accessories in a cool, dry place, away from direct sunlight and extreme temperatures.
- Keep the battery charged to approximately 50% for long-term storage to prolong its lifespan.
- Ensure the air hose is neatly coiled and adapters are stored securely to prevent loss or damage.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Inflator tidak dihidupkan. | Bateri tidak dipasang dengan betul atau dinyahcas. | Pastikan bateri dicas sepenuhnya dan diletakkan dengan betul. |
| Inflator berfungsi tetapi tiada udara yang keluar. | Air hose is not securely attached or is blocked. | Check hose connections. Ensure no debris is blocking the hose or nozzle. |
| Bacaan tekanan yang tidak tepat. | Sambungan hos longgar. | Tighten the air hose connection to the valve. |
| Inflator berhenti lebih awal. | Preset pressure reached or battery low. | Check preset pressure. Recharge battery if necessary. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | LiTHELi |
| Nama Model | Inflator Tayar Tanpa Kord 20V |
| Nombor Model Item | E1IF17000 |
| Voltage | 20 Volt (DC) |
| Sumber Kuasa | Dikuasakan Bateri (Ion Litium) |
| Tekanan Operasi Maksimum | 150 PSI |
| Kapasiti Aliran Udara | 25 Liters Per Minute (25 LPM) |
| Tahap Kebisingan | 78 Desibel |
| Berat Barang | 4.27 paun |
| Komponen yang Disertakan | 3 Nozzle Adapters, Battery, Charger |
| Ciri Khas | Easy to Install, Portable, LED Light, Auto-shutoff |
Waranti dan Sokongan
Maklumat Waranti
This Litheli product is covered by a Waranti Pengeluar 2 Tahun. Sila simpan bukti pembelian anda untuk tuntutan waranti. Waranti melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.
Sokongan Pelanggan
For technical assistance, warranty claims, or general inquiries, please contact Litheli customer support. Refer to the contact information provided in your product packaging or visit the official Litheli webtapak untuk mendapatkan butiran sokongan yang paling terkini.
