JJC Magnetic Smartphone Video Cage Rig Instruction Manual

1. Pengenalan

The JJC Magnetic Smartphone Video Cage Rig is designed to enhance your mobile filmmaking experience. It provides a stable platform for your smartphone, allowing for smooth and steady shooting. This rig is compatible with MagSafe-enabled iPhones (12, 13, 14, 15 series, and newer models) and can be adapted for other smartphones using the included adhesive metal rings. It features multiple mounting points for accessories and supports various shooting orientations.

Gambar 1: Lebihview of the JJC Magnetic Smartphone Video Cage Rig.

2. Kandungan Pakej

Sila sahkan bahawa semua item terdapat dalam pakej anda:

• Smartphone Stabilizer Rig x 1
• Magnetic Mount x 1
• Detachable Wireless Remote Control x 1
• CR2025 Battery x 1 (pre-installed in remote)
• Tali Pergelangan Tangan x 1
• Cincin Logam Pelekat 3M x 2
• Filem Pelindung Jelas x 2
• Lap Pembersihan Basah x 2
• Manual Arahan x 1
• Arahan Operasi Penetapan Gelang Logam x 1
• Kad Amaran x 1

3. Panduan Persediaan

3.1 Menyambungkan Telefon Pintar Anda

The rig features a strong magnetic mount for secure attachment of your smartphone. It is compatible with MagSafe-enabled devices or cases.

1. Ensure your smartphone or its case is MagSafe compatible.
2. Align your smartphone with the magnetic mount on the rig until it securely snaps into place.

3.2 For Non-MagSafe Phones/Cases

If your smartphone or case is not MagSafe compatible, use the provided 3M adhesive metal rings:

1. Clean the back of your phone case (or phone directly if not using a case) with the wet cleaning wipe and allow it to dry completely.
2. Apply the clear protective film to the desired area on your phone case.
3. Carefully peel the backing from one of the 3M adhesive metal rings.
4. Center the metal ring on the back of your phone case, ensuring it does not obstruct cameras or other essential functions. Press firmly for several seconds.
5. Wait for at least 24 hours for the adhesive to fully cure before attaching to the magnetic mount.

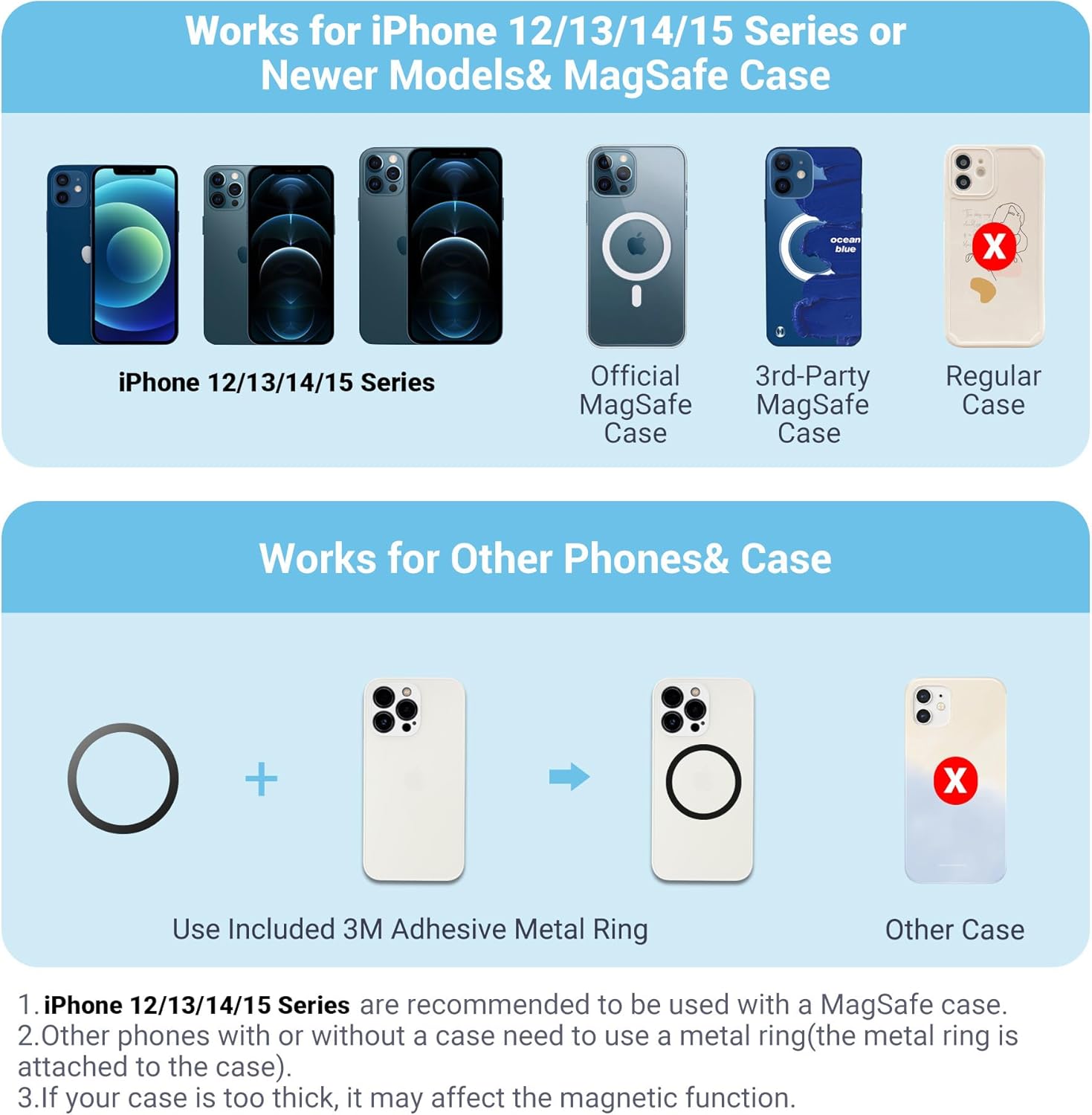

Figure 2: Smartphone compatibility and metal ring application.

3.3 Attaching Handles and Wrist Strap

The rig includes detachable handles for improved grip and stability. A wrist strap can be attached for added security.

1. Slide the handles onto the sides of the rig until they click into place. They can be attached for left or right-handed use.
2. Attach the wrist strap to one of the designated loops on the handles for secure handling.

Figure 3: Detachable handles and remote control.

4. Arahan Operasi

4.1 Alat Kawalan Jauh Tanpa Wayar

The detachable wireless remote control allows for convenient photo and video capture without touching your phone.

1. Berpasangan: Turn on the remote control. On your smartphone, go to Bluetooth settings and pair with the device named 'JJC Remote'. No app download is required.
2. Operasi: Once paired, press the button on the remote to trigger your smartphone's camera shutter or start/stop video recording. The remote has a working distance of up to 32.8 feet (10 meters).
3. Storan: The remote can be inserted into the dedicated slots on either handle of the rig when not in use.

4.2 Mod Penangkapan

The rig supports various shooting orientations to suit your needs:

• Penangkapan Menegak: Ideal for social media content and portraits.
• Horizontal Shooting: Standard for cinematic video and landscape photography.
• Handheld Shooting: Use the handles for stable, on-the-go capture.

Figure 4: Various shooting modes supported by the rig.

4.3 Accessory Mounting

The rig is equipped with multiple cold shoe mounts and 1/4"-20 tripod socket holes for attaching external accessories.

• Pemasangan Kasut Sejuk: Six cold shoe mounts are available for attaching microphones, LED lights, and other photographic accessories simultaneously.
• 1/4"-20 Tripod Mounts: Multiple universal 1/4"-20 tripod socket holes on the side and bottom allow for mounting the rig onto tripods, monopods, sliders, and other support equipment. This enables both vertical and horizontal mounting on tripods.

Figure 5: Cold shoe and tripod mounting points.

4.4 Senario Penggunaan

This rig is ideal for various content creation activities:

• Vlog Shooting
• Penstriman Langsung
• Mobile Filmmaking

Gambar 6: Cthamples of rig usage for content creation.

4.5 Video Produk Selesaiview

Video 1: Official product video demonstrating the features and usage of the JJC Magnetic Smartphone Video Cage Rig.

5. Penyelenggaraan

To ensure the longevity and optimal performance of your video cage rig, follow these maintenance guidelines:

• Pembersihan: Wipe the rig with a soft, dry cloth to remove dust and fingerprints. Avoid using harsh chemicals or abrasive materials.
• Storan: Store the rig in a cool, dry place away from direct sunlight and extreme temperatures.
• Lekapan Magnet: Keep the magnetic mount clean and free of debris to maintain strong adhesion.
• Bateri Kawalan Jauh: The wireless remote control is powered by a CR2025 battery. Replace the battery when the remote's performance diminishes.

6. Penyelesaian masalah

If you encounter issues with your JJC Magnetic Smartphone Video Cage Rig, refer to the following common solutions:

• Smartphone not attaching securely:
  • Pastikan telefon atau sarung anda serasi dengan MagSafe.
  • If using the adhesive metal ring, verify it is properly centered and has had sufficient time to cure (24 hours recommended).
  • Check if your phone case is too thick, which may interfere with the magnetic connection.
• Wireless remote not pairing:
  • Make sure the remote control is turned on.
  • Pastikan Bluetooth didayakan pada telefon pintar anda.
  • Check the remote control battery (CR2025) and replace if necessary.
  • Try unpairing and re-pairing the remote in your phone's Bluetooth settings.
• Accessories not fitting cold shoe mounts:
  • Verify that your accessory has a standard cold shoe foot.
  • Ensure the accessory is inserted correctly and tightened if it has a locking mechanism.

7. Spesifikasi

8. Waranti dan Sokongan

JJC products are manufactured with quality and performance in mind. For warranty information, product support, or to inquire about replacement parts, please refer to the contact information provided on the product packaging or visit the official JJC webtapak. Simpan resit pembelian anda untuk tuntutan waranti.
