Memoqueen Phomemo D30 Cable Label Instruction Manual

1. Produk Lebihview

The Memoqueen Phomemo D30 Cable Labels are designed for organizing and identifying various cables and wires. These labels are compatible with Phomemo D30 series thermal label printers and offer durable, self-adhesive properties.

Ciri-ciri Utama

Saiz Label: Each label measures 0.49” x 2.91” (12.5mm x 74mm). Each roll contains 65 labels, and this package includes 3 rolls.
Sifat Bahan: Labels are waterproof, tear-resistant, oil-proof, flexible, and self-adhesive.
Percetakan Terma: Utilizes thermal printing technology, requiring no ink or toner. Produces clear and durable labels with an easy-to-peel split backing for simple application.
Keserasian: Specifically designed for use with Phomemo D30 Thermal Label Printers, including D30, D30S, and D30Pro models.
Aplikasi Serbaguna: Ideal for organizing computer cords, charger cords, electrical cords, ethernet cables, network cables, and other wires. Also suitable for labeling laboratory test tubes, items in warehouses, chemistry labs, schools, hotels, and hospitals.

Diagram showing Phomemo D30 cable label dimensions: 12.5mm width, 74mm total length with a 35mm printable area and 7mm tab. — Figure 1: Phomemo D30 Cable Label Dimensions (12.5mm x 74mm).

Image illustrating the waterproof, strong adhesion, abrasion resistant, and oil proof properties of the labels with various colored labels wrapped around a cable. — Figure 2: Key material advantages of the cable labels: waterproof, strong adhesion, abrasion resistant, and oil proof.

Three rolls of yellow Phomemo D30 cable labels with a single label showing dimensions of 12.5mm x 74mm. — Figure 3: Phomemo D30 Cable Label rolls and individual label design.

2. Persediaan dan Pemasangan

To use the Memoqueen Phomemo D30 Cable Labels, you will need a compatible Phomemo D30 series thermal label printer and the "Print Master" application.

2.1 Loading the Label Roll

Ensure your Phomemo D30 printer is powered off.
Open the printer's cover.
Insert the label roll into the designated compartment, ensuring the labels feed out correctly with the printable side facing the print head.
Tutup penutup pencetak dengan selamat.

Various Phomemo D30 label printers in different colors, indicating compatibility with the D30/D30S/D30Pro series. — Figure 4: Phomemo D30 series printers compatible with these labels.

Video 1: Demonstrates how to load the label roll into the Phomemo D30 Bluetooth Label Maker and print various decorative labels. This video shows the physical setup of the label roll within the printer.

2.2 Pemasangan Aplikasi

Download the "Print Master" app from the APP STORE (for iOS devices) or Google Play (for Android devices). This application is required to design and print labels.

3. Arahan Operasi

3.1 Menyambung ke Pencetak

Turn on your Phomemo D30 printer.
Buka aplikasi "Print Master" pada telefon pintar atau tablet anda.
Follow the in-app instructions to connect to your D30 printer via Bluetooth.

3.2 Designing and Printing Labels

Within the "Print Master" app, select the appropriate label template for cable labels.
Customize your label with text, numbers, graphics, symbols, logos, barcodes, or QR codes. The app supports importing label text from Excel files for bulk printing.
Review pracetakview to ensure the label appears as desired.
Initiate printing. The printer will produce the labels without the need for ink or toner.

Video 2: Illustrates the use of Phomemo D30 labels for date marking food items in storage containers and bags. This video demonstrates practical application of the printed labels.

3.3 Applying Cable Labels

Carefully peel the printed label from its backing.
Wrap the label around the desired cable or wire, ensuring the printable area is visible and the adhesive tab secures it.
Press firmly along the entire label to ensure strong adhesion.

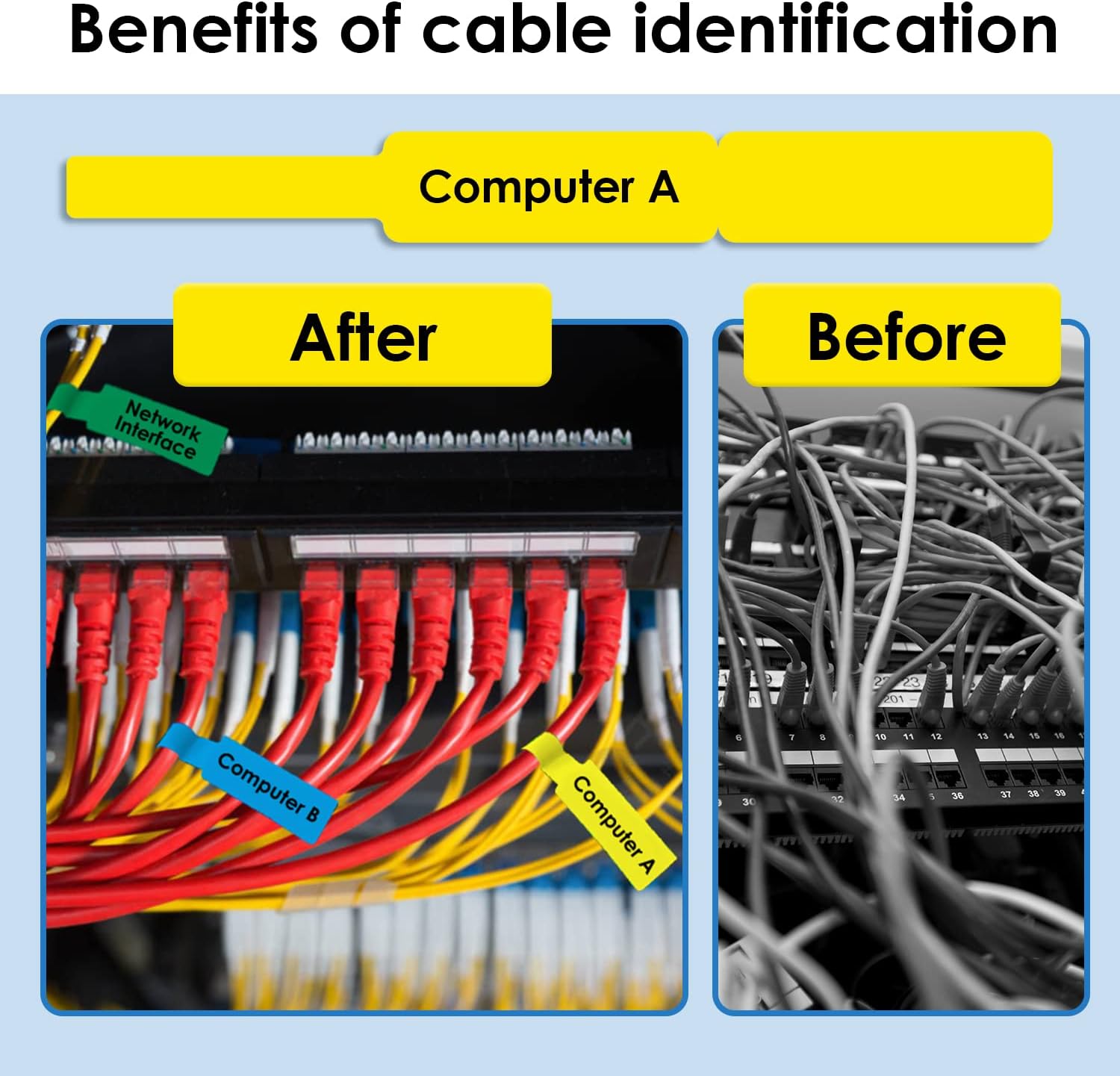

Before and after comparison of cable organization. The 'Before' image shows a tangled mess of cables. The 'After' image shows neatly organized cables with blue and yellow labels identifying 'Computer B' and 'Computer A' respectively. — Gambar 5: Cthample of cable organization using Phomemo D30 labels.

4. Penyelenggaraan

Storan: Store unused label rolls in a cool, dry place away from direct sunlight to preserve adhesive quality and print sensitivity.
Pembersihan: If print quality degrades, consult your Phomemo D30 printer manual for instructions on cleaning the print head. Avoid touching the adhesive side of the labels to prevent contamination.
Pembuangan: Labels are designed to be removed without leaving sticky residue. Peel slowly and carefully.

5. Penyelesaian masalah

Masalah	Kemungkinan Punca	Penyelesaian
Labels not printing clearly	Low printer battery; dirty print head; incorrect print density setting in app.	Charge printer; clean print head (refer to printer manual); adjust print density in "Print Master" app.
Labels not adhering well	Surface is dirty or oily; label roll is old or improperly stored; insufficient pressure during application.	Clean surface before applying; ensure labels are stored correctly; apply firm pressure when attaching.
Printer not connecting to app	Bluetooth is off; printer is out of range; app or printer needs restart.	Ensure Bluetooth is enabled; move printer closer to device; restart both app and printer.
Labels are jammed in printer	Improper loading of label roll; foreign object in printer.	Open printer cover, carefully remove jammed labels, and re-load correctly. Check for obstructions.

6. Spesifikasi

Atribut	Perincian
Jenama	Memoqueen
Nombor Model	DXL12.574-35-65YL
Dimensi Label	12.5mm x 74mm (0.49" x 2.91")
Label setiap Gulungan	65 label
Kuantiti	3 Gulung
warna	Yellow (Black print on Yellow paper)
Jenis Bahan	Thermal Paper (Waterproof, Tear-resistant, Oil-proof, Flexible, Self-adhesive)
Berat Barang	2.08 auns
Dimensi Produk	1.97 x 1.97 x 1.97 inches (packaging/roll dimensions)

7. Waranti dan Sokongan

For warranty information or technical support regarding your Memoqueen Phomemo D30 Cable Labels or compatible printer, please contact Memoqueen customer service. Refer to the product packaging or the official Memoqueen webtapak untuk butiran hubungan semasa.

Pengeluar: Memoqueen
