1. Pengenalan
The Deogos Solar Pendant Light is designed to provide efficient and versatile lighting for both indoor and outdoor environments. This manual provides comprehensive instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your solar light.
2. Apa yang ada di dalam Kotak
- Solar Pendant Light (1 unit)
- Panel Suria (1 unit)
- Alat Kawalan Jauh (1 unit)
- 16.5ft/5M Wire (pre-attached to solar panel)
- Skru Pemasangan dan Palam Dinding
Deogos Solar Pendant Light components including light fixture, solar panel, and remote control.
3. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Deogos |
| Nama Model | Lampu Loket Suria |
| Jenis Sumber Cahaya | LED (180 PCS SMD2835, 0.2W, 4000K-6000K) |
| Kecerahan | 1000 Lumen |
| Panel Suria | 6V/5W |
| Bateri | 4400mAh |
| Keluaran | 7W (Pengecasan penuh) |
| Jarak Kawalan Jauh | 3-5m di bawah cahaya |
| Tahap Kalis Air | IP65 |
| bahan | Aluminium, Akrilonitril Butadiena Stirena |
| Dimensi Produk | 8.3"L x 7.1"W x 4"H |
| Berat Barang | 2 paun |
| Jenis Pemasangan | Pemasangan Siling |
| Ciri Khas | Motion Sensor, Water Resistant |
| Kaedah Kawalan | Jauh |
| Jenis Bilik | Indoors and Outdoors like Shed, Gazebo, Balcony, Garage, Barn, Home, Garden, Yard, Patio, Porch |
4. Persediaan dan Pemasangan
4.1 Membongkar dan Semakan Komponen
Carefully unpack all components and ensure all items listed in the "What's in the Box" section are present and undamaged.
4.2 Memilih Lokasi
Select a location for the solar panel that receives direct sunlight for at least 6-8 hours daily to ensure optimal charging. The light fixture can be installed indoors or outdoors, connected by the 16.5ft/5M wire to the solar panel.
The solar panel and light fixture are connected by a long wire, allowing flexible placement.
4.3 Memasang Panel Suria
Use the provided screws and wall plugs to securely mount the solar panel in your chosen location. The panel features an adjustable bracket to angle it towards the sun for maximum exposure.
The solar panel can be mounted on a wall or roof and adjusted for optimal sun exposure.
Demonstration of mounting the solar panel on a roof for optimal sunlight.
4.4 Mounting the Light Fixture
Hang the light fixture using the integrated hook or other suitable mounting hardware in your desired location. Ensure the wire from the solar panel can reach the light fixture without tension.
Berakhirview of the solar pendant light's features and installation, including remote control operation.

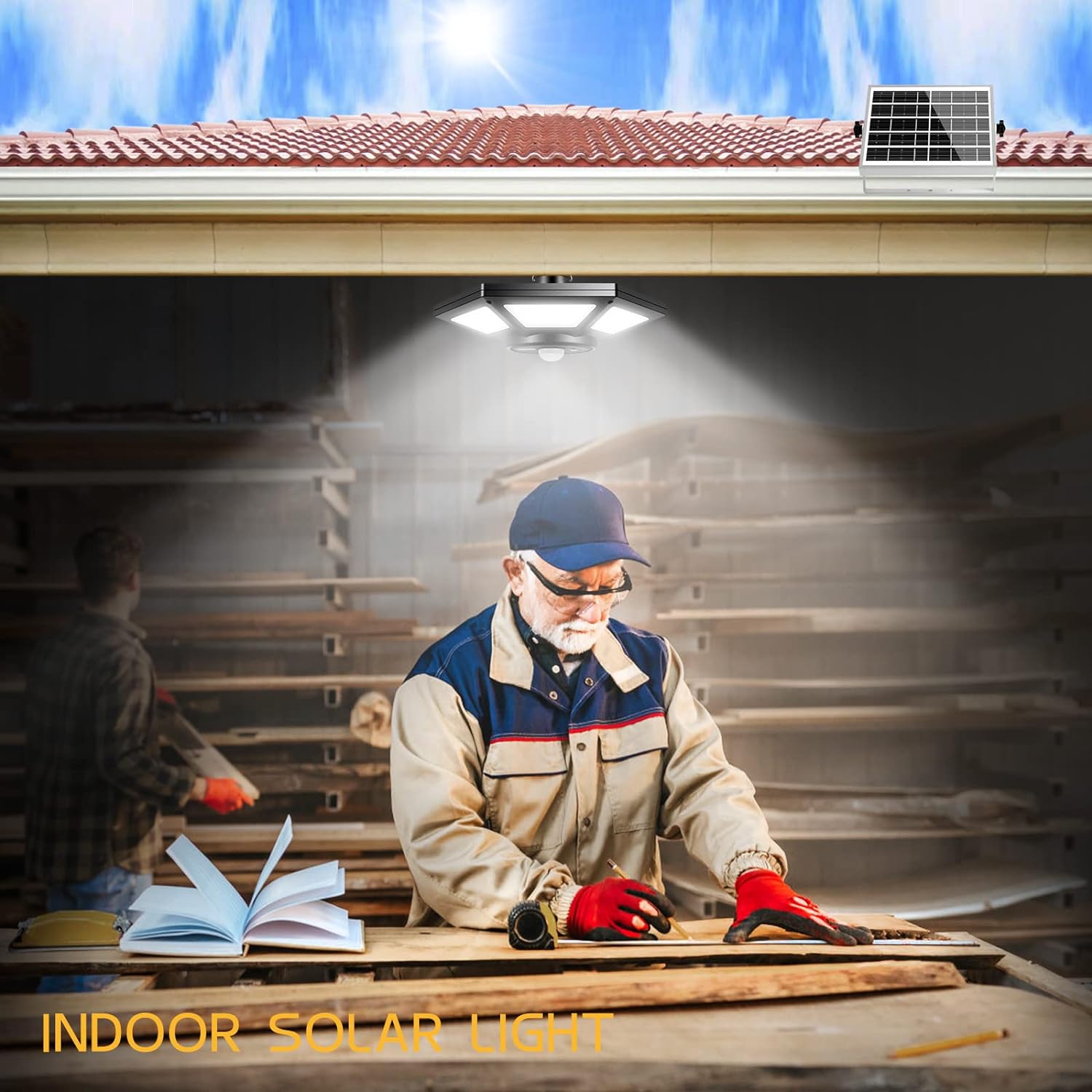

Examples of the solar pendant light installed in different indoor and outdoor settings like garages, patios, and sheds.
5. Arahan Operasi
5.1 Fungsi Kawalan Jauh
The included remote control allows for convenient operation of the solar pendant light. Ensure the remote is pointed towards the light fixture for effective communication.
- HIDUP/MATI: Menghidupkan atau mematikan lampu.
- Pelarasan Kecerahan (+/-): Adjusts the light intensity (25%, 50%, 75%, 100%).
- Pemilihan Mod (1-5): Selects one of the five lighting modes.
- Timer Settings (2H, 4H, 6H): Sets the light to stay on for a specified duration.
The remote control allows for four levels of brightness adjustment: 25%, 50%, 75%, and 100%.

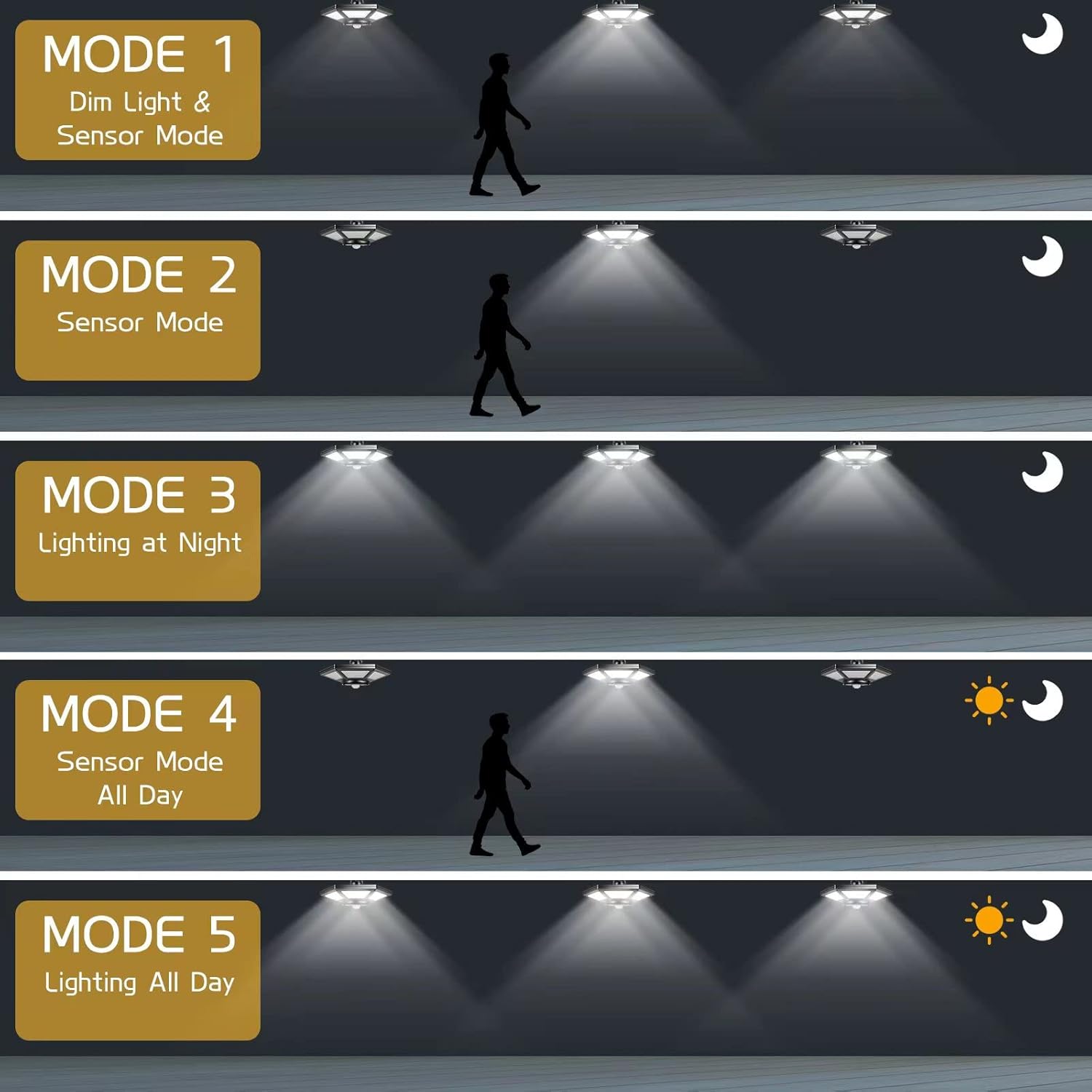

Visual representation of the five distinct lighting modes available for the solar pendant light.
5.2 Mod Pencahayaan
The light offers 5 distinct lighting modes to suit various needs:
- Mode 1 (Night Only): Dim light to full bright when motion detected at night.
- Mode 2 (Night Only): Off to full bright when motion detected at night.
- Mode 3 (Night Only): Constant lighting at night.
- Mode 4 (Full Day): Off to full bright when motion detected all day.
- Mode 5 (Full Day): Constant lighting all day.
Note: For testing modes 1, 2, and 3, ensure the solar panel is covered or the light is in a dark room, as these modes only activate at night.
6. Penyelenggaraan
- Bersihkan permukaan panel solar dengan kerap dengan lembut, damp kain untuk menanggalkan habuk, kotoran atau serpihan. Panel yang bersih memastikan pengecasan yang cekap.
- Inspect the wiring and connections periodically for any signs of wear or damage.
- Ensure the light fixture and solar panel are securely mounted, especially after severe weather conditions.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. | Caj solar tidak mencukupi. | Pastikan panel solar menerima 6-8 jam cahaya matahari langsung setiap hari. Bersihkan panel solar. |
| Cahaya berkelip atau malap. | Low battery charge or dirty solar panel. | Allow more charging time. Clean the solar panel. |
| Sensor gerakan tidak berfungsi. | Incorrect mode selected or obstruction. | Verify correct motion sensor mode (Mode 1, 2, or 4). Ensure sensor is not obstructed. |
| Alat kawalan jauh tidak bertindak balas. | Remote battery low or obstruction. | Replace remote control batteries. Ensure direct line of sight to the light fixture. |
8. Waranti dan Sokongan
Deogos products are manufactured with high-quality materials and undergo strict quality control. For any concerns, issues, or problems with your product, please contact Deogos US customer service. We are always online to assist you.
Untuk bantuan lanjut, sila layari Deogos Store on Amazon.
