pengenalan
Image: The ExpertPower 12V 200AH Gel Deep Cycle Battery, a sealed, maintenance-free power solution.
This manual provides essential information for the safe and efficient use of your ExpertPower 12V 200AH Gel Deep Cycle Battery. This rechargeable, maintenance-free gel battery is designed for deep cycling applications such as solar energy storage, UPS systems, wheelchairs, and trolling motors. Please read these instructions carefully before installation and operation.
The ExpertPower 12V 200AH Gel Deep Cycle Battery offers robust performance with features like vibration resistance, low self-discharge, and a long cycle life. It is a sealed, non-spillable battery, ensuring safe operation in various environments.
Maklumat Keselamatan
AMARAN:
- Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when handling batteries.
- Jangan litar pintas terminal bateri. Ini boleh menyebabkan melecur teruk, kebakaran atau letupan.
- Jauhkan bateri daripada nyalaan api terbuka, percikan api dan sumber haba.
- Jangan membongkar, menusuk, atau merosakkan bateri.
- Ensure proper ventilation when charging to prevent accumulation of gases, although gel batteries produce minimal gas.
- Jauhkan daripada kanak-kanak.
- In case of contact with battery acid (electrolyte), flush immediately with water and seek medical attention.
- Buang bateri mengikut peraturan tempatan. Jangan buang ke dalam sisa rumah.
Persediaan dan Pemasangan
Membongkar dan Pemeriksaan
Upon receiving your ExpertPower battery, carefully unpack it and inspect for any signs of damage during transit. If any damage is observed, contact your supplier immediately.
Dimensi Fizikal
The battery dimensions are 20.55 inches (522 mm) in length, 9.41 inches (239 mm) in width, and 8.54 inches (217 mm) in height (total height 8.74 inches or 222 mm including terminals). Ensure adequate space for installation and ventilation.
Image: ExpertPower 12V 200AH Gel Deep Cycle Battery showing its compact size and precise dimensions in millimeters and inches.
Melekap
This sealed gel battery can be mounted in various positions, including upright or sideways. However, it is not recommended to use it upside down. Ensure the mounting location is stable, dry, and has sufficient ventilation.
Sambungan Terminal
The battery is equipped with M8 threaded insert terminals. Use the included nuts, bolts, and washers for secure connections. Ensure all connections are tight to prevent resistance and overheating.
Imej: Jarak dekat view of the silver-plated copper terminal on the ExpertPower battery, highlighting the M8 threaded insert for secure connections.
The battery features silver-plated copper terminals for optimal conductivity and corrosion resistance.
Caj Permulaan
Although batteries typically arrive with some charge, it is recommended to fully charge the battery before its first use to ensure maximum performance and lifespan. Use a gel-compatible charger with a maximum charging current of 40A.
Arahan Operasi
Cadangan Mengecas
For optimal performance and to extend the battery's lifespan, use a charger specifically designed for gel batteries. The recommended charging voltage is 12V, and the maximum charging amperage should not exceed 40A. Ensure your charger has a gel battery charging profile.
- Kegunaan Siap Sedia: Voltage Regulation 13.6-13.8V, Initial Current Less Than 60A.
- Penggunaan Kitaran: Voltage Regulation 14.5-14.9V, Initial Current Less Than 60A.
Kedalaman Pelepasan (DOD)
To maximize the battery's cycle life, it is recommended to recharge the battery when it reaches a 50% Depth of Discharge (DOD). This practice helps maintain battery health and longevity. The battery is designed to achieve 500-700 cycles with an 80% DOD.
Image: Diagram illustrating the ExpertPower Gel Battery's excellent endurance cycle capability and recovery performance after deep cycle use, emphasizing long service life.
Prestasi Pelepasan
The ExpertPower gel battery provides excellent discharge performance, making it suitable for demanding applications. Its robust design ensures consistent power delivery.
Image: ExpertPower Gel Deep Cycle Battery highlighting its excellent discharge performance, with voltage regulation and initial current specifications for both standby and cycle use.
Kadar Pelepasan Diri yang Rendah
Gel batteries, including this model, exhibit a low self-discharge rate, typically less than 1% per month. This means the battery retains its charge for longer periods when not in use compared to other battery types.
Image: Visual comparison demonstrating the low self-discharge rate of a gel battery versus a flooded battery, indicating superior charge retention for the gel type.
Penyelenggaraan
Reka Bentuk Tanpa Penyelenggaraan
The ExpertPower 12V 200AH Gel Deep Cycle Battery is a sealed, maintenance-free unit. This means there is no need for water refilling or acid pack additions. Its sealed construction also prevents gas emissions under normal operating conditions.

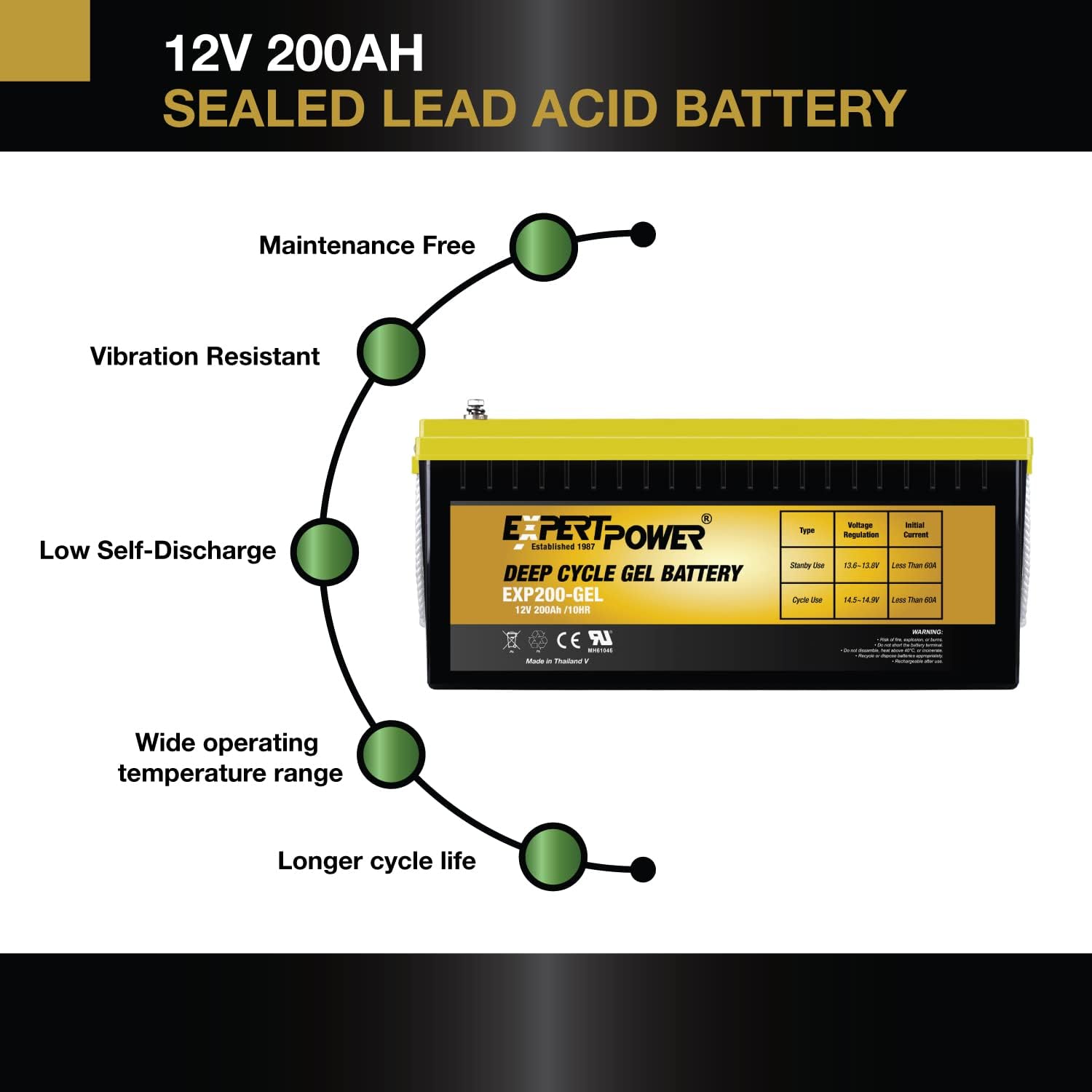

Image: Diagram highlighting key features of the ExpertPower 12V 200AH Sealed Lead Acid Battery, including maintenance-free operation, vibration resistance, low self-discharge, wide operating temperature range, and longer cycle life.
Pembersihan
Pastikan terminal bateri danasing clean and free from dirt or corrosion. Use a damp cloth to wipe the exterior. Do not use solvents or harsh chemicals.
Penyimpanan
If storing the battery for an extended period, ensure it is fully charged and stored in a cool, dry place. Periodically check the voltage and recharge if necessary to prevent deep discharge, which can reduce battery life.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Bateri tidak memegang cas | Pengecasan yang salah voltage/current, charger malfunction, battery sulfation (unlikely for gel but possible with extreme neglect), end of life. | Verify charger settings and functionality. Ensure charger is gel-compatible. If battery is old, consider replacement. |
| Keluaran kuasa rendah | Battery not fully charged, loose or corroded terminals, undersized wiring, excessive load. | Fully charge the battery. Clean and tighten all terminal connections. Check wiring gauge for adequacy. Reduce load if possible. |
| Battery overheating during charge | Overcharging (too high voltage/current), poor ventilation, internal short circuit. | Immediately disconnect charger. Verify charger settings are correct for gel batteries. Ensure adequate ventilation. If problem persists, discontinue use and contact support. |
| Bateri tidak dicas sama sekali | Charger not connected, faulty charger, blown fuse in charging circuit, deeply discharged battery. | Check all connections. Test charger with another battery if possible. Inspect fuses. A deeply discharged gel battery may require a specialized recovery charge, or it might be permanently damaged. |
If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact ExpertPower customer support.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | 12V 200AH GEL |
| taip | VRLA GEL Deep Cycle Maintenance-Free Battery |
| Voltage | 12 Volt |
| Kapasiti | 200 Amp Hours (10HR) |
| Dimensi Produk (L x W x H) | 20.55 in x 9.41 in x 8.54 in (522 mm x 239 mm x 217 mm) |
| Total Height (with terminals) | 8.74 in (222 mm) |
| Berat Barang | 127.9 paun (60.2 kg) |
| Terminal | M8 Threaded Insert, 8mm Stud, Silver Plated Copper |
| Komposisi Sel Bateri | Lead Acid (Gel Electrolyte) |
| Arus Pengecasan Maks | 40A |
| Kitaran Kehidupan | 500-700 cycles at 80% Depth of Discharge |
| Kadar Pelepasan Sendiri | Less than 1% per month |
| ASIN | B0B8TTMS9B |
| UPC | 840140947960 |
Image: ExpertPower Gel Deep Cycle Battery highlighting its excellent discharge performance, with voltage regulation and initial current specifications for both standby and cycle use.
Waranti dan Sokongan
Maklumat Waranti
ExpertPower provides a Polisi bayaran balik 90 hari dan a Waranti 1 tahun for this battery. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Sokongan Pelanggan
For technical assistance, warranty claims, or any questions regarding your ExpertPower battery, please visit the official ExpertPower Store or contact customer service through the retailer where the product was purchased.
You can visit the ExpertPower Store online: ExpertPower Store
Image: Icons representing quality, health & safety, and environmental certifications (ISO 14001, ISO 18001, ISO 9001), along with UL Certified and UL Recognized marks, indicating proven quality and tested standards.
Sumber Tambahan
Produk Selesaiview Video
Video: Tamatview of the ExpertPower 12V 200AH Gel Deep Cycle Battery, showcasing its features and applications. (Duration: 0:58)
Installation and Usage Tips Video
Video: A guide providing tips for the installation and optimal usage of the ExpertPower Gel Deep Cycle Battery. (Duration: 1:17)
