Toyomi MC 4646 4-in-1 Multi Cooker Steamboat Hot Pot User Manual

Arahan Keselamatan Penting

Please read all instructions carefully before using the Toyomi MC 4646 Multi Cooker. Retain this manual for future reference.

• Sentiasa pastikan perkakas dicabut daripada soket kuasa sebelum membersihkan, memasang atau menanggalkan bahagian-bahagiannya.
• Jangan rendam unit utama, kord, atau palam ke dalam air atau sebarang cecair lain.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria, atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka .
• Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact authorized service personnel for examination, repair, or adjustment.
• Jangan gunakan di luar rumah. Perkakas ini adalah untuk kegunaan rumah sahaja.
• Jangan biarkan kord kuasa tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
• Always place the appliance on a stable, flat, and heat-resistant surface.
• Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
• Sentiasa berhati-hati apabila menggerakkan perkakas yang mengandungi minyak panas atau cecair panas lain.
• Jangan gunakan perkakas untuk apa-apa selain daripada penggunaan yang dimaksudkan.
• Penggunaan lampiran aksesori yang tidak disyorkan oleh pengilang perkakas boleh menyebabkan kecederaan.
• Sentiasa pasangkan palam pada perkakas terlebih dahulu, kemudian pasangkan kord ke soket dinding. Untuk memutuskan sambungan, putar sebarang kawalan kepada 'MATI', kemudian tanggalkan palam dari soket dinding.
• Elakkan sentuhan dengan permukaan panas. Gunakan pemegang atau tombol.
• The cooking pot has a non-stick coating. Avoid using metal utensils that can scratch the surface. Use wooden, plastic, or silicone utensils.

Produk Selesaiview

The Toyomi MC 4646 is a versatile 4-in-1 Multi Cooker designed for convenient meal preparation. It features a 4.0L capacity and a duo-sided non-stick pot, allowing for various cooking methods including sautéing, hotpot, steaming, and boiling.

Ciri-ciri utama termasuk:

• Multi cooker with 4-in-1 duo sided non stick cooking pot.
• Tempered glass lid for easy monitoring.
• Heating power 1400 - 1650W for fast boiling.
• Suitable for sautéing, hotpot, steaming, and boiling.
• Non-stick pot for easy cooking and cleaning.

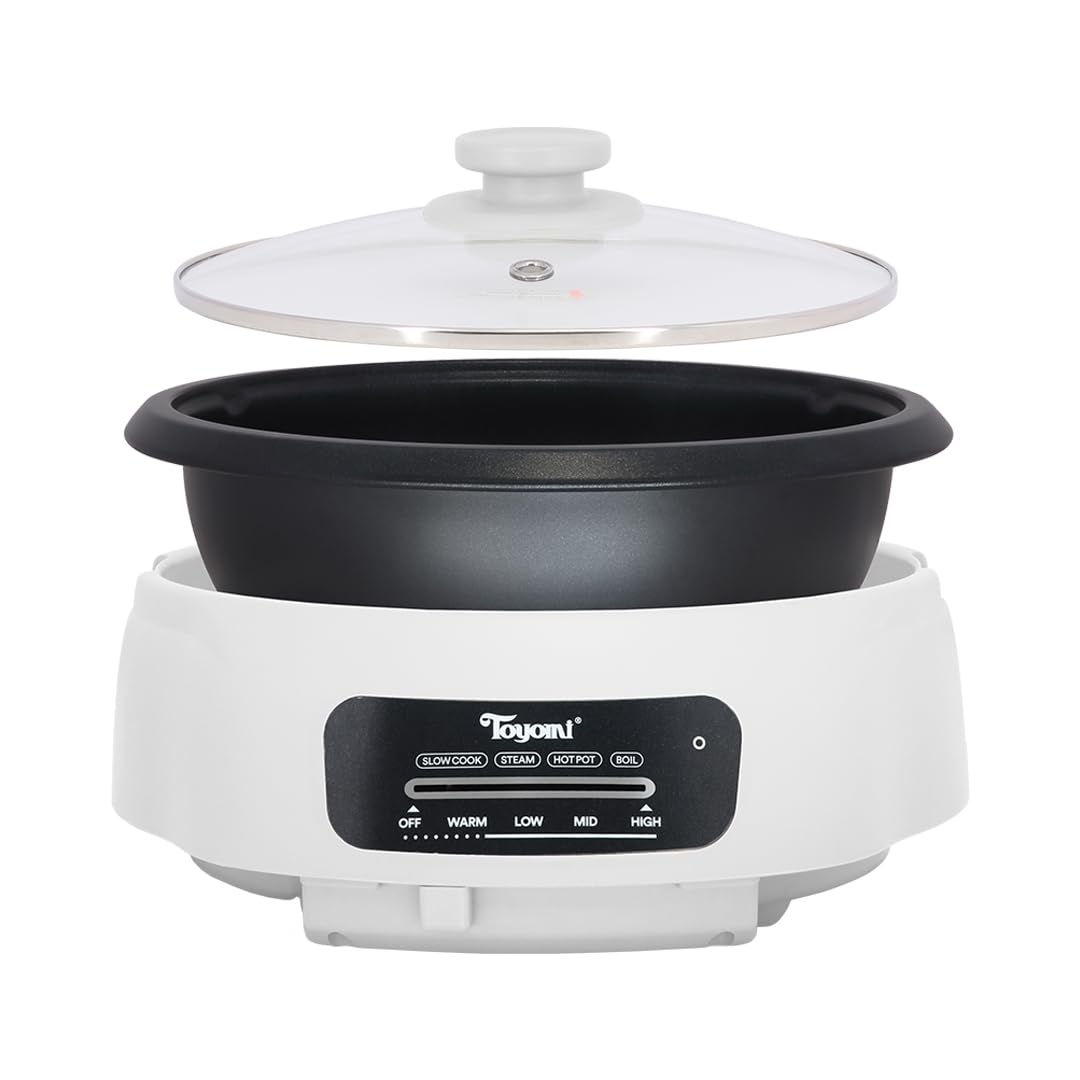

Imej: Depan view of the Toyomi MC 4646 Multi Cooker with its tempered glass lid. This shows the overall design and the control panel on the front.

Komponen

The Toyomi MC 4646 Multi Cooker consists of the following main components:

• Unit Utama: The base housing the heating element and control panel.
• Periuk Memasak: A removable 4.0L non-stick pot with a duo-sided design.
• Tudung Kaca Terbaja: With a heat-resistant knob for safe handling.

Imej: Jarak dekat view of the non-stick interior of the cooking pot, highlighting its smooth surface.

Imej: View of the heating element located at the base of the main unit, where the cooking pot sits.

Sebelum Penggunaan Pertama

1. Bongkar: Carefully remove all packaging materials, stickers, and labels from the multi cooker.
2. Bersih: Wash the cooking pot and glass lid with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp kain. Jangan rendam unit utama dalam air.
3. Pembakaran Awal (Pilihan): For some new appliances, a slight odor may be present during the first use. This is normal. Operate the cooker with some water for 10-15 minutes on a medium setting in a well-ventilated area to dissipate any manufacturing odors. Discard the water afterwards.
4. penempatan: Place the multi cooker on a stable, flat, and heat-resistant surface, away from walls or other appliances to allow for proper ventilation.

Arahan Operasi

The Toyomi MC 4646 Multi Cooker offers various cooking functions controlled by a single slide switch.

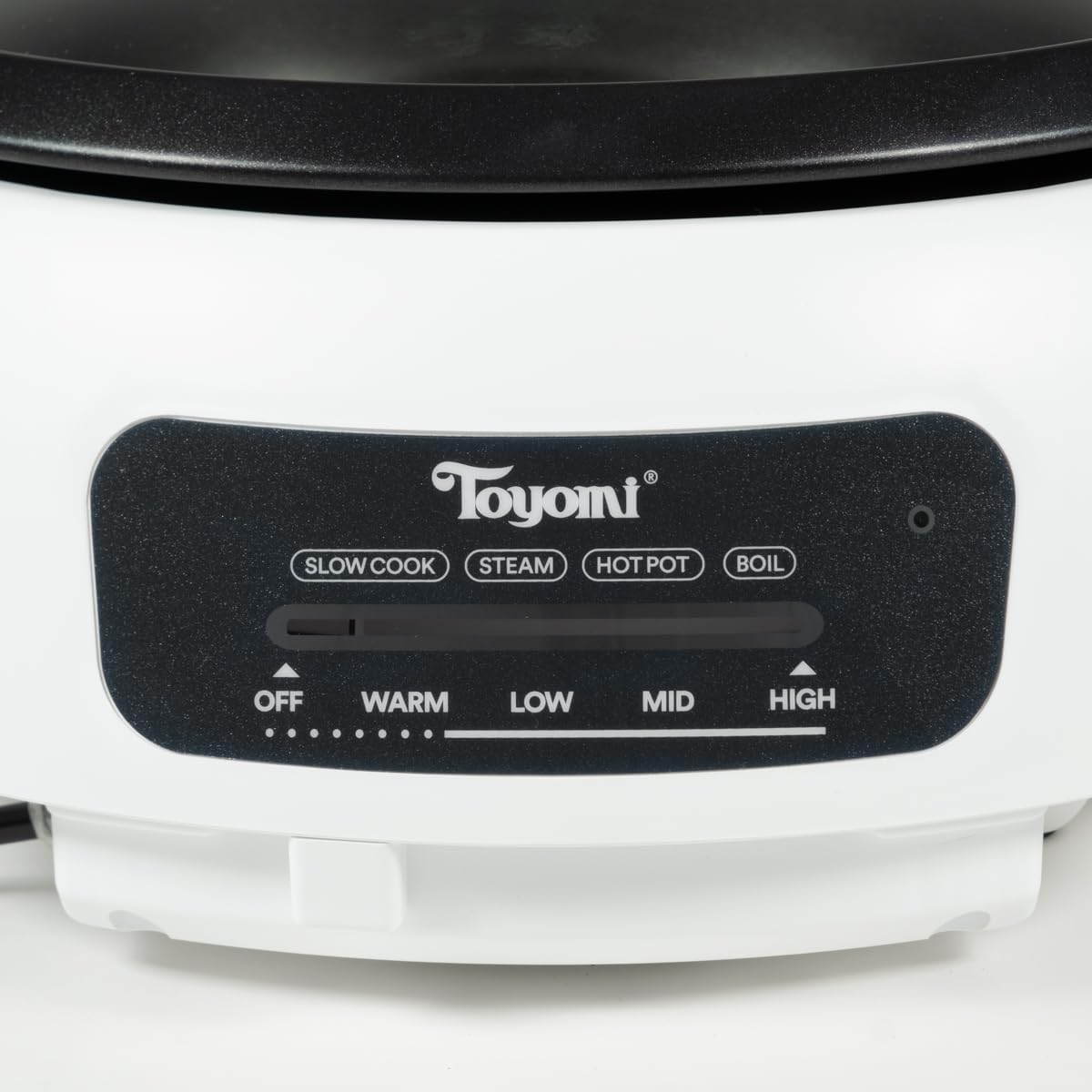

Image: Close-up of the control panel showing the slide switch with settings for OFF, WARM, LOW, MID, HIGH, and indicator lights for SLOW COOK, STEAM, HOT POT, BOIL.

Operasi Am:

1. Ensure the cooking pot is properly seated in the main unit.
2. Add desired ingredients and liquids to the cooking pot. Do not overfill beyond the maximum fill line (if present) or to the brim.
3. Place the tempered glass lid securely on the pot.
4. Pasangkan kord kuasa ke soket elektrik yang sesuai (220V).
5. Slide the control switch to the desired heat setting: WARM, LOW, MID, or TINGGI. The corresponding indicator light (SLOW COOK, STEAM, HOT POT, BOIL) will illuminate depending on the cooking method.
6. Monitor cooking progress through the glass lid.
7. Once cooking is complete, slide the control switch to DIMATIKAN dan cabut plag perkakas.
8. Use heat-resistant gloves or oven mitts when handling the hot pot or lid.

Mod Memasak Khusus:

• Masak perlahan: Use the LOW or MID setting for extended cooking times, ideal for stews, soups, and braises.
• Stim: Add water to the bottom of the pot, place a steaming rack (if included or purchased separately) with food above the water, and cover with the lid. Use the HIGH setting to bring water to a boil, then adjust as needed.
• Hot Pot / Steamboat: Fill the pot with broth and desired ingredients. Use the HIGH setting to bring to a boil, then reduce to MID or LOW to maintain a simmer for communal cooking.
• Didih: Use the HIGH setting to quickly boil water for noodles, blanching vegetables, or other tasks requiring rapid boiling.
• hangat: After cooking, switch to the WARM setting to keep food at a serving temperature without further cooking.

Pembersihan dan Penyelenggaraan

Proper cleaning and maintenance will extend the life of your Toyomi MC 4646 Multi Cooker.

1. Sentiasa cabut plag perkakas dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
2. Periuk dan Tudung Memasak: Wash the removable cooking pot and glass lid with warm, soapy water using a soft sponge or cloth. For stubborn food residue, soak the pot in warm water before cleaning. Rinse thoroughly and dry completely. The non-stick coating is delicate; avoid abrasive cleaners, metal scouring pads, or harsh brushes that can damage the surface.
3. Unit Utama: Lap bahagian luar unit utama dengan lembut, damp cloth. Do not use abrasive cleaners. Never immerse the main unit, power cord, or plug in water or any other liquid.
4. Storan: Ensure all parts are clean and dry before storing. Store the multi cooker in a cool, dry place.

Menyelesaikan masalah

Jika anda menghadapi masalah dengan periuk pelbagai guna anda, rujuk masalah dan penyelesaian biasa berikut:

If the problem persists after trying these solutions, please contact Toyomi customer support.

Spesifikasi

Waranti dan Sokongan

Toyomi products are manufactured to high-quality standards and are warranted against manufacturing defects. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Toyomi webtapak.

For technical support, service, or inquiries regarding your Toyomi MC 4646 Multi Cooker, please contact Toyomi customer service through their official channels. Contact information can typically be found on the product packaging, warranty card, or the official Toyomi webtapak.

Sokongan dalam talian: Visit the Toyomi Store on Amazon
