SSK Dual Bay Hard Drive Docking Station User Manual

1. Pengenalan

Welcome to the user manual for your SSK Dual Bay Hard Drive Docking Station. This manual provides detailed instructions on how to set up, operate, and maintain your device. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent any damage.

The SSK DK108 is an external dual-bay docking station designed for 2.5-inch and 3.5-inch SATA I/II/III HDDs and SSDs. It features USB 3.0 connectivity with UASP support for fast data transfers and includes two additional USB 3.0 expansion ports.

2. Produk Lebihview & Ciri-ciri

Rajah 2.1: Depan view of the SSK Dual Bay Hard Drive Docking Station, showcasing its two drive bays and two front-facing USB 3.0 ports.

Ciri-ciri Utama:

• Dual Bay Design: Supports two 2.5-inch or 3.5-inch SATA I/II/III HDDs/SSDs simultaneously, with a maximum capacity of 16TB per bay (total 32TB).
• USB 3.0 Berkelajuan Tinggi: Achieves data transfer rates of up to 5Gbps, backward compatible with USB 2.0 and 1.1.
• Sokongan UASP: Utilizes the USB Attached SCSI Protocol for up to 20% faster transfer speeds compared to traditional USB 3.0 when used with UASP-enabled systems.
• Multi-Function USB 3.0 Ports: Includes two additional USB 3.0 expansion ports for connecting other USB devices or charging.
• Pemasangan Tanpa Alat: Easy plug-and-play setup without the need for tools or drivers.
• Keserasian Luas: Compatible with Windows XP/Vista/7/8/8.1/10, Mac OS 10.4 to 10.11, and Linux Kernel 2.4.2 or higher.
• Bekalan Kuasa Teguh: Comes with a 12V/3A power adapter to ensure stable operation even with multiple high-capacity drives and connected USB devices.
• Cangkang Aluminium: Durable, shockproof, and vibration-resistant aluminum casing with efficient heatsink for reliable data transfers and low power consumption.
• Perlindungan Keselamatan: Terbina dalam lebihan semasa, lebihan voltage, short-circuit, and leakage protection.
• No Offline Clone Function: This model does not support offline cloning.

Figure 2.2: Illustration of the docking station's 4-in-1 multi-functionality, showing two SATA drive bays and two USB 3.0 ports for connecting USB devices like U disks or mobile phones.

Figure 2.3: Diagram illustrating the speed benefits of UASP protocol, showing 20% faster transfer speeds and lower CPU usage compared to traditional USB 3.0.

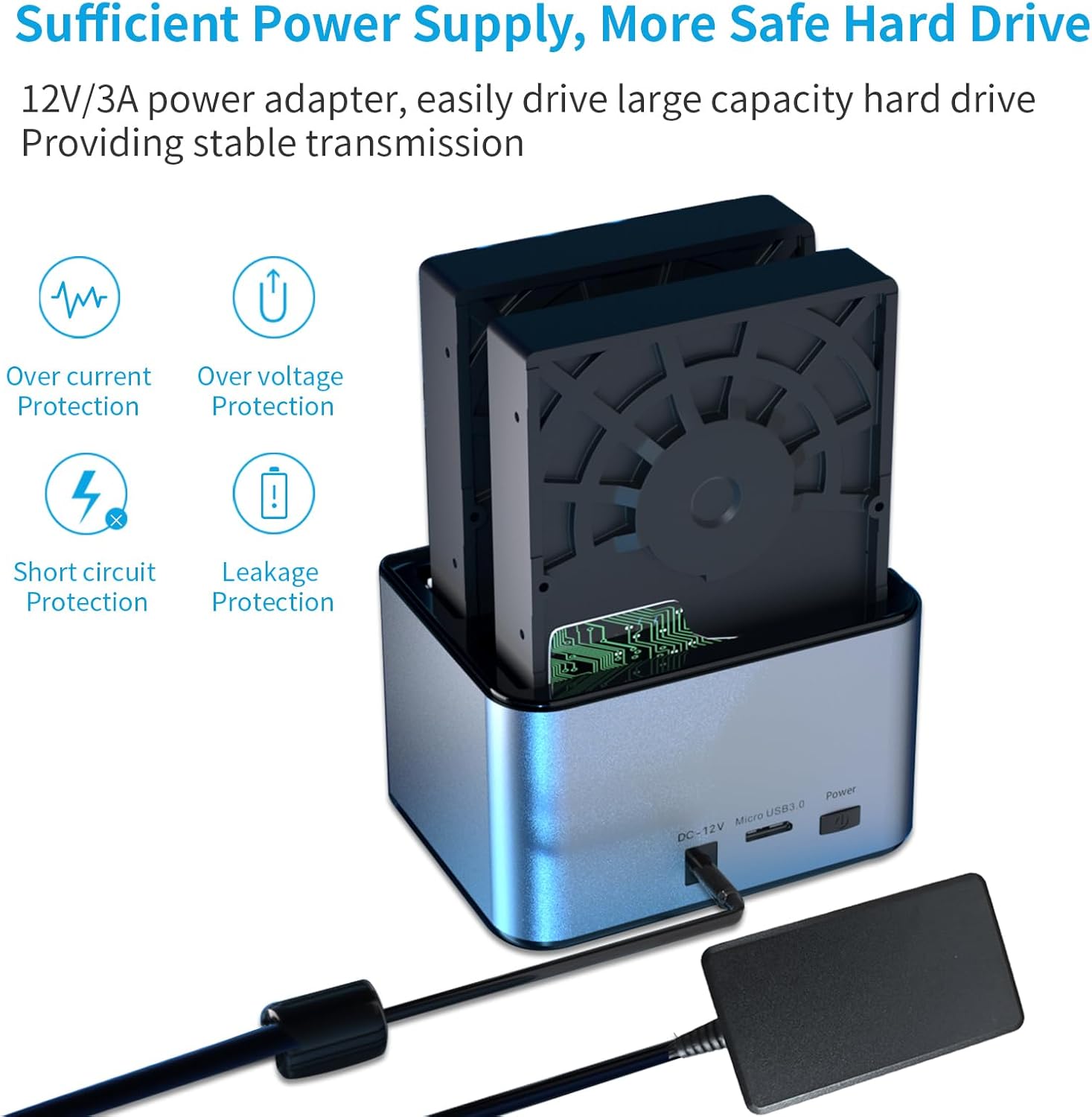

Figure 2.4: Image highlighting the 12V/3A power adapter and the various protection features (over-current, over-voltage, short-circuit, leakage protection) ensuring safe and stable operation.

Figure 2.5: Visual representation of the docking station's compatibility with various drive sizes (2.5" and 3.5" SATA HDD/SSD) and operating systems (Windows, Mac OS, Linux, Android). It also explicitly states "No Offline Clone Function".

Rajah 2.6: Jarak dekat views menunjukkanasing the premium features of the docking station, including its aluminum alloy shell, operating status indicators (A, B, Power), dust-proof design for the bays, and anti-skid footpads for stability.

3. Apa yang ada di dalam Kotak

The package for your SSK Dual Bay Hard Drive Docking Station should contain the following items:

• SSK Dual Bay Hard Drive Docking Station (Model DK108)
• Penyesuai Kuasa 12V/3A
• Kabel Data USB 3.0

Note: Hard drives (HDD/SSD) are not included and must be purchased separately.

4. Panduan Persediaan

4.1 Mengenal pasti Komponen

Rajah 4.1: Depan dan belakang views of the docking station with labels for HDD-A status indicator, HDD-B status indicator, Power indicator, USB 3.0 ports, DC 12V Input, Micro USB 3.0 port, and Power Button, along with product dimensions.

4.2 Drive Compatibility

This docking station is compatible with 2.5-inch and 3.5-inch SATA I/II/III HDDs and SSDs. Ensure your drive has a SATA interface before insertion.

Figure 4.2: Comparison image showing the distinct connectors for SATA (compatible) and IDE (not compatible) hard drives. Ensure your drive matches the SATA connector.

4.3 Langkah Pemasangan

1. Masukkan Pemacu Keras: Gently slide your 2.5-inch or 3.5-inch SATA HDD/SSD into the drive bay(s) until it is firmly seated. The tool-free design allows for easy insertion.
2. Sambungkan Penyesuai Kuasa: Plug the 12V/3A power adapter into the DC 12V input port on the back of the docking station, then plug the adapter into a power outlet.
3. Sambung ke Komputer: Connect one end of the provided USB 3.0 data cable to the Micro USB 3.0 port on the back of the docking station and the other end to an available USB 3.0 port on your computer.
4. Hidupkan kuasa: Press the Power button on the back of the docking station. The Power indicator light will illuminate.
5. Pengecaman Drive: Your operating system should automatically detect the connected drives. If the drives are new, you may need to initialize and format them through your computer's disk management utility before use.

5. Arahan Operasi

5.1 Accessing Drives

Once connected and recognized by your computer, the inserted hard drives will appear as removable storage devices. You can access, read, and write data to them just like any other external drive.

Figure 5.1: The docking station connected to a laptop, demonstrating file transfer operations.

Figure 5.2: The docking station in use with a desktop computer setup.

5.2 Using the USB 3.0 Expansion Ports

The two front-facing USB 3.0 ports can be used to connect additional USB devices such as USB flash drives, card readers, or to charge compatible devices.

Figure 5.3: The docking station's front USB 3.0 ports being used to charge mobile devices.

5.3 Safely Removing Drives

Before physically removing a hard drive from the docking station, always safely eject it from your operating system to prevent data corruption. The two inserted hard disks can operate independently, allowing you to safely eject one without affecting the use of the other.

1. Windows: Click the "Safely Remove Hardware and Eject Media" icon in the system tray, then select the drive you wish to eject.
2. macOS: Drag the drive icon to the Trash, or right-click (Ctrl-click) the drive icon and select "Eject".
3. Once the operating system confirms it is safe to remove, gently pull the hard drive out of the bay.

6. Spesifikasi

Spesifikasi Teknikal:

7. Penyelesaian masalah

Isu dan Penyelesaian Biasa:

• Pemanduan Tidak Dikesan:
  • Pastikan penyesuai kuasa disambungkan dengan kukuh dan stesen dok dihidupkan.
  • Verify the USB 3.0 data cable is properly connected to both the docking station and your computer.
  • Check if the hard drive is correctly seated in the bay.
  • Confirm the hard drive is a SATA drive (not IDE). Refer to Figure 4.2.
  • For new drives, ensure they are initialized and formatted in your computer's Disk Management (Windows) or Disk Utility (macOS).
  • Cuba sambungkan ke port USB lain pada komputer anda.
• Kelajuan Pemindahan Lambat:
  • Pastikan anda disambungkan ke port USB 3.0 pada komputer anda. Port USB 2.0 akan menyebabkan kelajuan lebih perlahan.
  • Verify your operating system and motherboard support UASP for optimal performance.
  • Check the health of your hard drive. A failing drive can cause slow transfers.
  • Elakkan memindahkan banyak files secara serentak, kerana ini boleh menjadi lebih perlahan daripada memindahkan beberapa besar files.
• Docking Station Not Powering On:
  • Ensure the power adapter is securely plugged into both the docking station and a working power outlet.
  • Tekan butang kuasa dengan kuat.
  • Cuba salur keluar kuasa yang berbeza.

8. Penyelenggaraan

To ensure the longevity and optimal performance of your SSK Dual Bay Hard Drive Docking Station, follow these maintenance guidelines:

• Jaga kebersihan: Regularly wipe the exterior with a soft, dry cloth. Avoid using liquid cleaners or aerosols.
• Pencegahan habuk: The docking station features a dust-proof design for the bays, but it's still advisable to keep it in a clean environment to prevent dust accumulation in ports and vents.
• Storan yang Betul: When not in use for extended periods, disconnect the power and USB cables and store the device in a cool, dry place.
• Tangani dengan Berhati-hati: Avoid dropping or subjecting the device to strong impacts, as this can damage internal components.
• Pengudaraan: Ensure the docking station is placed in an area with adequate airflow to prevent overheating, especially during prolonged use.

9. Waranti dan Sokongan

9.1 Maklumat Waranti

SSK products typically come with a limited warranty. Please refer to the warranty card included with your product or visit the official SSK webtapak untuk terma dan syarat waranti terperinci khusus untuk wilayah anda.

9.2 Sokongan Pelanggan

If you encounter any issues or have questions not covered in this manual, please contact SSK customer support. You can find contact information and additional resources on the official SSK weblaman web atau melalui halaman kedai Amazon mereka:

• SSK Amazon Store: Visit the SSK Store
• Manual Pengguna (PDF): Muat turun Manual PDF
