Technical Pro RX400X4 Receiver and Rockville D4-8 Speaker System User Manual

1. Pengenalan

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Technical Pro RX400X4 4-channel Bluetooth home receiver and (8) Rockville D4-8 wall-mount swivel outdoor speakers. This comprehensive audio system is designed to deliver strong, balanced sound for various environments, including patios, backyards, garages, or commercial spaces. Please read this manual thoroughly before using the product to ensure optimal performance and safety.

2. Maklumat Keselamatan Penting

Keselamatan Elektrik: Sentiasa pastikan bekalan kuasa sepadan dengan volumtage requirements specified on the unit. Disconnect power before making any connections or performing maintenance. Do not expose the receiver to rain or moisture.
Pengudaraan: Ensure adequate ventilation for the receiver. Do not block ventilation openings. Overheating can lead to malfunction.
Penempatan pembesar suara: Securely mount speakers to prevent them from falling. While the Rockville D4-8 speakers are weather-resistant, avoid direct exposure to extreme weather conditions for prolonged periods.
Servis: Do not attempt to service this product yourself. Refer all servicing to qualified service personnel. Opening the receiver unit will void the warranty.
Pembersihan: Gunakan kain lembut dan kering untuk pembersihan. Jangan gunakan pembersih cecair atau aerosol.

sebelah view of Technical Pro RX400X4 receiver with a 'Danger! Do Not Open Warranty Void if Opened' sticker.

Figure 2.1: Receiver side panel showing a warning label. This image displays the side of the Technical Pro RX400X4 receiver, highlighting a warning sticker that states "Danger! Do Not Open Warranty Void if Opened." This emphasizes the importance of not opening the unit to maintain warranty coverage.

3. Kandungan Pakej

Sila semak kandungan pakej untuk memastikan semua item ada dan dalam keadaan baik:

(1) Technical Pro RX400X4 4-Channel Bluetooth Home Receiver with Microphone Inputs
(8) Rockville D4-8 Black Dual 4" 8 Ohm Wall Mount Swivel Outdoor Home Patio Speakers
(1) Remote Control for RX400X4 Receiver
Mounting Hardware for Speakers (pre-attached swivel brackets)

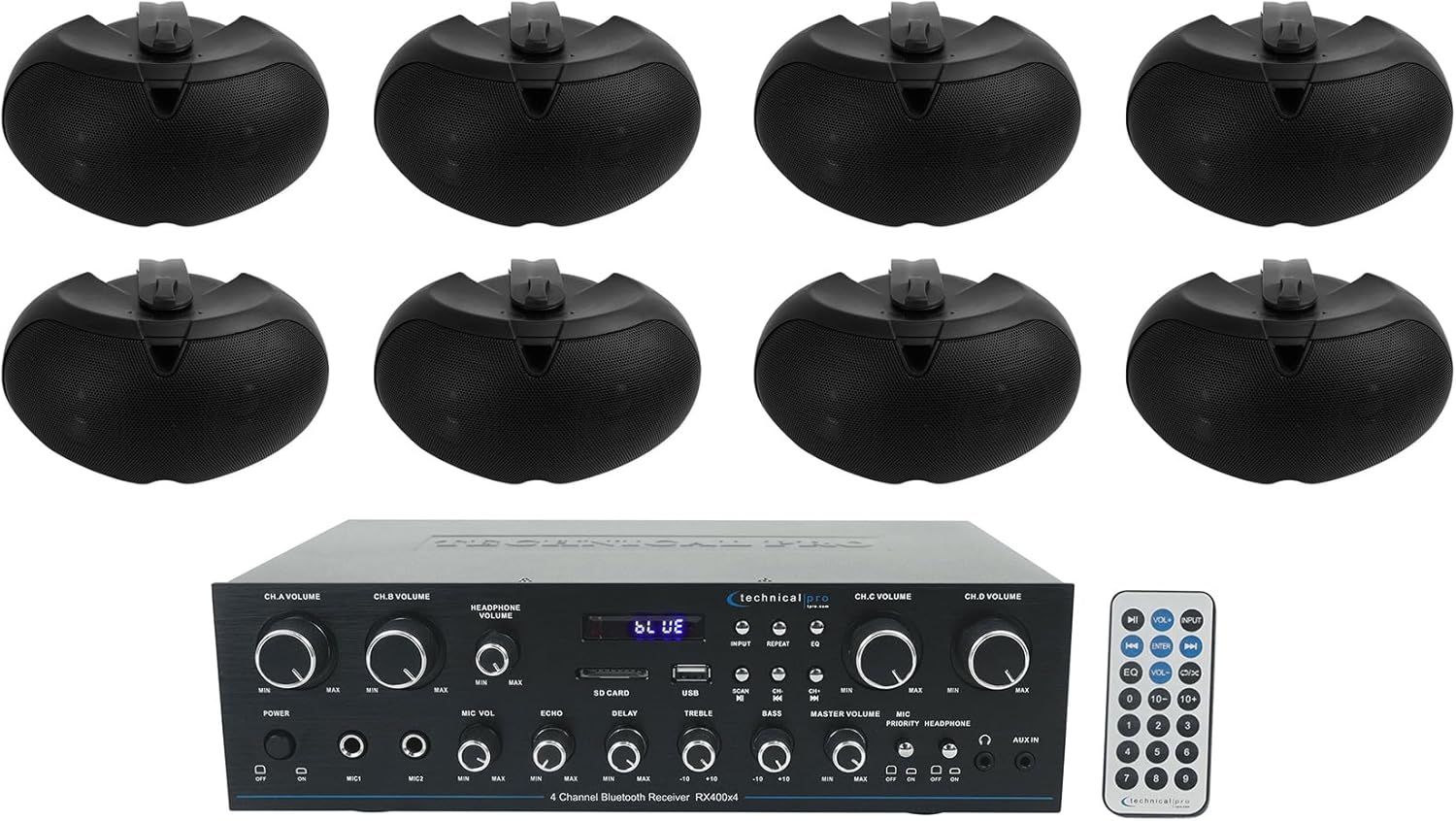

Complete bundle of Technical Pro RX400X4 receiver and eight Rockville D4-8 speakers.

Figure 3.1: Complete System Bundle. This image shows the entire product bundle, including the Technical Pro RX400X4 receiver at the bottom and eight Rockville D4-8 speakers arranged above it, providing a visual representation of all included components.

4. Produk Lebihview

4.1 Technical Pro RX400X4 Receiver

The RX400X4 is a versatile 4-channel home receiver designed to be the central hub of your audio system. It features Bluetooth connectivity for wireless streaming, multiple microphone inputs for live use, and various audio inputs for connecting external devices.

Depan view of Technical Pro RX400X4 receiver with remote control.

Figure 4.1: RX400X4 Front Panel and Remote. This image displays the front panel of the Technical Pro RX400X4 receiver, showing all controls, inputs, and the digital display. The included remote control is also visible to the right of the receiver.

Ciri-ciri Utama:

4-Channel Speaker Outputs (A, B, C, D)
Kesambungan Tanpa Wayar Bluetooth
USB and SD Card Playback
Multiple Microphone Inputs (MIC1, MIC2) with Echo and Delay controls
Input Auxiliary (AUX).
Master Volume, Channel Volume, Headphone Volume, and Microphone Volume controls
Treble and Bass Tone Controls
Output Fon Kepala

belakang view of Technical Pro RX400X4 receiver showing speaker terminals.

Figure 4.2: RX400X4 Rear Panel (Speaker Outputs). Imej ini memberikan gambaran yang jelas view of the rear panel of the RX400X4 receiver, specifically highlighting the four sets of speaker output terminals (Channels A, B, C, D) for connecting your speakers.

Belakang terperinci view of Technical Pro RX400X4 receiver showing auxiliary and line inputs, and FM antenna.

Figure 4.3: RX400X4 Rear Panel (Inputs). This detailed image of the receiver's rear panel shows the auxiliary (AUX) and line input/output RCA jacks, as well as the FM antenna connection point, illustrating the various connectivity options.

4.2 Rockville D4-8 Outdoor Speakers

The Rockville D4-8 speakers are designed for both outdoor and indoor use, featuring weather-resistant construction and a compact design. Each speaker houses dual 4-inch woofers and a rear bass port to deliver powerful and clear audio.

Depan view of a single Rockville D4-8 outdoor speaker.

Figure 4.4: Rockville D4-8 Front View. This image shows the front grille of a single Rockville D4-8 speaker, highlighting its oval shape and protective mesh, designed for outdoor durability.

Ciri-ciri Utama:

Dual 4" Woofers for enhanced bass and mid-range
Impedans 8 Ohm
Weather-resistant sealed enclosures
Swivel wall-mount brackets for flexible positioning
Rear bass port design

bersudut view of a Rockville D4-8 outdoor speaker showing its swivel bracket.

Figure 4.5: Rockville D4-8 Angled View with Bracket. Imej ini memberikan sudut view of the Rockville D4-8 speaker, clearly showing the integrated swivel wall-mount bracket that allows for directional adjustment.

belakang view of a Rockville D4-8 outdoor speaker showing input terminals and model information.

Figure 4.6: Rockville D4-8 Rear View. This image shows the rear of the Rockville D4-8 speaker, detailing the input terminals for speaker wire connection and the model information label.

5. Panduan Persediaan

5.1 Membongkar dan Pemeriksaan

Carefully remove all components from the packaging. Inspect each item for any signs of damage. If any item is damaged or missing, contact your retailer immediately.

5.2 Penempatan Penerima

Place the RX400X4 receiver on a flat, stable surface. Ensure there is adequate space around the unit for proper ventilation to prevent overheating. Avoid placing it near heat sources or in direct sunlight.

5.3 Speaker Placement and Mounting

The Rockville D4-8 speakers are designed for wall mounting using the integrated swivel brackets. Consider the following for optimal sound coverage:

lokasi: Choose locations that provide even sound distribution across your desired listening area. For outdoor use, consider sheltered areas to minimize direct exposure to harsh weather, despite their weather-resistant design.
Pemasangan: Use appropriate screws and anchors for your wall material (wood, brick, concrete, etc.). Ensure the mounting surface can support the weight of the speakers.
Arah: Utilize the swivel brackets to angle each speaker towards the primary listening area for the best audio experience.

5.4 Sambungan Pendawaian

Before making any connections, ensure the RX400X4 receiver is turned OFF and unplugged from the power outlet.

Sambungan Pembesar Suara:
- Connect speaker wires from the Rockville D4-8 speakers to the speaker output terminals on the rear of the RX400X4 receiver (Channels A, B, C, D).
- Ensure correct polarity: connect the positive (+) terminal on the speaker to the positive (+) terminal on the receiver, and the negative (-) terminal on the speaker to the negative (-) terminal on the receiver. Incorrect polarity can result in poor sound quality.
- The D4-8 speakers have an 8 Ohm impedance. Ensure your wiring configuration respects the receiver's impedance requirements.
Audio Input Connections (Optional):
- Input AUX: Use an RCA cable to connect external audio sources (e.g., CD player, DVD player, TV) to the "AUX IN" RCA jacks on the receiver's rear panel.
- Kad USB/SD: Insert a USB drive or SD card into the respective slots on the front panel for digital media playback.
- Mikrofon: Connect microphones to the MIC1 or MIC2 inputs on the front panel.
Sambungan Antena FM:
- Connect the included FM antenna to the "FM ANTENNA" terminal on the rear of the receiver for radio reception.
Sambungan Kuasa:
- Once all audio connections are made, plug the receiver's power cord into a standard AC power outlet.

6. Arahan Operasi

6.1 Menghidupkan/Mematikan

Tekan ke KUASA butang pada panel hadapan atau alat kawalan jauh untuk menghidupkan atau mematikan unit.

6.2 Pemilihan Input

Tekan ke INPUT button on the front panel or the remote control to cycle through available audio sources: Bluetooth, USB, SD Card, AUX.

6.3 Berpasangan Bluetooth

Select "Bluetooth" as the input source on the receiver. The display will show "BLUE" and flash, indicating it's in pairing mode.
Pada peranti berdaya Bluetooth anda (telefon pintar, tablet, dll.), dayakan Bluetooth dan cari peranti yang tersedia.
Select "Technical Pro" or "RX400X4" from the list of devices.
Once paired, the "BLUE" indicator on the receiver's display will stop flashing and remain solid. You can now stream audio wirelessly.

6.4 Main Semula USB/Kad SD

Masukkan pemacu kilat USB atau kad SD yang mengandungi audio files into the respective slot. The receiver will automatically switch to the USB/SD input and begin playback. Use the IMBAS, CH-/CH+ (previous/next track), INPUT (play/pause), and ULIKAN butang pada panel hadapan atau alat kawalan jauh untuk mengawal main balik.

6.5 Penggunaan Mikrofon

Connect up to two microphones to the MIC1 and MIC2 inputs. Adjust the MIC VOL knob to control the microphone volume. Use the ECHO dan KELEWATAN tombol untuk menambah kesan pada audio mikrofon.

6.6 Volume and Tone Controls

VOLUME MASTER: Mengawal jumlah output keseluruhan sistem.
CH.A/B/C/D VOLUME: Adjusts the individual volume for each speaker channel.
VOLUME TELEFON BESAR: Mengawal kelantangan untuk output fon kepala.
TREBLE / BASS: Adjust these knobs to fine-tune the high and low frequencies of the audio output.

7. Penyelenggaraan

Pembersihan: Regularly wipe the receiver and speakers with a soft, dry, lint-free cloth. Do not use abrasive cleaners, waxes, or solvents as they may damage the finish.
Pengudaraan: Ensure the receiver's ventilation slots remain clear of dust and debris to prevent overheating.
Penjagaan Pembesar Suara: While weather-resistant, occasional cleaning of the speaker grilles can prevent dirt buildup. For prolonged periods of non-use in harsh outdoor conditions, consider covering the speakers.
Storan: Jika menyimpan sistem untuk tempoh yang lama, putuskan sambungannya daripada kuasa dan simpan di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.

8. Penyelesaian masalah

Masalah	Kemungkinan Punca	Penyelesaian
Tiada kuasa kepada penerima.	Power cord not securely plugged in; Power outlet not active.	Ensure power cord is fully inserted into the receiver and wall outlet. Test the outlet with another device.
Tiada bunyi dari pembesar suara.	Incorrect input selected; Speaker wires loose or incorrectly connected; Volume too low; Mute function active.	Select the correct input source. Check all speaker wire connections for proper polarity and secure fit. Increase Master Volume and individual channel volumes. Ensure mute is off.
Isu berpasangan Bluetooth.	Receiver not in pairing mode; Device too far; Interference.	Ensure receiver input is set to Bluetooth and "BLUE" is flashing. Move device closer to receiver. Turn off other Bluetooth devices nearby. Try unpairing and re-pairing.
Kualiti bunyi yang herot atau lemah.	Speaker wires incorrectly connected (polarity); Volume too high (clipping); Source audio quality is poor; Treble/Bass settings.	Verify speaker wire polarity. Reduce volume to prevent distortion. Check the quality of the audio source. Adjust Treble and Bass controls.
Mikrofon tidak berfungsi.	Microphone not plugged in correctly; MIC VOL knob too low; Microphone faulty.	Ensure microphone is fully inserted into MIC1/MIC2 input. Increase MIC VOL. Test with another microphone if available.
