Maklumat Keselamatan Penting
Please read this instruction manual carefully before installing or operating your Brilliant Dody Outdoor Wall Light. Keep this manual for future reference. Improper installation or use can lead to electric shock, fire, or other hazards.
- Ensure the power supply is disconnected before installation, maintenance, or bulb replacement.
- Pemasangan hendaklah dilakukan oleh juruelektrik bertauliah jika anda tidak pasti tentang pendawaian elektrik.
- This product is designed for outdoor use with an IP44 rating, providing protection against splashing water.
- Jangan melebihi wat maksimumtage dinyatakan untuk mentol.
Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- 1 x Brilliant Dody Outdoor Wall Light fixture
- Mounting material (screws, wall plugs)
- Manual Arahan
Nota: Mentol E27 tidak disertakan dan mesti dibeli secara berasingan.
Persediaan dan Pemasangan
- Sediakan Kawasan Pemasangan: Choose a suitable wall location for mounting. The recommended mounting height for optimal motion detection is 1.8 meters. Ensure the power supply to the installation area is switched off at the main circuit breaker.
- Tandakan Titik Penggerudian: Hold the light fixture against the wall at the desired mounting height. Mark the positions for the drilling holes using a pencil.
- Lubang gerudi: Drill holes at the marked positions. Insert the provided wall plugs into the drilled holes.
- Sambungan Pendawaian: Carefully connect the electrical wires from your mains supply to the terminal block inside the light fixture. Ensure correct polarity (Live, Neutral, Earth). If you are unsure, consult a qualified electrician.
- Pasang Lekapan: Secure the light fixture to the wall using the provided screws. Ensure it is firmly attached.
- Pasang Mentol: Insert an E27 bulb (max 20W, LED compatible) into the lamp holder. Ensure the bulb is securely screwed in.
Imej: Depan view of the Brilliant Dody Outdoor Wall Light, showing its sleek black and white design. This image illustrates the overall appearance of the fixture before installation.

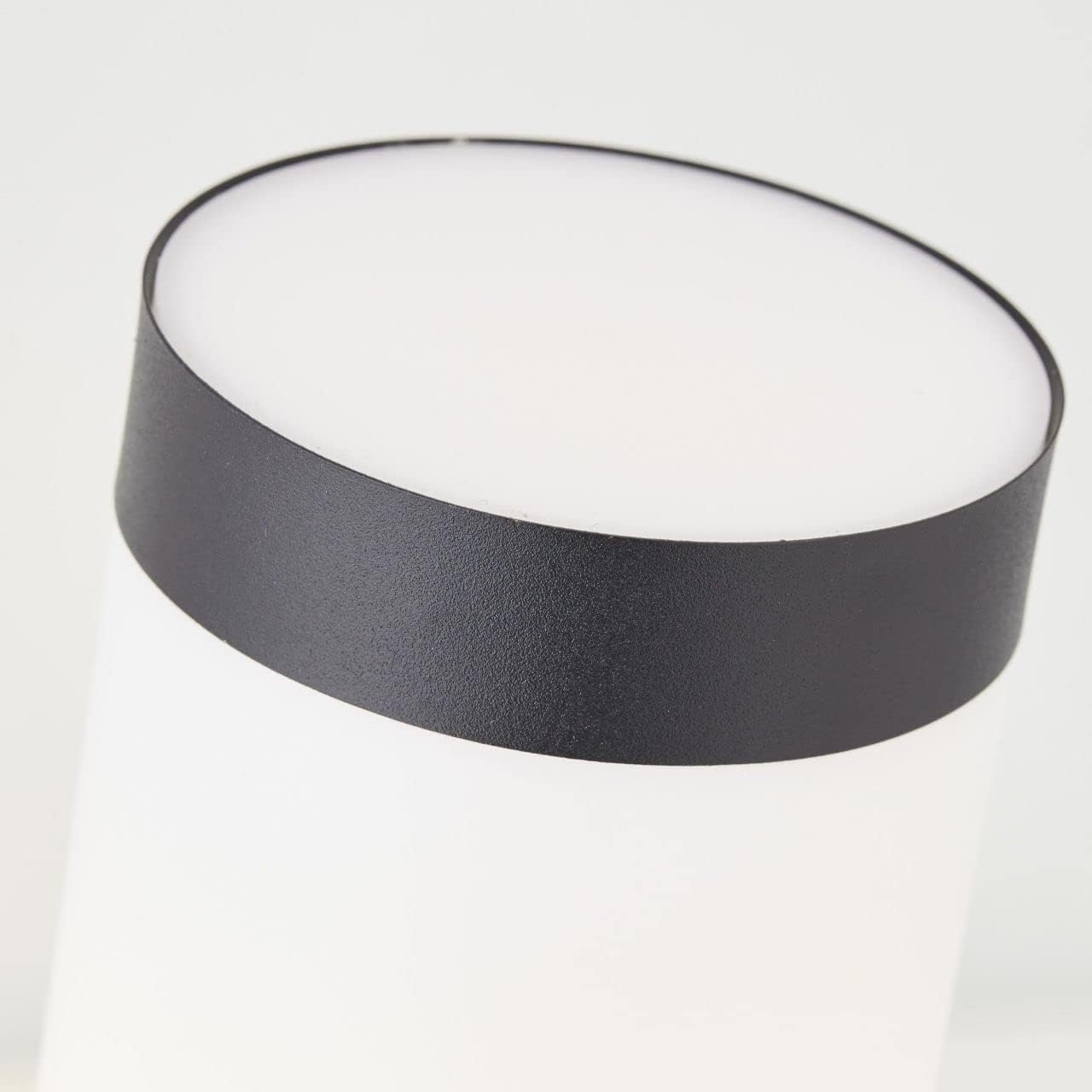

Image: Close-up of the top section of the Brilliant Dody Outdoor Wall Light, highlighting the white diffuser and black trim. This view helps in understanding the bulb housing area.
Arahan Operasi
The Brilliant Dody Outdoor Wall Light features an integrated motion detector for automatic operation. After installation, restore power to the fixture.
Motion Detector Settings:
The motion sensor has adjustable settings for 'TIME' and 'LUX'. These controls are typically located on the sensor unit itself.
Imej: Terperinci view of the motion sensor and its adjustment dials (TIME and LUX) on the Brilliant Dody Outdoor Wall Light. This image shows where to find and adjust the sensor settings.
- MASA: This dial controls how long the light remains on after motion is detected and no further motion is sensed. Rotate the dial to increase or decrease the duration.
- LUX: This dial determines the ambient light level at which the sensor becomes active. Rotate towards the sun icon for the sensor to activate in brighter conditions (daytime), or towards the moon icon for it to activate only in darker conditions (nighttime).
Kawasan Pengesanan:
- Sudut Pengesanan: 120°
- Julat Pengesanan: Up to 8 meters on both sides, with a maximum detection range of 10 meters.
- Ketinggian Pemasangan Optimum: 1.8 meters for best performance.
Penyelenggaraan
- Pembersihan: To clean the fixture, ensure the power is off. Wipe with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang kasar, kerana ini boleh merosakkan kemasan keluli tahan karat atau penyebar plastik.
- Penggantian mentol: Before replacing the bulb, ensure the power supply is disconnected. Allow the old bulb to cool down completely. Unscrew the old E27 bulb and replace it with a new E27 bulb (max 20W, LED compatible).
- Pemeriksaan: Periksa lekapan secara berkala untuk sebarang tanda kerosakan, sambungan longgar atau haus.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. | Tiada bekalan kuasa. Mentol rosak. Incorrect LUX setting. | Periksa pemutus litar. Ganti mentol. Adjust LUX dial towards the moon icon for darker conditions. |
| Lampu kekal menyala secara berterusan. | Pergerakan berterusan dikesan. Incorrect TIME setting. | Ensure no objects are constantly moving in the detection zone. Adjust TIME dial to a shorter duration. |
| Penderia gerakan tidak mengesan. | Halangan dalam laluan pengesanan. Incorrect LUX setting. Sensor kotor. | Kosongkan sebarang halangan. Adjust LUX dial towards the sun icon for brighter conditions, or ensure it's not set too low for current ambient light. Clean the sensor lens gently. |
Spesifikasi Produk
- Jenama: Cemerlang
- Nombor Model: 1000134854
- ASIN: B0B11KYHSW
- Dimensi (L x W x H): 17 x 7.6 x 40 cm
- Berat: 490 gram
- Bahan: Keluli Tahan Karat
- Bahan teduhan: plastik
- warna: Hitam
- Jenis Mentol: E27 (Mentol tidak termasuk)
- Max Wattage: 20W (LED compatible)
- Bilangan Mentol: 1
- Sumber Kuasa: Kabel Elektrik
- Jenis Pemasangan: Lekap di dinding
- Ciri Khas: Pengesan Pergerakan
- Penilaian IP: IP44 (Protection against splashing water)
- Motion Detector Angle: 120°
- Motion Detector Range: Up to 8m (both sides), max 10m
- Ketinggian Pemasangan Optimum: 1.8m
Waranti dan Sokongan
Information regarding specific warranty terms and customer support for Brilliant products may vary by region and retailer. Please refer to the documentation provided at the time of purchase or visit the official Brilliant website for detailed warranty information and support contacts.
For technical assistance or inquiries, please contact Brilliant customer service through their official channels.
