INGCO RGH6528 650W Reversible Rotary Hammer Drill User Manual

1. Arahan Keselamatan

Always observe basic safety precautions when using electric power tools to reduce the risk of fire, electric shock, and personal injury. Read all instructions before operating this tool.

• Keselamatan Kawasan Kerja: Pastikan kawasan kerja bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
• Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan alur keluar. Jangan sekali-kali mengubah suai palam dalam apa jua cara. Elakkan sentuhan badan dengan permukaan yang dibumikan atau dibumikan seperti paip, radiator, julat dan peti sejuk.
• Keselamatan Diri: Always wear eye protection. Use safety glasses, goggles, or a face shield. Wear hearing protection when operating the tool for extended periods. Dress properly; do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
• Penggunaan dan Penjagaan Alat: Jangan paksa alat kuasa. Gunakan alat kuasa yang betul untuk aplikasi anda. Putuskan sambungan palam daripada sumber kuasa sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.
• Penyelenggaraan: Minta alat kuasa anda diservis oleh pembaikan bertauliah dengan hanya menggunakan alat ganti yang sama. Ini akan memastikan keselamatan alat kuasa dikekalkan.

2. Produk Lebihview

The INGCO RGH6528 Rotary Hammer Drill is a versatile tool designed for drilling, hammer drilling, and chiseling in various materials. Familiarize yourself with its components for safe and effective operation.

Rajah 1: Main components of the INGCO RGH6528 Rotary Hammer Drill. Key parts include the Depth Stop, Button 4 Function Selector (Hammer Drilling, Drilling, Vario-Lock, Chiseling), Rotational Direction Switch, Auxiliary Handle, ON/OFF Switch, and Lock-on Button.

• Hentian Kedalaman: Digunakan untuk menetapkan kedalaman penggerudian yang dikehendaki.
• Pemilih Fungsi: Allows selection between four operating modes: Hammer Drilling, Drilling, Chiseling, and Vario-Lock.
• Suis Arah Putaran: Controls the direction of rotation (forward or reverse).
• Pemegang Bantu: Memberikan cengkaman dan kawalan tambahan semasa operasi.
• Suis ON / OFF: Mengaktifkan dan menyahaktifkan alat.
• Butang Kunci: Locks the ON/OFF switch for continuous operation.
• SDS Plus Chuck System: Enables quick and tool-free bit changes.

3. Spesifikasi

The following table details the technical specifications of the INGCO RGH6528 Rotary Hammer Drill:

Rajah 2: The INGCO RGH6528 Rotary Hammer Drill shown with its carrying case and included SDS-PLUS drill bits.

4. Persediaan

4.1 Memasang Pemegang Bantu

The auxiliary handle provides better control and stability. It can be rotated to various positions for optimal comfort and safety.

1. Longgarkan pemegang tambahan dengan memutarkannya melawan arah jam.
2. Slide the handle to the desired position on the tool's barrel.
3. Rotate the handle clockwise to tighten it securely.

Rajah 3: Pemegang tambahan boleh diputar 360 darjah untuk kegunaan ergonomik.

4.2 Menetapkan Hentian Kedalaman

The depth stop allows for precise drilling to a predetermined depth.

1. Insert the depth stop rod into the hole on the auxiliary handle.
2. Adjust the rod until the desired drilling depth is achieved, measuring from the tip of the drill bit.
3. Ketatkan pemegang tambahan untuk memastikan penahan kedalaman berada di tempatnya.

4.3 Inserting and Removing SDS Plus Drill Bits

The SDS Plus chuck system allows for quick and secure bit changes without additional tools.

1. Clean the shank of the SDS Plus drill bit.
2. Pull back the chuck sleeve on the front of the tool.
3. Insert the drill bit into the chuck until it clicks into place. Release the chuck sleeve.
4. Pull on the bit to ensure it is securely locked. There will be a slight axial play, which is normal for SDS Plus systems.
5. Untuk menanggalkannya, tarik sarung chuck ke belakang dan tarik mata gerudi keluar.

Rajah 4: Demonstrating the SDS Plus chuck system for quick bit changes.

5. Arahan Operasi

5.1 Memilih Mod Pengendalian

The INGCO RGH6528 offers four operating modes, selected via the function adjustment knob:

Rajah 5: The function adjustment knob for selecting the desired operating mode.

• Drilling Mode (Drill icon): For drilling in wood, metal, ceramics, and plastics without impact.
• Hammer Drilling Mode (Hammer and Drill icon): Untuk penggerudian konkrit, batu dan batu dengan impak.
• Chiseling Mode (Chisel icon): For light chiseling work in masonry and concrete.
• Vario-Lock Mode (Arrow icon): Allows adjustment of the chisel angle for optimal working position.

To change the mode, rotate the function adjustment knob to the desired setting. Ensure the tool is unplugged or switched off before changing modes.

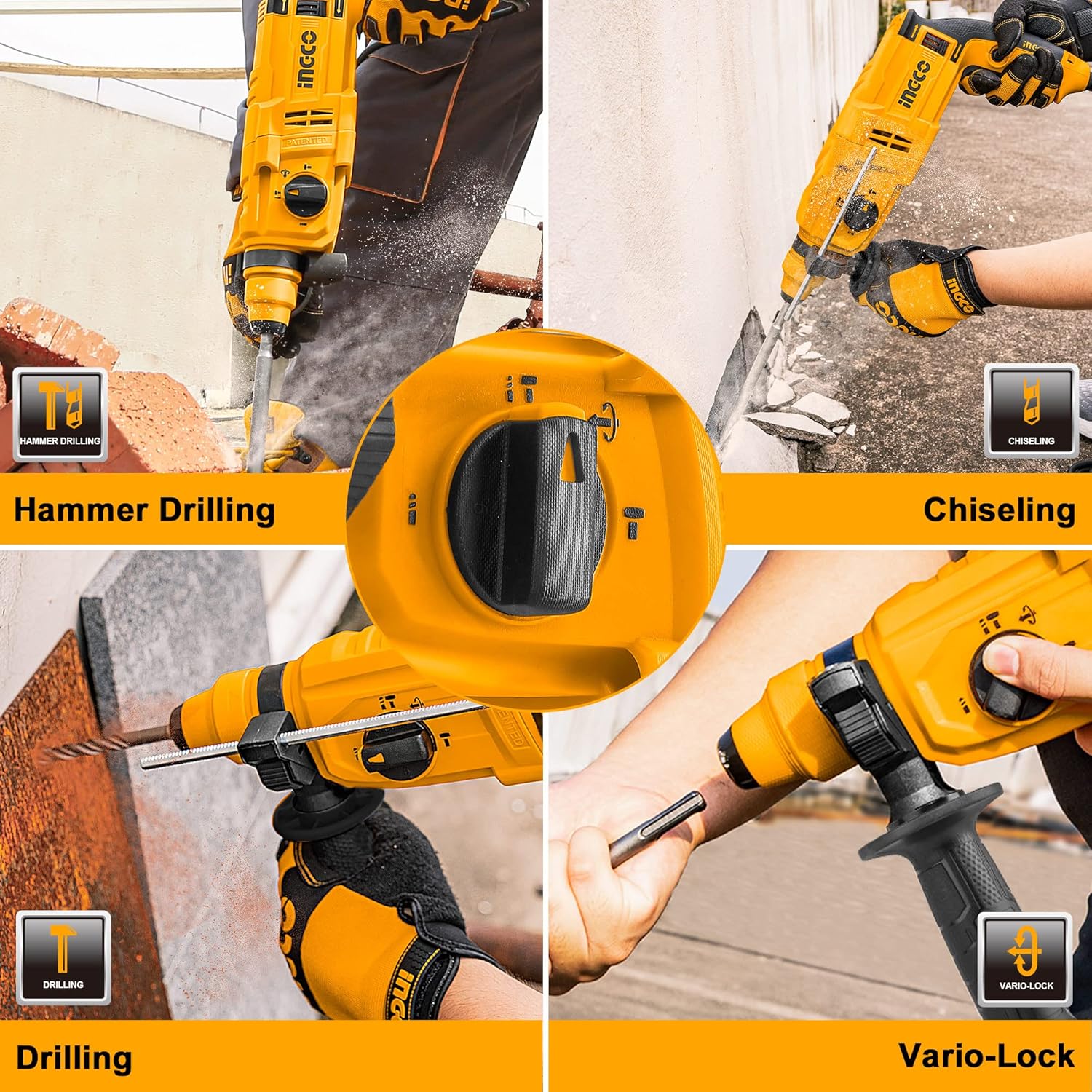

Rajah 6: The INGCO RGH6528 in action, demonstrating its four operational modes.

5.2 ON/OFF Switch and Lock-on Button

To start the tool, press the ON/OFF switch. The tool features a variable speed trigger, allowing you to control the speed by varying the pressure on the switch.

For continuous operation, press the Lock-on Button while the ON/OFF switch is depressed. To release, press the ON/OFF switch again.

Rajah 7: The Lock-on Button for continuous operation.

5.3 Rotational Direction Switch

The rotational direction switch is located near the ON/OFF switch. Push it to the left for forward rotation (clockwise) and to the right for reverse rotation (counter-clockwise). Use reverse rotation for removing jammed bits or fasteners.

Rajah 8: The rotational direction switch allows for forward and reverse operation.

6. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your INGCO RGH6528 Rotary Hammer Drill.

• Pembersihan: After each use, clean the tool's ventilation slots and housing with a soft brush or compressed air. Do not use water or chemical cleaning agents.
• Penyelenggaraan Chuck: Keep the SDS Plus chuck clean and lightly lubricated to ensure smooth bit insertion and removal.
• Berus Karbon: The carbon brushes are wear parts. If the motor sparks excessively or the tool stops working, the carbon brushes may need replacement. This should be performed by a qualified service technician.
• Storan: Simpan alat tersebut di tempat yang kering, selamat, dan jauh daripada kanak-kanak.

Rajah 9: Proper ventilation is crucial for motor cooling and tool longevity.

7. Penyelesaian masalah

If you encounter issues with your rotary hammer drill, refer to the following common problems and solutions:

• Alat tidak bermula:
  • Periksa sama ada kord kuasa dipasang dengan selamat ke soket yang berfungsi.
  • Periksa kabel kuasa untuk kerosakan.
  • Ensure the ON/OFF switch is fully depressed.
• Loss of power or intermittent operation:
  • Periksa sambungan yang longgar.
  • The carbon brushes may be worn out and require replacement.
  • Ensure the ventilation slots are not blocked, as overheating can cause the tool to shut down.
• Bit not locking into chuck:
  • Ensure the SDS Plus bit shank is clean and free of debris.
  • Pull the chuck sleeve back completely before inserting the bit.
• Getaran atau bunyi yang berlebihan:
  • Ensure the drill bit is correctly inserted and not bent or damaged.
  • Check if the auxiliary handle is securely tightened.

For problems not listed here or if solutions do not resolve the issue, contact customer support.

8. Waranti dan Sokongan

The INGCO RGH6528 Rotary Hammer Drill comes with a standard manufacturer's warranty. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical assistance, spare parts, or warranty claims, please contact INGCO customer support through their official website or the retailer where the product was purchased. Always provide your model number (RGH6528) and purchase date when seeking support.
