1. Pengenalan
This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your Shine Decor Eco Neon LED Rope Light. This product is designed for both indoor and outdoor use, offering bright, uniform, and dotless illumination. Please read this manual thoroughly before use and retain it for future reference.
Image: Shine Decor Eco Neon LED Rope Light in a modern home setting, showcasing ciri utamanya.
2. Maklumat Keselamatan
- The Shine Decor LED neon rope light is tersenarai ETL, memastikan ia memenuhi piawaian keselamatan yang diiktiraf.
- Beroperasi pada AC 110-130V. No DC adapter is needed for standard plug-and-play use.
- Termasuk a fius ganti untuk keselamatan yang dipertingkatkan.
- For hardwired installations, professional electrician installation is recommended.
- Sentiasa unroll the entire rope light before powering it on to prevent overheating.
- Each power cord supports a maximum length of 164 kaki (50 M) of rope light. Do not exceed this limit.
- For outdoor use or in wet environments, it is crucial to silicone glue all connections and end sides. The power cord and end side should be left indoors or placed in a waterproof box to extend longevity and ensure safety.
- Avoid excessive twisting or bending beyond the minimum bending radius of 4 cm.
3. Kandungan Pakej
Sahkan bahawa semua komponen terdapat dalam pakej anda:
- 1x 32.8ft (10m) Eco Neon LED Rope Light
- 1x 4.92ft (1.5m) Fused Power Cord
- 20x Aluminum Mounting Clips
- 40x Skru
- 1x Manual Pengguna (dokumen ini)

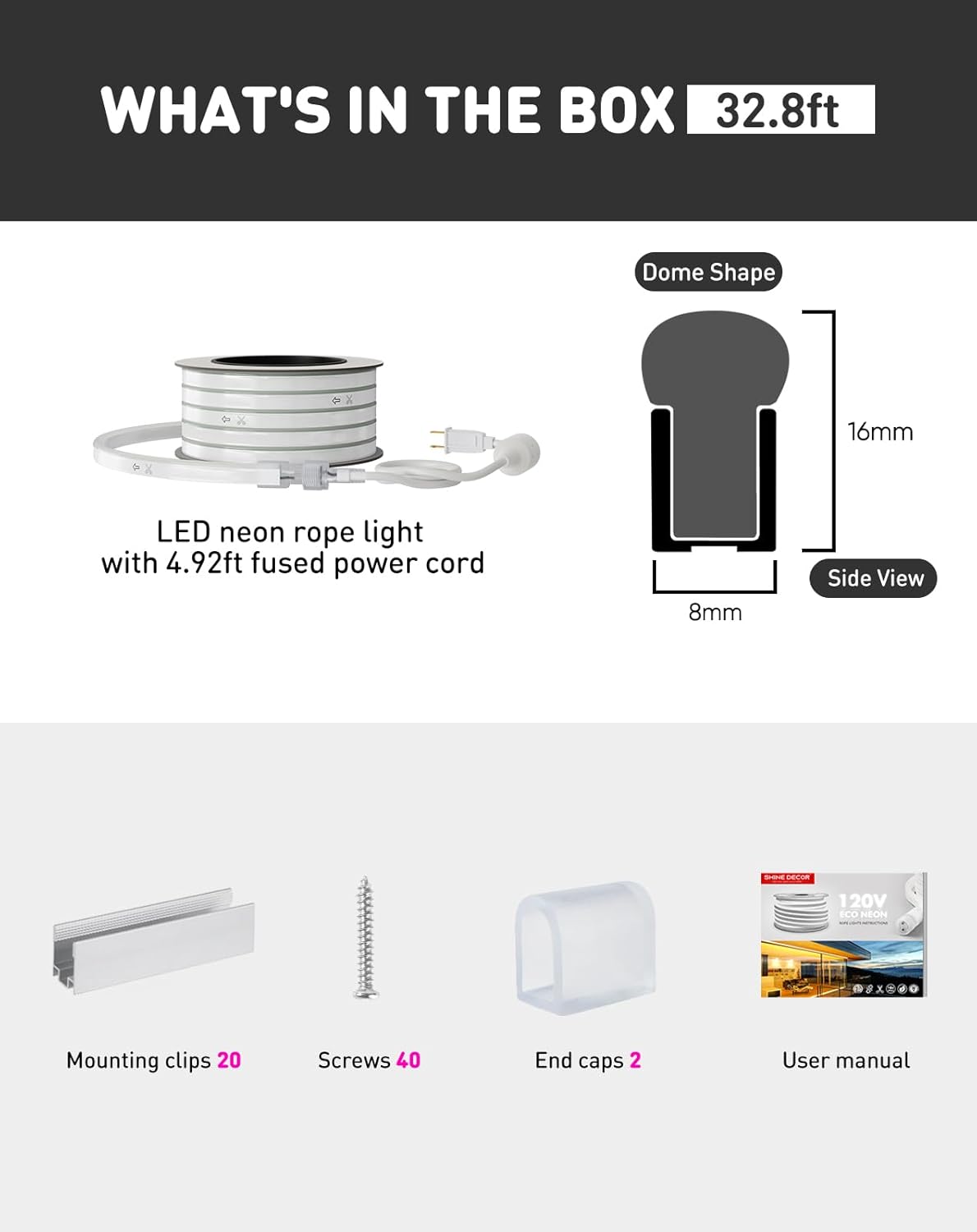

Imej: Terperinci view of the package contents for the LED rope light.
4. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Voltage | AC 110-130V |
| Penarafan IP | IP65 Kalis Percikan |
| warna | 4500K Putih Neutral |
| Dimensi | 8mm (W) x 16mm (H) |
| Penggunaan Kuasa | 6W/M |
| Unit Pemotongan | 1.64 kaki (0.5 m) |
| Min. Jejari Lentur | 4 sm (1.57 in) |
| Pensijilan | Tersenarai ETL |
| Ketumpatan LED | 120 LED/M |
| Max. Run Length (per power cord) | 164 kaki (50 M) |
| Jangka hayat | 50,000+ jam |
| Suhu Bekerja | -4°F hingga 120°F |
Image: Product specifications table.
5. Persediaan dan Pemasangan
5.1. Cutting the LED Rope Light
The rope light can be cut to custom lengths at designated marks. Locate the black cutting marks on the bottom of the strip, which appear every 1.64 ft (0.5 m). Use sharp scissors to make a clean cut at these marks.
Image: Instructions for cutting the LED rope light at marked intervals.
5.2. Connecting Multiple Rope Lights
The rope lights feature male and female end-to-end connectors, allowing you to connect multiple strips. Ensure the maximum run length of 164 ft (50 M) per power cord is not exceeded.
Image: Male-to-female connectors for extending the rope light.
5.3. Power Connection and Waterproofing
Connect the fused power cord to the rope light. For any cut ends or connections, especially for outdoor or wet applications, it is essential to apply silicone glue and use heat shrink tubing to ensure a waterproof seal. This protects the internal wiring and maintains the IP65 rating.
Video: Demonstrates how to install the power cord and apply waterproofing measures to the LED rope light.
Image: ETL-listed plug with extra fuse for safe operation.
5.4. Pemasangan
Use the provided aluminum mounting clips and screws to secure the rope light in your desired location. Ensure clips are spaced appropriately to prevent sagging. The rope light has a minimum bending radius of 4 cm, allowing for flexible installation around corners and contours.
6. Arahan Operasi
Once installed and all connections are secured, plug the power cord into a standard AC 110-130V electrical outlet. The light will illuminate instantly. The rope light is dimmable, but a dimmer is optional and not included with this package. If you wish to use a dimmer, ensure it is compatible with AC 110-130V LED lighting.
Video: Tamatview of the Shine Decor LED Eco Neon Rope Light, showcasing ciri dan aplikasinya.
Image: Versatile applications of the LED rope light in various settings.
7. Penyelenggaraan
- To clean the rope light, gently wipe it with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
- Regularly inspect all connections, especially for outdoor installations, to ensure they remain securely sealed and free from damage.
- The anti-yellowing and flame-retardant thick silicone material is designed for longevity, but proper care will further extend its lifespan.
8. Penyelesaian masalah
- Lampu tidak menyala: Check if the power cord is securely plugged into the outlet and the rope light. Inspect the fuse in the power cord for any issues. Ensure the entire rope light was unrolled before powering on.
- Uneven or dim lighting: Verify all connections are tight. Ensure the total length of connected rope lights does not exceed 164 ft (50 M) per power cord.
- Water ingress (for outdoor use): Re-apply silicone glue to all connections and end caps. Ensure the power cord and any unsealed ends are protected from moisture.
9. Waranti dan Sokongan
This Shine Decor Eco Neon LED Rope Light comes with a Waranti 1 tahun dari tarikh pembelian. Waranti ini meliputi kecacatan pembuatan di bawah penggunaan biasa. Ia tidak melindungi kerosakan akibat pemasangan yang tidak betul, penyalahgunaan, kemalangan atau pengubahsuaian yang tidak dibenarkan.
For warranty claims, technical support, or any questions regarding your product, please contact Shine Decor customer support through the retailer where the product was purchased or visit the official Shine Decor webtapak untuk maklumat hubungan.
