Hikvision DS-KIS202T 7-Inch Video Door Phone User Manual

1. Produk Lebihview

The Hikvision DS-KIS202T is a 7-inch analog video door phone kit designed for residential use. This kit includes an outdoor unit (DS-KB2411T-IM) and an indoor monitor (DS-KH2220), providing secure and convenient communication with visitors. It supports hands-free video intercom, remote unlocking, and monitoring of the external camera.

Ciri-ciri utama termasuk:

• 7-inch TFT LCD color display for clear video.
• Hands-free video intercom communication.
• Support for up to three indoor stations simultaneously.
• Monitoring of the outdoor unit and external analog cameras.
• Remote unlock function.
• Outdoor unit with self-adaptive IR supplement for night vision.
• Easy installation with a 4-wire connection.

Figure 1: Hikvision DS-KIS202T Video Door Phone Kit, featuring the indoor monitor displaying a family and the sleek outdoor unit.

2. Kandungan Pakej

Before installation, please verify that all components are present:

• 1 x DS-KH2220 Indoor Monitor (7-inch)
• 1 x DS-KB2411T-IM Outdoor Unit
• 1 x 5-meter 4-wire cable
• Aksesori pemasangan (skru, palam dinding)
• Manual Pengguna (dokumen ini)

3. Persediaan dan Pemasangan

This section provides general guidelines for installing your Hikvision DS-KIS202T video door phone. Professional installation is recommended.

3.1 Langkah Keselamatan

• Pastikan kuasa diputuskan sebelum pemasangan.
• Avoid installing the outdoor unit in direct sunlight or heavy rain.
• Do not expose the indoor monitor to high humidity or extreme temperatures.
• Use only the specified power adapter (12 VDC).

3.2 Pengenalan Komponen

Figure 2: The Hikvision DS-KIS202T indoor monitor and outdoor unit, illustrating their relative sizes and placement near a door.

1. Outdoor Unit (DS-KB2411T-IM): Equipped with a camera, microphone, speaker, call button, and IR illuminator.
2. Indoor Monitor (DS-KH2220): Features a 7-inch display, physical buttons for operation, microphone, and speaker.

3.3 Wiring Diagram (4-Wire Connection)

The system uses a 4-wire interface for connection between the outdoor unit and the indoor monitor. These wires typically include:

• Video Input Channel
• Audio Input/Output Channel
• Power Supply Channel (12 VDC)
• Saluran Tanah

Connect the corresponding terminals on both units using the provided 4-wire cable. Ensure correct polarity for power connections.

Warning: Incorrect wiring can damage the device. Refer to the detailed wiring diagram in the full technical manual if available.

3.4 Mounting the Units

1. Unit Luar: Mount the outdoor unit at a height that allows the camera to capture visitors' faces clearly (typically 1.4 to 1.6 meters from the ground). Use the provided screws and wall plugs.
2. Indoor Monitor: Mount the indoor monitor in a convenient location inside your home, away from direct heat sources or moisture.

4. Arahan Operasi

4.1 Menerima Panggilan

When a visitor presses the call button on the outdoor unit, the indoor monitor will ring and display the visitor's video feed. You can then:

• Jawapan: Press the "Answer" button (usually represented by a phone icon) on the indoor monitor to initiate hands-free two-way communication.
• abaikan: The call will automatically end after a set period if not answered.

4.2 Komunikasi Dua Hala

Once a call is answered, you can speak with the visitor through the integrated microphone and speaker on both units. The system supports noise suppression and acoustic echo cancellation for clear audio.

4.3 Pembukaan Kunci Jauh

During a call or while monitoring, press the "Unlock" button (often represented by a key icon) on the indoor monitor to remotely open an electronically controlled door lock (if connected to the outdoor unit's unlock control terminals).

4.4 Monitoring the Outdoor Unit

Anda boleh secara manual view the live video feed from the outdoor unit at any time without a visitor pressing the call button. Press the "Monitor" button (usually an eye icon) on the indoor monitor to activate this function.

Figure 3: The Hikvision DS-KIS202T in operation, showing a delivery person at the door and the corresponding view on the indoor monitor.

4.5 Intercom Between Indoor Stations

If multiple indoor monitors are installed, they can communicate with each other. Refer to the specific instructions for initiating an intercom call between indoor stations.

5. Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the indoor monitor and outdoor unit. Do not use abrasive cleaners or solvents.
• Keadaan Persekitaran: Ensure the units operate within the specified temperature and humidity ranges (-10°C to +55°C, 10% to 90% humidity).
• Pemeriksaan Kabel: Periodically check all wiring for signs of wear or damage.
• Kemas kini Firmware: Check the Hikvision official website for any available firmware updates for improved performance and security.

6. Penyelesaian masalah

7. Spesifikasi

7.1 Indoor Monitor (DS-KH2220)

• Skrin Paparan: LCD Warna TFT 7 inci
• Resolusi Paparan: 800 x 480
• Kaedah Operasi: Butang Fizikal
• Input Audio: Mikrofon Omnidirectional terbina dalam
• Output Audio: Pembesar suara terbina dalam
• Kualiti Audio: Noise Suppression and Acoustic Echo Cancellation
• 4-Antara Muka Wayar: 4 interfaces (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch ground)
• Bekalan Kuasa: 12 VDC
• Penggunaan Kuasa: Max 5W
• Suhu Operasi: -10°C hingga +55°C (14°F hingga 131°F)
• Kelembapan Operasi: 10% hingga 90%
• Dimensi (H x W x D): 133 mm x 197 mm x 14 mm

7.2 Outdoor Unit (DS-KB2411T-IM)

• kamera: CMOS 1/4"
• Resolusi: 720 x 576
• Kadar Bingkai Video: PAL: 25 fps
• Input Audio: Mikrofon Omnidirectional terbina dalam
• Output Audio: Pembesar suara terbina dalam
• Kualiti Audio: Noise Suppression and Acoustic Echo Cancellation
• Mod Pencahayaan: Self-adaptive IR Supplement
• Butang panggilan: One-touch call
• Unlock Control: Disokong

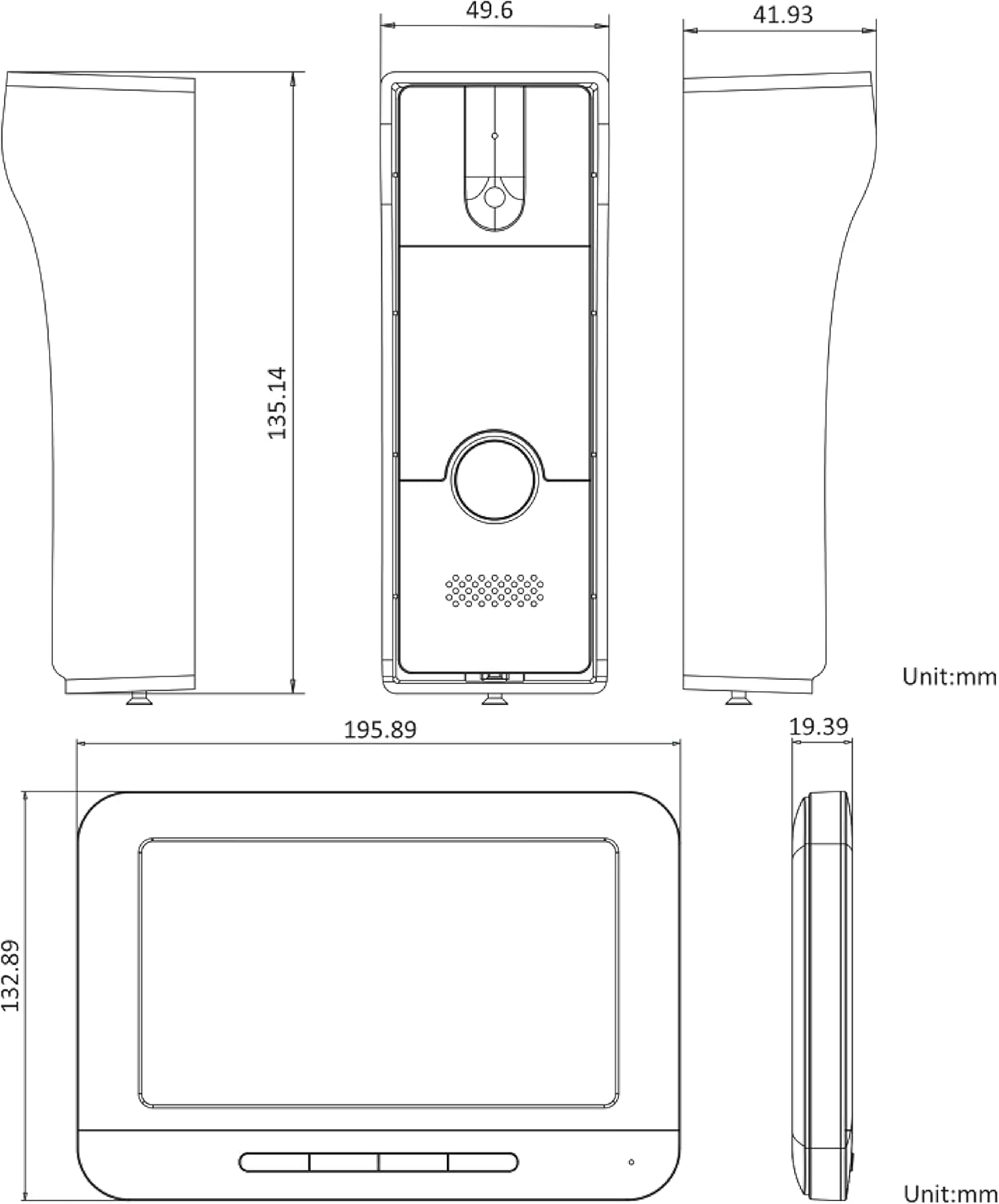

Figure 4: Detailed technical drawing showing the dimensions of both the indoor monitor and the outdoor unit of the Hikvision DS-KIS202T system.

8. Waranti dan Sokongan

Hikvision products typically come with a limited manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Hikvision webtapak untuk terma dan syarat waranti terperinci khusus untuk wilayah anda.

For technical support, troubleshooting assistance, or service inquiries, please contact your local Hikvision dealer or authorized service center. You may also find additional resources, FAQs, and support documentation on the official Hikvision support webtapak.

When contacting support, please have your product model number (DS-KIS202T) and serial number ready.
