1. Pengenalan dan Lebihview
Thank you for choosing the HJC i20 Solid Open Face Motorcycle Helmet. This manual provides essential information for the proper use, maintenance, and care of your helmet. Please read it thoroughly before using your helmet to ensure maximum safety and performance.
The HJC i20 helmet is designed for motorcycle riders, featuring an advanced polycarbonate composite shell, an internal sun shield, and a detachable mask. It is DOT FMVSS 218 approved, ensuring it meets stringent safety standards.

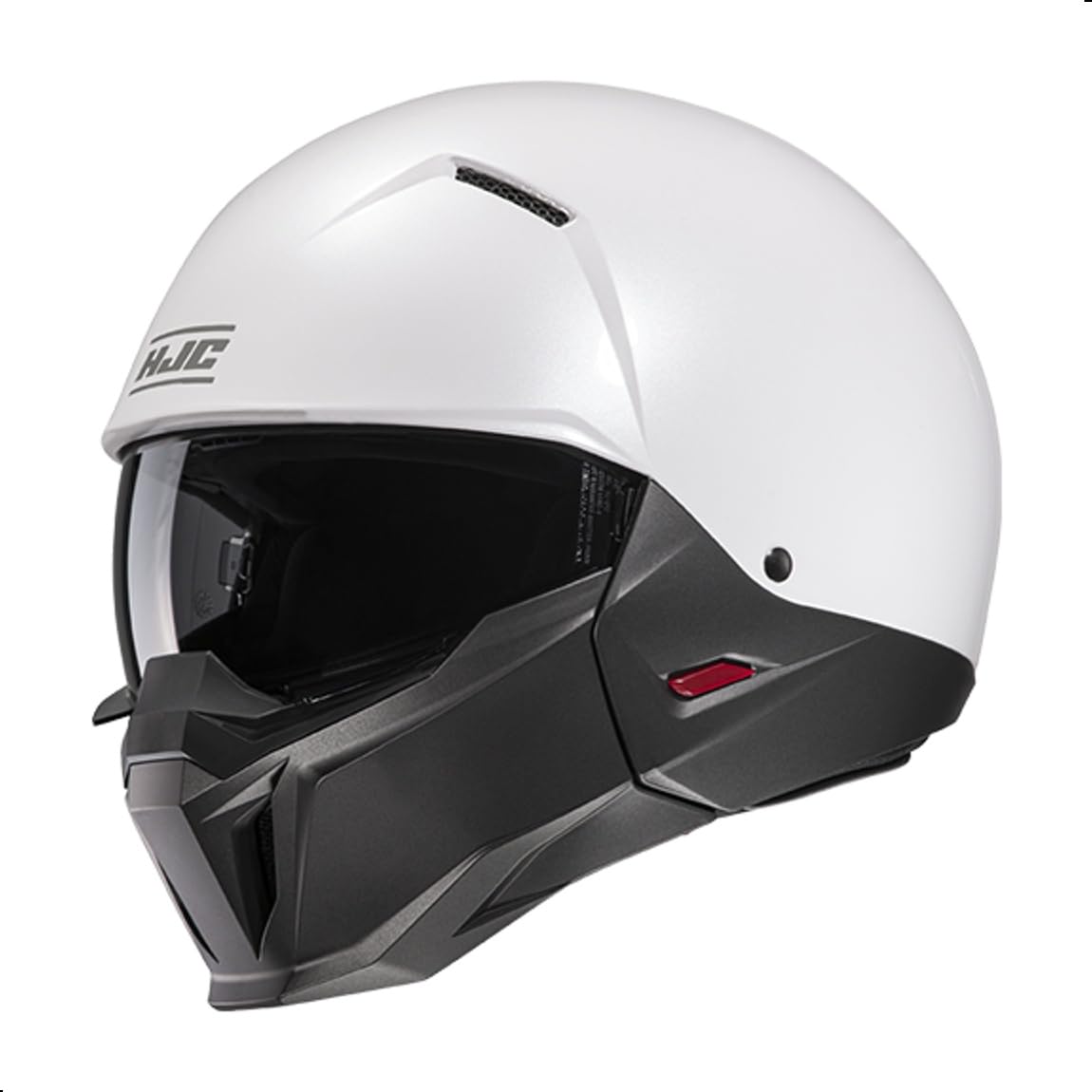

Image 1.1: HJC i20 Solid Open Face Motorcycle Helmet in White, shown from the side with the internal visor deployed.
2. Maklumat Keselamatan
Your HJC i20 helmet is DOT FMVSS 218 certified, meaning it has undergone rigorous testing to meet safety standards for energy absorption, penetration resistance, and chin strap structural integrity. Always wear a helmet that fits correctly and is securely fastened.
2.1 Proper Fit
A helmet must fit snugly to provide optimal protection. If the helmet is too loose, it may shift during an impact, reducing its protective capabilities. Refer to the size guide to ensure you have the correct size. The helmet should feel firm around your head and cheeks without causing uncomfortable pressure points.
2.2 Tali Dagu
Always secure the double D-ring fastener firmly under your chin. The strap should be tight enough that you cannot remove the helmet by pulling it from the back or front.
2.3 Usul 65 Amaran
Produk ini mungkin mendedahkan anda kepada bahan kimia yang diketahui oleh Negeri California boleh menyebabkan kanser dan kecacatan kelahiran atau kemudaratan pembiakan yang lain. Untuk maklumat lanjut, lawati www.P65Warnings.ca.gov.
Image 2.1: Illustration of DOT FMVSS 218 safety standards, highlighting energy absorption and penetration resistance testing.
3. Komponen
The HJC i20 helmet consists of several key components:
- Advanced Polycarbonate Composite Shell: Provides a lightweight and durable exterior.
- HJ-V10 Internal Sun Shield: An anti-fog coated clear vision shield that deploys and retracts quickly.
- Detachable Mask: A Street Fighter-type mask that can be easily attached or removed using a PUSH and SLIDE mechanism.
- Sistem Pengudaraan: Includes 2 top vents and mouth vents for optimal airflow.
- SuperCool Interior: Moisture-wicking, quick-drying, and antibacterial fabric liner.
- Removable and Washable Pads: Cheek and crown pads for easy maintenance.
- Double D-Ring Fastener: Ensures a secure and reliable fit.
- Glasses Grooves: Designed for comfort for riders who wear eyewear.

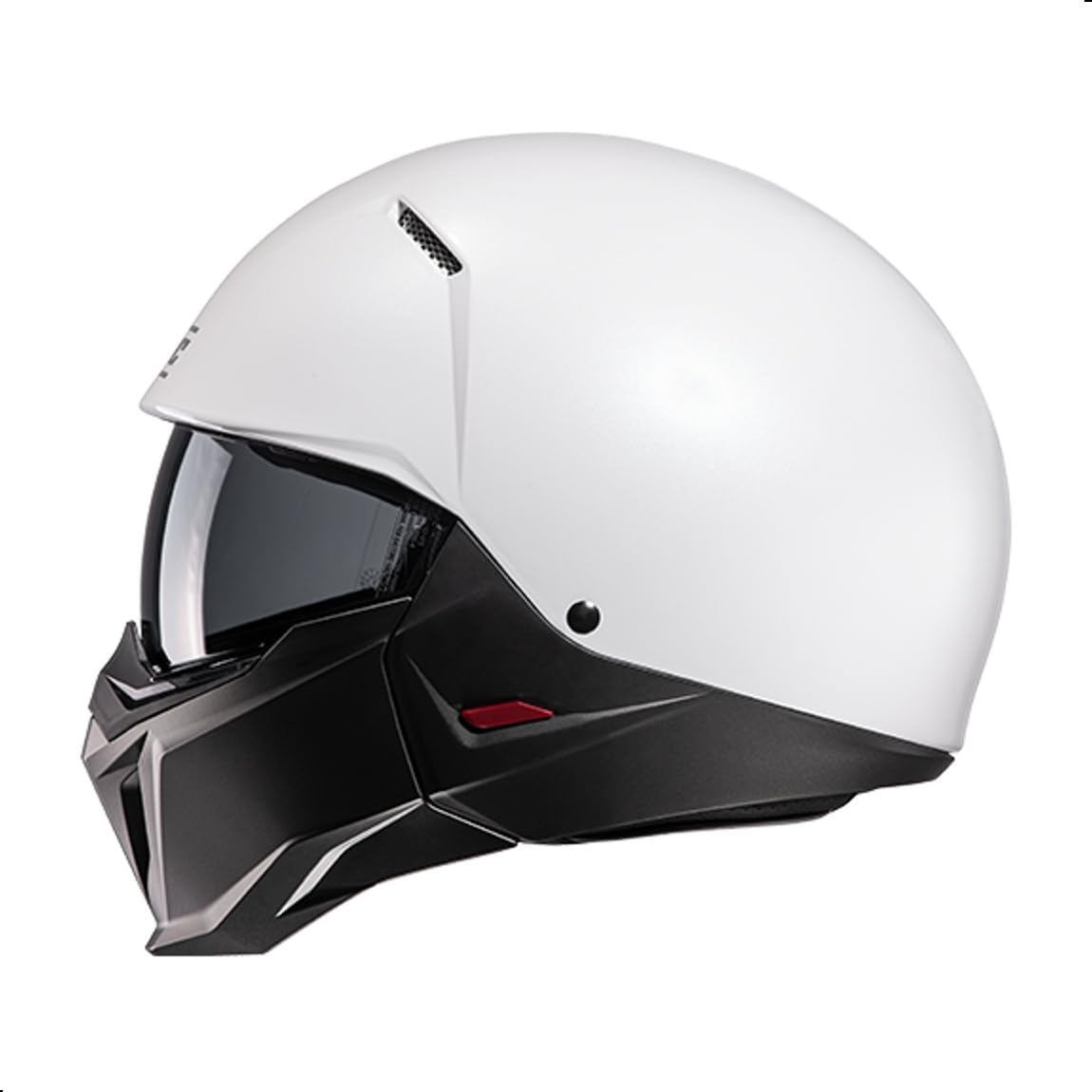

Image 3.1: HJC i20 Solid Open Face Motorcycle Helmet with the detachable mask attached, providing a full-face appearance.
Image 3.2: Detail of the advanced polycarbonate shell construction.
4. Persediaan
4.1 Pemeriksaan Awal
Before first use, inspect your helmet for any signs of damage from shipping. Ensure all components, including the internal shield and chin strap, operate smoothly.
4.2 Memasang Topi Keledar
- Letakkan topi keledar di kepala anda, pastikan ia rata dan menutupi dahi anda.
- The cheek pads should press firmly against your cheeks.
- Try to move the helmet from side to side and up and down. Your skin should move with the helmet, indicating a snug fit. If the helmet slides independently, it is too large.
4.3 Securing the Double D-Ring Fastener
- Thread the long end of the chin strap through both D-rings.
- Loop the long end back through the first D-ring only.
- Pull the strap tight against your throat. Ensure there is no slack.
- Secure the loose end of the strap with the snap button to prevent flapping.
4.4 Attaching/Removing the Detachable Mask
The i20 features an easily detachable mask. To attach, align the mask's tabs with the corresponding slots on the helmet and slide it into place until it clicks securely. To remove, use the convenient PUSH and SLIDE mechanism to disengage the tabs and pull the mask away from the helmet.
Image 4.1: The HJC i20 helmet demonstrating the removable mask feature.
5. Arahan Operasi
5.1 HJ-V10 Internal Sun Shield
The HJ-V10 internal sun shield can be deployed or retracted using the lever located on the side of the helmet. Push the lever down to deploy the shield for sun protection and push it up to retract it when not needed. The shield is anti-fog coated for clear vision.
5.2 Sistem Pengudaraan
The helmet is equipped with 2 top vents and mouth vents. These can be opened or closed to adjust airflow and maintain comfort. Experiment with different settings to find your preferred ventilation level based on riding conditions.
5.3 SMART HJC Bluetooth System (Sold Separately)
The HJC i20 helmet is designed to be compatible with SMART HJC Bluetooth systems (20B & 10B). These communication systems, co-developed with SENA, offer a compact and aerodynamic design. Installation instructions for the SMART HJC system are provided with the Bluetooth unit itself.
Imej 5.1: Cthample of a SMART HJC Bluetooth system integrated into a helmet.
6. Penyelenggaraan
6.1 Membersihkan Cengkerang Helmet
Clean the exterior of the helmet with a soft cloth and mild soap and water. Avoid abrasive cleaners, solvents, or petroleum-based products, as these can damage the shell material and finish.
6.2 Cleaning the Internal Sun Shield
The HJ-V10 internal shield should be cleaned with a soft, damp cloth and mild soap. Do not use abrasive materials or harsh chemicals. Allow it to air dry completely before use.
6.3 Removing and Washing Interior Pads
The cheek and crown pads are removable and washable. Carefully detach them from the helmet. Hand wash them in cold water with mild soap. Rinse thoroughly and allow them to air dry completely before re-installing. Ensure they are fully dry to prevent mildew.
Image 6.1: Detail of the SuperCool interior fabric, designed for moisture-wicking and comfort.
6.4 Penyimpanan
Store your helmet in a cool, dry place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on the helmet, as this can deform the shell or interior padding.
7. Penyelesaian masalah
- Visor Fogging: Ensure the internal sun shield is clean. If fogging persists in cold or humid conditions, consider using an anti-fog treatment specifically designed for helmet visors.
- Titik Ketidakselesaan/Tekanan: A new helmet may feel tight initially. If discomfort persists, ensure the helmet size is correct. Interchangeable cheek pads are available across all sizes for a customizable fit.
- Chin Strap Issues: If the D-ring fastener is difficult to secure or loosen, check for any obstructions or damage to the strap or rings. Ensure the strap is threaded correctly.
- Mask Attachment Issues: If the detachable mask does not secure properly, ensure the PUSH and SLIDE mechanism is fully engaged and that no debris is obstructing the connection points.
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | HJC |
| Nama Model | i20 Solid |
| Bahan Luar | Polikarbonat (PC) |
| Bahan Dalaman | Foam, Polyester, Nylon (SuperCool Interior) |
| Penilaian Keselamatan | DOT FMVSS 218 Certified |
| Ciri Khas | HJ-V10 Internal Visor, Detachable Mask, Adjustable Strap, Ventilation, Glasses Grooves, SMART HJC Ready |
| Berat Barang | Kira-kira 3.46 Pound |
| Dimensi Produk | Kira-kira 15 x 11 x 11 inci |
| UPC | 190501211187 |
9. Waranti dan Sokongan
9.1 Maklumat Waranti
HJC helmets typically come with a manufacturer's warranty covering defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the official HJC webtapak untuk terma dan syarat waranti tertentu.
9.2 Sokongan Pelanggan
For technical assistance, replacement parts, or any other inquiries regarding your HJC i20 helmet, please contact HJC customer support directly. Contact information can usually be found on the HJC webtapak atau pada pembungkusan produk.
