1. Produk Lebihview
The Caymuller DT16 Wireless Earbuds are designed for sports and active lifestyles, featuring Bluetooth 5.0 connectivity, a dual LED digital display charging case, and IPX5 waterproofing. They offer deep bass stereo sound and convenient one-button controls.
Image: Caymuller DT16 Wireless Earbuds in their charging case, displaying battery levels.
2. Apa yang ada di dalam Kotak
Pastikan semua item ada dalam pakej anda:
- Caymuller Wireless Sports Earbuds (Left and Right)
- Kes Pengecasan
- Ear Caps (3 Pairs: Small, Medium, Large)
- Kabel Pengecas USB
- Manual Pengguna
- Beg Zip
- Beg Flanel
Image: All components included with the Caymuller DT16 Wireless Earbuds.
3. Panduan Persediaan
3.1. Mengecas Fon Telinga dan Sarung
The charging case features a dual LED display. The left display shows the charging case's battery percentage (0-100). The right display shows the charging status of each earbud with four independent power consumption indicators, each representing 25% of the earbud's charge. During charging, the LED indicator lights will flash. Once fully charged, the LED indicators will stop flashing.
Image: Dual LED display on the charging case indicating battery levels.
The earbuds provide up to 8 hours of playtime on a single charge. The 600mAh charging case can recharge the earbuds approximately 6 times, extending total playtime to up to 48 hours. A quick 15-minute charge can provide 1 hour of playtime.
Image: Battery life and charging capacity details.
3.2. Berpasangan dengan Peranti
The Caymuller DT16 earbuds utilize advanced Bluetooth 5.0 technology for a stable connection.
- Take out the earbuds from the charging case. They will automatically power on and enter pairing mode.
- Pada telefon pintar atau peranti berdaya Bluetooth anda, pergi ke tetapan Bluetooth.
- Cari untuk "DT16" in the list of available devices and select it to connect.
Once paired, the earbuds will automatically connect to your device when removed from the case. You can use either a single earbud (Single Mode) or both earbuds (Binaural Mode).
Image: Visual guide for one-step auto pairing.
4. Arahan Operasi
4.1. Memakai Earbud
The earbuds are designed with adjustable ear hooks and come with three pairs of ear caps (S, M, L) to ensure a secure and comfortable fit, especially during physical activities. Choose the ear caps that best fit your ears for optimal sound quality and comfort. Gently place the earbud into your ear canal and adjust the ear hook over your ear until it feels stable.

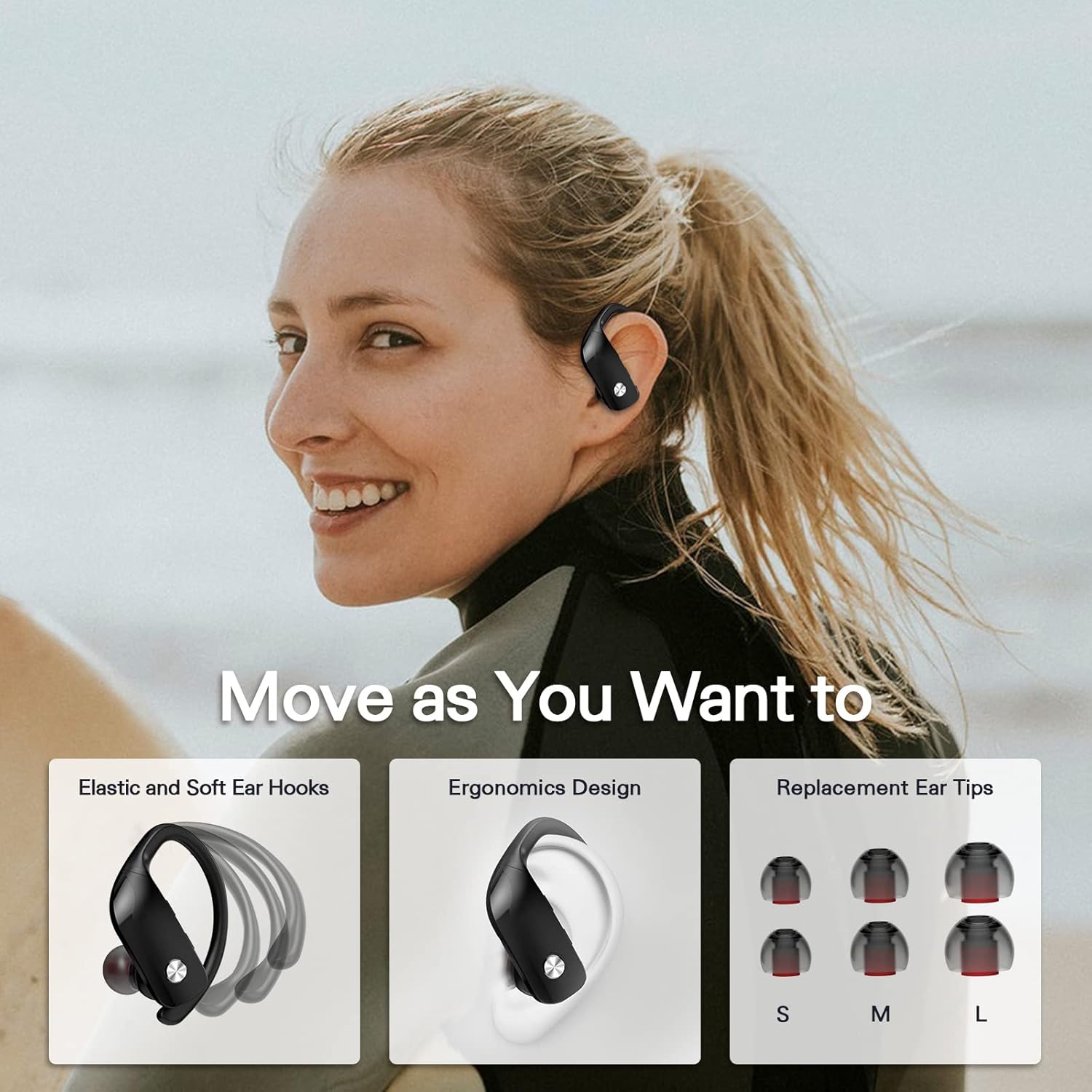

Image: Proper wearing and fit of the earbuds with ear hooks.
4.2. Kawalan Butang
Each earbud features a multi-function button (MFB) for easy control of various functions:
| Tindakan | Fungsi |
|---|---|
| Tekan MFB sekali | Play/Pause music, Answer incoming call, End call |
| Pegang MFB | Tolak panggilan masuk |
| Tekan lama MFB selama 2s | Aktifkan Pembantu Suara |
| Long Press "+" Key | Lagu Seterusnya |
| Long Press "-" Key | Lagu Sebelumnya |
| Once "+" Key | Kelantangan Naik |
| Once "-" Key | Kelantangan Kurang |
Image: Detailed diagram of earbud controls and their functions.
Video: Official product video demonstrating features and controls of the Caymuller Wireless Earbuds.
4.3. Single and Binaural Mode
The earbuds support both single and binaural modes. If you wish to use only one earbud, simply take one out of the charging case. The other earbud can remain in the case or be turned off. To use both, take both earbuds out of the case, and they will automatically connect to each other and your device.
5. Penyelenggaraan dan Penjagaan
The Caymuller DT16 earbuds are IPX5 waterproof, protecting them from water splashes and sweat. This makes them suitable for workouts and outdoor activities. However, they are not designed for submersion in water.
Untuk mengekalkan prestasi dan kebersihan yang optimum:
- Bersihkan fon telinga dan kanta pengecas secara berkala dengan kain lembut dan kering.
- Ensure the charging case is dry before placing the earbuds inside.
- Simpan fon telinga dan sarung di tempat yang sejuk dan kering, jauh daripada suhu yang melampau.
- Elakkan menggunakan pembersih yang kasar atau bahan kimia yang keras.
6. Penyelesaian masalah
- Earbuds not pairing with each other or device: Ensure both earbuds are fully charged. Place them back in the charging case, close the lid, then open it again and remove them. Re-attempt the pairing process as described in Section 3.2.
- Hanya satu fon telinga berfungsi: Check if the non-working earbud is charged. Place both earbuds back in the case, then remove them simultaneously to ensure they connect in binaural mode.
- Sarung pengecas tidak dicas: Verify the USB cable is securely connected to both the case and a power source. Check if the power source is active.
- Kualiti bunyi yang lemah: Ensure the ear caps are properly fitted and form a good seal in your ear. Clean any debris from the earbud speakers. Check your device's volume settings.
- Fon telinga tercabut: Experiment with different sizes of ear caps to find the most secure fit. Adjust the ear hooks to comfortably and firmly grip your ear.
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nama Model | DT16 |
| Teknologi Ketersambungan | Bluetooth 5.0, Tanpa Wayar |
| Hayat Bateri (Earbud) | Hingga 8 jam setiap caj |
| Hayat Bateri (dengan Sarung Pengecasan) | Sehingga 48 jam |
| Kapasiti Kes Pengecasan | 600mAh |
| Tahap Ketahanan Air | IPX5 (kalis air) |
| Kaedah Kawalan | Sentuh |
| Jenis Pemacu Audio | Pemandu Dinamik |
| Ciri Khas | Dual LED Digital Display, Flexible Earhooks, Built-in Microphones, Noise Reduction |
| Peranti Serasi | Desktops, Laptops, Tablets, Telephones |
| Berat Barang | 3.53 auns (100 Gram) |
| Dimensi Produk | 3 x 2 x 1 inci |
| UPC | 768484451403 |
8. Waranti dan Sokongan
For warranty information or technical support, please refer to the warranty card included in your product packaging or contact Caymuller customer service directly. Contact details can typically be found on the manufacturer's official webtapak atau melalui platform pembelian anda.
