PURPLE LEAF 8' x 10' Aluminum Louvered Pergola

pengenalan

Thank you for choosing the PURPLE LEAF 8' x 10' Aluminum Louvered Pergola. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

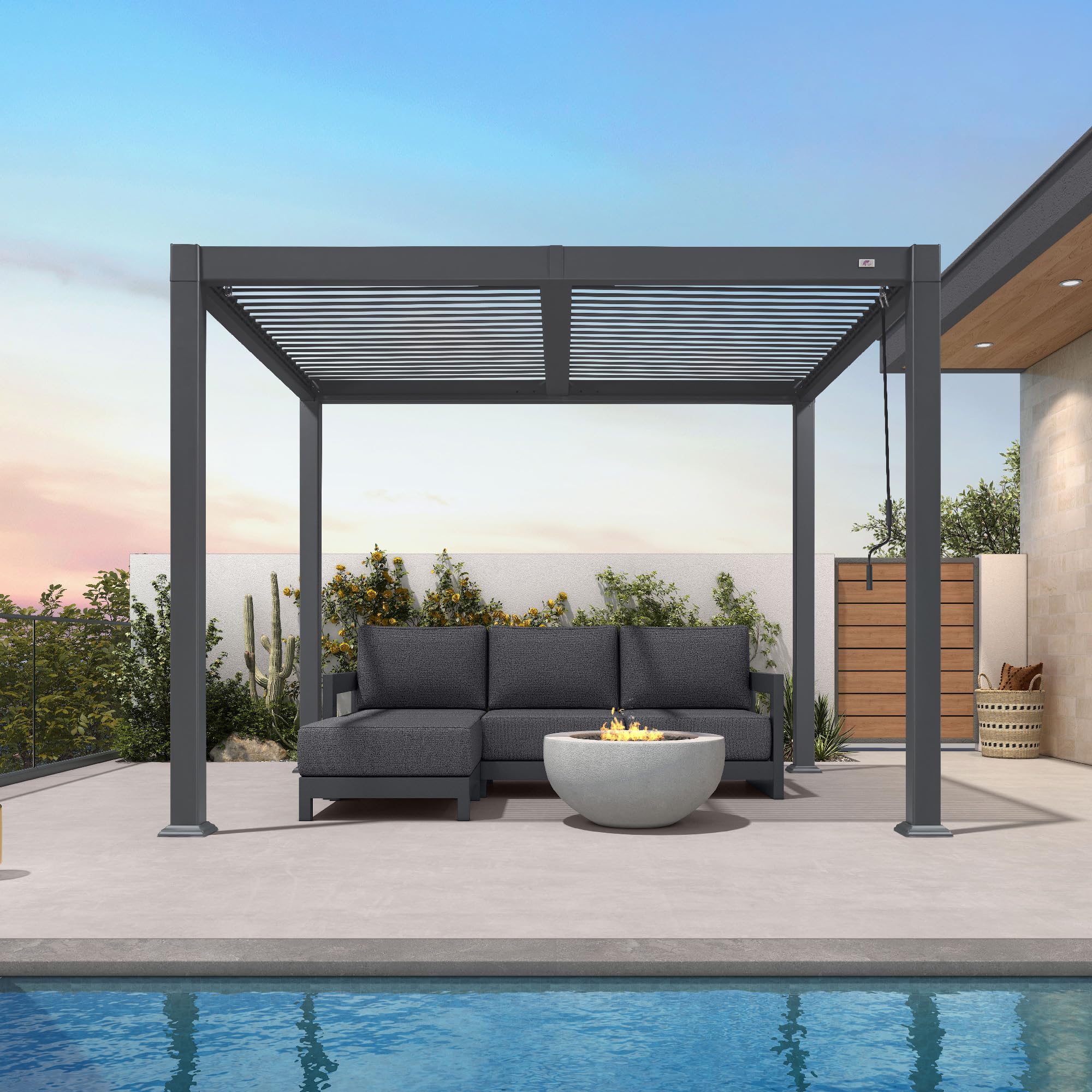

Image: The PURPLE LEAF 8' x 10' Aluminum Louvered Pergola providing shade over a patio seating area.

Maklumat Keselamatan

• Pastikan semua komponen ada dan tidak rosak sebelum pemasangan. Jangan teruskan pemasangan jika mana-mana bahagian hilang atau rosak.
• Pemasangan memerlukan sekurang-kurangnya dua orang untuk keselamatan dan kemudahan pemasangan.
• Pakai peralatan keselamatan yang sesuai, termasuk sarung tangan dan pelindung mata, semasa pemasangan.
• Securely anchor the pergola to a solid, level surface to prevent tipping or movement, especially in high winds.
• Do not hang heavy objects from the pergola frame or louvers.
• Regularly inspect the pergola for loose fasteners or signs of wear and tear.

Persediaan dan Perhimpunan

The PURPLE LEAF Louvered Pergola is designed for straightforward assembly. Clear instructions are provided with the product for a hassle-free setup. Please follow the step-by-step guide included in your packaging.

Petua Pemasangan Utama:

• Perhimpunan Pasukan: While some steps can be done by one person, it is highly recommended to have more than one person for assembling the main frame and lifting components.
• Alat Kuasa: Using an electric drill or power tool for fastening screws will significantly ease the assembly process, as there are many screws involved.
• Beam Alignment: When assembling the center cross beams, align the holes and thread the screws on the sides first before tightening the screws on top. This ensures better alignment of the beam sections.
• Louver Inspection: Occasionally, a louver panel might be slightly bent during transit. These can often be easily straightened with a set of pliers.
• Berlabuh: The pergola must be securely anchored to your patio or deck. If drilling is not an option, consider using strong outdoor-grade adhesive (e.g., epoxy) to fix the base plates of the posts to the surface.

Image: Illustration of the robust 4.53" x 4.53" upgraded support poles, designed to withstand high winds and snow loads.

Image: Detail of the upgraded support beam, highlighting its 5.28-inch dimension for superior structural integrity.

Arahan Operasi

Adjustable Louvered Roof:

The pergola features an aluminum louvered roof with louvers that can rotate from 0° to 85°. This allows you to precisely control the amount of sunlight and airflow. To adjust the louvers, use the integrated mechanism, typically a crank or lever system, to open or close them to your desired position. This flexibility provides reliable protection and customization for various weather conditions.

Image: The pergola's two independent adjustable roof sections, demonstrating customizable shade and light.

Integrated Drainage System:

The pergola is equipped with an efficient drainage system designed to manage rainwater. Rainwater is channeled through integrated gutters within the roof structure and directed down through the interior of the four support posts. This system prevents water from pooling on the roof and keeps your patio area drier and cleaner.

Image: Visual representation of the pergola's integrated drainage system, detailing rain collection, water guiding, and drainage points.

Penjagaan dan Penyelenggaraan

Proper care and maintenance will extend the lifespan and preserve the appearance of your PURPLE LEAF pergola.

• Pembersihan: Clean the aluminum frame and louvers periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the powder-coated finish. Rinse thoroughly with clean water.
• Sistem Saliran: Ensure the integrated gutters and downspouts within the posts are free from debris (leaves, dirt) to maintain efficient water drainage. Clogged drains can lead to water accumulation.
• Pengikat: Periodically check all bolts and screws to ensure they are tight. Re-tighten any loose fasteners to maintain structural integrity.
• Pencegahan Karat: The pergola features an all-aluminum frame and louvers, which are inherently rust-resistant. The powder-coated finish provides additional protection. Avoid scratching the finish to prevent exposure of the underlying metal.
• Penjagaan Musim Sejuk: While designed to handle snow loads up to 8.2 psf, it is advisable to clear heavy snow accumulation from the louvers to prevent excessive stress on the structure.

Image: Demonstrating the extended longevity and rust-free performance of PURPLE LEAF's all-aluminum louvers compared to steel alternatives.

Image: The thoughtful design of the pergola, featuring rounded edges and hidden screws for a clean aesthetic and reduced maintenance.

Menyelesaikan masalah

Isu dan Penyelesaian Biasa:

• Bent Louver Panels: If a louver panel appears slightly bent, it can often be gently straightened using pliers. Exercise caution to avoid damaging the finish.
• Kebocoran air: Ensure all silicone sealant provided during assembly is properly applied. Check the drainage system for any blockages from debris.
• Center Beam Alignment: A minor design characteristic may cause the top of the center beam to stick out slightly. This is generally not a functional issue and will not be noticeable once the louver blades are in place. For aesthetic preference or to prevent water ingress into the beam, a plastic cover can be cut and sealed over the opening.
• Rusting (Rare): While the pergola is primarily aluminum, some internal connectors or screws might be steel. If rust appears, consider replacing steel screws with stainless steel alternatives. Ensure any exposed metal is treated to prevent further corrosion.
• Ketidakstabilan Pergola: Verify that all anchor points are secure and that the pergola is properly fastened to the ground or deck. Check all frame connections for tightness.

Spesifikasi

Image: Technical drawing with detailed dimensions of the pergola structure.

Maklumat Waranti

The PURPLE LEAF Louvered Pergola includes a Waranti rangka 1 tahun from the date of purchase. This warranty covers manufacturing defects in the frame components under normal use and service. Please retain your proof of purchase for warranty claims.

Sokongan Pelanggan

For any questions regarding assembly, missing parts, or product issues, please contact PURPLE LEAF customer service. Our team is available to assist you with any concerns you may have.

You can typically reach customer support through the platform where you purchased the product or via the official PURPLE LEAF website. Please have your model number (8' x 10' Louvered Pergola) and purchase details ready when contacting support.
