1. Pengenalan
Thank you for choosing the AMZCHEF 2-Burner Induction Hob. This domino-style cooktop features a polished black crystal surface, intuitive touch controls, and advanced safety features, including child safety lock and automatic pan detection. With 10 power levels and a 0-99 minute timer, it offers versatile cooking options. This appliance is designed for both built-in and portable use, providing flexibility for various kitchen setups. Please read this manual thoroughly before use to ensure safe and efficient operation.
Video: Selesaiview of the AMZCHEF 2-Burner Induction Hob in use, demonstrating its features and cooking capabilities.
2. Maklumat Keselamatan
Always prioritize safety when operating electrical appliances. This induction hob incorporates several safety features, but proper usage is essential.
- Amaran Permukaan Panas: The induction surface may retain residual heat after cooking. Do not touch the hot surface immediately after use.
- Cookware Detection: The hob automatically detects suitable magnetic cookware. If no cookware or inappropriate cookware is placed on the zone for 1 minute, the appliance will automatically switch off.
- Kunci Keselamatan Kanak-kanak: To prevent unintended operation, activate the child safety lock. Press and hold the 'LOCK' symbol for 3 seconds to unlock.
- Perlindungan Terlalu Panas: The appliance is equipped with surface and internal overheat protection. If overheating occurs, the hob will display an error code (E5 or E6) and shut down. Allow the unit to cool before resuming use.
- Voltage Keperluan: Ensure the appliance is connected to a 220V-240V power supply. Incorrect voltage (too low or too high) may trigger error codes (E1 or E2).
- Jangan Buka: Do not attempt to disassemble or repair the appliance yourself. This can lead to hazards and damage. Contact customer service for any issues.
Image: The AMZCHEF induction hob highlighting safety features such as over-temperature protection and residual heat warning.
3. Persediaan
The AMZCHEF 2-Burner Induction Hob is versatile, allowing for both countertop and built-in installation. Ensure proper ventilation around the unit regardless of the installation type.
3.1 Membongkar
Carefully remove the induction hob from its packaging. Inspect the appliance for any signs of damage. Retain the packaging for future transport or storage.
3.2 Penempatan
For countertop use, place the hob on a stable, flat, heat-resistant surface, ensuring adequate space around the unit for ventilation. For built-in installation, refer to the specific cutout dimensions provided in the separate installation guide (if applicable) to ensure a proper fit into your kitchen counter. The hob dimensions are approximately 62.2 cm (L) x 39.5 cm (W) x 14.1 cm (H).
3.3 Sambungan Kuasa
Connect the VDE plug to a grounded 220V-240V electrical outlet. Ensure the outlet is capable of handling the hob's maximum power output of 3300W.

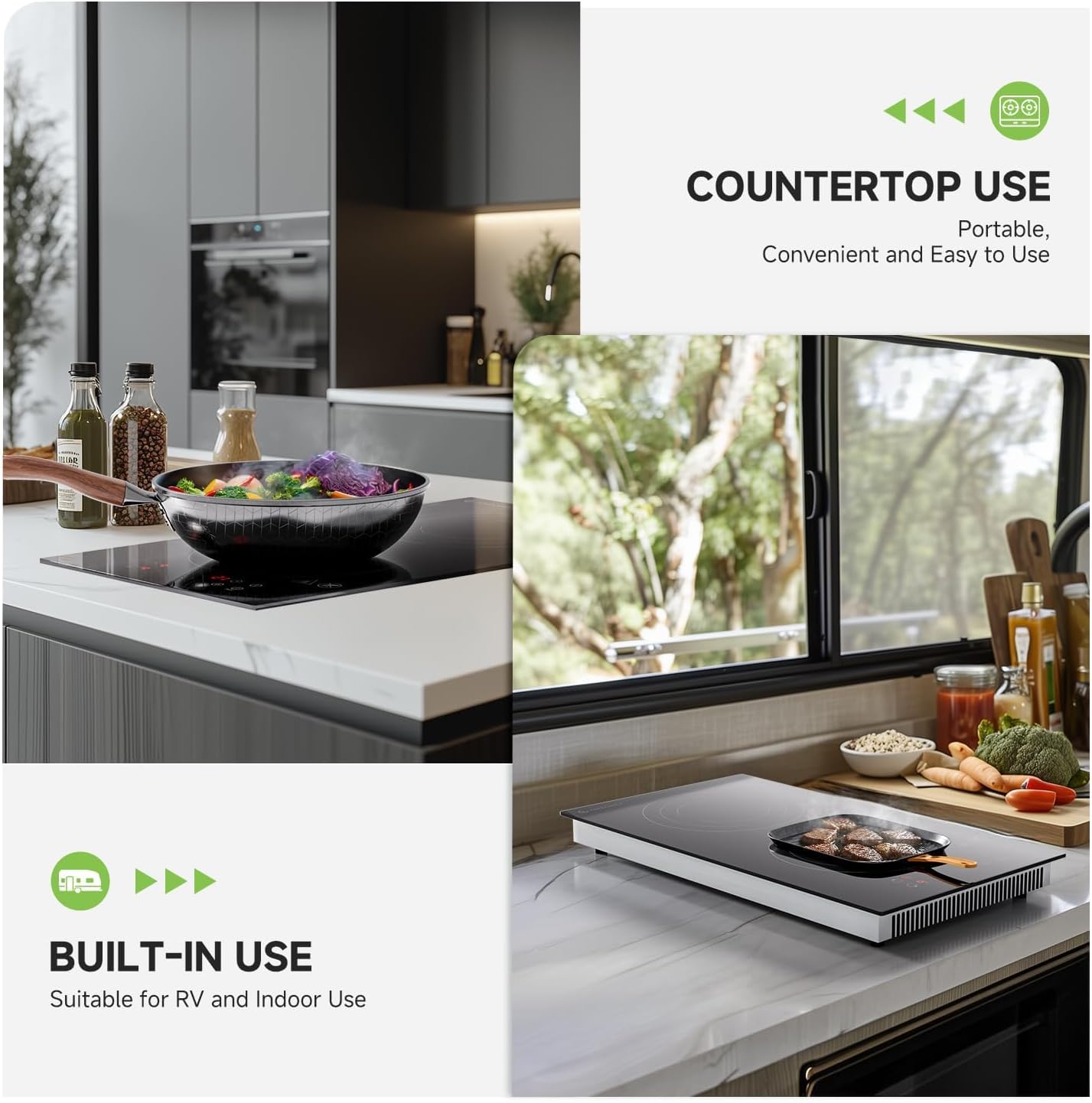

Image: The AMZCHEF induction hob illustrating its suitability for both countertop and built-in use, ideal for RVs and indoor kitchens.
Video: Demonstrates the ultra-slim design of the AMZCHEF induction hob and its ease of placement in various kitchen settings.
4. Arahan Operasi
The AMZCHEF induction hob features a user-friendly touch control panel for precise cooking.
4.1 Panel Kawalan Selesaiview
The hob is equipped with a digital touch control panel. Each cooking zone has independent controls for power/temperature and timer settings. The main controls include ON/OFF, Power/Temp selection, Increase/Decrease buttons, Timer, and Lock function.

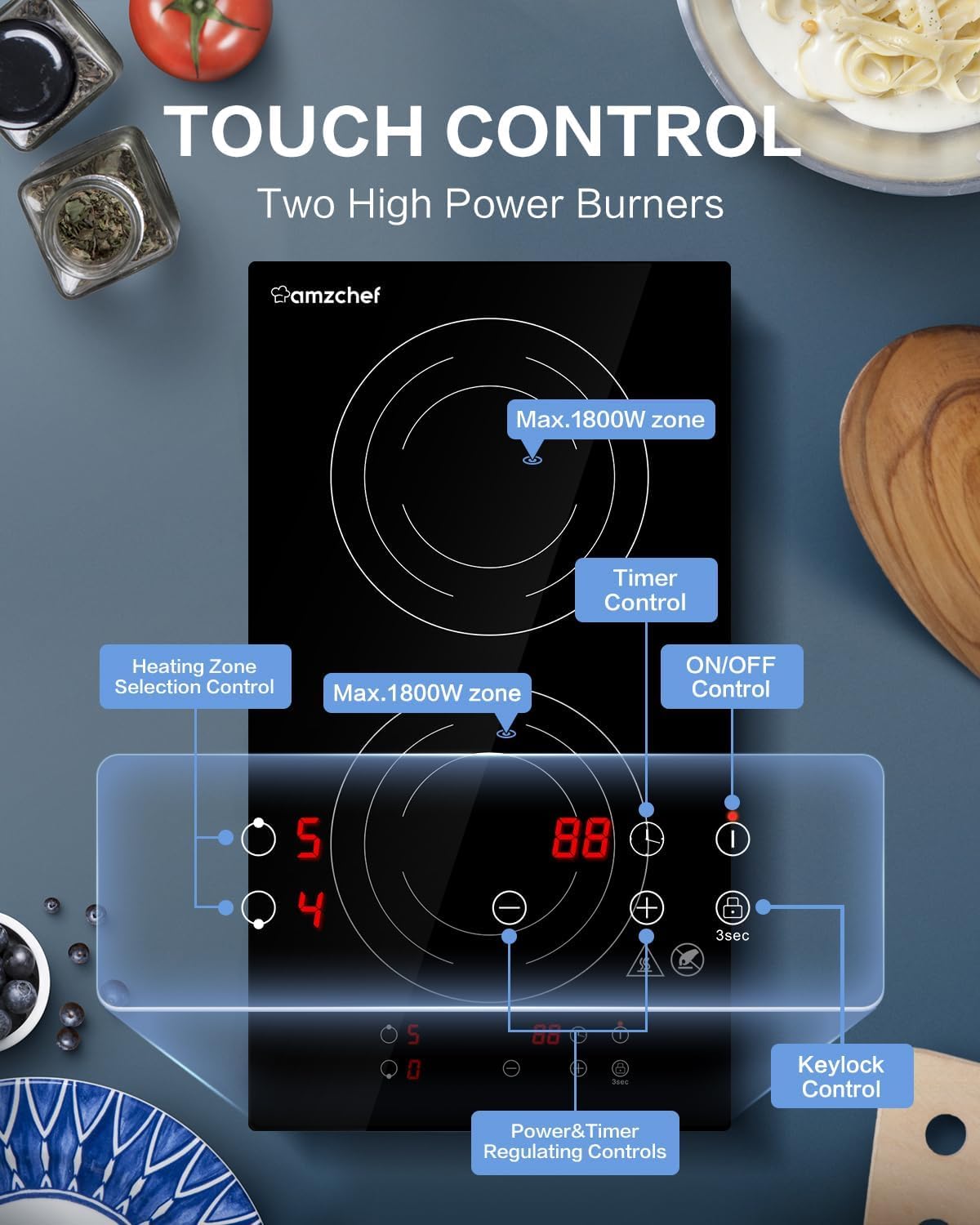

Image: Detailed diagram of the touch control panel, showing ON/OFF, Timer, Lock, Increase, Decrease, and Power/Temp controls for each zone.
4.2 Power Levels and Temperature Control
The hob offers 10 power levels, allowing for precise temperature control from keeping warm to deep frying. Use the Increase (+) and Decrease (-) buttons to adjust the power or temperature setting for the selected cooking zone.
Image: Illustrates the 9 precise temperature control levels, suitable for various cooking methods like keeping warm, stir-frying, and deep-frying.
Image: Visual representation of the 10 power levels, ideal for various cooking tasks from simmering to boiling.
4.3 Fungsi Pemasa
Each cooking zone has a timer function that can be set from 0 to 99 minutes. Press the 'Timer' button and use the Increase (+) and Decrease (-) buttons to set the desired cooking duration. The hob will automatically switch off once the timer expires.
4.4 Kunci Keselamatan Kanak-kanak
To activate the child safety lock, press and hold the 'LOCK' symbol for 3 seconds. This will disable the control panel to prevent accidental changes to settings or activation. To deactivate, press and hold the 'LOCK' symbol again for 3 seconds.
Image: Highlights the child safety lock and timer features, emphasizing safe and convenient cooking.
4.5 Peralatan Memasak yang Serasi
This induction hob is compatible with magnetic cookware, such as cast iron pans, iron dishes, iron plates, or cookware with magnetic bottoms. Cookware should be between 4.7 and 10.2 inches in diameter for optimal performance. Non-magnetic materials like aluminum, ceramic, copper, or glass cookware are not suitable.

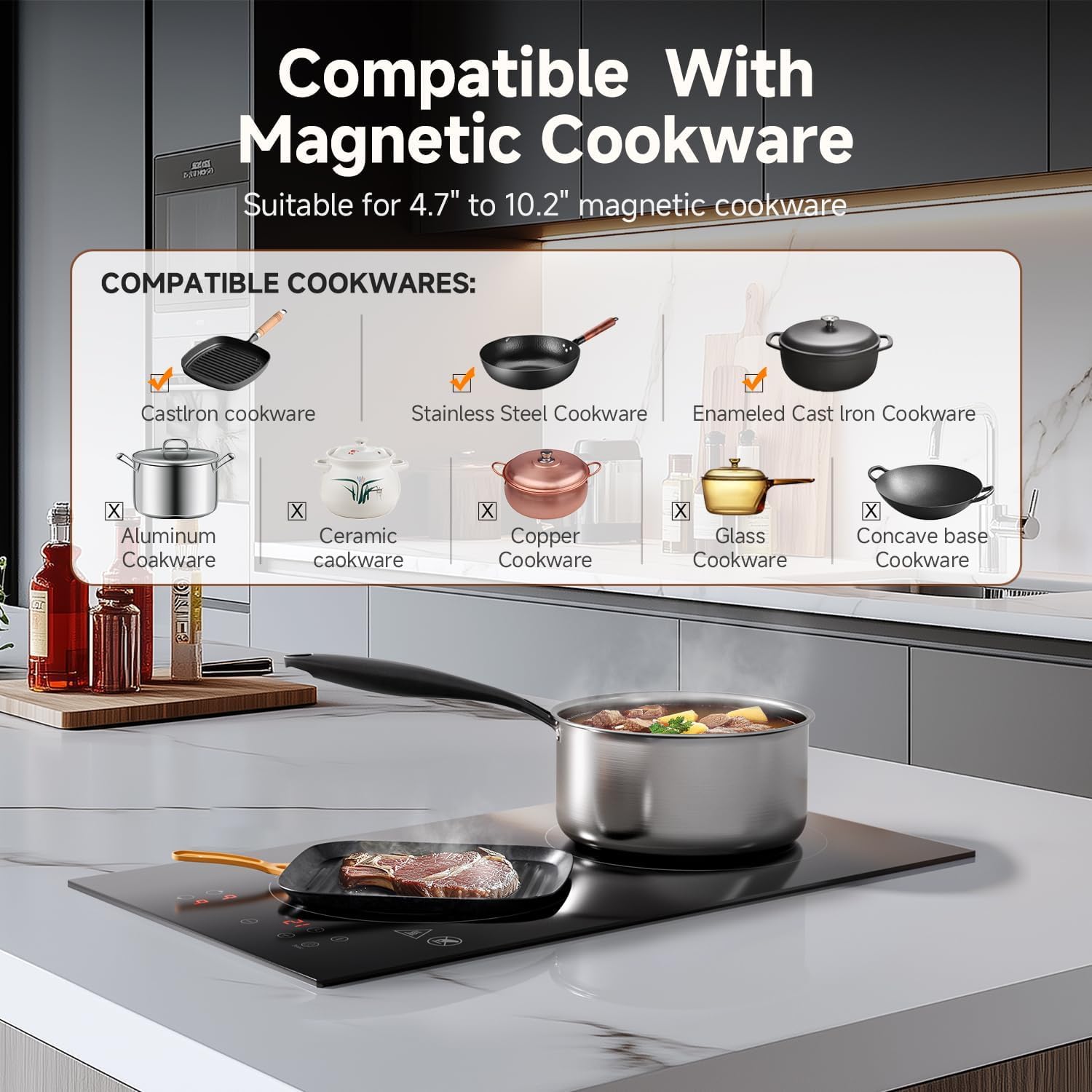

Image: A visual guide to compatible magnetic cookware (cast iron, stainless steel, enameled cast iron) and incompatible types (aluminum, ceramic, copper, glass, concave base).
Video: A close-up view of the induction hob's controls and cooking process, demonstrating ease of use.
5. Penyelenggaraan
The AMZCHEF induction hob features a high-quality polished black crystal glass surface that is easy to clean and resistant to scratches.
5.1 Membersihkan Permukaan
After each use, allow the hob to cool completely. Wipe the glass surface with a soft, damp cloth and a mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for ceramic or induction cooktops. Avoid using abrasive sponges, scouring pads, or harsh chemicals, as these can scratch or damage the surface.
5.2 Penjagaan Am
Regularly check the ventilation openings for any blockages and clean them if necessary to ensure proper airflow. Do not immerse the appliance in water or any other liquid.
Image: Demonstrates the easy maintenance and scratch-resistant properties of the high-quality black polished crystal glass surface.
6. Penyelesaian masalah
If an anomaly occurs, the induction hob will automatically enter a protective state and display a corresponding error code. Refer to the table below for common issues and solutions.
| Kod Ralat | Penerangan | Penyelesaian |
|---|---|---|
| E0 | No cookware or unsuitable cookware detected. | Place appropriate magnetic cookware on the cooking zone. |
| E1 | Voltage terlalu rendah. | Sahkan bahawa voltage used is 220V-240V. |
| E2 | Voltage terlalu tinggi. | Sahkan bahawa voltage used is 220V-240V. |
| E3 | Surface sensor open or short circuit. | Contact the supplier for assistance. |
| E4 | Sensor IGBT terbuka atau litar pintas. | Contact the supplier for assistance. |
| E5 | Surface temperature overheat protection. | Benarkan perkakas sejuk sebelum menggunakannya semula. |
| E6 | Internal temperature overheat protection. | Benarkan perkakas sejuk sebelum menggunakannya semula. |
| Ec | Control panel wiring not connected. | Contact the supplier for assistance. |
Note: Please do not attempt to disassemble the appliance yourself to avoid any danger or damage. If the appliance encounters problems not listed here, please contact the supplier.
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | AMZCHEF |
| Nombor Model | CE-SK-33IHB2T4 (also FS-IRC119) |
| Dimensi Produk (L x W x H) | 62.2 x 39.5 x 14.1 cm |
| Berat badan | 5.29 kg |
| Jenis Pemasangan | Built-in / Countertop |
| Ciri Khas | Timer, Touch Controls, Child Safety Lock, Automatic Pan Detection |
| Jenis Elemen Pemanas | Gegelung aruhan |
| Bilangan Pembakar | 2 |
| warna | Hitam |
| Voltage | 220-240 Volt |
| Sumber Kuasa | Electric (3300W total, 1800W max per zone) |
| bahan | Cast Iron, Glass (Vitroceramic Surface) |
| Komponen Termasuk | Hob Induksi |
8. Waranti dan Sokongan
AMZCHEF komited untuk menyediakan produk berkualiti tinggi dan perkhidmatan pelanggan yang cemerlang.
- Waranti: This AMZCHEF induction hob comes with a two-year warranty.
- Sokongan Teknikal: We offer lifetime technical support for all our products.
- Perkhidmatan Pelanggan: Should you encounter any problems or require assistance, please do not hesitate to contact our professional customer service team. We are dedicated to ensuring your satisfaction and providing prompt support.
