Moulinex Blendforce 4-in-1 Blender (LM42X127) Instruction Manual

pengenalan

Thank you for choosing the Moulinex Blendforce 4-in-1 Blender. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read it thoroughly before first use and keep it for future reference.

The Moulinex Blendforce 4-in-1 Blender, model LM42X127, shown with its main blending jar and the XL chopper attachment.

Arahan Keselamatan Penting

Sentiasa ikuti langkah berjaga-jaga keselamatan asas apabila menggunakan peralatan elektrik untuk mengurangkan risiko kebakaran, renjatan elektrik dan/atau kecederaan kepada orang, termasuk yang berikut:

• Baca semua arahan sebelum digunakan.
• Jangan rendam unit motor di dalam air atau sebarang cecair lain.
• Cabut plag dari alur keluar apabila tidak digunakan, sebelum memasang atau membuka bahagian, dan sebelum membersihkan.
• Elakkan sentuhan dengan bahagian yang bergerak.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau terjatuh atau rosak dalam apa jua cara.
• Penggunaan lampiran yang tidak disyorkan atau dijual oleh pengilang boleh menyebabkan kebakaran, kejutan elektrik atau kecederaan.
• Jangan gunakan di luar rumah.
• Jangan biarkan kord tergantung di tepi meja atau kaunter.
• Jangan biarkan kord menyentuh permukaan panas.
• Jauhkan tangan dan peralatan daripada memasuki bekas semasa mengisar untuk mengelakkan kemungkinan kecederaan teruk kepada orang atau kerosakan pada pengisar. Pengikis boleh digunakan tetapi hanya apabila pengisar tidak berjalan.
• Bilahnya tajam. Kendali dengan cermat.
• Pastikan penutup dikunci dengan selamat sebelum mengendalikan perkakas.
• Jangan campurkan cecair panas.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.

Komponen Produk

Familiarize yourself with the parts of your Moulinex Blendforce blender:

• Unit Motor: Tapak yang mengandungi motor dan dail kawalan.
• Balang Pengisar (2 Liter): Main blending container with measurement markings.
• Lid with Filler Cap: For covering the blender jar and adding ingredients during operation.
• Pemasangan Bilah: Detachable blades for blending.
• XL Chopper (1.75 Liters): Attachment for chopping larger quantities.
• Bilah Chopper: Specific blade for the XL chopper.

Berakhirview of the Moulinex Blendforce 4-in-1 Blender, highlighting its versatility with the main blending jar and the XL chopper attachment.

Sebuah meletup view demonstrating the individual components of the XL chopper attachment, including the base, blade, and container.

Persediaan dan Perhimpunan

Pembersihan Awal

Before first use, wash all removable parts (jar, lid, blades, chopper components) in warm soapy water. Rinse thoroughly and dry. The motor unit should only be wiped with a damp kain.

Memasang Blender

1. Letakkan unit motor pada permukaan yang stabil dan rata.
2. Ensure the blade assembly is securely attached to the bottom of the blender jar.
3. Place the blender jar onto the motor unit. Rotate it clockwise until it locks into place. The Smart Lock system ensures proper alignment.
4. Add your ingredients to the jar. Do not exceed the maximum fill line.
5. Secure the lid onto the blender jar, ensuring it is properly sealed. Insert the filler cap.

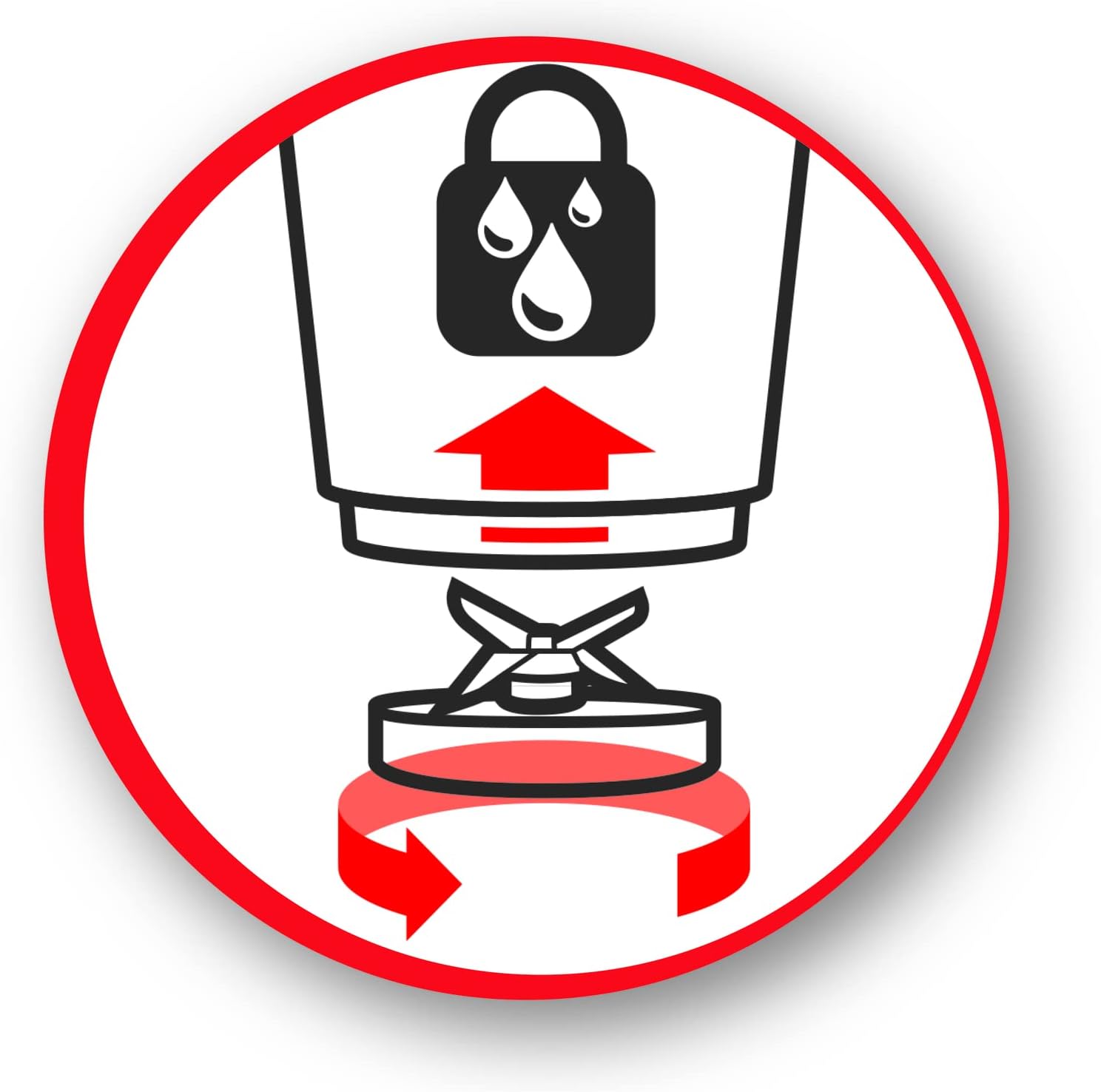

The Smart Lock system ensures the blender jar is correctly positioned and secured on the motor unit before operation.

Assembling the XL Chopper

1. Letakkan unit motor pada permukaan yang stabil dan rata.
2. Insert the chopper blade into the XL chopper bowl.
3. Masukkan bahan-bahan anda ke dalam mangkuk pencincang.
4. Place the XL chopper assembly onto the motor unit. Rotate it clockwise until it locks into place.

Arahan Operasi

Ensure the appliance is correctly assembled and plugged into a suitable power outlet (230V).

Menggunakan Blender

1. With ingredients in the jar and the lid secured, turn the control dial to your desired speed setting:
   • Kelajuan 1 (Rendah): For softer ingredients or light blending.
   • Kelajuan 2 (Tinggi): For harder ingredients or more intensive blending.
   • nadi: For short bursts of power, ideal for controlled chopping or crushing ice.
2. Blend until desired consistency is reached. The air cooling system helps prevent overheating during continuous use (up to 3 minutes).
3. To stop, turn the dial back to '0'. Unplug the appliance before removing the jar.

The control dial allows selection of two continuous speeds (1 and 2) and a Pulse function for intermittent blending.

The blender efficiently processes fruits to create smoothies and other beverages.

Fungsi Menghancurkan Ais

The blender features an effective ice crushing function. Use the 'Pulse' setting for best results. Add ice cubes to the blender jar (do not overfill) and use short, controlled pulses until the ice is crushed to your desired consistency.

Icon indicating the blender's ability to crush ice.

The blender efficiently crushes ice, as demonstrated by the bowl of crushed ice next to the appliance.

Using the XL Chopper

1. With ingredients in the chopper bowl and the lid secured, turn the control dial to 'Pulse' or a low speed setting (1 or 2) for short bursts.
2. Chop until desired consistency is reached. Avoid over-processing.
3. To stop, turn the dial back to '0'. Unplug the appliance before removing the chopper.

The XL chopper attachment is shown in use, processing food ingredients for meal preparation.

Penjagaan dan Penyelenggaraan

Pembersihan dan penyelenggaraan yang betul akan memanjangkan hayat perkakas anda.

Pembersihan

1. Sentiasa cabut pengisar sebelum mencuci.
2. Unit Motor: Lap dengan iklanamp kain. Jangan rendam dalam air.
3. Blender Jar, Lid, Blades, Chopper Components: These parts are dishwasher safe (top rack only) or can be washed by hand in warm soapy water. Handle blades with extreme care as they are sharp.
4. For quick cleaning, fill the blender jar with warm water and a drop of dish soap. Run on a low speed for a few seconds, then rinse.
5. Pastikan semua bahagian kering sepenuhnya sebelum disimpan.

Demonstration of cleaning the blender blade assembly under running water. Exercise caution due to sharp edges.

Penyimpanan

Store the assembled blender and its attachments in a dry, safe place, out of reach of children.

Menyelesaikan masalah

Spesifikasi Teknikal

• model: LM42X127
• Jenama: Moulinex
• Kuasa: 600 Watt
• Voltage: 230 Volt
• Capacity (Blender Jar): 2 Liter
• Capacity (XL Chopper): 1.75 Liter
• Bahan: plastik
• Bilangan Kelajuan: 3 (Rendah, Tinggi, Denyutan)
• Ciri Khas: Variable Speed Control, Safety Lock, Air Cooling System, Ice Crushing Function.
• Product Dimensions (DxWxH): 37.4 x 22.8 x 31.6 cm
• Berat Barang: 2.32 kg
• Sumber Kuasa: Elektrik Bertali

Waranti dan Sokongan

This Moulinex Blendforce blender comes with a waranti pengilang satu tahun dari tarikh pembelian. Sila simpan bukti pembelian anda untuk tuntutan waranti.

For technical support, service, or warranty inquiries, please contact your local Moulinex service center or refer to the official Moulinex webtapak untuk maklumat hubungan.
