1. Pengenalan dan Lebihview
The SetPower TC35 is a versatile 37-quart (35L) portable fridge freezer designed for both car and home use. It offers a wide temperature range from -4°F to 68°F, allowing it to function as either a refrigerator or a freezer. Its robust design includes quiet wheels for enhanced portability, making it ideal for camping, road trips, and other outdoor adventures. The unit is engineered to operate reliably even in challenging conditions, such as inclines up to 40° and on rough terrain. Key features include a car battery protection function to prevent vehicle battery depletion, a detachable lid for flexible opening directions, and a built-in bottle opener for convenience.

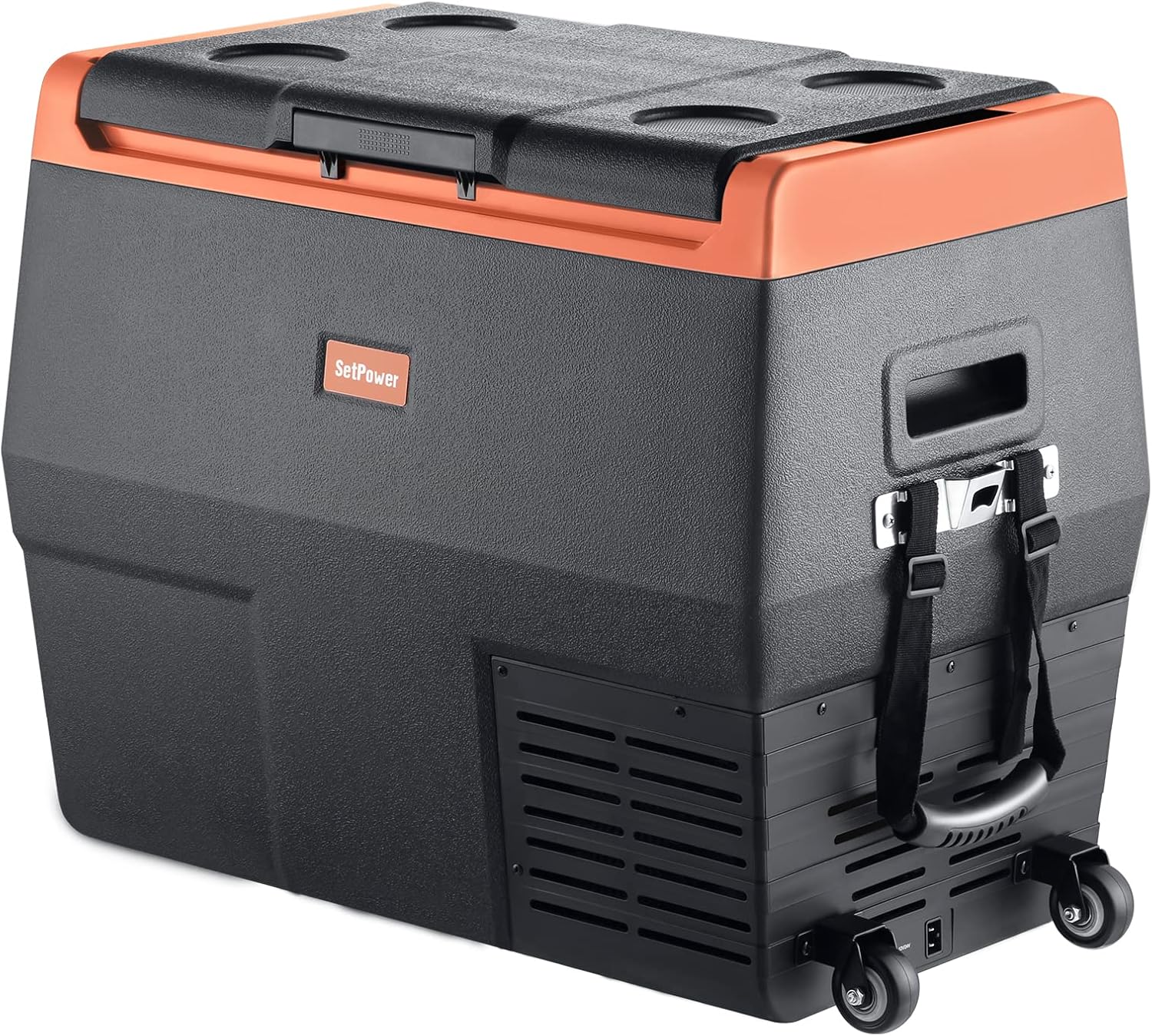

Figure 1.1: SetPower TC35 Portable Fridge Freezer with wheels and handles.
2. Apa yang ada di dalam Kotak
Upon unboxing your SetPower TC35, you should find the following components:
- SetPower Car Refrigerator (TC35 Unit)
- Kabel Kuasa DC 12V/24V (untuk kegunaan kereta)
- 100-240V AC Adapter (for home use)
- Adjustable Soft Strap Handles (2 units)
- Removable Wheels (2 units)
- Manual Pengguna
- Pelekat Hiasan
Figure 2.1: Included accessories for the SetPower TC35.
3. Persediaan
Before initial use, allow the unit to sit upright for at least 24 hours after delivery to allow the compressor fluids to settle. This ensures optimal performance and longevity.
3.1 Attaching Wheels and Handles
The TC35 comes with removable wheels and adjustable soft strap handles for easy transport, especially when fully loaded.
- Locate the wheel attachment points on the bottom of the unit.
- Securely attach the wheels using the provided hardware.
- Attach the soft strap handles to the designated metal brackets on the sides of the unit. Adjust the strap length for comfortable carrying or pulling.
Figure 3.1: SetPower TC35 with wheels and handles for increased portability.
3.2 Sambungan Kuasa
The TC35 can be powered via a 12V/24V DC source (car cigarette lighter) or a 100-240V AC source (standard wall outlet).
- Sambungan DC: Plug the 12V/24V DC power cable directly into the unit's DC input port and then into your vehicle's cigarette lighter socket.
- Sambungan AC: Connect the 100-240V AC adapter to the unit's AC input port, then plug the adapter into a standard wall outlet.
Figure 3.2: Various power options for the SetPower TC35, including solar and power station compatibility.
4. Arahan Operasi
4.1 Kawalan Suhu
The TC35 features an intuitive control panel for temperature adjustment. The cooling range is from -4°F to 68°F.
- Gunakan + dan - buttons on the control panel to set your desired temperature.
- The unit will automatically adjust its operation to reach and maintain the set temperature.
Figure 4.1: Temperature range of the SetPower TC35, suitable for various food items.
4.2 Power Modes (MAX/ECO)
The TC35 offers two power modes for efficiency:
- Mod MAX: Provides rapid cooling for quick temperature drops.
- Mod ECO: Optimizes power consumption for energy saving, ideal for extended use.
Figure 4.2: MAX mode for fast cooling and ECO mode for energy saving.
4.3 Perlindungan Bateri Kereta
The TC35 features a multi-level car battery protection function to prevent draining your vehicle's battery. You can select from three levels (Low, Medium, High) based on your needs. The refrigerator will automatically power off if the battery voltage drops below the set threshold.
Figure 4.3: Icon representing the car battery protection function.
4.4 Detachable and Reversible Lid
The lid of the TC35 is detachable and reversible, allowing you to change its opening direction to suit your setup or preference. This is particularly useful for custom installations in vehicles or tight spaces.
Figure 4.4: The detachable two-way door feature of the TC35.
4.5 Pembuka Botol Terbina Dalam
For added convenience, the TC35 features a built-in bottle opener integrated into the unit's body, allowing for easy access to beverages.
Figure 4.5: Close-up of the built-in bottle opener on the TC35.
5. Prestasi
The TC35 is equipped with a powerful compressor designed for efficient and quiet operation. Its low noise compressor operates under 45 dB in MAX mode, ensuring minimal disturbance.

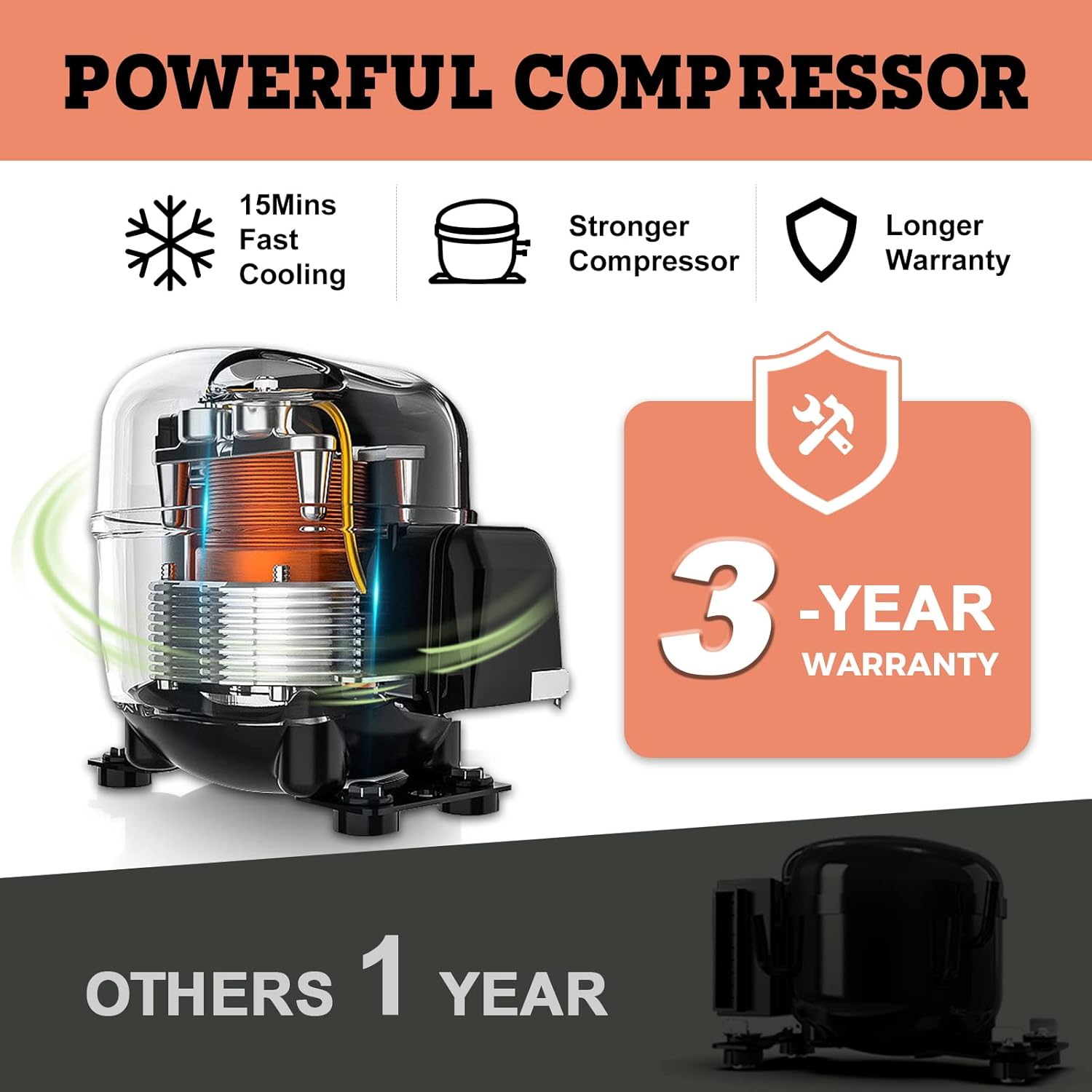

Figure 5.1: The powerful compressor of the SetPower TC35, backed by a 3-year warranty.
The unit's design allows it to operate effectively even when tilted up to 40°, making it suitable for use in moving vehicles or on uneven terrain.
Figure 5.2: The TC35 operates quietly, ensuring it won't disturb your sleep or driving.
6. Penyelenggaraan
To ensure the longevity and efficient operation of your SetPower TC35, regular maintenance is recommended:
- Pembersihan: Regularly clean the interior with a damp cloth and mild detergent. The smooth interior surfaces make cleaning easy.
- Pengudaraan: Ensure the air vents are not blocked to allow proper airflow for the compressor.
- Storan: When not in use for extended periods, ensure the unit is clean, dry, and stored in a well-ventilated area.
7. Penyelesaian masalah
If you encounter issues with your SetPower TC35, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit not cooling/poor performance | Blocked air vents, high ambient temperature, insufficient power supply, or incorrect temperature setting. | Ensure vents are clear. Move unit to a cooler area if possible. Check power connections and voltage. Verify temperature setting. |
| Unit tidak dihidupkan | No power supply, low battery voltage (car battery protection activated), or faulty power cable/adapter. | Check power source. Recharge car battery or adjust battery protection level. Inspect power cables for damage. |
| Bacaan suhu tidak tepat | Temperature sensor issue or uneven temperature distribution inside. | Ensure items are not blocking the internal sensor. If discrepancy persists, contact customer support. |
For further assistance or issues not listed here, please contact SetPower customer service.
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | TC35 |
| Kapasiti | 35 Liter (37 Quarts) |
| Julat Suhu | -4°F hingga 68°F (-20°C hingga 20°C) |
| Penggunaan Kuasa | 0.571 kWj/24j |
| Tahap Kebisingan | Under 45 dB (MAX mode) |
| Dimensi (L x W x H) | 23 x 14.8 x 19.8 inci |
| Berat Barang | 40.6 paun |
| Bahan penyejuk | R-134A |
9. Waranti dan Sokongan
SetPower stands behind the quality of its products. The TC35 Portable Fridge Freezer comes with the following warranty:
- Pemampat: Waranti 3 tahun
- Semua Bahagian Lain: Waranti 1 tahun
For any technical support, warranty claims, or inquiries, please contact SetPower customer service. Our professional technical support team is located in LA and aims to respond to all inquiries within 24 hours, including weekends.
10. Video Produk
Watch these official product videos for more insights into the SetPower TC35's features and usage:
10.1 SetPower TC Series Overview
Video ini memberikan gambaran umumview of the SetPower TC Series, highlighting key features and design aspects.
10.2 SetPower TC35 Overview Official Video
An official video detailing the features and benefits specifically of the SetPower TC35 model.
