Bushnell 3-12x40 Prime Black Riflescope RP3120SW Instruction Manual

pengenalan

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Bushnell 3-12x40 Prime Black Riflescope, Model RP3120SW. Please read this manual thoroughly before using your riflescope to ensure optimal performance and safety.

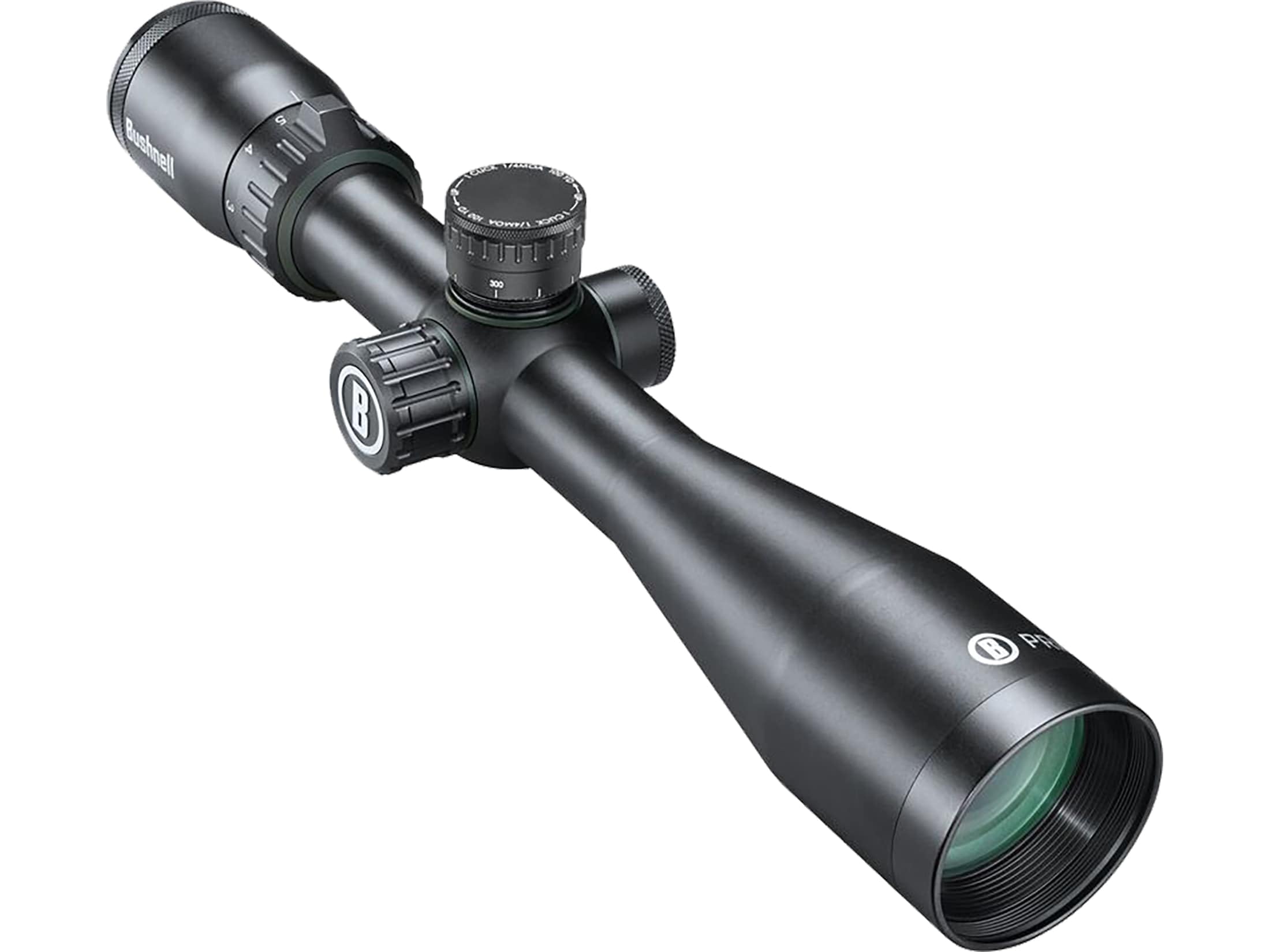

Image: The Bushnell 3-12x40 Prime Black Riflescope, a versatile optic designed for various shooting applications.

Apa yang ada dalam Kotak

Setelah membongkar, sahkan bahawa semua komponen ada:

• Bushnell 3-12x40 Prime Black Riflescope
• BDC Turrets (Ballistic Drop Compensating)
• Penutup Lensa
• Kain Pembersih
• Manual Arahan (dokumen ini)

Persediaan

1. Memasang Riflescope

The Bushnell Prime Riflescope is designed for use with a Picatinny Mount. Ensure the mount is securely attached to your rifle's receiver.

1. Kedudukan: Place the riflescope on the mount, ensuring proper eye relief. Eye relief is the distance between your eye and the eyepiece lens when you have a full field of view. This is crucial for safety and comfort.
2. Ring Placement: Secure the scope rings around the riflescope tube. Do not overtighten initially.
3. meratakan: Use a leveling tool to ensure the reticle is perfectly horizontal.
4. Mengetatkan: Gradually tighten the scope ring screws in an alternating pattern to ensure even pressure. Refer to your mount manufacturer's specifications for torque settings.

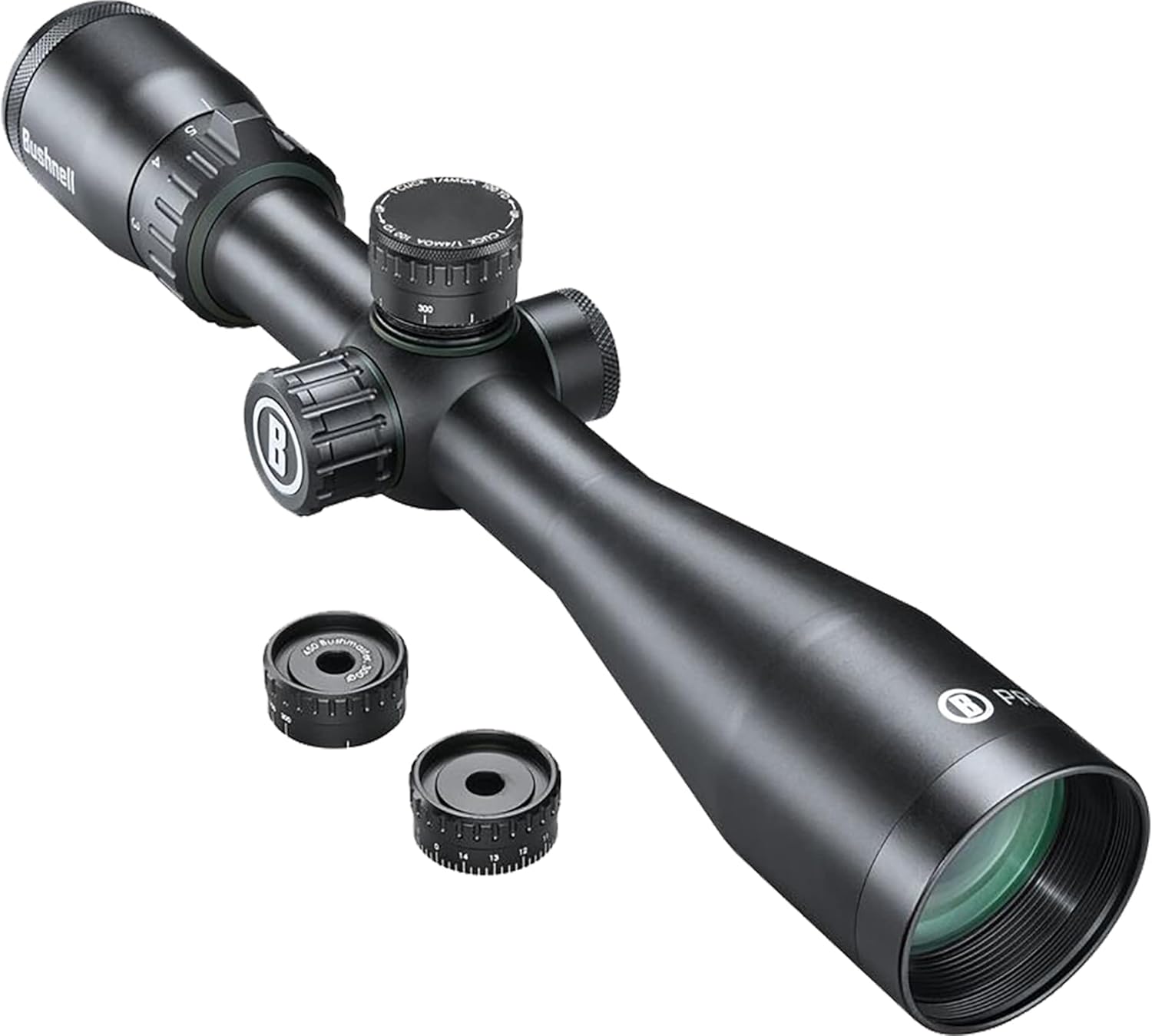

Image: The riflescope showing the elevation and windage turrets, which are essential for zeroing and ballistic adjustments.

2. Focusing the Eyepiece (Diopter Adjustment)

The eyepiece allows you to adjust the focus of the reticle to your individual eye.

1. Point the scope at a clear, bright area (like a plain wall or the sky).
2. Look through the scope and quickly glance at the reticle.
3. Rotate the eyepiece (the ring closest to your eye) until the reticle appears sharp and clear. Avoid staring at the reticle for too long, as your eye may compensate for blurriness.
4. Once focused, the reticle should remain sharp regardless of magnification changes.

3. Melaraskan Pembesaran

The magnification ring is located forward of the eyepiece. Rotate this ring to adjust the magnification from 3x to 12x.

Imej: Atas view of the riflescope, highlighting the magnification adjustment ring and the elevation turret.

Mengendalikan Riflescope

1. Windage and Elevation Adjustments (BDC Turrets)

Your riflescope features Ballistic Drop Compensating (BDC) turrets for precise adjustments. The elevation turret is on top, and the windage turret is on the right side of the scope. Each click of the turret moves the point of impact by a specific amount (e.g., 1/4 MOA).

• Menara Ketinggian: Adjusts the vertical point of impact. Rotate clockwise to move the impact down, counter-clockwise to move it up.
• Windage Turret: Adjusts the horizontal point of impact. Rotate clockwise to move the impact right, counter-clockwise to move it left.

Sifar: To zero your rifle, fire a group of shots at a target. Observe where the shots impact relative to your aim point. Adjust the turrets to move the point of impact towards the center of the target. Repeat until satisfied.

2. Reticle Type: Multi-X

The Bushnell Prime Riflescope utilizes a Multi-X reticle. This is a classic duplex-style reticle, known for its clean sight picture and ease of use in various lighting conditions. It features a fine crosshair in the center for precise aiming, transitioning to thicker posts towards the edges for quick target acquisition.

Imej: Sisi view of the riflescope, showing the overall design and the windage turret.

Penyelenggaraan

1. Membersihkan Kanta

To maintain optical clarity, keep the lenses clean.

• Use the provided lens cloth or a soft, lint-free cloth.
• Berus perlahan-lahan sebarang habuk atau serpihan yang longgar.
• For stubborn smudges or fingerprints, use a small amount of lens cleaning fluid specifically designed for optics. Apply to the cloth, not directly to the lens.
• Avoid using harsh chemicals, abrasive cloths, or excessive pressure, as these can damage the lens coatings.

2. Penjagaan dan Penyimpanan Am

• Keep the lens covers on when the riflescope is not in use to protect the lenses from dust and scratches.
• Simpan riflescope di tempat yang sejuk dan kering, jauh dari cahaya matahari langsung dan suhu yang melampau.
• Avoid dropping or subjecting the riflescope to severe impacts.
• Periksa secara berkala semua skru pelekap untuk memastikan ia ketat.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

Maklumat Waranti

For detailed warranty information regarding your Bushnell 3-12x40 Prime Black Riflescope, please contact the manufacturer directly. Warranty terms and conditions may vary.

Sokongan Pelanggan

If you encounter any issues or have questions not covered in this manual, please visit the official Bushnell webtapak atau hubungi sokongan pelanggan mereka untuk mendapatkan bantuan.

• Rasmi Bushnell Webtapak: www.bushnell.com
• Hubungan Sokongan: Rujuk bahagian "Hubungi Kami" pada pegawai weblaman web untuk nombor telefon atau sokongan e-mel.
