1. Pengenalan dan Lebihview
The SWEETFULL USB Desk Fan (Model S1s) is a compact and quiet personal cooling device designed for various settings such as offices, homes, and during travel. It features a brushless motor for quiet operation and offers three adjustable speeds for personalized airflow. Its versatile design includes a 360-degree rotating head and a detachable grille for easy cleaning.

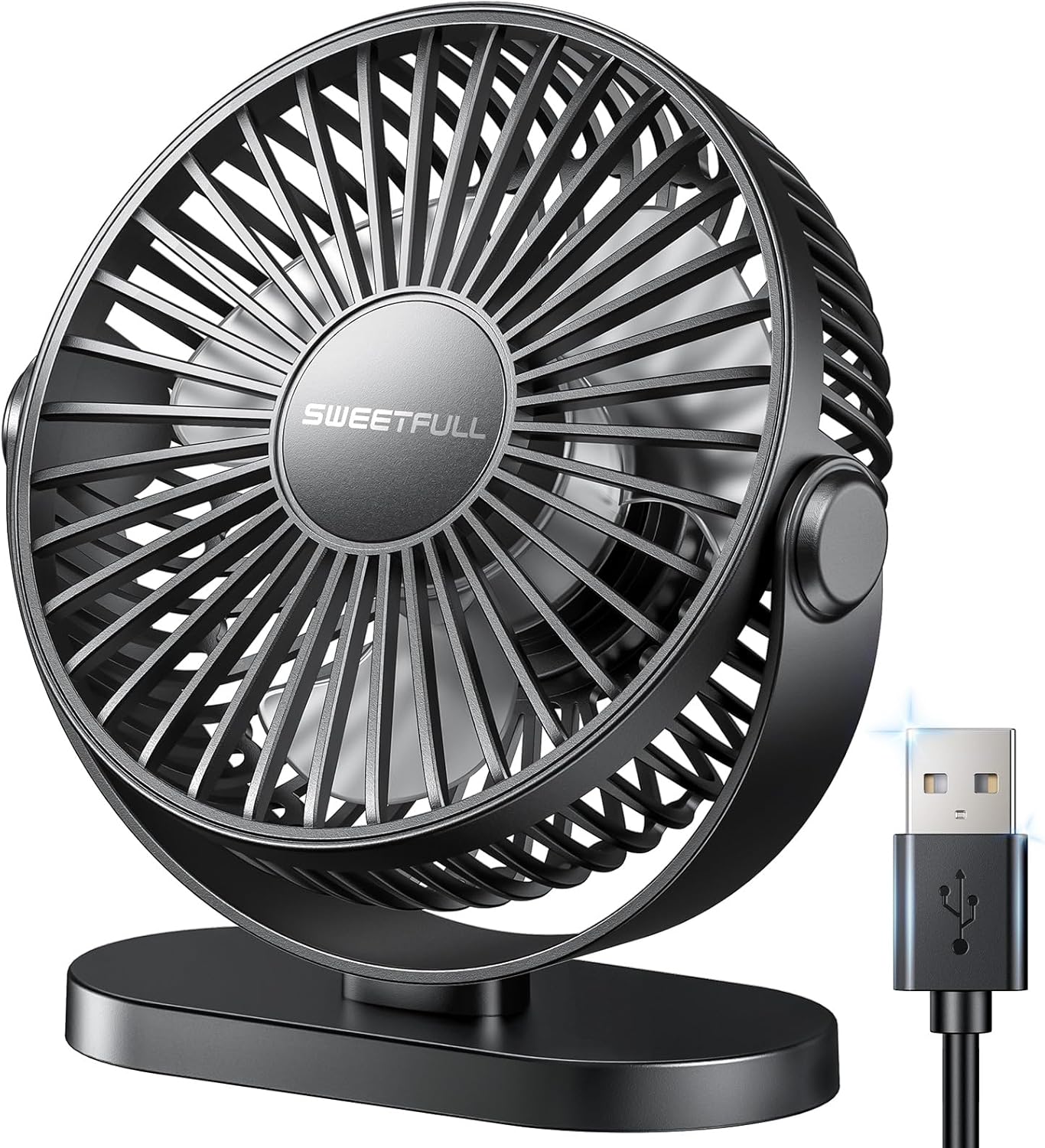

Figure 1: SWEETFULL USB Desk Fan (Black)
Figure 2: Compact dimensions of the fan, ideal for small spaces.
2. Arahan Keselamatan
- Always unplug the fan before cleaning or when not in use.
- Do not use the fan near water or in excessively humid environments.
- Pastikan kipas diletakkan di atas permukaan yang stabil dan rata untuk mengelakkan terbalik.
- Jauhkan jari, rambut dan pakaian longgar dari bilah kipas semasa operasi.
- Avoid using high amperage fast chargers as a power source, as this may damage the motor. Use a standard USB power source.
- Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
3. Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- 1 x SWEETFULL USB Desk Fan
- 1 x Manual Pengguna
4. Persediaan
Follow these steps to set up your SWEETFULL USB Desk Fan:
- penempatan: Place the fan on a flat, stable surface. The fan features an anti-skid base for stability. It also includes a foldable hook for versatile placement, allowing it to be hung if desired.
- Sambungan Kuasa: Connect the USB cable from the fan to any compatible USB power source. This can include a computer, power bank, wall outlet (with a USB adapter), or a car charger.
Figure 3: Fan with 360-degree angle adjustment and hook base.
Figure 4: Versatile USB power options for the fan.
5. Arahan Operasi
The SWEETFULL USB Desk Fan is designed for simple and intuitive operation:
- Hidupkan/Mati Kuasa: Locate the push button on the back of the fan. Press it once to turn the fan on to the lowest speed setting.
- Melaraskan Kelajuan Kipas: Continue pressing the power button to cycle through the three available speed settings (Low, Medium, High). Pressing the button a fourth time will turn the fan off.
- Adjusting Fan Angle: The fan head can be manually rotated 360 degrees vertically to direct airflow precisely where needed.
Figure 5: Three-level speed settings for customized airflow.
The fan operates quietly, even at higher speeds, with a noise level of approximately 32 dB.
Figure 6: The fan's quiet operation, suitable for undisturbed environments.
Product in Use Video
Video 1: Demonstrates the SWEETFULL USB Desk Fan in various usage scenarios, highlighting its quiet operation and adjustable features.
6. Penyelenggaraan
Regular cleaning ensures optimal performance and longevity of your fan:
- Cleaning the Grille and Blades: The front cover of the fan can be easily removed by turning it counter-clockwise. This allows for convenient cleaning of the grille and fan blades. Use a soft, dry cloth to wipe away dust. For stubborn dirt, a slightly damp cloth can be used, ensuring the fan is completely dry before reassembly and use.
- Storan: Apabila tidak digunakan untuk tempoh yang lama, simpan kipas di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kipas tidak dihidupkan. | No power supply or loose USB connection. | Ensure the USB cable is securely plugged into both the fan and a working USB power source. Try a different USB port or adapter. |
| Aliran udara yang lemah. | Fan speed set too low or dirty blades/grille. | Increase the fan speed by pressing the power button. Clean the fan blades and grille as described in the Maintenance section. |
| Bunyi luar biasa semasa operasi. | Obstruction in the fan or loose components. | Unplug the fan and check for any foreign objects or debris obstructing the blades. Ensure the front grille is securely attached. |
| Fan motor burns out. | Using a high amperage fast charger. | Always use a standard USB power source with low amperage. Avoid fast chargers designed for phones or tablets. |
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | MANIS |
| Nama Model | Desk Fan (S1s) |
| warna | Hitam |
| Dimensi Produk | 2.1"D x 5.5"W x 5.9"H |
| Berat Barang | 7.3 Auns |
| Sumber Kuasa | USB Powered |
| Bilangan Kelajuan | 3 |
| Tahap Kebisingan | 32 dB |
| Kaedah Kawalan | Butang Tekan |
| Ciri Khas | 3 Speeds, Anti Slip Base, Quiet, Detachable Cover, 360° Rotation |
| Komponen yang Disertakan | 1* User Manual, 1* USB Desk Fan |
9. Waranti dan Sokongan
The SWEETFULL USB Desk Fan is covered by a standard manufacturer's warranty. For specific details regarding warranty coverage, please refer to the documentation included with your purchase or contact SWEETFULL Technology directly.
Polisi Pemulangan: A 30-day return policy applies for this product.
For further assistance or technical support, please contact the seller or manufacturer through their official channels.
