ATEM POWER 12V 30A DC to DC Battery Charger Instruction Manual

1. Pengenalan

The ATEM POWER 12V 30A DC to DC Battery Charger is designed for efficient and reliable charging of various battery types in off-grid and mobile applications. This device supports Lead Acid, AGM, Gel, Calcium, and LiFePO4 batteries, offering a versatile solution for dual battery setups. It features an intelligent 3-stage charging process to optimize battery performance and extend lifespan, along with multiple protection designs for safe operation.

Rajah 1.1: Depan view of the ATEM POWER 12V 30A DC to DC Battery Charger.

Figure 1.2: The charger is ideal for 4WDs, caravans, RVs, trucks, campers, treler, campervans, commercial vehicles, and boats.

2. Maklumat Keselamatan

Always prioritize safety when installing and operating electrical equipment. Read and understand all instructions before use.

• Perlindungan Polariti Terbalik: The charger is equipped with reverse polarity protection. Ensure correct positive (+) and negative (-) connections to prevent damage.
• Overvoltage Perlindungan: overvol terbina dalamtage protection safeguards the charger and connected batteries from excessive voltage.
• Perlindungan lebih suhu: The unit includes over-temperature protection to prevent overheating during operation.
• Charge Timeout: A charge timeout feature prevents overcharging.
• Lithium Battery BMS Safeguards: Specific safeguards are integrated for LiFePO4 batteries to work with their Battery Management System (BMS).
• Penggabungan yang Betul: Always use properly rated fuses on both input and output lines as recommended in the installation section to protect against short circuits and overcurrent.
• Pengudaraan: Ensure adequate ventilation around the charger to prevent heat buildup.
• Persekitaran Kering: Install the charger in a dry area, free from moisture and direct water exposure.
• Pemasangan Profesional: If unsure about any installation steps, consult a qualified professional.

3. Persediaan

Proper installation is crucial for the safe and efficient operation of your ATEM POWER DC to DC Battery Charger. Follow these steps carefully.

3.1 Menyahkotak dan Komponen

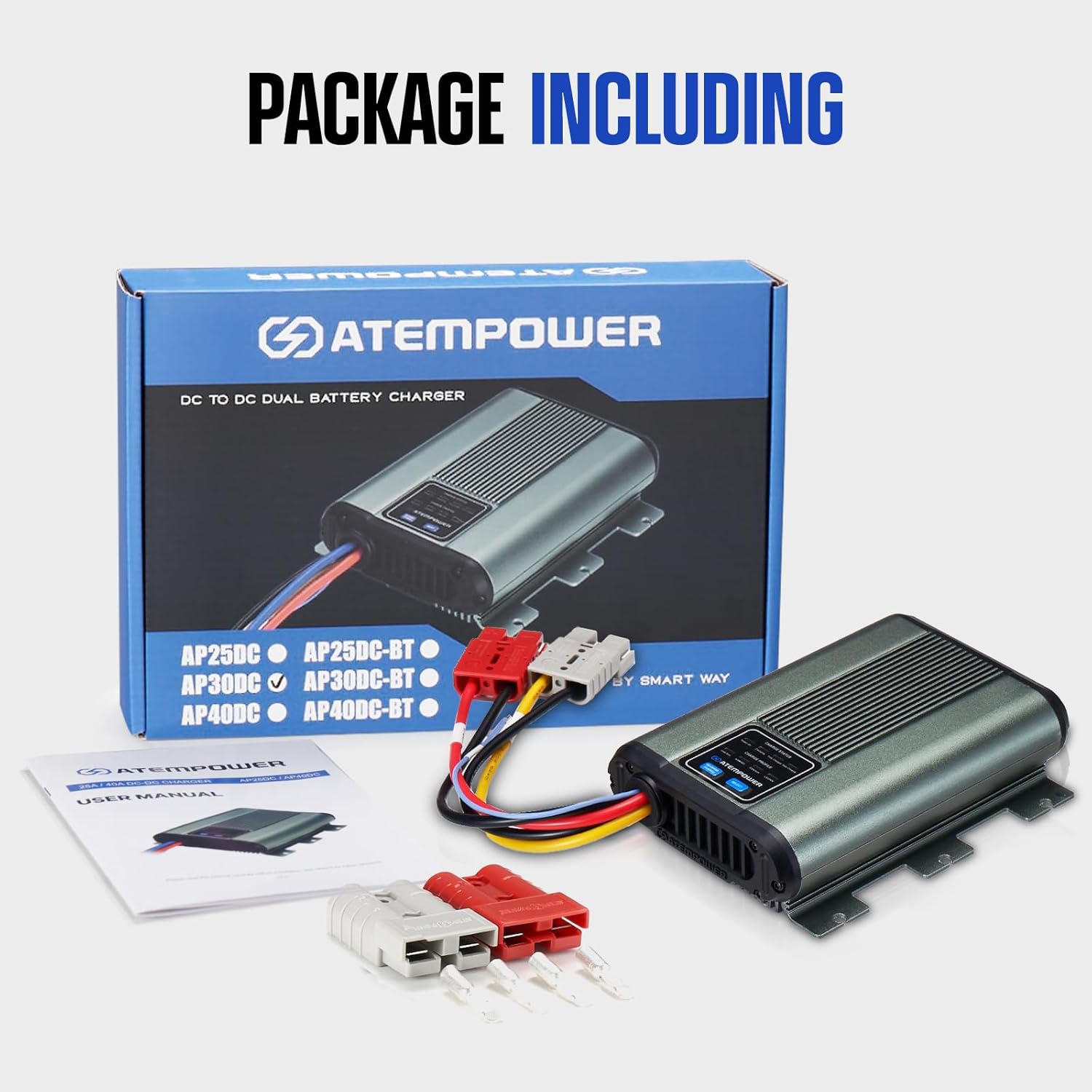

Figure 3.1: The package includes the DC to DC Dual Battery Charger, user manual, and Anderson-style plugs.

3.2 Sambungan Pendawaian

The charger is equipped with Anderson-style plugs for convenient wiring. Refer to the diagram below for correct connections.

Figure 3.2: Anderson-style plug connections. 1: Yellow: Output (+), 2: Black: GND, 3: Red: DC Input (+), 4: Black: GND, 5: ACC Ignition Line.

Connect the charger to your vehicle's start battery, solar panel (if applicable), and house battery bank as shown in the installation diagram.

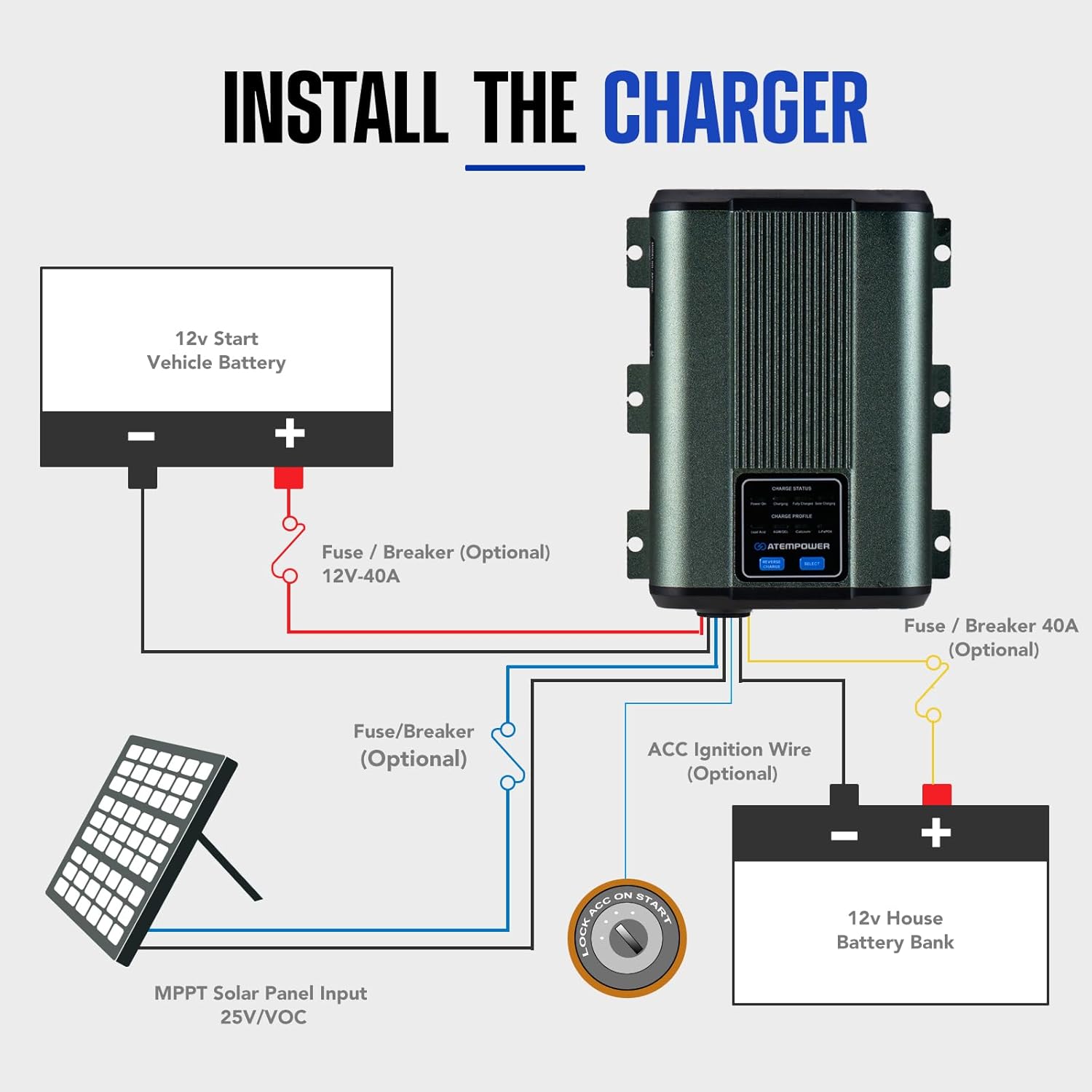

Figure 3.3: Wiring diagram showing connections to 12V Start Vehicle Battery, MPPT Solar Panel Input (25V/VOC), and 12V House Battery Bank. Optional fuses/breakers are recommended.

For smart alternators, connect the ACC Ignition Wire (red) to the vehicle's ignition system to ensure proper operation.

3.3 Pemasangan Cthamples

The ATEM POWER DC to DC charger is suitable for various vehicle types. Below are typical installation scenarios.

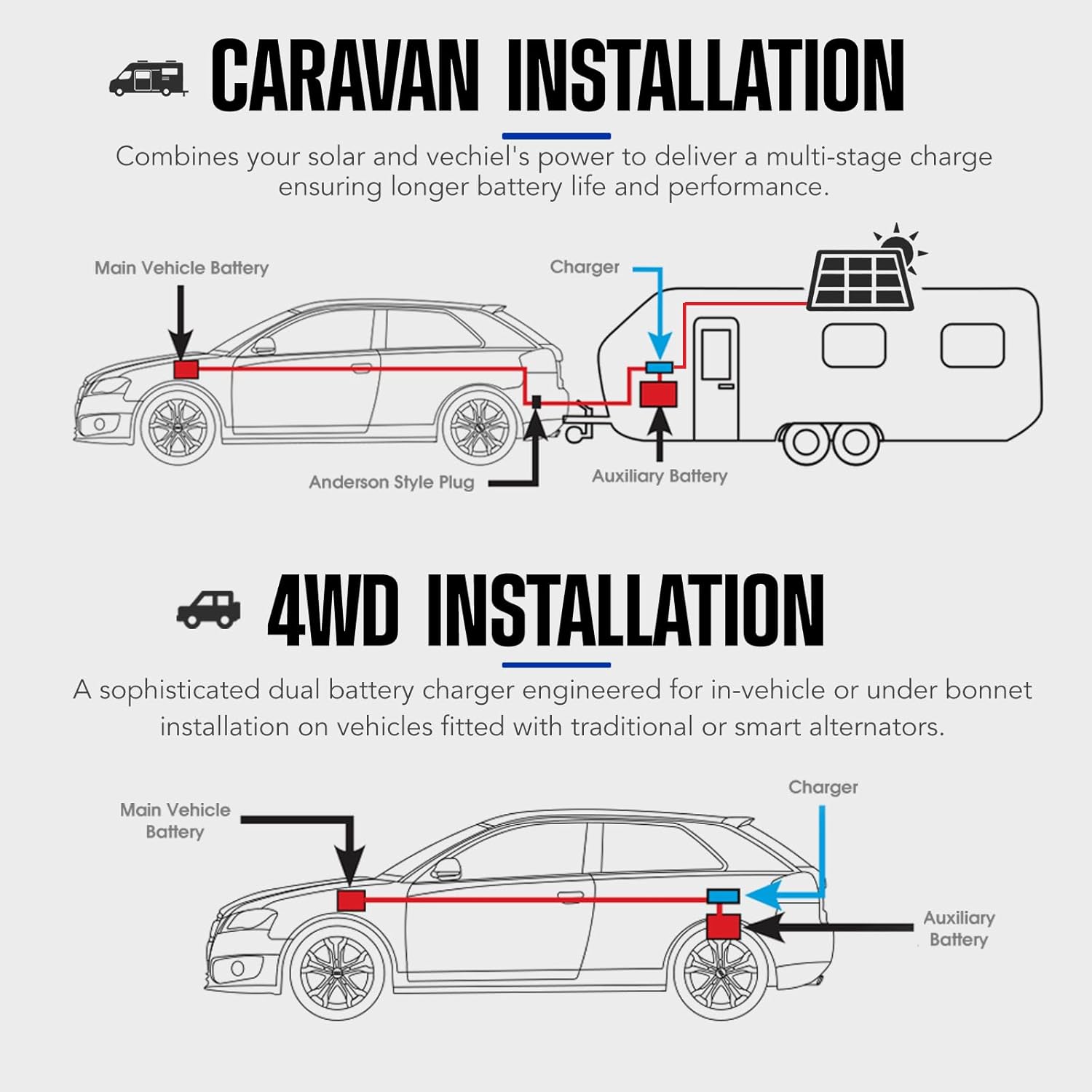

Figure 3.4: Caravan installation combines solar and vehicle power. 4WD installation is engineered for in-vehicle or under-bonnet use with traditional or smart alternators.

3.4 Video Persediaan

4. Arahan Operasi

The ATEM POWER DC to DC Battery Charger is designed for user-friendly operation with advanced features to manage your battery system.

4.1 Battery Compatibility and Charging Profiles

Figure 4.1: The charger is compatible with AGM, Gel, Lead-Acid, and LiFePO4 battery types.

The charger is compatible with a wide range of battery types: AGM, Gel, Calcium, Lead Acid, and LiFePO4 batteries. It automatically applies the suitable charging profile to prolong their lifespan. Use the intuitive "SELECT" button on the unit to switch between battery types if manual selection is required or to re-select during charging.

4.2 Intelligent 3-Stage Mengecas

The intelligent 3-stage charging process optimizes efficiency and maximizes the lifespan of your batteries. This ensures they remain in top condition for extended periods.

4.3 LiON Mode for LiFePO4 Batteries

The intelligent LiON mode automatically activates sleeping LiFePO4 batteries, ensuring prolonged and reliable use.

4.4 Fungsi Pengecasan Songsang

The reverse charging feature allows you to charge in both directions. Activate the reverse charge button to revive a flat start battery using your auxiliary battery, keeping your starter battery fully charged for off-roading experiences.

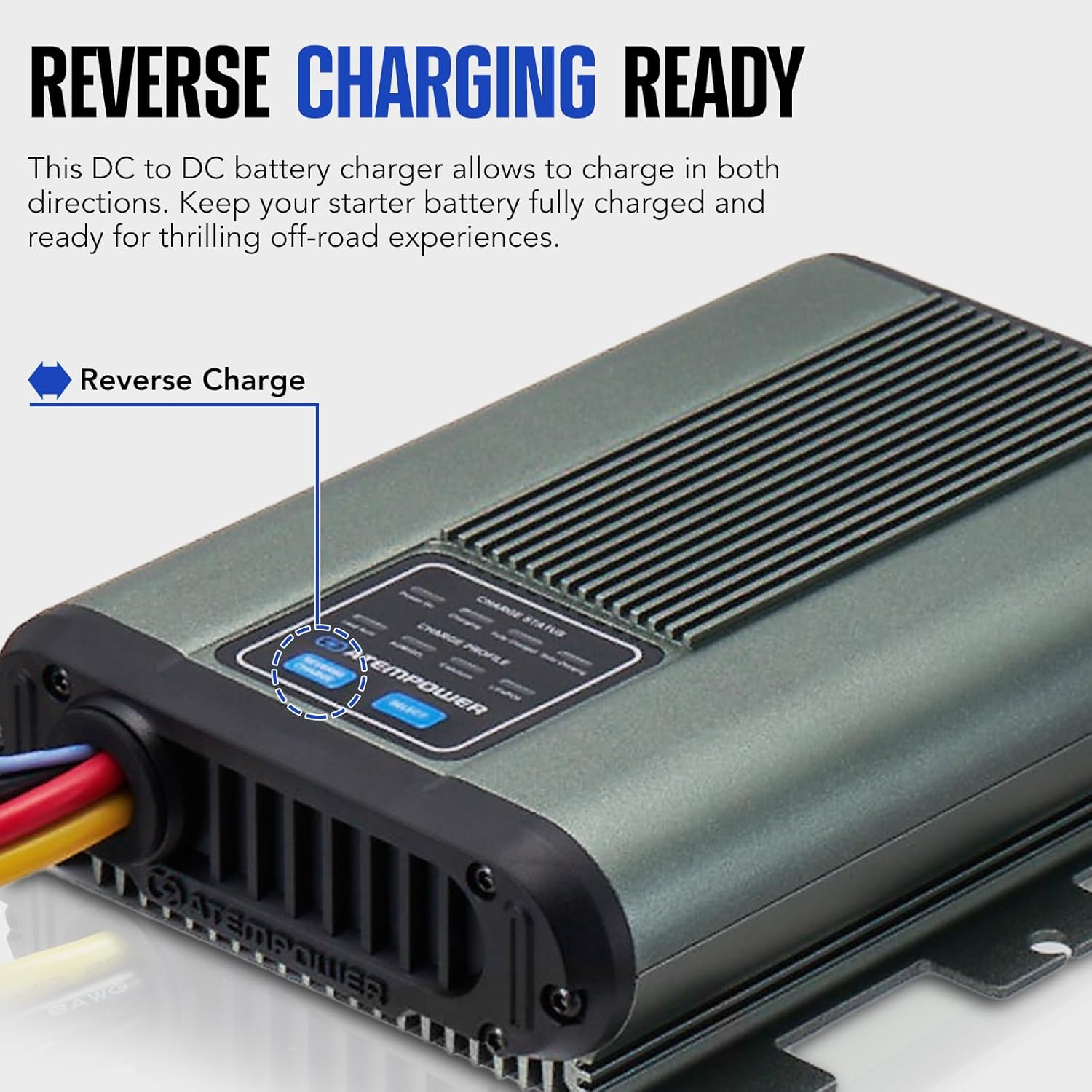

Figure 4.2: The 'Reverse Charge' button allows for charging a flat start battery from the auxiliary battery.

5. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your ATEM POWER DC to DC Battery Charger.

• Kebersihan: Keep the charger clean and free from dust and debris. Use a dry cloth for cleaning.
• Sambungan: Periksa semua sambungan pendawaian secara berkala untuk memastikan ia kukuh dan bebas daripada kakisan. Sambungan yang longgar boleh menyebabkan prestasi atau kerosakan yang lemah.
• Pengudaraan: Ensure that the ventilation openings on the charger are not blocked to allow for proper heat dissipation.
• Keadaan Persekitaran: Avoid exposing the charger to extreme temperatures, direct sunlight, or excessive moisture.
• Kesihatan Bateri: Monitor the health of your batteries. The 3-stage charging and LiON mode help maintain battery health, but regular checks are still recommended.

6. Penyelesaian masalah

This section provides solutions to common issues you might encounter with your charger.

• Pengecas Tidak Diaktifkan:
  • Check all input and output connections for secure fit.
  • Verify that the vehicle's ignition is on if using the ACC ignition line.
  • Pastikan input voltage from the alternator or solar panel is within the specified range.
  • Check fuses/breakers on all lines.
• No Charge Output:
  • Confirm the correct battery type is selected on the charger.
  • Check for any fault indicators on the charger's display.
  • Ensure the auxiliary battery is not fully charged, which would stop the charging cycle.
• Terlalu panas:
  • Pastikan pengudaraan yang mencukupi di sekeliling pengecas.
  • Check for any obstructions blocking the cooling fins.
  • Reduce the load if possible, or ensure the charger is not operating in extreme ambient temperatures.
• Reverse Polarity Alarm:
  • Immediately disconnect the charger.
  • Verify all positive (+) and negative (-) connections are correctly made to both the input and output batteries.

7. Spesifikasi

8. Waranti & Sokongan

8.1 Maklumat Waranti

The ATEM POWER 12V 30A DC to DC Battery Charger comes with a Waranti 1 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa. Sila simpan bukti pembelian anda untuk tuntutan waranti.

8.2 Sokongan Pelanggan

For technical assistance, troubleshooting, or warranty inquiries, please contact ATEM POWER customer support. Refer to the contact information provided in your product packaging or visit the official ATEM POWER webtapak untuk mendapatkan butiran sokongan yang paling terkini.
