1. Pengenalan
This manual provides essential information for the proper setup, operation, and maintenance of your Audio Pro DRUMFIRE D-2 MKII Wireless Speaker. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
2. Maklumat Keselamatan
Patuhi garis panduan keselamatan berikut untuk mengelakkan kerosakan pada peranti atau kecederaan diri:
- Do not expose the speaker to water or excessive moisture. This product is not waterproof.
- Pastikan bekalan kuasa voltage matches the requirements specified on the speaker.
- Do not block ventilation openings. Maintain adequate space around the speaker for proper airflow.
- Avoid placing the speaker near heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
- Gunakan hanya lampiran/aksesori yang ditentukan oleh pengilang.
- Cabut palam pembesar suara semasa ribut petir atau apabila tidak digunakan untuk tempoh yang lama.
- Rujuk semua servis kepada kakitangan perkhidmatan yang berkelayakan. Servis diperlukan apabila radas telah rosak dalam apa jua cara, seperti kord bekalan kuasa atau palam rosak, cecair telah tertumpah atau objek jatuh ke dalam radas, radas telah terdedah kepada hujan atau lembapan, tidak beroperasi seperti biasa. , atau telah digugurkan.
3. Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- Audio Pro DRUMFIRE D-2 MKII Wireless Speaker
- Power Cable (120V and 240V options may be included)
- Manual Arahan (dokumen ini)
4. Produk Lebihview
The Audio Pro DRUMFIRE D-2 MKII is a high-fidelity multiroom wireless speaker designed for superior audio performance. It features multiple connectivity options including Bluetooth, Wi-Fi (2.4GHz and 5GHz), AirPlay2, Spotify Connect, and an RCA input.
4.1 Depan View
Penerangan Imej: A black Audio Pro DRUMFIRE D-2 MKII wireless speaker shown from the front, slightly angled. The front grille features a subtle Audio Pro logo in the center.
4.2 Kawalan Panel Atas
Penerangan Imej: Satu jarak dekat view of the top panel of the Audio Pro DRUMFIRE D-2 MKII speaker. It shows a metallic control interface with multiple circular buttons for power, volume, input selection, and six preset buttons.

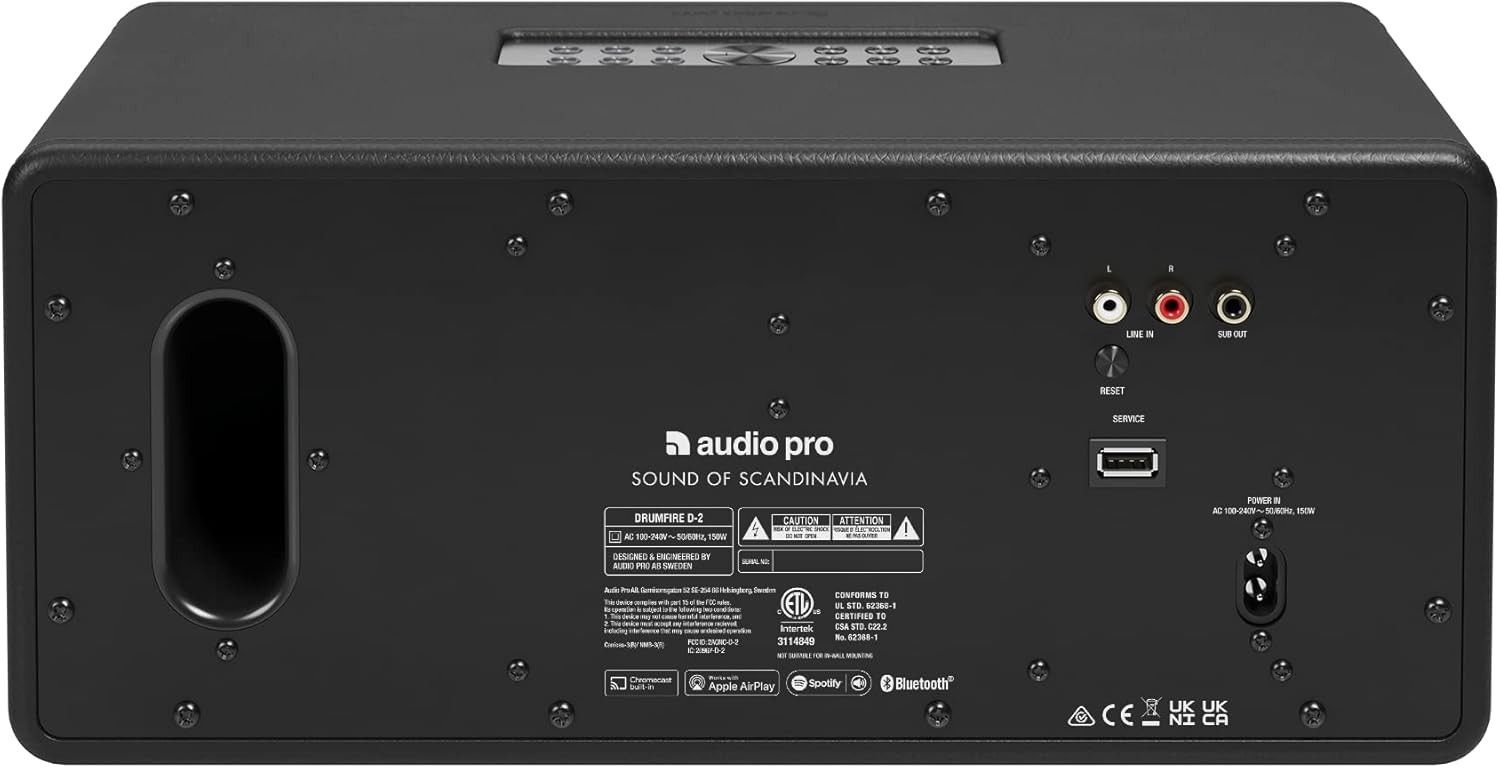

4.3 Sambungan Panel Belakang
Penerangan Imej: The rear panel of the Audio Pro DRUMFIRE D-2 MKII speaker, displaying various input and output ports. These include RCA Line In, Sub Out, a USB service port, a reset button, and the AC power input.
5. Persediaan
5.1 Sambungan Kuasa
- Connect the provided power cable to the AC power input on the rear of the DRUMFIRE D-2 MKII.
- Plug the other end of the power cable into a suitable wall outlet.
- Press the power button on the top panel to turn on the speaker.
5.2 Network Connection (Wi-Fi & Bluetooth)
The DRUMFIRE D-2 MKII supports both 2.4GHz and 5GHz Wi-Fi bands for stable streaming and Bluetooth for direct device connection.
5.2.1 Wi-Fi Setup (Audio Pro Multiroom App)
- Download the Audio Pro Multiroom app from your device's app store.
- Open the app and follow the on-screen instructions to add your DRUMFIRE D-2 MKII speaker to your home Wi-Fi network.
- The app will guide you through connecting the speaker to your Wi-Fi and configuring multiroom settings.
5.2.2 Berpasangan Bluetooth
- Press the Bluetooth input button on the speaker's top panel. The indicator light will begin to flash.
- On your mobile device, navigate to Bluetooth settings and select "Audio Pro DRUMFIRE D-2" from the list of available devices.
- Once paired, the indicator light on the speaker will turn solid.
5.3 RCA Input Connection
For wired audio sources like turntables or other audio equipment:
- Connect an RCA cable from your audio source's output to the "Line IN" RCA ports on the rear of the DRUMFIRE D-2 MKII.
- Select the RCA input using the input selection button on the top panel.
5.4 Sambungan Subwufer
The DRUMFIRE D-2 MKII can be connected to a subwoofer for enhanced bass performance. This can be done via cable or wirelessly if the subwoofer supports multiroom functionality.
- For wired connection, use an RCA cable from the "SUB OUT" port on the DRUMFIRE D-2 MKII to the input of your subwoofer.
- When a subwoofer is connected, the D-2 MKII's internal crossover will adjust to allow the subwoofer to handle the lower frequencies, enabling the D-2 MKII to play louder with clearer mid-range and highs.
6. Operasi
6.1 Main Semula Asas
Once connected via Wi-Fi or Bluetooth, you can control playback (play, pause, skip tracks) and volume directly from your connected device or through the Audio Pro Multiroom app.
6.2 Menggunakan Pratetap
The DRUMFIRE D-2 MKII features 6 preset buttons on its top panel. These can be configured via the Audio Pro Multiroom app to store your favorite playlists or radio stations for quick access.
- In the Audio Pro Multiroom app, navigate to the desired playlist or radio station.
- Press and hold one of the preset buttons (1-6) on the speaker until you hear a confirmation tone. The content is now saved to that preset.
- To play a preset, simply press the corresponding button.
6.3 Fungsi Bilik Berbilang
Utilize the Audio Pro Multiroom app to link multiple Audio Pro speakers across different rooms. You can play the same music on all speakers or different music in each room.
7. Penyelenggaraan
Untuk mengekalkan penampilan dan prestasi pembesar suara anda:
- Bersihkan pembesar suara dengan kain lembut dan kering. Jangan gunakan pembersih cecair atau aerosol.
- Avoid exposing the speaker to direct sunlight or extreme temperatures.
- Do not attempt to open the speaker enclosure, as this will void the warranty and may cause damage.
8. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa | Kabel kuasa tidak disambungkan; soket tidak aktif. | Ensure power cable is securely connected to both speaker and a working power outlet. |
| Tiada bunyi | Incorrect input selected; volume too low; device not connected. | Verify correct input is selected. Increase volume on both speaker and source device. Re-establish Bluetooth/Wi-Fi connection. |
| Isu sambungan Wi-Fi | Incorrect Wi-Fi password; speaker out of range; router issues. | Check Wi-Fi password. Move speaker closer to router. Restart router and speaker. Use the Audio Pro Multiroom app to reconfigure Wi-Fi. |
| Kegagalan berpasangan Bluetooth | Speaker not in pairing mode; device already paired to another speaker. | Ensure speaker is in Bluetooth pairing mode (flashing indicator). Disconnect from other Bluetooth devices. |
| Herotan bunyi | Kelantangan terlalu tinggi; kualiti sumber audio yang lemah. | Kurangkan kelantangan. Cuba sumber audio lain atau file. |
9. Spesifikasi
- Nama Model: Drumfire D-2
- Jenis pembesar suara: Woofer
- Ciri Khas: Multi Room Audio
- Penggunaan yang Disyorkan: Muzik
- Peranti Serasi: Telefon Pintar, Tablet, Pemain MP3, Komputer Riba
- Konfigurasi Saluran Bunyi Sekeliling: 2.0
- warna: MK II Black
- Adakah Kalis Air: PALSU
- Bilangan Item: 1
- Kaedah Kawalan: Apl
- Teknologi Komunikasi Tanpa Wayar: Bluetooth, Wi-Fi (2.4GHz & 5GHz)
- Saiz pembesar suara: 1 Inches (Tweeter, Woofer size not specified for D-2 unit alone)
- Sumber Kuasa: Elektrik Bertali
- Jenis Pemacu Audio: Pemandu Dinamik
- Julat Bluetooth: 10 Meter
- Pengeluar: Audio Pro
- Dimensi Produk: 14.37 x 7.68 x 6.1 inci
- Berat Barang: 13.84 paun
- Kuasa Output Maksimum Pembesar Suara: 25 Watt
- Teknologi Ketersambungan: RCA, Bluetooth, Wi-Fi
- Mod Output Audio: Stereo
- Jenis Pemasangan: Pemasangan Atas Meja
10. Waranti dan Sokongan
The Audio Pro DRUMFIRE D-2 MKII Wireless Speaker comes with a Waranti Terhad. Please refer to the warranty card included with your product or visit the official Audio Pro webtapak untuk terma dan syarat terperinci.
For technical support, troubleshooting assistance, or warranty claims, please contact Audio Pro customer service through their official webtapak atau maklumat hubungan yang diberikan dalam pembungkusan produk anda.
