Delta AFB0612EHD 6020 6cm 12V 0.47A 4-Wire Temperature Control Chassis Computer Fan User Manual

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Delta AFB0612EHD 6020 6cm 12V 0.47A 4-Wire Temperature Control Chassis Computer Fan. Please read this manual thoroughly before using the product to ensure proper function and safety.

2. Ciri-ciri Produk

The Delta AFB0612EHD fan is designed for efficient cooling within computer chassis, featuring:

• Model number: AFB0612EHD
• Bearing structure: Maintenance-free double ball bearing for extended lifespan.
• High rotational speed: 6600 RPM, providing an air volume of 35.21 CFM.
• Interface type: Standard motherboard 4-pin interface.
• Transmission rate: Supports PWM (Pulse Width Modulation) speed control via the motherboard.

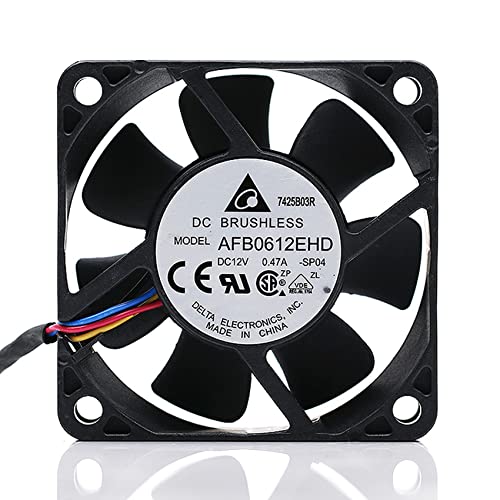

Rajah 2.1: Depan view of the Delta AFB0612EHD fan.

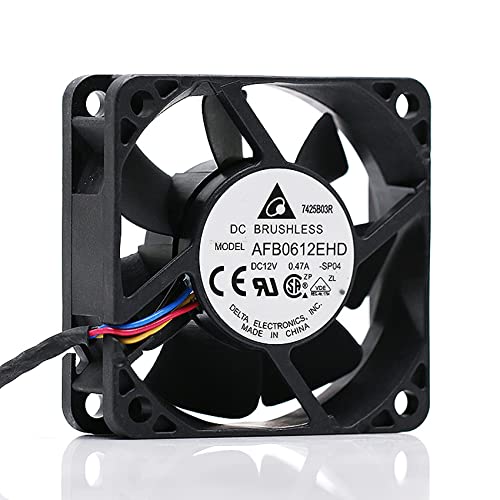

Rajah 2.2: Bersudut view daripada kipas.

3. Spesifikasi Teknikal

Rajah 3.1: Dimensi produk.

4. Maklumat Keselamatan

Please observe the following safety precautions to prevent injury or damage to the product and connected equipment:

• Keselamatan Elektrik: Pastikan bekalan kuasa diputuskan sebelum pemasangan atau penyelenggaraan.
• Pengendalian: Do not disassemble, modify, or attempt to repair the fan by non-professionals. This can lead to electric shock, fire, or product malfunction.
• Pengudaraan: Ensure adequate airflow around the fan. Do not block the fan blades or vents.
• Bahagian bergerak: Keep fingers and other objects away from the fan blades when the fan is operating or connected to power.
• alam sekitar: Avoid exposing the fan to excessive moisture, dust, or extreme temperatures.

Figure 4.1: Safety and handling warnings from product packaging.

5. Panduan Pemasangan

5.1 Sebelum Anda Bermula

• Pastikan komputer anda dimatikan dan dicabut daripada soket dinding.
• Buka casing komputer anda untuk mengakses lokasi pemasangan kipas.
• Gather necessary tools, such as a screwdriver.

5.2 Langkah Pemasangan

1. Kenal pasti Lokasi Pemasangan: Locate an available 60mm fan mounting point within your computer chassis. Ensure the fan's airflow direction (usually indicated by an arrow on the fan frame) aligns with your desired cooling strategy (intake or exhaust).

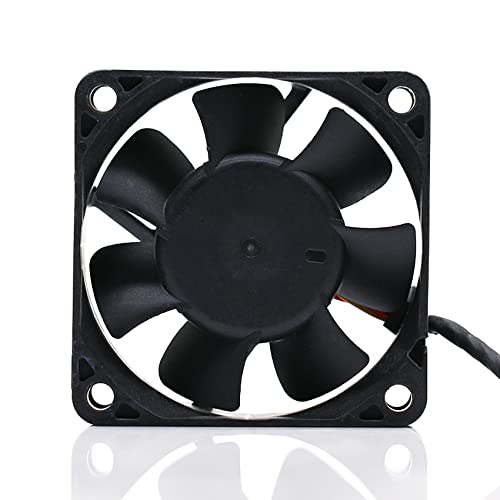

   Rajah 5.1: Belakang view of the fan, showing mounting points.

2. Selamatkan Kipas: Position the fan against the mounting holes. Use appropriate screws (not included) to secure the fan firmly to the chassis. Do not overtighten.

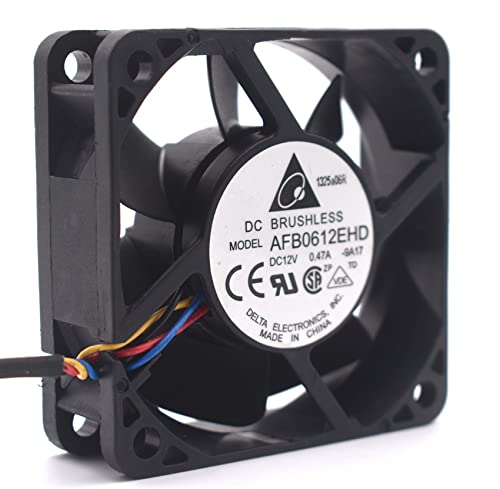

   Figure 5.2: Fan ready for mounting.

3. Sambungkan Kabel Kuasa: Locate an available 4-pin fan header on your motherboard. Carefully align the 4-pin connector from the fan with the header and push it in until it is securely seated. The connector is keyed to prevent incorrect insertion.

   Figure 5.3: The 4-pin PWM connector.
4. Pengurusan Kabel: Route the fan cable neatly to avoid interference with other components or airflow.
5. Tutup Sarung dan Hidupkan: Once the fan is securely installed and connected, close your computer case. Reconnect the power cable and power on your computer. Verify that the fan is spinning.

6. Operasi

The Delta AFB0612EHD fan utilizes a 4-pin connector, which supports Pulse Width Modulation (PWM) for intelligent speed control. When connected to a compatible motherboard header, the fan's speed will automatically adjust based on system temperature, optimizing cooling performance and noise levels.

• Kawalan Automatik: Most modern motherboards will automatically detect and control the fan speed based on BIOS/UEFI settings or operating system software.
• Pelarasan Manual: You may be able to manually adjust fan curves and speeds through your motherboard's BIOS/UEFI settings or dedicated fan control software provided by your motherboard manufacturer. Refer to your motherboard manual for specific instructions.

7. Penyelenggaraan

Penyelenggaraan berkala membantu memastikan prestasi optimum dan memanjangkan jangka hayat kipas anda.

• Penyingkiran habuk: Periodically (e.g., every 3-6 months), power off and unplug your computer. Open the case and use compressed air or a soft brush to gently remove dust accumulation from the fan blades and frame. Hold the fan blades to prevent them from spinning rapidly during cleaning, which can damage the bearings.
• Pemeriksaan: Visually inspect the fan for any signs of damage, loose wires, or obstructions.

8. Penyelesaian masalah

If you encounter issues with your fan, refer to the following table for common problems and solutions:

9. Waranti dan Sokongan

This product is manufactured by ZSOXPF. For warranty claims or technical support, please refer to the retailer or seller from whom you purchased the product. Keep your proof of purchase for warranty purposes. Specific warranty terms and conditions may vary by region and retailer.
