Jansite 12-inch 2.5K Mirror Dash Cam

pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Jansite 12-inch 2.5K Mirror Dash Cam. Please read this manual thoroughly before using the product to ensure proper function and safety. This device features a 12-inch IPS full touch screen, dual lenses for front 2.5K and rear 1080P recording, enhanced night vision with a Sony sensor, and includes a hardwire kit for 24-hour monitoring.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah terdapat dalam pakej anda:

• 1 x Jansite 12-inch Mirror Dash Cam (Mirror DVR)
• 1 x 1080P Rear Camera (Sony IMX415)
• 1 x 32.8ft (10m) Rear Camera Cable
• 1 x Kabel Kuasa
• 1 x Pengecas Kereta
• 1 x Hardwire Kit (for 24-hour monitoring)
• 1 x Manual Pengguna
• 1 x Mirror Cleaning Cloth
• Tali/Jalur Pemasangan

Image: Contents of the Jansite Mirror Dash Cam package, showing the main mirror unit, rear camera, various cables, and accessories.

Persediaan

1. Memasukkan Kad Memori

Locate the MicroSD card slot on the side of the mirror dash cam. Insert a MicroSD card (Class 10 or higher, up to 128GB, not included) with the contacts facing the screen until it clicks into place. Ensure the card is formatted before first use (refer to 'Operating Instructions - Formatting the Memory Card').

2. Memasang Kamera Papan Pemuka Cermin

1. Secure the mirror dash cam over your vehicle's existing rearview cermin menggunakan tali getah yang disediakan. Pastikan ia terpasang kukuh dan tidak menghalang anda view.
2. Connect the car charger to the dash cam's power input port and plug the other end into your vehicle's cigarette lighter socket.
3. Route the power cable neatly along the windshield trim and dashboard to avoid interference with driving.

Image: The Jansite Mirror Dash Cam mounted over a vehicle's existing rearview mirror, displaying the front camera view.

3. Memasang Kamera Belakang

1. Choose a suitable location for the rear camera, typically above the license plate or on the rear window. Clean the surface thoroughly before mounting.
2. Secure the rear camera using the provided adhesive or screws.
3. Sambungkan kabel kamera belakang ke kamera belakang.
4. Route the 32.8ft (10m) rear camera cable from the rear of the vehicle to the front dash cam. Ensure the cable is tucked away safely, avoiding sharp edges or moving parts.
5. Sambungkan kabel kamera belakang ke port yang ditetapkan pada kamera papan pemuka cermin.
6. For backup assist functionality, connect the red wire from the rear camera cable to your vehicle's reverse light positive wire. This enables the parking guidelines to appear when reversing.

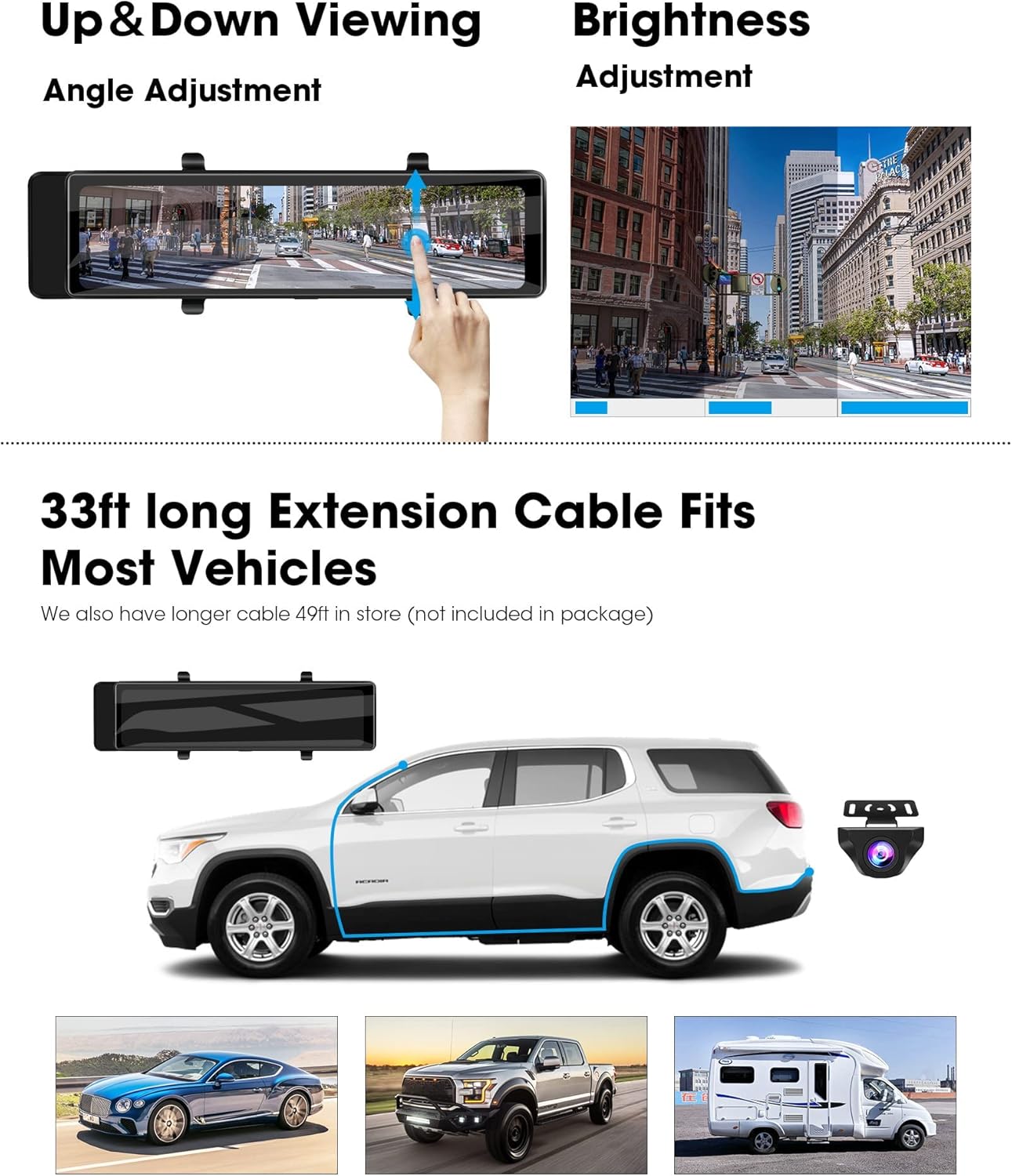

Image: Illustration demonstrating the routing of the 33ft extension cable for the rear camera, suitable for various vehicle types including SUVs and RVs.

4. Hardwire Kit Installation (for 24-Hour Monitoring)

The included hardwire kit allows for continuous power supply to the dash cam, enabling parking monitoring features even when the vehicle is off. Professional installation is recommended for the hardwire kit.

• Connect the ACC wire to a fuse that is only powered when the ignition is on.
• Connect the B+ wire to a constant power fuse (always on).
• Connect the GND wire to a metal part of the vehicle chassis for grounding.

The hardwire kit includes voltage protection to prevent draining your car battery. It will automatically cut off power if the voltage drops below 11.6V (for 12V systems) or 23.5V (for 24V systems).

Image: An illustration detailing the hardwire kit and its function for enabling 24-hour parking monitoring.

Arahan Operasi

1. Hidupkan/Mati Kuasa

• automatik: The dash cam will automatically power on and begin recording when your vehicle's ignition is turned on (when connected to the car charger).
• Manual: Press and hold the power button on the side of the mirror dash cam to manually turn it on or off.

2. Kawalan Skrin Sentuh

The 12-inch IPS full touch screen allows for intuitive control of all functions.

• Leret Kiri/Kanan: Switch between front view, belakang view, and split-screen display modes.
• Swipe Up/Down (on left side of screen): Laraskan menegak viewsudut kamera.
• Swipe Up/Down (on right side of screen): Laraskan kecerahan skrin.
• Tap Icons: Access menu settings, playback, and other functions.

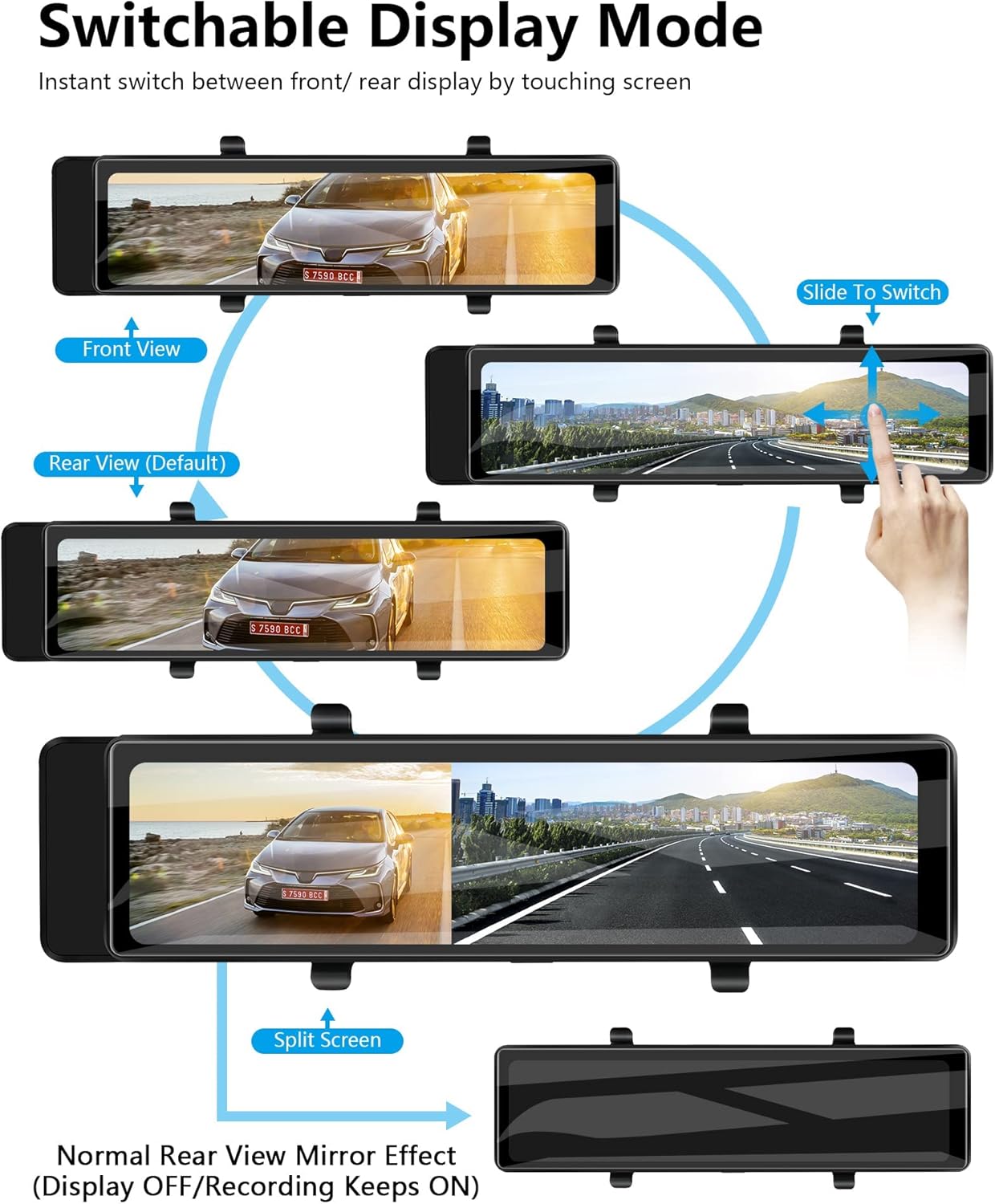

Image: Visual guide on how to use touch gestures to switch display modes (front, rear, split screen) and adjust camera angle and screen brightness.

3. Mod Rakaman

• Rakaman Gelung: The dash cam records continuously in segments (e.g., 1, 3, or 5 minutes). When the memory card is full, the oldest unlocked files ditimpa.
• G-Sensor (Emergency Lock): In the event of a sudden impact or collision, the built-in G-sensor will automatically detect the event and lock the current video segment, preventing it from being overwritten.
• Monitor Tempat Letak Kereta: When the hardwire kit is installed and enabled, the dash cam can detect impacts or motion while the vehicle is parked and automatically record a short video.

4. Reversing Guide Lines Adjustment

When the rear camera is connected to the reverse light, parking guidelines will appear on the screen when you shift into reverse. These guidelines can be adjusted to match your vehicle's dimensions for accurate parking assistance.

1. Shift your vehicle into reverse.
2. On the screen, tap the settings icon for parking lines.
3. Drag the lines on the screen to adjust their width and position.
4. Save the settings once adjusted.

Image: The dash cam display showing adjustable reversing guide lines, which can be customized for various vehicle types.

5. Image Flip and Mirroring Functions

The rear camera image can be flipped or mirrored to ensure correct orientation, especially if the camera is mounted in a non-standard position or if you prefer a specific view.

• Akses menu tetapan sistem.
• Locate the 'Rear Camera Flip' or 'Mirroring' option.
• Toggle the setting to achieve the desired image orientation.

Imej: Cthamples of the upgraded flip and mirroring functions for the rear camera, showing how the image can be adjusted for correct display.

6. Penglihatan Malam

The dash cam utilizes a Sony sensor for enhanced night vision capabilities, providing clearer recordings in low-light conditions.

Image: A visual representation of the dash cam's incredible night vision, powered by a Sony sensor for high sensitivity and low noise technology.

7. Memformat Kad Memori

Regularly formatting the memory card is recommended to maintain optimal performance and prevent data corruption. This will erase all data on the card, so back up any important files pertama.

1. Access the system settings menu on the dash cam.
2. Navigate to the 'Format' or 'SD Card Management' option.
3. Sahkan proses pemformatan.

Penyelenggaraan

• Membersihkan Lensa: Use a soft, lint-free cloth to gently wipe the front and rear camera lenses. Avoid abrasive materials or harsh chemicals.
• Membersihkan Skrin: Use the provided mirror cleaning cloth or a soft, dry cloth to clean the touch screen. Do not spray cleaning solutions directly onto the screen.
• Kad Memori: Format the MicroSD card regularly (e.g., once a month) to ensure stable recording performance. Replace the memory card if it shows signs of degradation or errors.
• Pengurusan Kabel: Periodically check all cables to ensure they are securely connected and not damaged or interfering with vehicle operation.

Menyelesaikan masalah

If you encounter issues with your Jansite Mirror Dash Cam, refer to the following common problems and solutions:

Spesifikasi

Waranti dan Sokongan

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official Jansite webtapak. Simpan resit pembelian anda sebagai bukti pembelian.
