1. Pengenalan
Thank you for choosing the Sodeca Puri-50 Portable Air Purifier. This device is designed to improve indoor air quality by effectively removing harmful particles and odors, contributing to a healthier environment. Please read this manual thoroughly before operating the unit to ensure safe and efficient use.
Figure 1: Sodeca Puri-50 Portable Air Purifier. This image shows the cylindrical design of the air purifier with its top digital display and air vents.
2. Arahan Keselamatan
Untuk mengurangkan risiko renjatan elektrik, kebakaran atau kecederaan, sila patuhi langkah berjaga-jaga keselamatan berikut:
- Sentiasa cabut plag penulen udara sebelum mengalihkan, membersihkan atau melakukan sebarang penyelenggaraan.
- Jangan kendalikan unit dengan kord atau palam yang rosak.
- Keep the air purifier away from water or other liquids.
- Jangan sekat saluran masuk atau alur keluar udara.
- Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
- Use only Sodeca authorized replacement filters.
3. Produk Lebihview
The Sodeca Puri-50 features a robust design with advanced filtration technology:
- Paparan Digital: Shows real-time air quality and operational status.
- Panel Kawalan: Touch-sensitive buttons for various functions.
- 360-degree Air Intake: Cylindrical design for efficient air purification from all directions.
- Three-Level Drum Filter: Berbilang-stage filtration for comprehensive air cleaning.
- UVC LED: For enhanced sterilization.
4. Persediaan
- Bongkar: Carefully remove the air purifier from its packaging. Retain packaging for future storage or transport.
- Kedudukan: Place the unit on a firm, level surface. Ensure there is at least 20 cm (8 inches) of clear space around all sides for optimal air circulation. Avoid placing it near heat sources or in direct sunlight.
- Pemasangan Penapis: The filter may come pre-installed or require installation. If not installed, open the filter compartment (refer to Figure 2 for filter access), remove any protective packaging from the filter, and insert it correctly. Close the compartment securely.
- Sambungan Kuasa: Plug the power cord into a standard electrical outlet (100-240V, 50/60Hz).

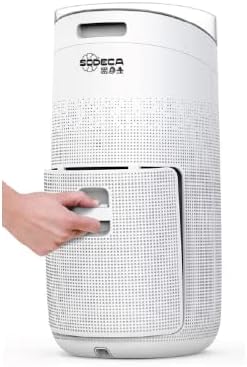

Figure 2: Accessing the filter compartment. This image illustrates a hand opening the side panel of the air purifier to reveal the filter compartment, indicating where the drum filter is located for installation or replacement.
5. Arahan Operasi
The Sodeca Puri-50 features a touch control panel and a digital display for easy operation.
5.1 Hidupkan/Mati Kuasa
- Tekan ke Butang Kuasa on the control panel to turn the unit on or off.
- Upon powering on, the digital display will illuminate, showing current air quality readings.
5.2 Mod Operasi
- Mod Automatik: The purifier automatically adjusts fan speed based on detected air quality. The digital display will show air quality parameters.
- Mod Manual: Allows you to manually select fan speed (e.g., Low, Medium, High). Press the Butang Kelajuan Kipas to cycle through available speeds.
- Mod tidur: Reduces fan speed and dims display lights for quiet operation during sleep.
5.3 Fungsi Pemasa
Set the purifier to operate for a specific duration:
- Tekan ke Butang Pemasa to select operating times: 2, 4, or 8 hours.
- Unit akan dimatikan secara automatik selepas masa yang dipilih telah berlalu.
5.4 UVC LED Function
- The UVC LED function can be activated or deactivated via a dedicated button on the control panel. Refer to the display for its status.
6. Penyelenggaraan
Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat pembersih udara anda.
6.1 Membersihkan Bahagian Luar
- Cabut plag unit sebelum membersihkan.
- Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
- Pastikan tiada air memasuki unit.
6.2 Penggantian Penapis
The Puri-50 uses a three-level drum filter. The filter life depends on air quality and usage, typically 6-12 months. The unit may indicate when a filter change is needed.
- Cabut plag penulen udara daripada salur keluar kuasa.
- Open the filter compartment cover (refer to Figure 2).
- Carefully remove the old drum filter. Dispose of it according to local regulations.
- Unpack the new Sodeca Puri-50 replacement filter and insert it into the compartment, ensuring it is seated correctly.
- Tutup penutup petak penapis dengan selamat.
- Plug the unit back in. Reset the filter indicator (if applicable) by following instructions in the display or control panel section.
Nota: The three-level drum filter includes a pre-filter for large particles (PM10), a HEPA filter for fine particles (PM0.3-PM2.5), and an activated carbon layer for odors.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan. | Tiada bekalan kuasa. Kord kuasa tidak disambungkan dengan betul. | Check if the unit is plugged into a working outlet. Ensure the power cord is securely connected. |
| Aliran udara yang lemah. | Filter is dirty or clogged. Air inlets/outlets blocked. | Check and replace the filter if necessary. Ensure no obstructions are blocking the air vents. |
| Bunyi yang tidak biasa. | Penapis tidak dipasang dengan betul. Objek asing di dalam. | Ensure the filter is properly seated. Unplug and check for any foreign objects. |
| Kualiti udara tidak bertambah baik. | Filter needs replacement. Room size exceeds coverage area. | Replace the filter. Ensure the unit is used in a room within its specified coverage area (45-50 m²). |
If the problem persists after trying these solutions, please contact Sodeca customer support.
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | Puri-50 |
| Jenama | Sodeca |
| Kawasan Liputan Maksimum | 45-50 m² |
| Aliran udara | 400 m³/j |
| Tahap Kebisingan | <56 dB |
| Bekalan Kuasa | 100-240 V, 50/60 Hz |
| Penggunaan Kuasa | 50 W |
| Berat badan | 4.8 kg |
| Dimensi (H x L x W) | 562 x 270 x 303 mm |
| Tetapan Pemasa | 2, 4, 8 jam |
| Kaedah Kawalan | Sentuh / Kawalan Butang |
| Jenis Penapis | HEPA (H13) Three-Level Drum Filter |
| Kecekapan Penapis | 99.95% (for particles down to 0.3 microns) |
| Ciri Khas | Digital Air Quality Display, UVC LED, Antibacterial Cap |
9. Waranti dan Sokongan
For warranty information, technical support, or to purchase replacement parts and filters, please refer to the official Sodeca website or contact your authorized Sodeca dealer. Keep your purchase receipt as proof of purchase for warranty claims.
Nota: The manufacturer's warranty typically covers defects in materials and workmanship under normal use. Damage resulting from improper use, unauthorized repairs, or failure to follow instructions is usually not covered.
