The Windhager Expert 03241 Swing Door Insect Screen is designed to provide effective and convenient protection against insects for your home. Ideal for frequently used patio and balcony doors, this screen features a robust aluminum frame and a high-quality fiberglass mesh, ensuring durability and clear visibility. Its unique swing mechanism allows for easy passage in both directions, making it suitable for households with pets or high traffic areas.
Image: The Windhager Expert 03241 Swing Door Insect Screen, demonstrating its ability to swing open in both directions for convenient access.
Ciri-ciri Utama
- Pembinaan Tahan Lama: Stable frame door made from robust, powder-coated aluminum profiles.
- Two-Way Swing Function: Opens easily in both directions, by hand or foot, ideal for high-traffic areas and pet owners.
- Mekanisme Penutupan Sendiri: Fiberglass-reinforced pendulum hinges ensure the door automatically swings back to its closed position. Integrated magnets provide a reliable seal.
- Keterlihatan Optimum: High-quality "Perfect View" fiberglass fabric in anthracite offers excellent transparency and clear outward visibility.
- Pemasangan Fleksibel: Can be mounted drill-free using strong Velcro strips or securely screwed to the door frame. Designed to fit in narrow spaces, even between roller shutters and door frames.
- Reka bentuk estetik: Beveled edges and flush profiles contribute to a clean and modern appearance.
Image: Visual representation of the benefits, including protection from insects, enabling undisturbed cooking and sleeping.

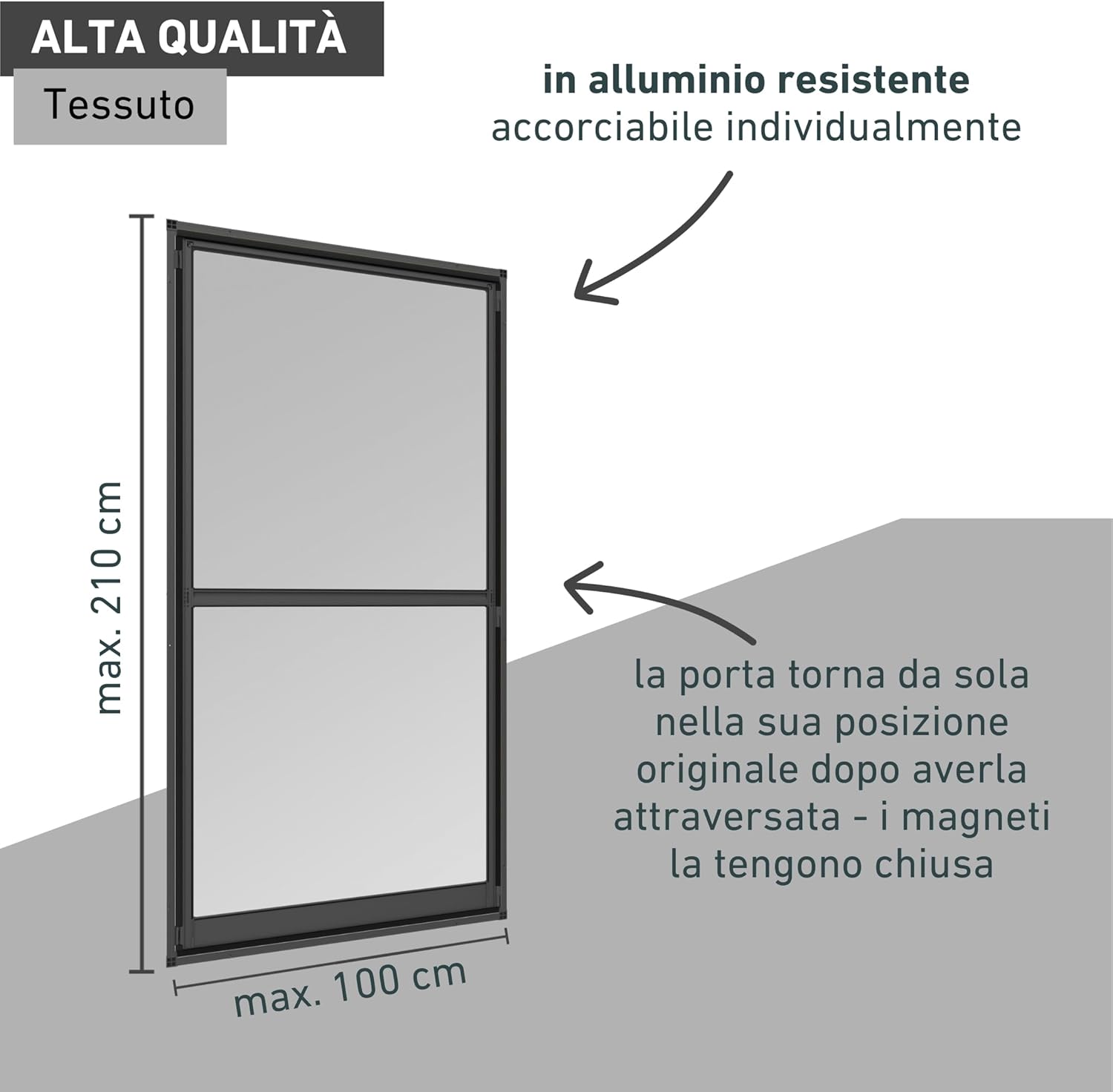

Image: Details on the high-quality, individually adjustable aluminum frame and the self-closing feature with magnetic closure.

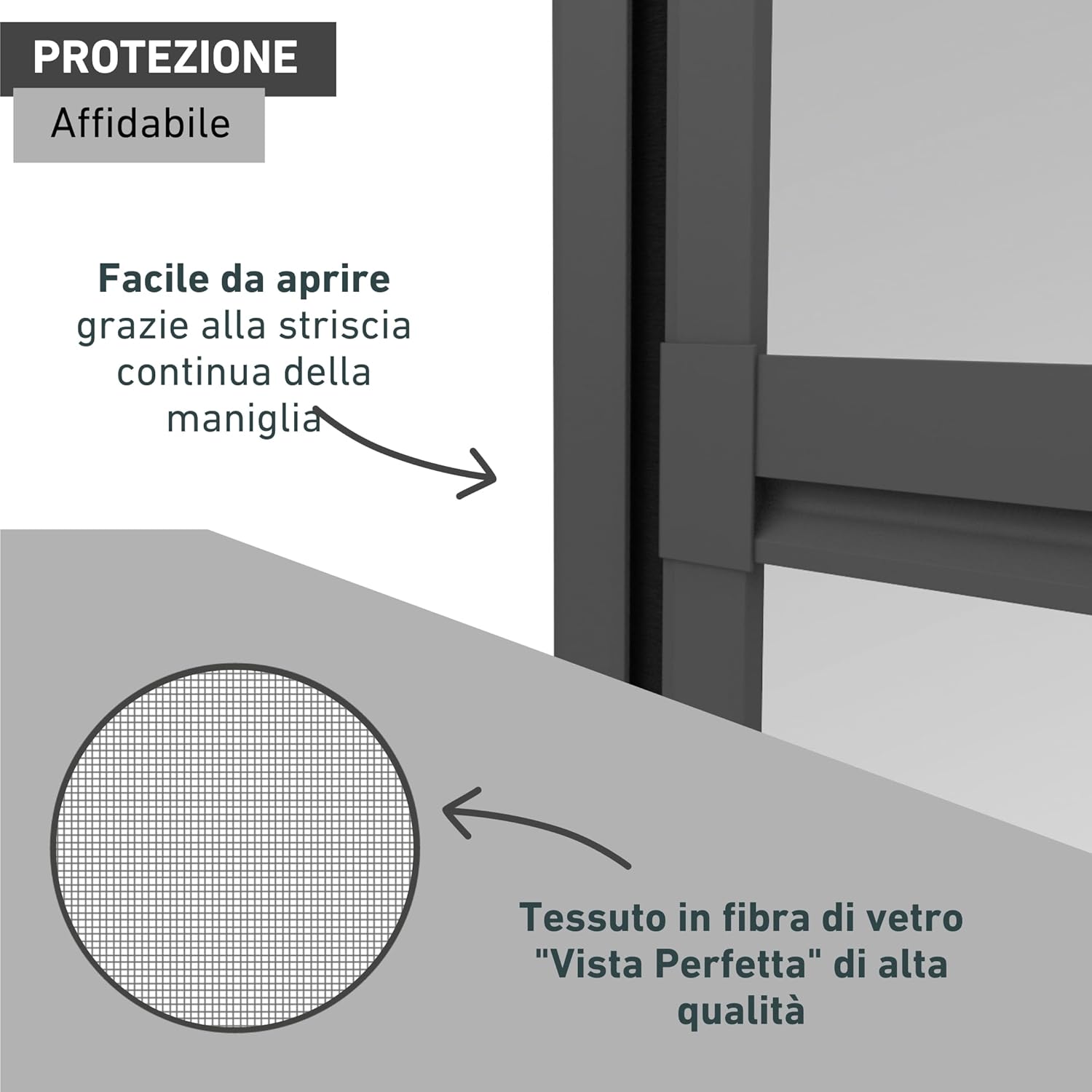

Image: Demonstrates the "Perfect View" fiberglass fabric for clear visibility and the continuous handle strip for easy opening.
Komponen Termasuk
The Windhager Expert 03241 comes as a complete DIY assembly kit. Please verify all components are present before beginning installation:
- Bingkai profiles
- Accessory set for outer frame
- Pendulum door components
- Corner and central connector set
- Hinge set for pendulum door
- Fiberglass fabric (Perfect View)
- Click strips
- Measuring and drilling templates
- Pengawal pelindung
- Berus pengedap
- Arahan pemasangan
Image: The product packaging, illustrating the comprehensive kit and its features for long-lasting insect protection.
Persediaan dan Pemasangan
Careful measurement and assembly are crucial for optimal performance. The door is designed for easy DIY installation.
1. Pengukuran
Measure your door frame accurately. The maximum dimensions for the insect screen are 100 cm (width) x 210 cm (height). Ensure there is sufficient space for the frame, especially if installing between a roller shutter and the existing door frame. The installation depth required is 15 mm.
Image: A diagram illustrating how to correctly measure your door opening for the insect screen, indicating maximum dimensions of 95 cm width and 206 cm height for the clear opening.
2. Assembly Options
You have two primary options for mounting the insect screen:
- Drill-Free Fastening with Velcro: For a less invasive installation, strong Velcro strips are provided. Ensure the door frame surface is clean and dry before applying.
- Pemasangan skru: For a more permanent and secure installation, the frame can be screwed directly to the door frame. Use the provided drilling templates for accurate placement.
Refer to the detailed assembly instructions included in the kit for step-by-step guidance on cutting profiles, attaching the mesh, and installing hinges and sealing brushes.

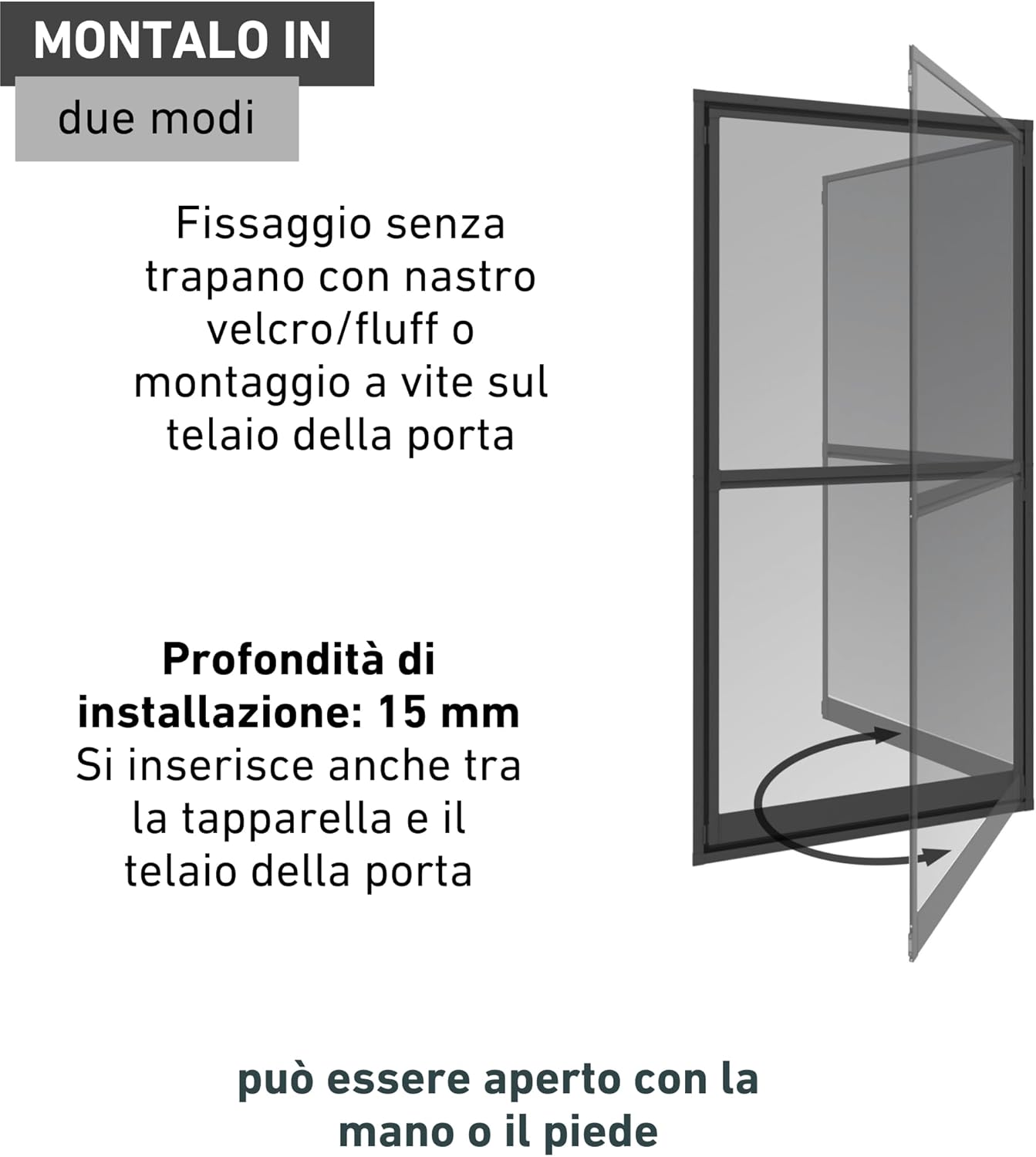

Image: Illustrates the two installation methods: drill-free with Velcro or screw mounting, highlighting the minimal 15mm installation depth required.
Operasi
The Windhager Expert 03241 insect screen is designed for effortless operation.
- Pembukaan: The pendulum door can be opened by simply pushing it in either direction, using your hand or foot.
- Penutup: Thanks to the fiberglass-reinforced pendulum hinges, the door will automatically swing back to its closed position after passage. Integrated magnets ensure a secure and complete seal, preventing insects from entering.
- Mesra Haiwan Kesayangan: The two-way swing function makes it convenient for pets to pass through without assistance, while still ensuring the door closes behind them.
Image: A dog easily passing through the swing door, highlighting its suitability for both human and pet use due to its two-way opening and closing.
Penyelenggaraan
Regular maintenance will ensure the longevity and optimal performance of your insect screen.
- Cleaning the Mesh: Periodically wipe the fiberglass mesh with a soft, damp cloth to remove dust and debris. For stubborn dirt, a mild soap solution can be used, followed by rinsing with clean water. Avoid abrasive cleaners or harsh brushes.
- Membersihkan Bingkai: Clean the aluminum frame with a damp kain.
- Pemeriksaan Engsel: Check the pendulum hinges periodically for smooth operation. If they become stiff, a small amount of silicone spray can be applied to the moving parts (avoiding the mesh).
- Meterai Magnetik: Ensure the magnets along the perimeter are clean and free of obstructions to maintain a tight seal.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Door does not close completely or swings slowly. |
|
|
| Jaring kelihatan longgar atau rosak. |
|
|
| Difficulty with installation. |
|
|
Spesifikasi
| Atribut | Perincian |
|---|---|
| Jenama | Windhager |
| Nombor Model | 03241 |
| Dimensi Produk (L x W x H) | 1.5 x 100 x 210 cm |
| Berat badan | 4.2 Kilogram |
| warna | Antrasit |
| bahan | Aluminum, Fiberglass |
| Gaya | moden |
| Penggunaan | Luar |
| ASIN | B09JLFYYZ9 |
Waranti dan Sokongan
For warranty information or technical support, please refer to the documentation included with your product or visit the official Windhager webtapak. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.
Windhager Official Store: Visit Windhager Store on Amazon
