Ingco HSG1405

INGCO 3-in-1 Staple Gun HSG1405 User Manual

Model: HSG1405

1. Pengenalan

Thank you for choosing the INGCO HSG1405 3-in-1 Staple Gun. This versatile tool is designed for various fastening tasks, including upholstery, flooring, minor carpentry, decorative purposes, furniture assembly, and DIY projects. It is compatible with three types of fasteners: standard staples, U-shaped staples, and Brad nails. Please read this manual carefully before operation to ensure safe and efficient use of the tool.

2. Arahan Keselamatan

3. Produk Lebihview

Familiarize yourself with the components of your INGCO HSG1405 staple gun:

Diagram of INGCO HSG1405 staple gun with labeled parts: Pressure Adjustment Knob, Ergonomic Handle, Handle Lock, Crush Pad, Mental Drive Channel Switch, Magazine Remove Latch.

Rajah 1: Key components of the INGCO HSG1405 Staple Gun.

Compatible Fastener Types

The HSG1405 is compatible with three types of fasteners:

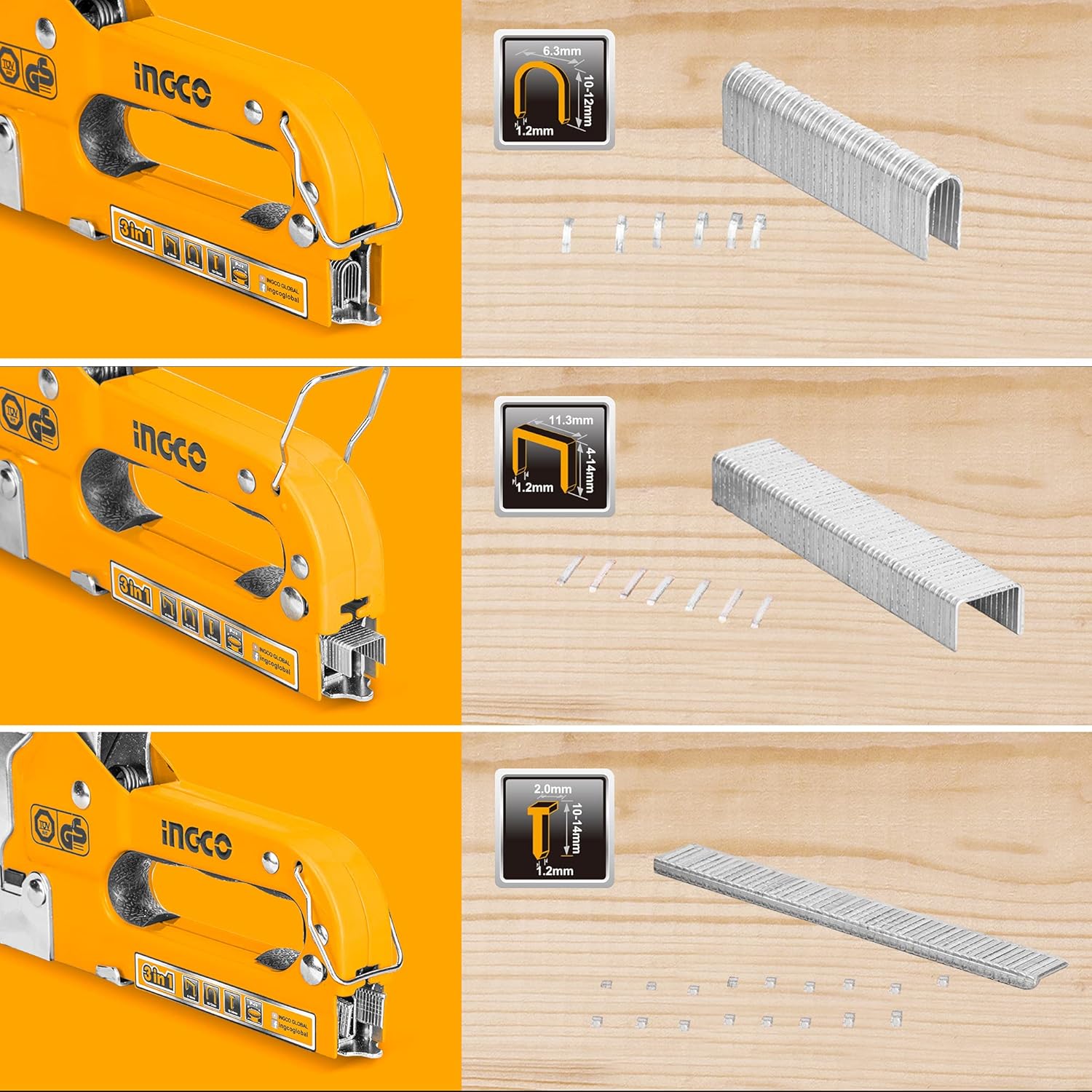

Image showing three types of fasteners: standard staples, U-shaped staples, and Brad nails, with their dimensions.

Rajah 2: Compatible fastener types for the HSG1405 Staple Gun.

4. Setup: Loading Fasteners

  1. Unlock the Handle: If the handle is locked, release the Handle Lock mechanism.
  2. Open the Magazine: Locate the Magazine Remove Latch at the bottom rear of the staple gun. Press or pull this latch to release the magazine.
  3. Load Fasteners: Insert the desired type of staples or nails into the magazine. Ensure they are oriented correctly, with the points facing forward. Do not overload the magazine.
  4. Tutup Majalah: Slide the magazine back into the staple gun until it clicks securely into place.
  5. Ujian Api: Before using on your project, test fire the staple gun on a scrap piece of material to ensure proper loading and operation.

5. Arahan Operasi

Adjusting Driving Force

The INGCO HSG1405 features an adjustable driving force mechanism to accommodate different materials and fastener types. This is controlled by the Pressure Adjustment Knob located at the top of the tool.

A hand adjusting the pressure knob on top of the staple gun, with text indicating 'Lower Power' and 'Higher Power'.

Rajah 3: Adjusting the driving force.

Firing the Staple Gun

  1. Place the nose of the staple gun firmly against the workpiece where you want to fasten.
  2. Ensure the tool is held perpendicular to the surface for optimal fastener penetration.
  3. Squeeze the ergonomic handle firmly and completely to fire the fastener.
  4. Release the handle after each shot.

6. Penyelenggaraan

Keluaran Jam Pantas

If a fastener becomes jammed, the INGCO HSG1405 is equipped with a quick jam release mechanism:

  1. Ensure the tool is pointed away from yourself and others.
  2. Locate the Mental Drive Channel Switch (often a lever or button near the front of the magazine).
  3. Pull down the metal drive channel to expose the jammed fastener.
  4. Carefully remove the jammed fastener using pliers or a similar tool. Do not use excessive force.
  5. Once the jam is cleared, push the metal drive channel back into place until it locks.
  6. Reload fasteners and test the tool on a scrap piece of material.

Regularly inspect the tool for any loose parts or damage. Keep the tool clean and free of debris. A light application of oil to moving parts can help maintain smooth operation.

7. Penyelesaian masalah

MasalahKemungkinan PuncaPenyelesaian
Fasteners not firingEmpty magazine, jammed fastener, handle lock engaged.Reload fasteners, clear jam (see Maintenance), release handle lock.
Pengikat tidak didorong sepenuhnyaInsufficient driving force, hard material, improper tool placement.Increase driving force (turn knob clockwise), ensure firm and perpendicular placement, consider pre-drilling for very hard materials.
Fasteners bending or misfiringIncorrect fastener type/size, worn driver blade, material too thin/soft.Use correct fasteners, inspect driver blade for wear, use a backing material for thin workpieces.

8. Spesifikasi

Image showing parameter information for Ingco Staple Gun 3 in 1, including Adjustable Driving Force, Quick Jam Release, All steel Construction, and included staples/nails.

Rajah 4: Product specifications and features.

9. Waranti dan Sokongan

For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or contact INGCO customer service. Keep your purchase receipt as proof of purchase.
