Manual Arahan Kereta Lumba RC GoolRC WLtoys 284131 Skala 1:28 2.4GHz

1. Pengenalan

This manual provides essential information for the safe and effective operation, setup, and maintenance of your GoolRC WLtoys 284131 1:28 Scale 2.4GHz RC Race Car. Please read this manual thoroughly before using the product to ensure proper function and longevity.

Image 1.1: The GoolRC WLtoys 284131 RC Race Car and its accompanying 2.4GHz remote control.

2. Garis Panduan Keselamatan

• Sentiasa kendalikan kereta RC di kawasan terbuka, jauh daripada orang ramai, haiwan peliharaan dan halangan.
• Do not operate near public roads, water, or high-voltage talian kuasa.
• Jauhkan jari, rambut dan pakaian longgar daripada bahagian yang bergerak.
• Ensure the battery is fully charged before each use and disconnect it when not in use.
• Pengawasan dewasa disyorkan untuk pengguna yang lebih muda.
• Do not modify the product or its components, as this may void the warranty and create safety hazards.

3. Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• GoolRC WLtoys 284131 RC Race Car
• Pemancar Kawalan Jauh 2.4GHz
• Bateri Litium 7.4V 400mAh
• Kabel Pengecas USB
• Spare Gears (various sizes)
• Small Tools (e.g., screwdriver, wrench)
• Manual Arahan

Image 3.1: Illustration of the GoolRC WLtoys 284131 RC Race Car, remote control, battery, charger, and spare parts included in the package.

4. Produk Lebihview

The GoolRC WLtoys 284131 is a 1:28 scale 4WD electric RC race car designed for high-speed performance and drift capabilities. It features a full simulation structure, independent suspension, and a powerful 130 brush motor.

4.1 Ciri-ciri Utama

• Kelajuan Tinggi: Achieves speeds up to 30KM/H.
• Pacuan 4 Roda (4WD): Provides enhanced traction and control.
• Penggantungan Bebas: Ensures smooth handling and stability over various terrains.
• Pencahayaan LED: Equipped with front LED headlights and roof lights for visibility and aesthetic appeal.
• Pembinaan Tahan Lama: Features an all-metal chassis and alloy gears for improved durability.
• All-Terrain Rubber Tires: Offers strong grip and resistance on different surfaces.

Image 4.1: The RC car in motion, emphasizing its high speed and scale.

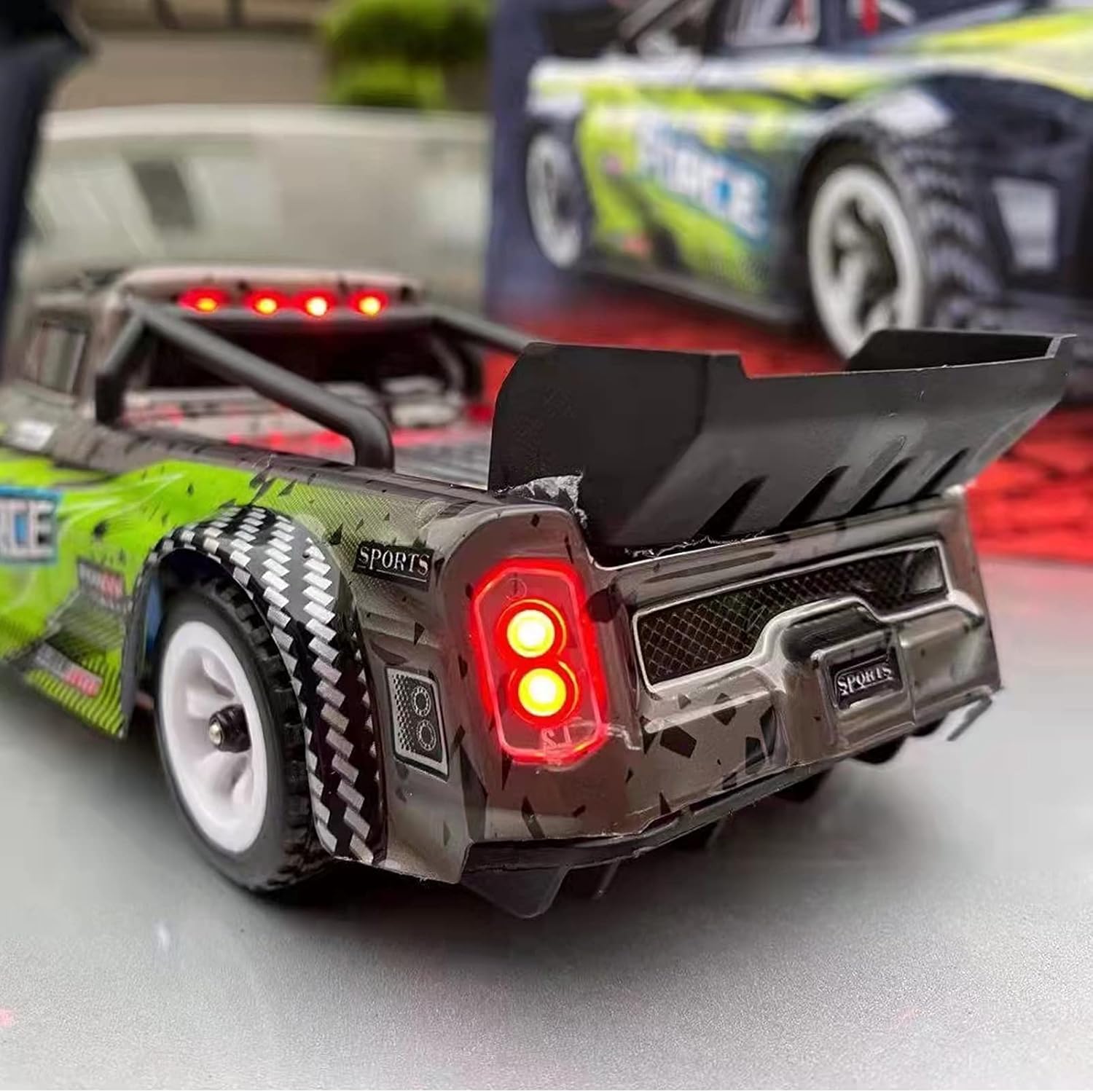

Imej 4.2: Terperinci view of the functional LED headlights and roof lights.

Image 4.3: Illustration of the internal alloy gears and the robust all-metal chassis.

5. Kawalan Jauh Lebihview

The 2.4GHz remote control transmitter provides precise and interference-free operation up to 100 meters.

Image 5.1: The remote control with key components labeled.

5.1 Fungsi Kawalan Jauh

• Roda stereng: Mengawal pusingan kiri dan kanan.
• Pencetus: Tarik untuk memecut ke hadapan, tolak untuk brek/undur.
• ST TRIM (Steering Trim): Adjusts the steering neutral position. Use if the car pulls to one side when the steering wheel is centered.
• TH D/R (Throttle Dual Rate): Adjusts the maximum throttle output, allowing for speed control.
• Suis kuasa: Menghidupkan/mematikan alat kawalan jauh.
• Penunjuk Kuasa: Shows the remote control's power status.

6. Persediaan

6.1 Mengecas Bateri Kereta

1. Connect the 7.4V 400mAh Lithium Battery to the USB charging cable.
2. Pasangkan kabel pengecas USB ke dalam penyesuai kuasa USB yang sesuai (cth., port USB komputer, penyesuai dinding).
3. The indicator light on the USB charger will show the charging status (refer to charger instructions for specific light patterns).
4. Charging typically takes approximately 50 minutes. Do not overcharge the battery.

6.2 Memasang Bateri Kereta

1. Ensure the car's power switch is in the OFF position.
2. Cari petak bateri di bahagian bawah kereta.
3. Carefully insert the charged 7.4V 400mAh Lithium Battery into the compartment.
4. Connect the battery connector to the car's power port.
5. Tutup penutup petak bateri dengan selamat.

6.3 Memasang Bateri Alat Kawalan Jauh

1. Buka penutup bateri di belakang alat kawalan jauh.
2. Insert the required batteries (typically AA, not included) according to the polarity markings.
3. Tutup penutup bateri dengan selamat.

6.4 Binding the Remote Control to the Car

1. Turn on the remote control transmitter. The power indicator light will flash.
2. Turn on the power switch on the RC car.
3. The remote control and car will automatically bind. The indicator light on the remote control will become solid when binding is successful.
4. If binding fails, turn off both devices and repeat the steps.

7. Arahan Operasi

7.1 Basic Driving

• Maju: Tarik picu ke arah anda.
• Brek/Undur: Tolak picu dari anda.
• Belok Kiri/Kanan: Rotate the steering wheel left or right.

7.2 Trimming Adjustments

• If the car does not drive straight when the steering wheel is centered, use the ST TRIM dial on the remote control to fine-tune the steering.
• Laraskan TH D/R dial to limit the maximum speed, which can be helpful for beginners or for driving in smaller spaces.

7.3 Petua Memandu

• Start with lower speeds to get accustomed to the controls.
• Practice smooth steering and throttle inputs for better control.
• For drifting, experiment with throttle and steering inputs on smooth surfaces.
• The LED lights allow for barrier-free operation at night, but ensure clear visibility of the car.

8. Penyelenggaraan

8.1 Pembersihan

• After each use, especially outdoors, clean the car to remove dirt, dust, and debris.
• Gunakan berus lembut atau udara termampat untuk membersihkan kawasan yang sukar dicapai.
• Do not use water or harsh chemicals, as this can damage electronic components.

8.2 Penjagaan Bateri

• Always disconnect the battery from the car when not in use.
• Simpan bateri di tempat yang sejuk dan kering, jauh dari cahaya matahari langsung dan suhu yang melampau.
• Do not puncture, disassemble, or expose batteries to fire.

8.3 Gear and Chassis Inspection

• Regularly inspect the gears for wear or damage. Replace worn gears using the provided spare parts.
• Check the all-metal chassis for any bends or damage after impacts.
• Ensure all screws are tightened, but do not overtighten.

Image 8.1: The 130 brush motor, a key component for the car's performance.

9. Penyelesaian masalah

10. Spesifikasi

Image 10.1: Visual representation of the car's dimensions.

11. Waranti dan Sokongan

GoolRC provides a warranty for this product. For any issues or support inquiries, please contact our customer service. We are committed to serving you.

For further assistance or to explore other GoolRC products, please visit the official GoolRC store: Kedai GoolRC
