pengenalan
Thank you for choosing HERTZ MP-165P3 Millie Pro 6.5" Mid-Bass Component Woofers. These high-performance car audio woofers are engineered to deliver exceptional sound quality with outstanding dispersion features and a wide low-frequency response. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your speakers.
Persediaan dan Pemasangan
Proper installation is crucial for the performance and durability of your HERTZ MP-165P3 woofers. It is recommended that installation be performed by a qualified professional. Always disconnect the vehicle's battery before beginning any electrical work.
1. Membongkar dan Pemeriksaan
Carefully remove the woofers from their packaging. Inspect all components for any signs of damage. Ensure all listed items are present.

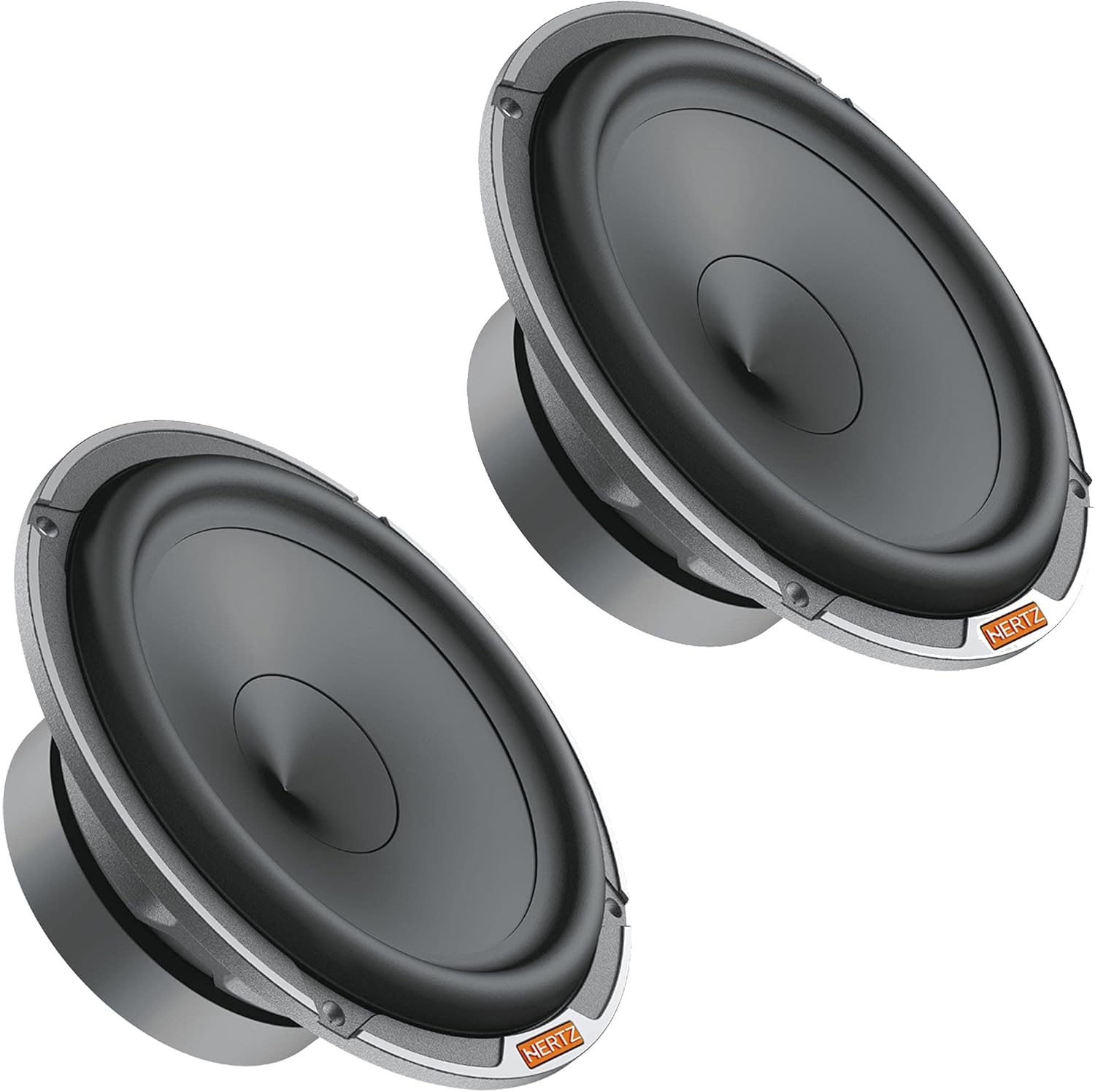

Image: A pair of HERTZ MP-165P3 Millie Pro 6.5" Mid-Bass Component Woofers.
Image: A single HERTZ MP-165P3 woofer shown with included pry tools and a coozy, indicating a bundle.
2. Lokasi Pemasangan
Select a suitable mounting location in your vehicle, typically door panels or rear deck, that can accommodate the 6.5-inch diameter and mounting depth. Ensure there is sufficient clearance behind the speaker for proper air movement and to avoid interference with vehicle components.
- Kedalaman Pemasangan: Refer to specifications for exact depth.
- Pembersihan: Verify no obstructions behind the mounting surface.
3. Sambungan Pendawaian
Sambungkan wayar pembesar suara dari anda amplifier to the woofer terminals. Pay close attention to polarity (+ and -) to ensure correct phase and optimal sound reproduction. Incorrect wiring can lead to poor audio quality and potential damage.
- Terminal Positif: Connect to the positive output of the amplebih hidup.
- Terminal Negatif: Connect to the negative output of the amplebih hidup.
- Impedans: These woofers have a 3-Ohm impedance. Ensure your amplifier stabil pada beban ini.
Imej: Sisi view of the HERTZ MP-165P3 woofer, highlighting the magnet structure and wiring terminals.
Arahan Operasi
Once installed, follow these guidelines for operating your HERTZ MP-165P3 woofers:
- Kuasa Permulaan: Mulakan dengan amplifier gain set to minimum. Gradually increase the volume and adjust amplifier settings to prevent distortion.
- Tetapan Crossover: Gunakan anda amplifier's or head unit's crossover settings to filter out frequencies outside the woofer's optimal range (40 Hz to 5 kHz). This protects the speakers and improves sound clarity.
- Kawalan Kelantangan: Avoid excessive volume levels that cause audible distortion, as this can damage the speakers.
Penyelenggaraan
Regular maintenance helps preserve the performance and appearance of your woofers:
- Pembersihan: Use a soft, dry cloth to clean the speaker cones and surrounds. Avoid harsh chemicals or abrasive materials.
- Pemeriksaan: Periodically check speaker connections for tightness and inspect the cone and surround for any signs of damage or wear.
- Faktor Persekitaran: While designed for car environments, extreme temperatures and direct sunlight can affect speaker longevity.
Menyelesaikan masalah
If you encounter issues with your HERTZ MP-165P3 woofers, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada Bunyi | Loose wiring, amplifier off, incorrect source selection. | Check all wiring connections, ensure amplifier is powered on, verify audio source. |
| Bunyi Herot | Amplifier gain too high, incorrect crossover settings, damaged speaker. | Kurangkan amplifier gain, adjust crossover frequencies, inspect speaker for physical damage. |
| Bass yang lemah | Incorrect wiring polarity, insufficient power, improper enclosure. | Verify wiring polarity, ensure adequate power from amplifier, check speaker enclosure for proper sealing. |
Spesifikasi
Detailed technical specifications for the HERTZ MP-165P3 Millie Pro 6.5" Mid-Bass Component Woofers:
- Saiz: 165 mm (6.5 inci)
- Power Handling - Peak: 180 W
- Power Handling - Continuous: 90 W
- Impedans: 3 Ohm
- Respons Kekerapan: 40 Hz – 5 kHz
- Sensitiviti: 93 dB SPL
- Diameter gegelung suara: 25 mm (1 inci)
- Bahan Magnet: ferit
- Bahan kerucut: Pressed-Pulp Cone with Cotton Fibers
- Sekeliling: "Boundary Free" Rubber Surround
- bakul: Low mounting depth, acoustically transparent aluminium alloy
- Berat Barang: 5.3 paun
- Dimensi Produk: 19"D x 9"W x 15"H (Note: These dimensions seem to be for the package, not individual speakers. Refer to mounting depth for actual speaker fitment.)
Imej: Depan view of the HERTZ MP-165P3 woofer, showcasing kon dan keliling.

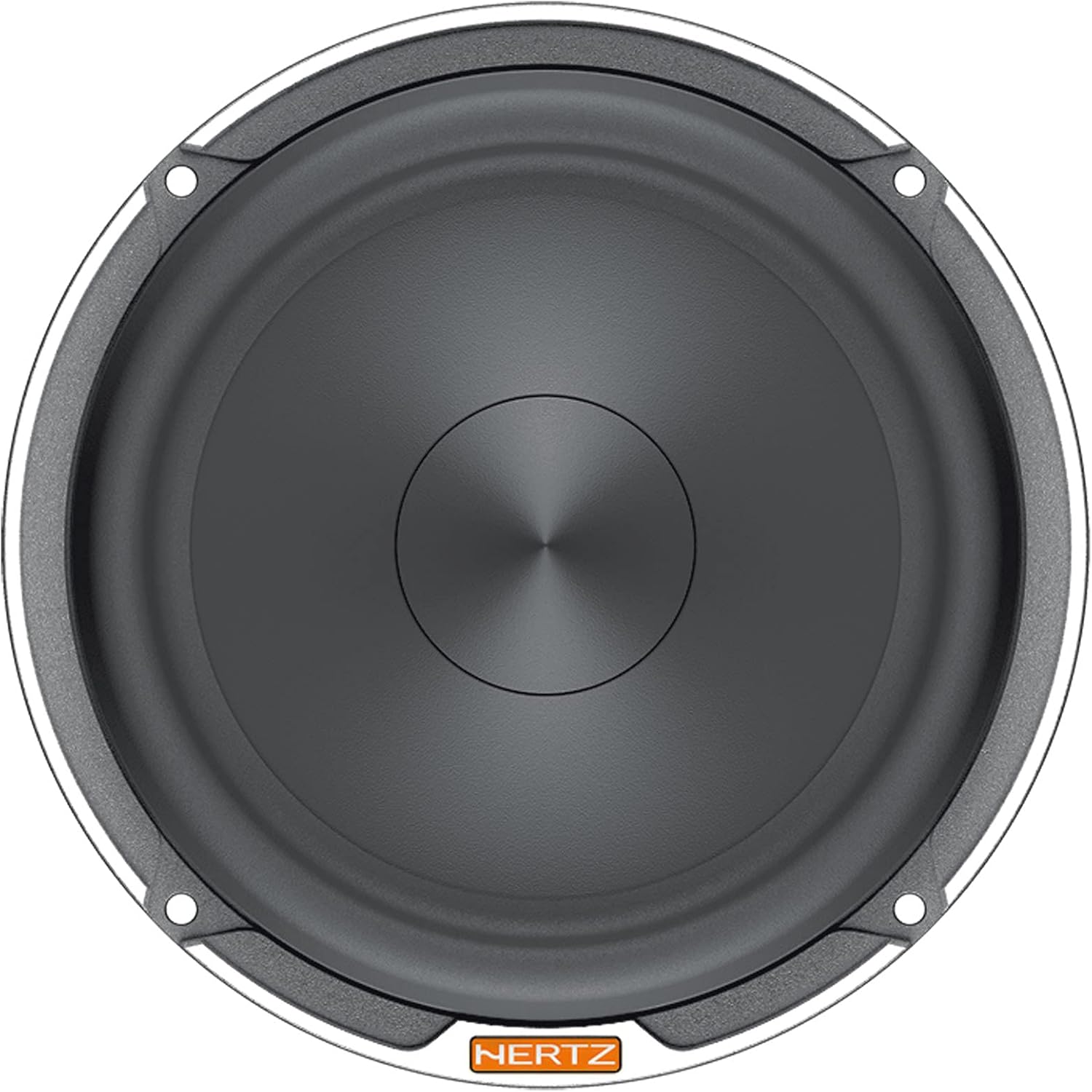

Imej: Atas ke bawah view of the HERTZ MP-165P3 woofer, showing the full cone surface.
Maklumat Waranti
This product comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty card included with your product or contact HERTZ customer support.
Sokongan Pelanggan
For further assistance, technical support, or service inquiries, please visit the official HERTZ weblaman web atau hubungi jabatan khidmat pelanggan mereka. Anda boleh mendapatkan maklumat lanjut di HERTZ Store on Amazon.
