1. Pengenalan
This user manual provides detailed instructions for the setup, operation, and maintenance of your Knox Gear 60 Watt Compact Wireless 2.0ch Soundbar with Bluetooth 5.0. Please read this manual thoroughly before using the product to ensure proper functionality and to maximize your audio experience.
2. Produk Lebihview
The Knox Gear 60-Watt Compact Wireless 2.0-Channel Soundbar with Bluetooth 5.0 is designed to enhance your audio experience for music, movies, and more. It features a compact 28-inch design with crystal clear sound and a stylish wood grain finish.
Rajah 2.1: Depan view of the Knox Gear Soundbar with its remote control.
3. Ciri-ciri
- 60-Watt Compact Wireless 2.0-Channel Soundbar: Enjoy your music, movies, and more to the fullest with crystal clear sound.
- Wireless Bluetooth 5.0 Transmission: Strong anti-interference, lossless audio transmission, and 360-degree sound for a high-quality home audio system.
- Dual Powerful Speaker: Features advanced digital sound with a unique loudspeaker cavity structure for premium acoustic sound and crystal-clear balanced bass. Includes two 20W full-frequency 3-inch drivers.
- Convenient TV Connection: Easily connect to your TV using Bluetooth or optical input, reducing cable clutter and improving sound clarity.
- Bass and Technology: Two built-in bass reflex ports provide richer and more powerful bass. The remote control includes Bass+ and Bass- buttons for adjustable bass levels.
- Slick and Stylish Wood Grain Finish: Secara estetikasing design to complement your home decor.
- DSP Technology: Choose from a variety of sound modes for optimized audio.
Figure 3.1: Key features of the soundbar including sound pressure level, sound technology, and Bluetooth version.
Figure 3.2: The soundbar features DSP technology for various sound modes.

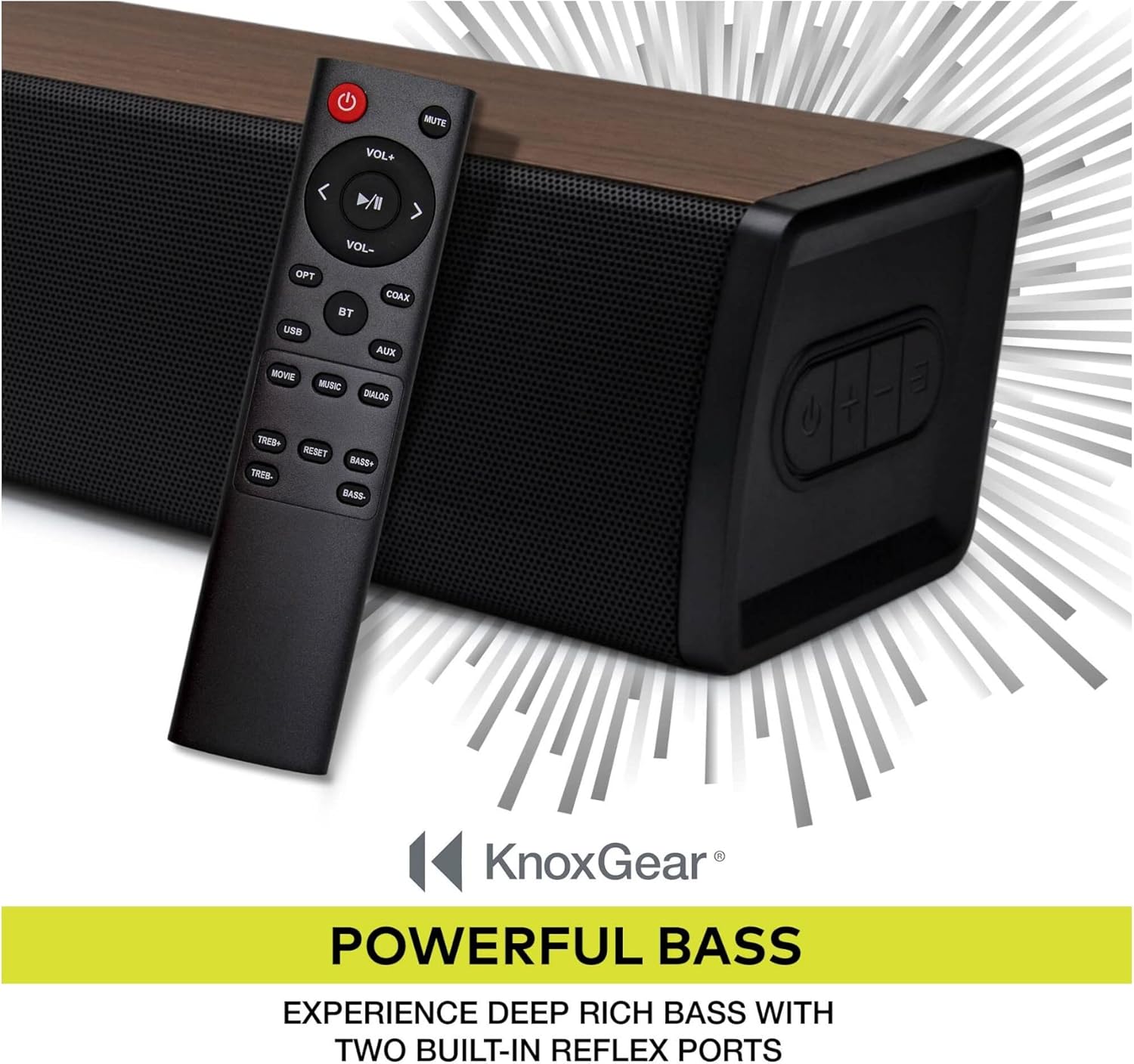

Figure 3.3: The soundbar offers powerful bass with built-in reflex ports, adjustable via remote.
4. Apa yang ada di dalam Kotak
Sahkan bahawa semua item terdapat dalam pembungkusan:
- Knox Gear 60 Watt Compact Wireless 2.0ch Soundbar
- Alat Kawalan Jauh
- Penyesuai Kuasa
- Kabel Optik Digital
- Stereo RCA to 3.5 mm Audio Cable
- Kurungan Pemasangan Dinding
- Lekapkan Skru
- Templat Pemasangan Dinding
- Manual Arahan (dokumen ini)
Figure 4.1: All included components with the soundbar.
5. Persediaan dan Sambungan
Before connecting, ensure the soundbar is placed on a stable surface or securely mounted to a wall using the provided brackets and template.
5.1 Sambungan Kuasa
- Connect the power adapter to the DC input port on the soundbar.
- Palamkan penyesuai kuasa ke salur keluar dinding.
5.2 Sambungan Audio
The soundbar offers multiple connectivity options:
- Input Optik: For high-quality digital audio from your TV or other devices. Use the included optical cable.
- Input AUX: For analog audio connection using the 3.5mm audio cable.
- Input sepaksi: Untuk sambungan audio digital.
- Input USB: Untuk memainkan audio files terus daripada pemacu USB.
- Bluetooth 5.0: For wireless audio streaming from compatible devices like smartphones, tablets, and laptops.

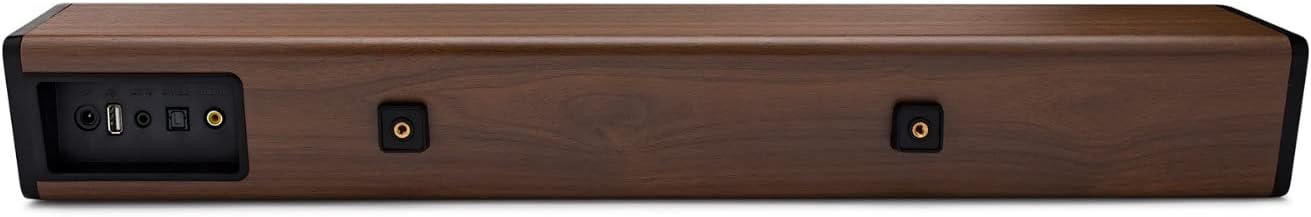

Figure 5.1: Rear panel with various input ports.
Figure 5.2: Wall mounting points on the back of the soundbar.
Figure 5.3: Visual representation of easy TV connection options.
6. Arahan Operasi
The soundbar can be operated using the included remote control or the buttons on the side panel.
6.1 Fungsi Kawalan Jauh
- Butang Kuasa: Menghidupkan atau mematikan bar bunyi.
- Butang Bisukan: Membisukan atau menyahredamkan bunyi.
- VOL+ / VOL-: Laraskan kelantangan ke atas atau ke bawah.
- Main/Jeda: Plays or pauses audio (for Bluetooth/USB modes).
- Lagu Sebelumnya/Seterusnya: Skips to the previous or next track (for Bluetooth/USB modes).
- Butang Pemilihan Input (OPT, BT, USB, AUX, COAX): Memilih sumber input audio yang dikehendaki.
- Sound Mode Buttons (MOVIE, MUSIC, DIALOG): Selects preset equalizer modes.
- TREB+ / TREB-: Melaraskan tahap treble.
- BASS+ / BASS-: Melaraskan tahap bass.
- TETAP SEMULA: Resets audio settings to default.
6.2 Berpasangan Bluetooth
- Turn on the soundbar and select "BT" input mode using the remote or side panel button. The Bluetooth indicator will flash.
- On your device (smartphone, tablet, etc.), enable Bluetooth and search for "Knox Gear Soundbar".
- Select the soundbar from the list of available devices to pair. Once connected, the Bluetooth indicator will stop flashing and remain solid.
Video 6.1: Tamatview of the Knox Gear 60 Watt Compact Wireless 2.0ch Soundbar, demonstrating its features and design.
7. Penyelenggaraan
Untuk memastikan jangka hayat dan prestasi optimum bar bunyi anda, ikut garis panduan penyelenggaraan ini:
- Keep the soundbar in a dry environment, away from direct sunlight, heat sources, and excessive moisture.
- Clean the surface of the soundbar with a soft, dry cloth. Do not use abrasive cleaners, waxes, or solvents.
- Avoid blocking the speaker grilles to maintain proper airflow and sound quality.
- If the soundbar will not be used for an extended period, unplug it from the power outlet.
8. Penyelesaian masalah
Jika anda menghadapi masalah dengan bar bunyi anda, rujuk masalah dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada kuasa | Kabel kuasa tidak disambungkan atau soket kuasa tidak berfungsi. | Pastikan kabel kuasa disambungkan dengan kukuh pada bar bunyi dan soket kuasa yang berfungsi. |
| Tiada bunyi | Sumber input yang dipilih salah, kelantangan terlalu rendah atau kabel audio tidak disambungkan dengan betul. | Verify the correct input source (Optical, BT, AUX, etc.) is selected. Increase the volume. Check all audio cable connections. Ensure your TV/device audio output is set to PCM if using optical. |
| Isu berpasangan Bluetooth | Bar bunyi tidak berada dalam mod berpasangan, peranti terlalu jauh atau gangguan. | Ensure the soundbar is in BT mode and the indicator is flashing. Move your device closer to the soundbar. Turn off other Bluetooth devices to reduce interference. |
| Alat kawalan jauh tidak berfungsi | Batteries are dead or remote is out of range/blocked. | Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the soundbar's sensor. |
Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.
9. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Knox Gear |
| Nombor Model | KN-BTSB24-OAK |
| Jenis Pembesar Suara | Bar bunyi |
| Kuasa Output Maksimum Pembesar Suara | 60 Watt |
| Konfigurasi Saluran Bunyi Sekeliling | 2.0 |
| Teknologi Komunikasi Tanpa Wayar | Bluetooth 5.0 |
| Julat Bluetooth | 10 Meter |
| Teknologi Ketersambungan | Optical, AUX, Coaxial, USB, Bluetooth |
| Mod Keluaran Audio | Stereo, Dialogue, Movie, Music |
| Peranti Serasi | Smartphone, Tablet, Television, Laptop |
| Kaedah Kawalan | Alat Kawalan Jauh |
| Dimensi Produk | 29.2 x 6.9 x 5.6 inci |
| Berat Barang | 1 paun |
| warna | coklat |
| Jenis Pemasangan | Pelekap Bar |
10. Waranti dan Sokongan
Knox Gear products are designed and manufactured to the highest quality standards. For warranty information or technical support, please refer to the warranty card included with your product or visit the official Knox Gear webtapak. Simpan resit pembelian anda sebagai bukti pembelian.
For further assistance, you may contact the seller, Focus Camera LLC, through the platform where you purchased the product.
