1. Maklumat Keselamatan Penting
Baca manual arahan ini dengan teliti sebelum menggunakan perkakas dan simpan untuk rujukan masa hadapan. Penggunaan yang salah boleh membawa kepada potensi bahaya.
- Keselamatan Elektrik: Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage before connecting. Do not use the appliance if the plug, mains cord, or other parts are damaged.
- Bilah Tajam: The filter mesh has small, sharp blades. Handle with extreme care when cleaning.
- Perhimpunan yang betul: Always ensure all parts are correctly assembled before operating the juicer. Do not operate the appliance without the lid securely locked.
- Penolak makanan: Always use the food pusher to guide ingredients into the feeding tube. Never use your fingers or other objects.
- Perlindungan Terlalu Panas: The appliance is equipped with an overheating protection system. If it overheats, it will switch off automatically. Unplug and let it cool down for 15 minutes before restarting.
- Pembersihan: Sentiasa cabut plag perkakas sebelum membersihkan. Jangan rendam unit motor dalam air atau sebarang cecair lain.
- Kanak-kanak: Perkakas ini tidak boleh digunakan oleh kanak-kanak. Jauhkan perkakas dan kordnya daripada kanak-kanak.
2. Produk Lebihview
The Philips HR1922/21 is a powerful centrifugal juicer designed for efficient extraction of juice from various fruits and vegetables. Its robust design and easy-to-use features make it suitable for daily use.

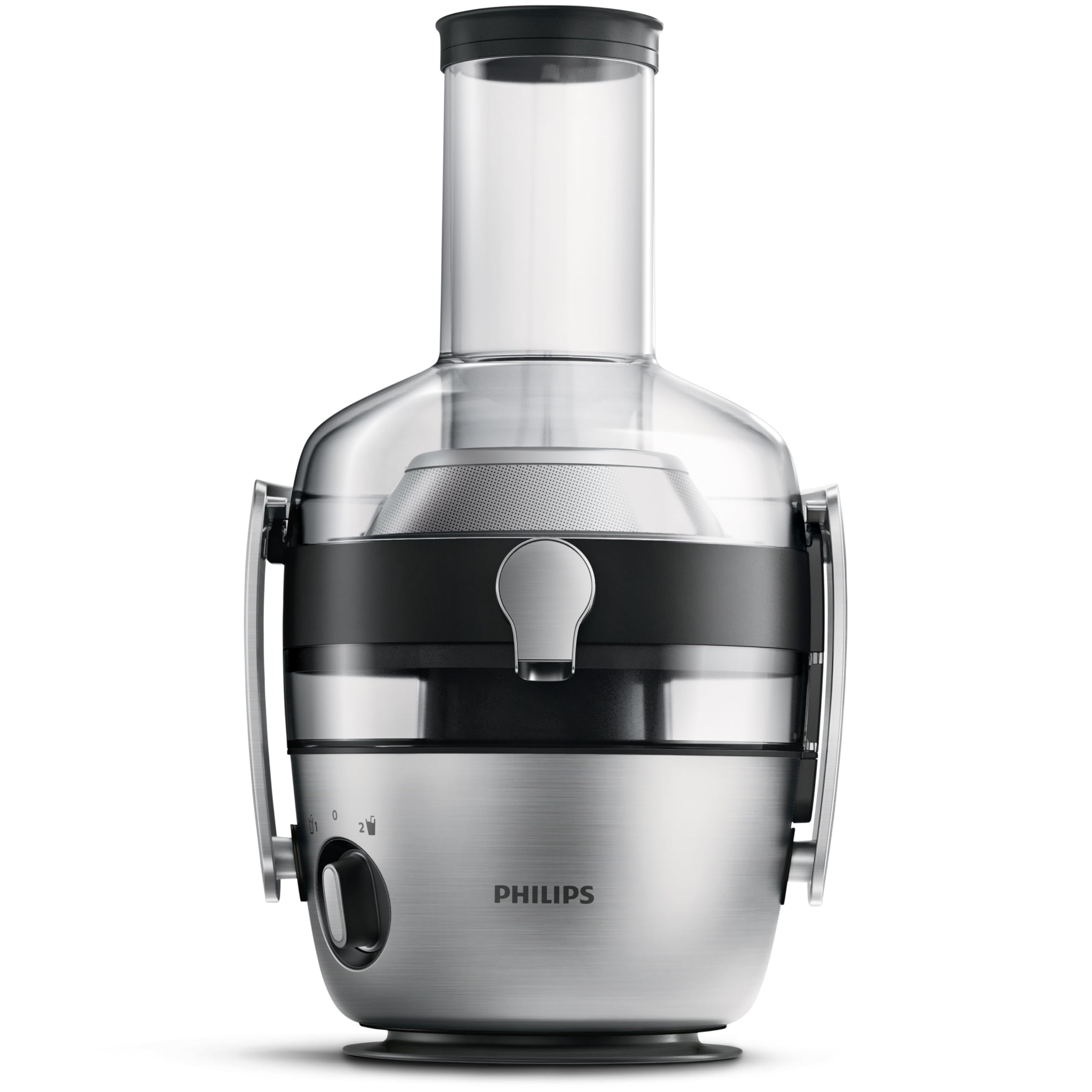

Rajah 1: The Philips HR1922/21 Juicer fully assembled, showcasing its sleek stainless steel and transparent components.
Komponen:
- Unit Motor: The base of the juicer containing the motor and control dial.
- Bekas Pulpa: Collects the discarded pulp during juicing.
- Pengumpul Jus: Mengumpul jus yang diekstrak.
- Penapis/Ayak: Separates juice from pulp. Contains sharp blades.
- Tudung dengan Tiub Suapan: Covers the juicing mechanism and allows insertion of ingredients.
- Penolak makanan: Digunakan untuk menolak bahan ke dalam tiub suapan.
- Muncung: For dispensing juice into a glass or jug.
Rajah 2: sebelah view illustrating the various components of the juicer, including the motor unit, pulp container, and juice collector.
3. Persediaan dan Pemasangan
Before first use, wash all detachable parts (pulp container, juice collector, filter, lid, food pusher) in warm soapy water. Rinse thoroughly and dry.
- Letakkan unit motor pada permukaan yang stabil, rata dan kering.
- Masukkan bekas pulpa ke dalam unit motor.
- Place the juice collector onto the motor unit, ensuring the spout aligns with the opening.
- Carefully place the filter into the juice collector, ensuring it is seated firmly.
- Place the lid onto the juice collector and pulp container. Ensure the locking clamps on the sides of the motor unit engage with the lid. You should hear a click.
- Insert the food pusher into the feeding tube of the lid.
- Place a glass or jug under the spout to collect the juice.
4. Arahan Operasi
Follow these steps for safe and effective juicing:
- Sediakan Bahan: Wash fruits and vegetables thoroughly. For larger items, cut them into pieces that fit into the feeding tube. Remove hard pits (e.g., from peaches, plums, cherries) and hard skins (e.g., from pineapples, melons, citrus fruits).
- Sambungkan Kuasa: Pasangkan alat ke soket dinding yang dibumikan.
- Pilih Kelajuan: Turn the control dial to the desired speed setting. The juicer has two speed settings:
- Speed 1 (low): For soft fruits and vegetables like berries, grapes, tomatoes, and cucumbers.
- Speed 2 (high): For hard fruits and vegetables like apples, carrots, celery, and beetroot.
Rajah 3: A hand adjusting the speed dial, which offers two settings for different types of produce.
- Insert Ingredients: With the motor running, gradually feed the prepared ingredients into the feeding tube using the food pusher. Apply gentle, even pressure. Do not overfill the feeding tube or apply excessive force.
Rajah 4: An apple being inserted into the wide feeding tube, demonstrating the ease of use for whole or large pieces of fruit.
- Monitor Pulp and Juice: The pulp will collect in the pulp container, and the juice will flow into your glass or jug. The juicer has a 1.5-liter capacity for juice collection. Stop juicing if the pulp container becomes full or the juice flow significantly reduces.
Rajah 5: The pulp container showing collected carrot pulp, indicating efficient separation of solids from juice.
- Selesai Juicing: Once finished, turn the control dial to the '0' (off) position and unplug the appliance.
Rajah 6: The juicer in operation, with two glasses of freshly extracted juice (carrot and green apple) ready for consumption.
5. Penyelenggaraan dan Pembersihan
Regular cleaning ensures optimal performance and extends the lifespan of your juicer. Always clean the appliance immediately after use.
- Cabut plag: Sentiasa tanggalkan plag pemerah jus dari soket kuasa sebelum membuka atau membersihkannya.
- Buka: Buka kunci clamps, remove the lid, then lift out the filter, juice collector, and pulp container.
- Bahagian Boleh Tanggal Bersih: Wash the pulp container, juice collector, lid, and food pusher in warm water with a mild dishwashing liquid. Rinse thoroughly.
- Bersihkan Penapis: The filter mesh contains sharp blades. Use a cleaning brush (if provided) or a soft brush to carefully remove pulp residue from the mesh under running water. Handle with extreme caution. The manufacturer recommends cuci tangan sahaja for this part.
Rajah 7: A person carefully cleaning the stainless steel filter under running water, highlighting the importance of thorough cleaning for optimal performance.
- Unit Motor Bersih: Lap unit motor dengan iklanamp kain. Jangan sekali-kali merendam unit motor di dalam air atau bilas di bawah paip.
- Keringkan dan Simpan: Ensure all parts are completely dry before reassembling or storing the appliance. Store in a dry place.
6. Penyelesaian masalah
If you encounter problems with your juicer, consult the following table before seeking service.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perkakas tidak berfungsi. | The appliance is not plugged in. The lid is not properly locked. Overheating protection activated. | Plug in the appliance. Ensure the lid is securely locked. Unplug and let cool for 15 minutes. |
| Motor berhenti semasa operasi. | Too much pressure applied to the food pusher. Too many ingredients processed without emptying pulp container. | Reduce pressure. Turn off, unplug, empty pulp container, and clean filter. |
| Getaran atau bunyi yang berlebihan. | Filter is clogged or incorrectly assembled. Appliance is not on a stable surface. | Turn off, unplug, clean and reassemble the filter correctly. Place on a stable surface. |
| Hasil jus yang rendah atau pulpa basah. | Filter is clogged. Incorrect speed setting for ingredients. | Clean the filter thoroughly. Use the appropriate speed setting (Speed 2 for hard ingredients). |
7. Spesifikasi
- Nombor Model: HR1922/21
- Jenama: PHILIPS
- Kuasa: 1200 Watt
- Voltage: 120 Volt
- Kapasiti Jus: 1.5 Liter
- Bahan: Keluli Tahan Karat
- Dimensi Produk (L x W x H): 29.6P x 25l x 43.2H sentimeter
- Berat Barang: 4.7 Kilogram
- Arahan Penjagaan: Hand wash only (for certain parts like the filter)
8. Waranti dan Sokongan
This Philips appliance is covered by a warranty valid from the date of purchase. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Philips webtapak.
For technical assistance, spare parts, or repair services, please contact Philips customer support in your region. Ensure you have your model number (HR1922/21) and proof of purchase available when contacting support.
