Juskys Basic Heavy Duty Shelving Unit

pengenalan

This instruction manual provides comprehensive guidance for the assembly, operation, and maintenance of your Juskys Basic Heavy Duty Shelving Unit, model 21161. Designed for optimal organization, this galvanized metal shelving unit measures 200 cm high, 100 cm wide, and 60 cm deep, making it suitable for various environments such as cellars, storage rooms, pantries, garages, or workshops. It features 5 sturdy MDF wood shelves, each capable of holding up to 175 kg, for a total load capacity of 875 kg.

Maklumat Keselamatan

Sila baca semua arahan keselamatan dengan teliti sebelum pemasangan dan penggunaan untuk mengelakkan kecederaan atau kerosakan pada produk.

• Had Berat: Do not exceed the maximum weight limit of 175 kg (385 lbs) per shelf or 875 kg (1929 lbs) total for the entire unit. Ensure even load distribution on each shelf.
• Perhimpunan: Always assemble and install the shelf strictly according to the provided instructions. Improper assembly can lead to instability and collapse.
• Kestabilan: Ensure the shelving unit is placed on a flat, stable surface. For added safety, consider anchoring the unit to a wall, especially in areas prone to earthquakes or if heavy items are stored on upper shelves.
• Persekitaran: Keep the shelf dry and avoid exposure to extreme temperatures or corrosive chemicals. This is particularly important if the unit is used in a garage or workshop where spills may occur.
• Kanak-kanak: Keep children away from the shelving unit during assembly. Do not allow children to climb on the shelves, as this can cause the unit to tip over.

Kandungan Pakej

Sebelum memulakan pemasangan, sahkan bahawa semua komponen ada dan tidak rosak. Jika mana-mana bahagian yang hilang atau rosak, sila hubungi sokongan pelanggan.

• Galvanized Metal Uprights (vertical supports)
• Galvanized Metal Cross Braces (horizontal supports for shelves)
• MDF Wood Shelves (5 pieces)
• Plastic Feet (for floor protection)
• Assembly Hardware (connectors for uprights)

Spesifikasi

Setup / Assembly Instructions

The Juskys Basic Heavy Duty Shelving Unit features a simple plug-in system for quick and easy assembly without the need for screws or drilling. It can typically be assembled by one person.

Imej: Visual guide showing the three main steps for assembling the shelving unit. This image illustrates the plug-in system for connecting components.

Langkah Perhimpunan:

1. Connect the Uprights: Begin by connecting the lateral uprights (vertical metal supports) together using the provided hardware. Ensure they are securely interlocked.
2. Insert Shelf Supports: Insert the metal cross braces (shelf supports) into the appropriate tabs on the uprights. These tabs allow you to customize the height of each shelf. Make sure all tabs are fully engaged for stability.
3. Letakkan Panel MDF: Once the metal frame is assembled and the cross braces are in place, position the MDF wood panels onto the shelf supports.

The shelving unit is designed for flexible construction. You can choose the height between individual shelves to accommodate items of various sizes. Additionally, the unit can be assembled as one tall shelf or as two half-height storage shelves placed side-by-side, which can also serve as a workbench.

Imej: This image demonstrates the flexible construction of the shelving unit, showing how it can be configured as two separate, shorter units suitable for smaller spaces or as workbenches. The uprights are designed in two parts for this purpose.

Attach the plastic feet to the bottom of the uprights to protect your floor from scratches.

Arahan Pengendalian / Penggunaan

Your Juskys Basic Heavy Duty Shelving Unit is designed to provide robust storage for a variety of items in different environments.

Imej: A penuh view of the Juskys shelving unit, demonstrating its capacity with various items stored on its five shelves. Note: The dimensions shown in this image (160x80x40 cm) may represent a different variant; refer to the product specifications for the 200x100x60 cm model.

• Memuatkan: Place items on the shelves, ensuring that the weight is distributed evenly. Do not concentrate heavy loads in one small area of a shelf.
• kapasiti: Adhere strictly to the maximum load capacity of 175 kg per shelf and 875 kg total. Overloading can compromise the structural integrity of the unit.
• serba boleh: Use the shelving unit to store tools, garden accessories, supplies, file folders, or other heavy items. Its robust construction makes it suitable for both private and commercial use.

Imej: This image highlights the benefits of the shelving unit, showcasing various items like tools, containers, and boxes neatly organized, emphasizing more order, more space, and clarity in storage.

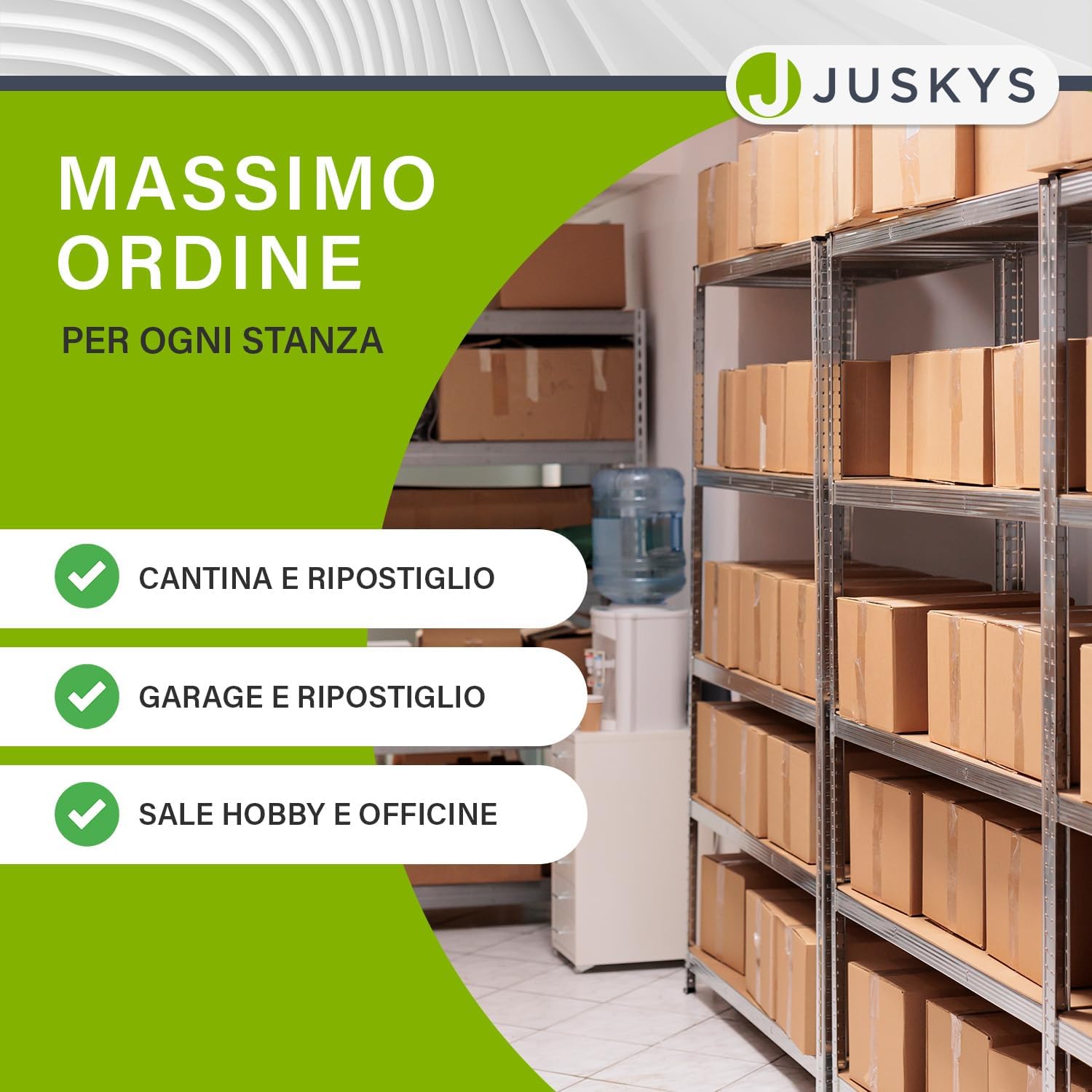

Imej: Seorang bekasample of multiple Juskys shelving units used in a storage environment, demonstrating how they can create maximum order in various rooms such as cellars, garages, hobby rooms, and workshops.

Penyelenggaraan

Proper maintenance will ensure the longevity and continued performance of your shelving unit.

• Pembersihan: Wipe the metal frame and MDF shelves with a dry cloth to remove dust and debris. Avoid using abrasive cleaners or harsh chemicals that could damage the galvanized finish or the wood panels.
• Pemeriksaan: Periodically check all connections and components to ensure they remain secure. Tighten any loose parts if necessary.
• Persekitaran: Store the unit in a dry environment to prevent rust on the metal components and warping of the MDF shelves.

Menyelesaikan masalah

If you encounter any issues with your shelving unit, consider the following common troubleshooting steps:

• Ketidakstabilan: If the unit feels wobbly, ensure it is placed on a level surface. Recheck all plug-in connections to confirm they are fully engaged. Verify that the plastic feet are properly installed.
• Kendur rak: If a shelf appears to be sagging, check if the load exceeds the 175 kg limit or if the weight is unevenly distributed. Redistribute items or remove excess weight.
• Kesukaran memasang: Ensure you are following the steps in the correct order. Sometimes, applying gentle pressure or using a rubber mallet (with caution) can help secure tight connections.

Waranti dan Sokongan

For information regarding warranty coverage, product support, or to order replacement parts, please refer to the contact information provided at the point of purchase or visit the official Juskys webtapak. Simpan resit pembelian anda sebagai bukti pembelian.
