1. Pengenalan
Thank you for choosing the Hyuhome 28-inch E-Bike. This electric bicycle is designed for adults, featuring a powerful 250W Bafang motor, a long-lasting 36V 12.5Ah lithium battery, and a reliable Shimano 7-speed gear system. It offers a comfortable and efficient riding experience for various terrains, from city streets to mountain paths. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new e-bike. Please read it thoroughly before your first ride.
Figure 1.1: Hyuhome 28-inch E-Bike Overview
2. Maklumat Keselamatan
Your safety is paramount. Always adhere to local traffic laws and regulations. Wear a helmet and appropriate safety gear when riding. Regular maintenance is crucial for safe operation.
- Always wear a certified helmet and appropriate safety gear.
- Lakukan pemeriksaan pra-penunggangan sebelum setiap penggunaan, periksa brek, tayar dan paras bateri.
- Jangan menunggang di bawah pengaruh alkohol atau dadah.
- Berhati-hati dengan persekitaran anda dan pengguna jalan raya yang lain.
- Pastikan semua komponen diikat dengan selamat sebelum menunggang.
- Jangan melebihi kapasiti beban maksimum 150 kg (330 lbs).
- Elakkan menunggang dalam keadaan cuaca yang ekstrem.
3. Persediaan dan Pemasangan
Your Hyuhome E-Bike arrives approximately 85% pre-assembled. The remaining assembly typically involves attaching the front wheel, handlebars, pedals, and seat. A detailed user and installation manual is included in the box. For visual guidance, video tutorials are available from the manufacturer.
3.1 Membongkar dan Pemeriksaan Awal
- Tanggalkan basikal dan semua komponen daripada pembungkusan dengan berhati-hati.
- Check for any shipping damage or missing parts against the packing list.
- Simpan bungkusan untuk pengangkutan atau penyimpanan masa hadapan.
3.2 Langkah Perhimpunan
Follow the step-by-step instructions in the included manual. Key steps include:
- Install the front wheel and secure the quick release.
- Attach the handlebars to the stem, ensuring proper alignment.
- Install the pedals (note L for left and R for right).
- Insert the seat post and saddle, adjusting to your preferred height.
- Connect any remaining electrical cables, ensuring they are securely plugged in.
- Perform a final check of all bolts and quick releases for tightness.

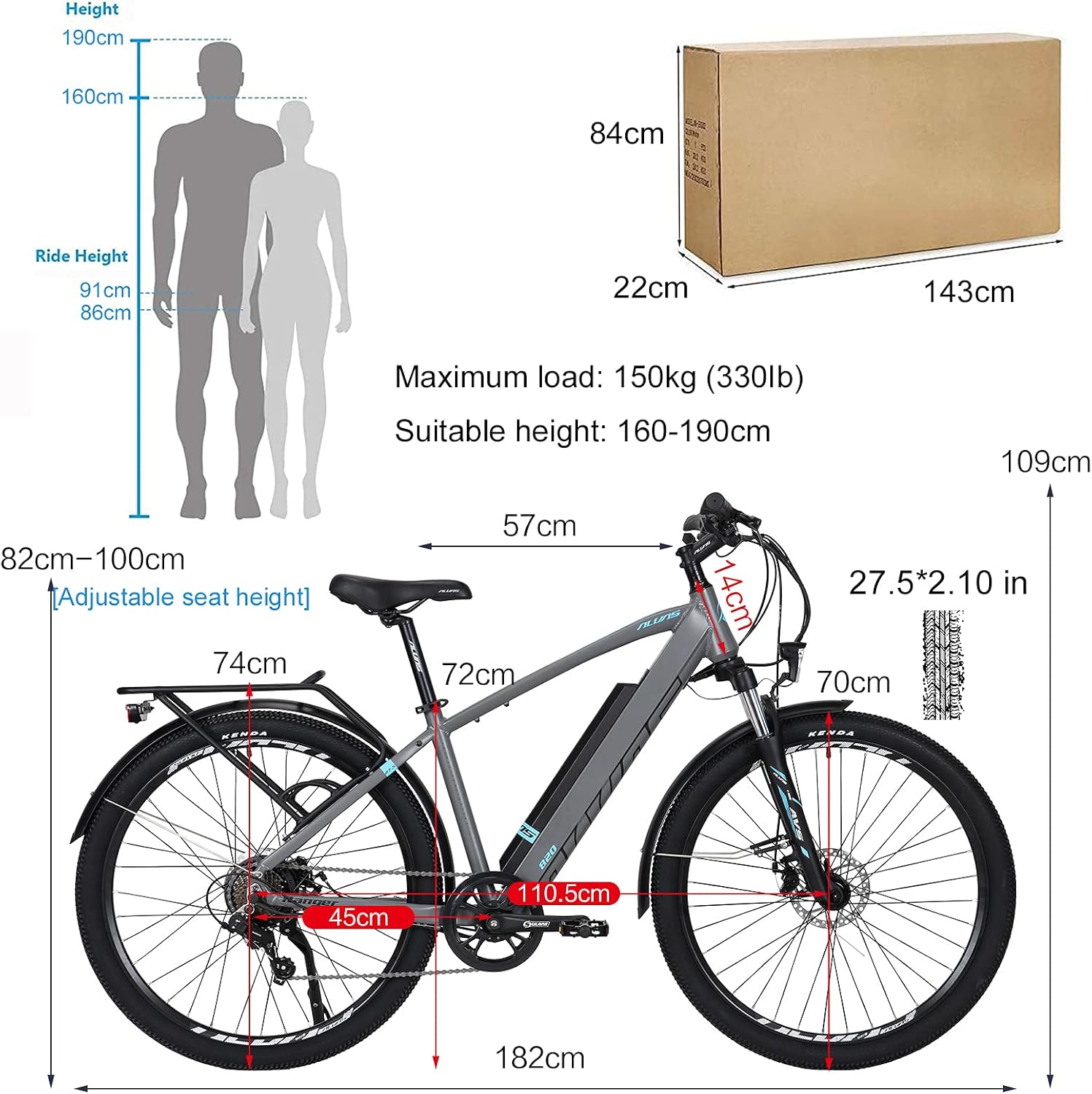

Figure 3.1: E-Bike Dimensions and Packaging Information
Rajah 3.2: Sisi View of Assembled E-Bike
4. Mengendalikan E-Bike Anda
4.1 Menghidupkan/Mematikan
To power on the e-bike, press and hold the power button on the LCD display. To power off, press and hold the same button until the display turns off.
4.2 Paparan dan Kawalan LCD
The smart LCD display provides essential riding information, including battery status, current speed, distance traveled, and selected assist mode. Use the control buttons to navigate through modes and adjust settings.
Figure 4.1: LCD Display and Handlebar Controls
4.3 Mod Kerja
Your Hyuhome E-Bike offers three distinct riding modes:
- Mod Elektrik Tulen: Engage the throttle to accelerate without pedaling. This mode supports a range of 40-60 km.
- Mod Bantuan Kayuh: The motor provides assistance as you pedal. The LCD display shows 1-5 gears (assist levels); higher gears provide more assistance. This mode supports a range of 70-90 km.
- Mod Pedal: Ride the e-bike like a traditional bicycle with no motor assistance.
4.4 Motor and Battery
The 250W brushless geared motor provides powerful and quiet assistance, suitable for inclines up to 25 degrees. The 36V 12.5Ah removable lithium battery is integrated into the frame and can be charged on or off the bike. A full charge takes approximately 5-6 hours.
Figure 4.2: 250W Rear Hub Motor
Figure 4.3: Integrated Lithium Battery
4.5 Gear System and Brakes
The Shimano 7-speed derailleur provides smooth and efficient gear changes for various riding conditions. The mechanical front and rear disc brakes offer reliable stopping power and enhanced safety.

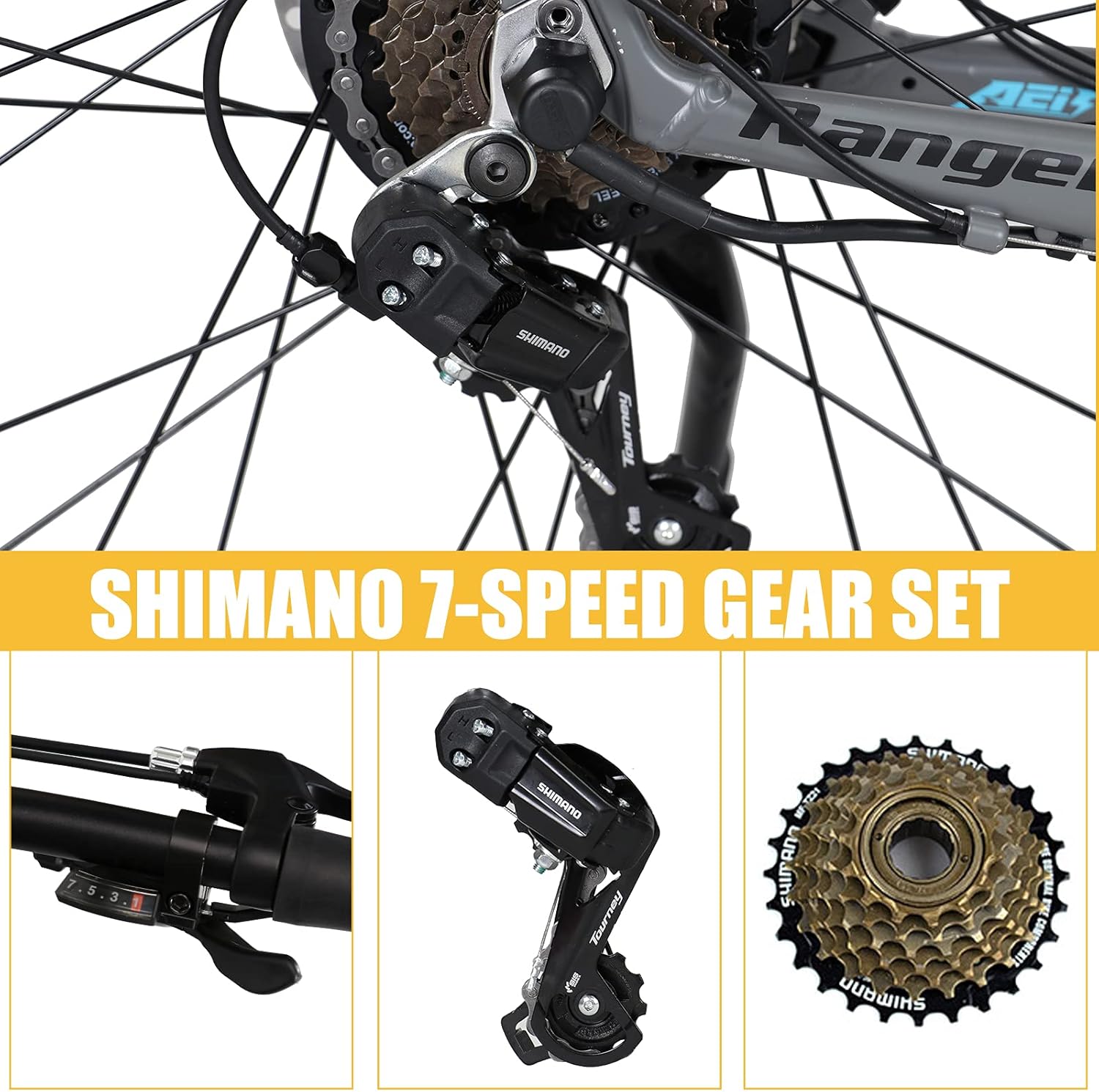

Figure 4.4: Shimano 7-Speed Gear Set
Figure 4.5: Brake System and Lighting
5. Penyelenggaraan
Regular maintenance ensures the longevity and safe operation of your e-bike. Always disconnect the battery before performing any maintenance.
- Pembersihan: Bersihkan basikal dengan kerap dengan iklanamp kain. Elakkan mencuci tekanan tinggi terus pada komponen elektrik.
- Tayar: Check tire pressure before each ride. Recommended pressure is typically indicated on the tire sidewall.
- Brek: Inspect brake pads for wear and ensure brake levers are responsive. Adjust as needed.
- rantai: Pastikan rantai bersih dan dilincirkan untuk memastikan pertukaran gear yang lancar dan mencegah haus.
- Penjagaan Bateri: Store the battery in a cool, dry place. Charge it regularly, even if not in use, to maintain its health. Avoid fully discharging the battery.
- Pengikat: Periksa secara berkala semua bolt, nat dan pelepas cepat untuk memastikan ketat.
6. Penyelesaian masalah
This section addresses common issues you might encounter with your e-bike. For problems not listed here, please contact customer support.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Basikal elektrik tidak boleh dihidupkan | Battery not charged or not properly installed; loose electrical connection. | Charge the battery; ensure battery is fully seated; check all cable connections. |
| Motor tidak membantu | Low battery; assist level set to 0; brake lever sensor engaged. | Charge battery; increase assist level on display; ensure brake levers are fully released. |
| Brek terasa lemah | Pad brek haus; kabel brek longgar; rotor yang tercemar. | Inspect and replace brake pads; adjust brake cable tension; clean rotors with disc brake cleaner. |
| Gears are not shifting smoothly | Derailleur out of adjustment; dirty or dry chain; bent hanger. | Adjust derailleur; clean and lubricate chain; inspect hanger for damage. |
7. Spesifikasi Teknikal
| Ciri | Spesifikasi |
|---|---|
| Model | 820M-27.5''-Grau |
| Jenama | Hyuhome |
| Saiz Roda | 27.5 inci |
| Motor | Motor Bergear Tanpa Berus 250W |
| Bateri | 36V 12.5Ah Lithium-Ion (Removable) |
| Masa Mengecas | 5-6 jam |
| Kelajuan Maks | 24 km/j (15 mph) |
| Julat (Elektrik Tulen) | 40-60 km |
| Julat (Bantuan Pedal) | 70-90 km |
| Gear | Shimano 7-Kelajuan |
| Brek | Brek Cakera Mekanikal (Depan & Belakang) |
| Bahan Bingkai | aluminium |
| Penggantungan | Suspensi Fork Depan |
| Kapasiti Beban Maks | 150 kg (330 lbs) |
| Ketinggian yang Sesuai | 160-190 cm |
| Komponen yang Disertakan | E-bike (85% pre-assembled), Pedal/Saddle/other accessories, User/Installation Manual, Charging Tool, Charger |
8. Waranti dan Sokongan
Hyuhome is committed to providing high-quality products and services. For any questions, technical assistance, or warranty claims, please do not hesitate to contact our customer support team. We offer professional and efficient customer service.
Hubungan Sokongan Pelanggan:
- Video After-Sales WhatsApp: +8618339810601
- General WhatsApp: +8613213105602
Please have your product model and purchase information ready when contacting support to ensure a quicker resolution.
