Manual Pengguna Alas Berjalan GYMAX

1. Maklumat Keselamatan

Please read this manual carefully before operating the GYMAX Walking Pad. Retain this manual for future reference.

• Sentiasa letakkan treadmill di atas permukaan yang rata dan stabil.
• Jauhkan kanak-kanak dan haiwan peliharaan dari treadmill semasa operasi.
• Wear appropriate athletic footwear while using the treadmill.
• Attach the safety key clip to your clothing before starting your workout. In case of emergency, pulling the safety key will immediately stop the treadmill.
• Do not use the treadmill on thick carpet, as this may obstruct ventilation and cause overheating.
• Pastikan kord kuasa tidak tersepit atau rosak.
• Berat maksimum pengguna: 265 lbs (120 kg).

2. Kandungan Pakej

Sahkan bahawa semua komponen ada dan tidak rosak:

• GYMAX Walking Pad Treadmill Unit
• Alat Kawalan Jauh
• Kunci Keselamatan
• Kurungan Telefon
• Kord Kuasa
• Manual Pengguna (dokumen ini)
• Alat Pemasangan (Sepana Allen, pemutar skru)

3. Persediaan dan Pemasangan

The GYMAX Walking Pad comes mostly pre-assembled. Follow these steps for final setup:

1. Membongkar: Carefully remove the treadmill from its packaging. Ensure all packing materials are removed.
2. Raise the Handrails (if applicable): If using in running mode, lift the handrails into the upright position. Secure them by inserting and tightening the provided screws on each side, both at the bottom and top of the handrail supports.
3. Attach Phone Bracket: Remove the screws from the designated area on the handrail. Align the phone bracket and secure it with the removed screws using the provided screwdriver.
4. Pelarasan Kecondongan: For manual incline, remove the foot covers at the rear of the treadmill. Use the provided M8*30 screws and M8 nuts to fix the folding foot pedals on the treadmill platform. The same operation is performed on the other side. For higher incline, place the red incline blocks under the rear of the treadmill.
5. Sambungan Kuasa: Plug the power cord into the treadmill's power port and then into a standard electrical outlet. Locate the red on/off toggle switch at the front of the treadmill and switch it to the 'ON' position. The display will light up.
6. Bateri Kawalan Jauh: Insert 2 AAA batteries (not included) into the remote controller.

Imej: Selesaiview of GYMAX Walking Pad components including the LED display, phone/iPad bracket, safety key, foldable riser, easy-to-remove armrest, Bluetooth speaker, and adjustable foot pads.

Image: Illustration of the treadmill's folding mechanism, showing how the handrails can be lowered for compact storage.

Imej: Terperinci view of the treadmill's control panel, showing touch screen buttons and the power switch location.

4. Arahan Operasi

4.1 Menghidupkan/Mematikan

• To turn on, ensure the power cord is connected and the red toggle switch at the front is 'ON'. The display will illuminate.
• To turn off, switch the red toggle switch to 'OFF' and unplug the power cord.

4.2 Using the Display and Controls

The dual LED display shows real-time data including time, speed, distance, and calories burned. You can control the treadmill via the touch screen, remote control, or the GYMAX App.

• Mula/Berhenti: Press the 'Start/Stop' button on the touch screen or remote to begin or end your workout. A 3-second countdown will precede belt movement.
• Pelarasan Kelajuan: Use the '+' and '-' buttons on the touch screen or remote to increase or decrease speed.
• Kunci Keselamatan: The red magnetic safety key must be in place for the treadmill to operate. Clip the cord to your clothing. If the key is dislodged, the treadmill will stop immediately.

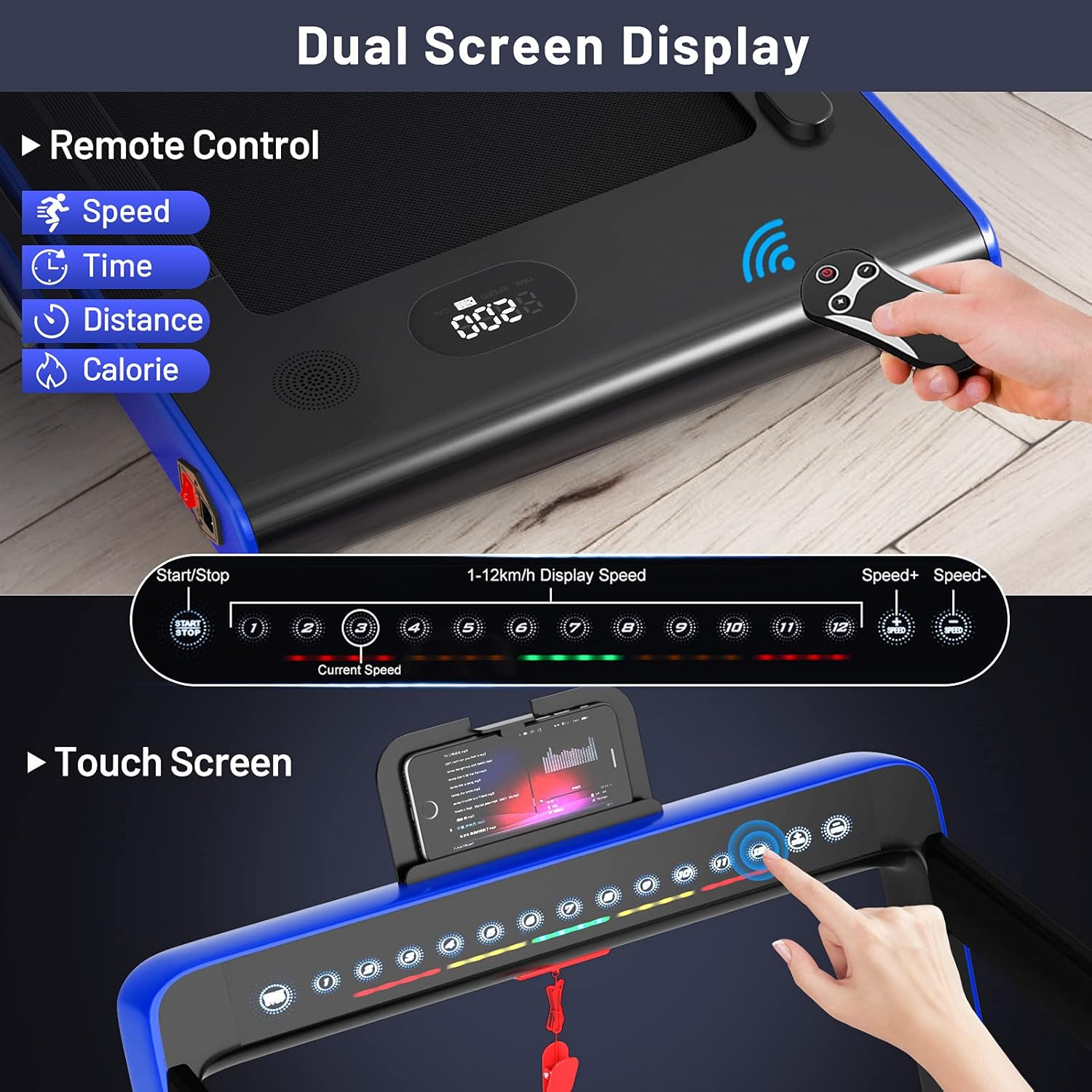

Image: Close-up of the dual LED display showing time, speed, distance, and calories, along with the remote control for operation.

4.3 Mod Operasi

• Walking Mode (Handrails Down): Speed range from 1 km/h to 4 km/h (approx. 0.6-2.5 MPH). Ideal for under-desk use or light walking.
• Running Mode (Handrails Up): Speed range from 1 km/h to 12 km/h (approx. 0.6-7.5 MPH). Suitable for jogging and running.

Image: Demonstrates the treadmill in both walking mode (under a desk) and running mode (with handrails up).

Image: Visual representation of the treadmill's two modes: walking (0.5-2.5 MPH) and running (0.5-7.5 MPH).

4.4 GYMAX App Control

Download the 'GYMAX App' from Google Play or the App Store to control your treadmill and track your workout data. The app allows for speed adjustment, mode selection, and monitoring of your progress.

Image: Shows a smartphone screen displaying the GYMAX App interface and icons for downloading from Google Play and the App Store.

Image: Demonstrates connecting the treadmill to the GYMAX App via Bluetooth, showing app screenshots and a user exercising.

4.5 Integrasi Media

• Pemegang Telefon: Use the integrated phone bracket to securely hold your mobile device for entertainment or app control during your workout.
• Pembesar suara Bluetooth: Connect your mobile phone to the treadmill's built-in speaker via Bluetooth to enjoy music or audio content.

Imej: Jarak dekat view of the integrated phone holder on the treadmill's console.

Image: Depiction of the treadmill's Bluetooth speaker playing music during a workout.

5. Ciri Berakhirview

• Reka bentuk 2-dalam-1: Easily switch between walking (under desk) and running modes by adjusting the handrails.
• Motor Senyap: Equipped with a 2.25HP motor designed for quiet operation, making it suitable for home and office environments without causing disturbance.
• Advanced Running Belt: Features a 40" x 16" spacious, 5-layer running belt that is shock-absorbing and non-slip, providing comfort and knee protection during workouts.
• Boleh dilipat & Mudah Alih: The treadmill's foldable design allows for easy storage under a sofa or against a wall. Built-in moving wheels facilitate effortless relocation.

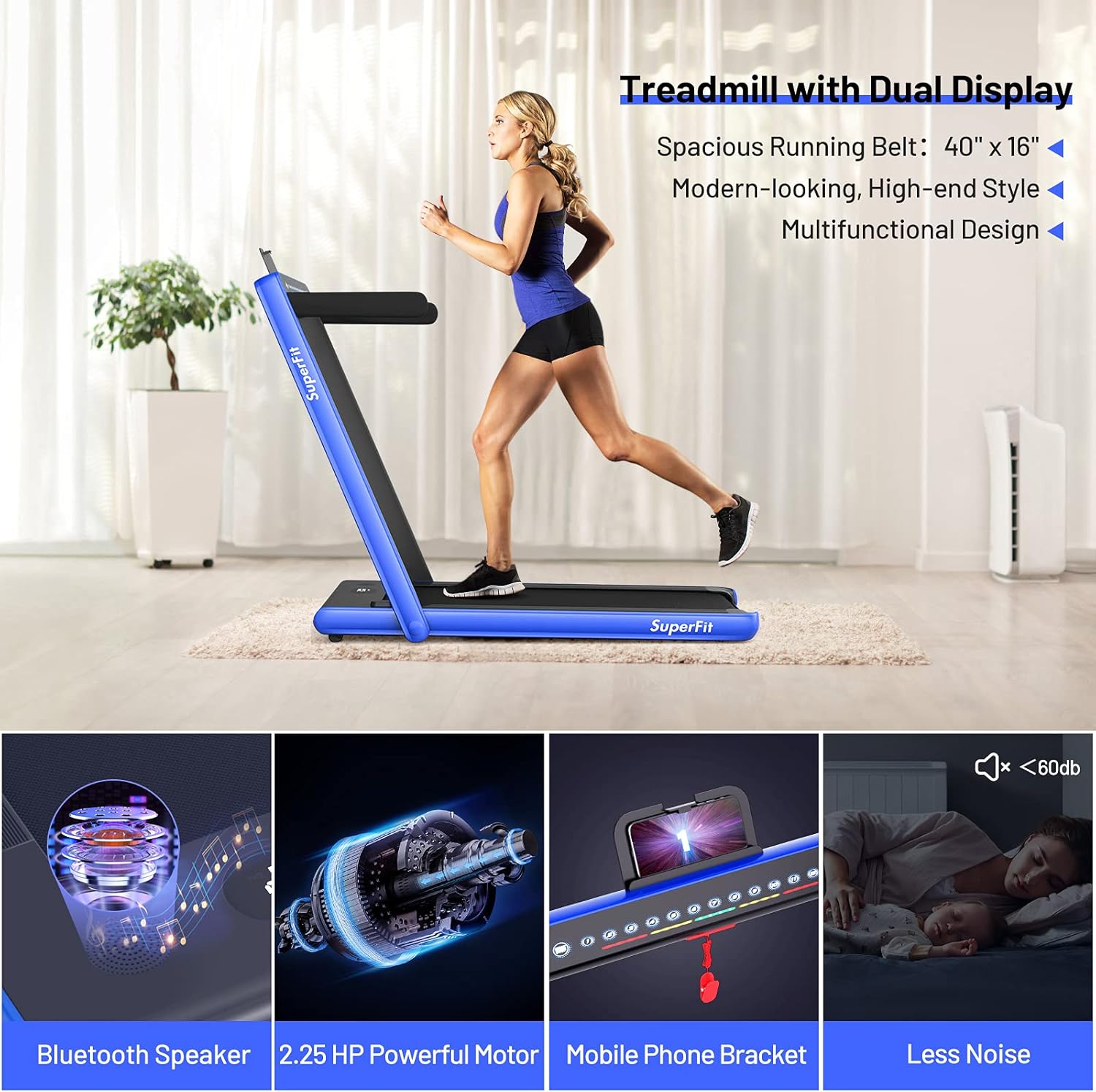

Image: Highlights key features including the dual display, Bluetooth speaker, 2.25 HP powerful motor, mobile phone bracket, and low noise level.

Image: Illustrates the quiet operation of the treadmill's motor, suitable for use without disturbing others.

Image: Diagram showing the five layers of the running belt: wear-resistant surface, sound insulation layer, high strength support layer, shock absorbing layer, and compression layer.

Image: Close-up of the integrated moving wheels for easy transport of the treadmill.

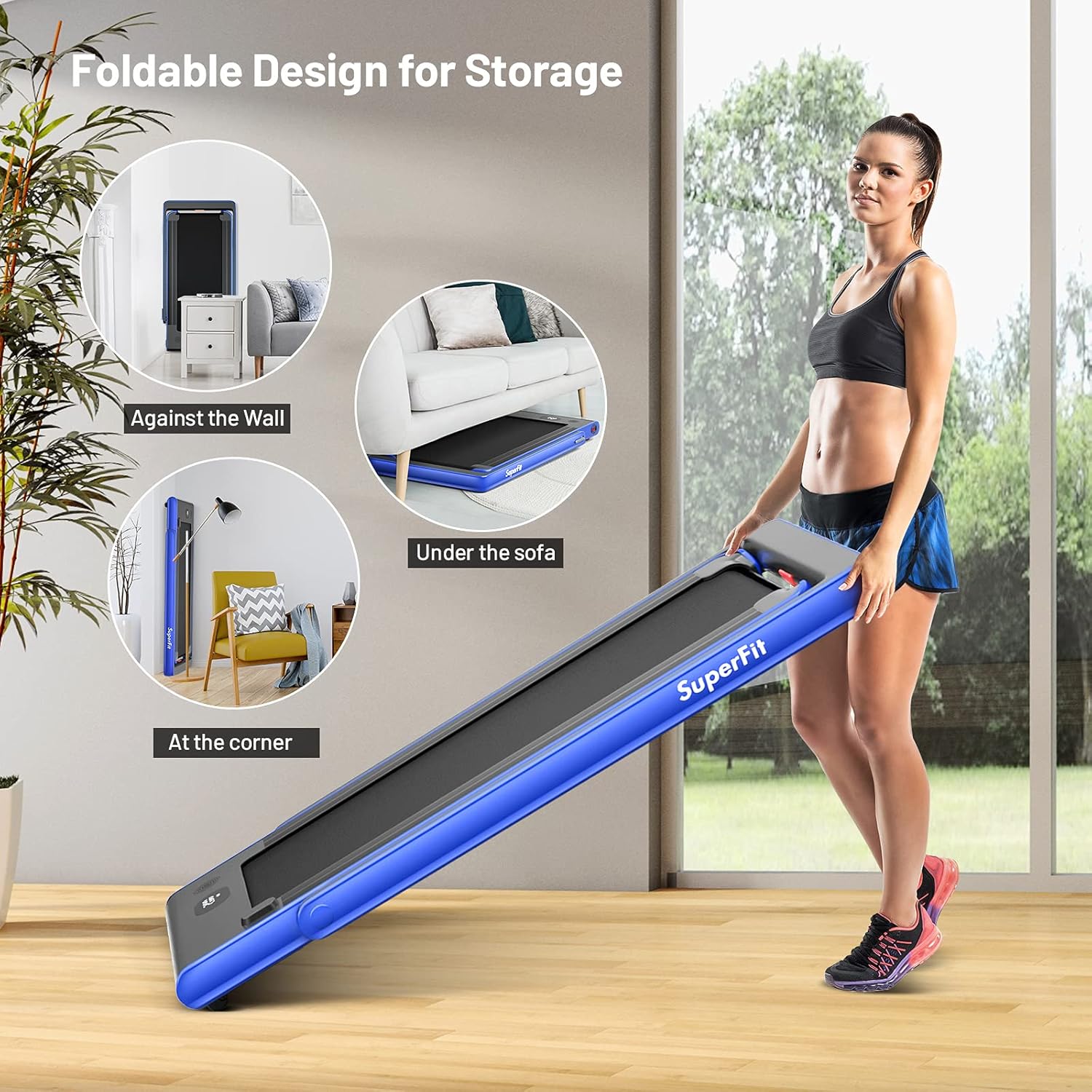

Image: Demonstrates various storage options for the foldable treadmill, such as against a wall, under a sofa, or in a corner.

6. Penyelenggaraan

Penyelenggaraan tetap memastikan umur panjang dan prestasi optimum treadmill anda.

• Pembersihan: Lap permukaan treadmill dengan iklanamp kain selepas setiap penggunaan. Elakkan pembersih yang kasar.
• Pelinciran tali pinggang: Periodically lubricate the running belt according to the instructions in the full product manual to ensure smooth operation and prevent wear.
• Pelarasan Tali Pinggang: If the running belt shifts or slips, refer to the full product manual for instructions on how to adjust the belt tension and alignment.
• Storan: When not in use, fold the treadmill and store it in a dry, clean area away from direct sunlight and extreme temperatures.

7. Penyelesaian masalah

If you encounter issues with your GYMAX Walking Pad, refer to the following common solutions:

• Treadmill tidak bermula: Ensure the power cord is securely plugged in, the red toggle switch is 'ON', and the safety key is correctly placed on the console.
• Tali pinggang tergelincir atau tidak sekata: The running belt may require lubrication or adjustment. Consult the maintenance section or the full product manual.
• Bunyi luar biasa: Check for loose parts or foreign objects under the belt. Lubrication may also be needed.
• Alat kawalan jauh tidak berfungsi: Check the batteries in the remote control and ensure they are inserted correctly.

For further assistance, please contact GYMAX customer support.

8. Spesifikasi

9. Waranti dan Sokongan

GYMAX offers customer support for any inquiries or issues you may have with your walking pad. For specific warranty details, please refer to the documentation included with your purchase or contact GYMAX directly.

Produk ini layak mendapat pemulangan mudah dalam tempoh 30 hari.

For customer service, please visit the Kedai GYMAX di Amazon.

10. Video Produk Tamatview
