U.S. Solid Motorized Ball Valve - 3/4" Stainless Steel, 9-24V AC/DC, 2-Wire Auto Return (Model USS-MSV00072) Instruction Manual

1. Pengenalan

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your U.S. Solid Motorized Ball Valve. Please read these instructions thoroughly before installation and retain this manual for future reference. This valve is designed for various applications requiring automated fluid control, featuring a durable stainless steel construction and a 2-wire auto return setup.

2. Maklumat Keselamatan

Always disconnect power before installing, servicing, or performing any maintenance on the valve.
Pastikan semua sambungan elektrik mematuhi kod dan peraturan tempatan.
Pakai peralatan pelindung diri (PPE) yang sesuai semasa pemasangan dan penyelenggaraan.
Sahkan voltage supply matches the valve's specifications (9-24V AC/DC).
Do not exceed the maximum operating pressure of 10 bars (145 PSI).
Avoid installing the valve in locations subject to extreme temperatures or corrosive environments beyond its IP65 rating.

3. Produk Lebihview

3.1 Ciri-ciri Utama

Bahan: Constructed from 304 stainless steel for durability and reliability.
Saiz Pelabuhan: 3/4" NPT threading with a full port design to minimize pressure loss.
Voltage: Operates on 9-24V AC/DC.
Operasi: Opens or closes in 3-5 seconds.
Pendawaian: Simple 2-wire automatic return setup.
Keselamatan: Limit switch minimizes power consumption once fully open or closed, reducing overheating risk.
Perlindungan: IP65 rated for dust-tight and water jet protection.

3.2 Komponen

The U.S. Solid Motorized Ball Valve consists of two primary components: the stainless steel ball valve body and the motorized actuator unit. The actuator houses the motor, gearing, and control electronics.

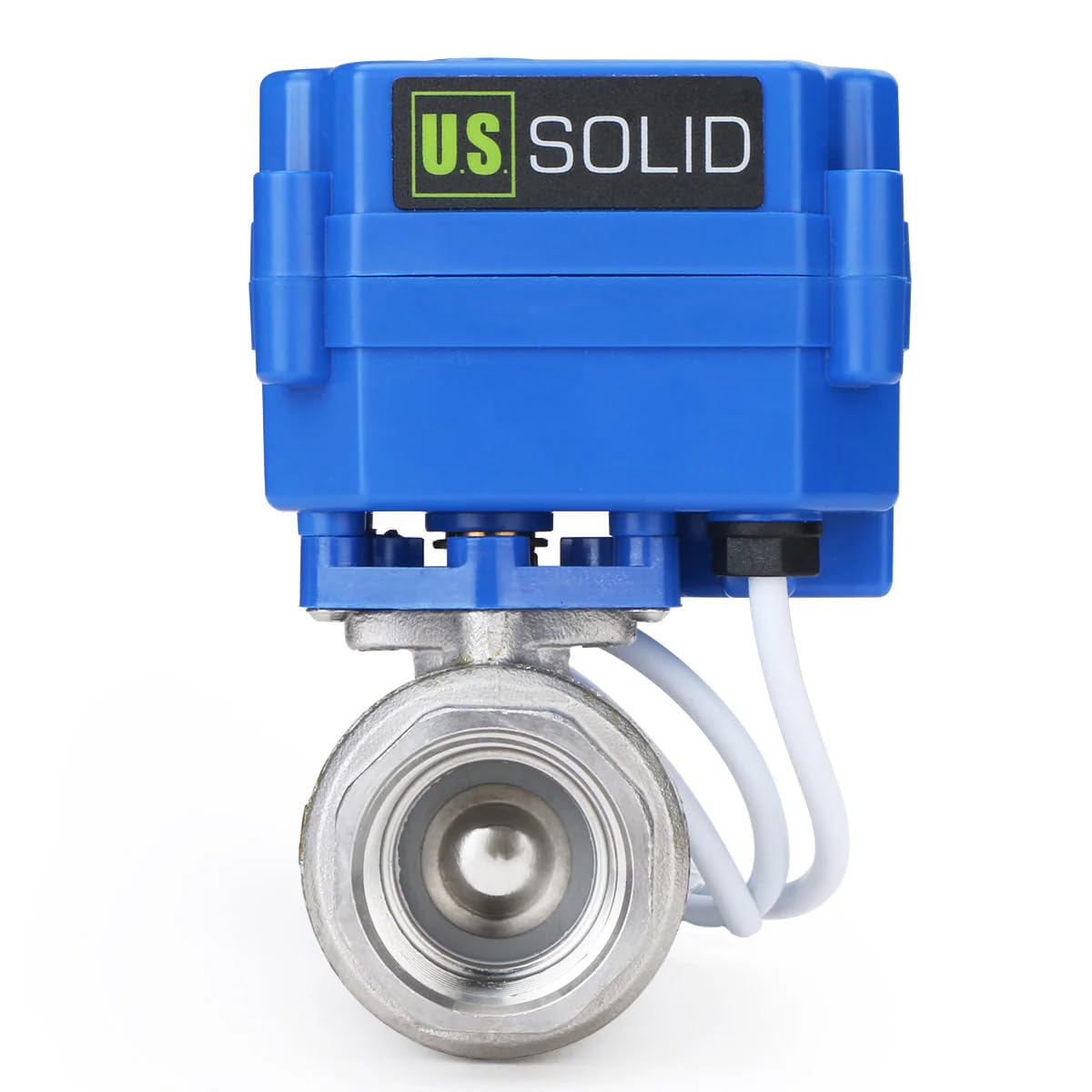

Rajah 1: Depan view of the U.S. Solid Motorized Ball Valve, showing the blue actuator and stainless steel valve body.

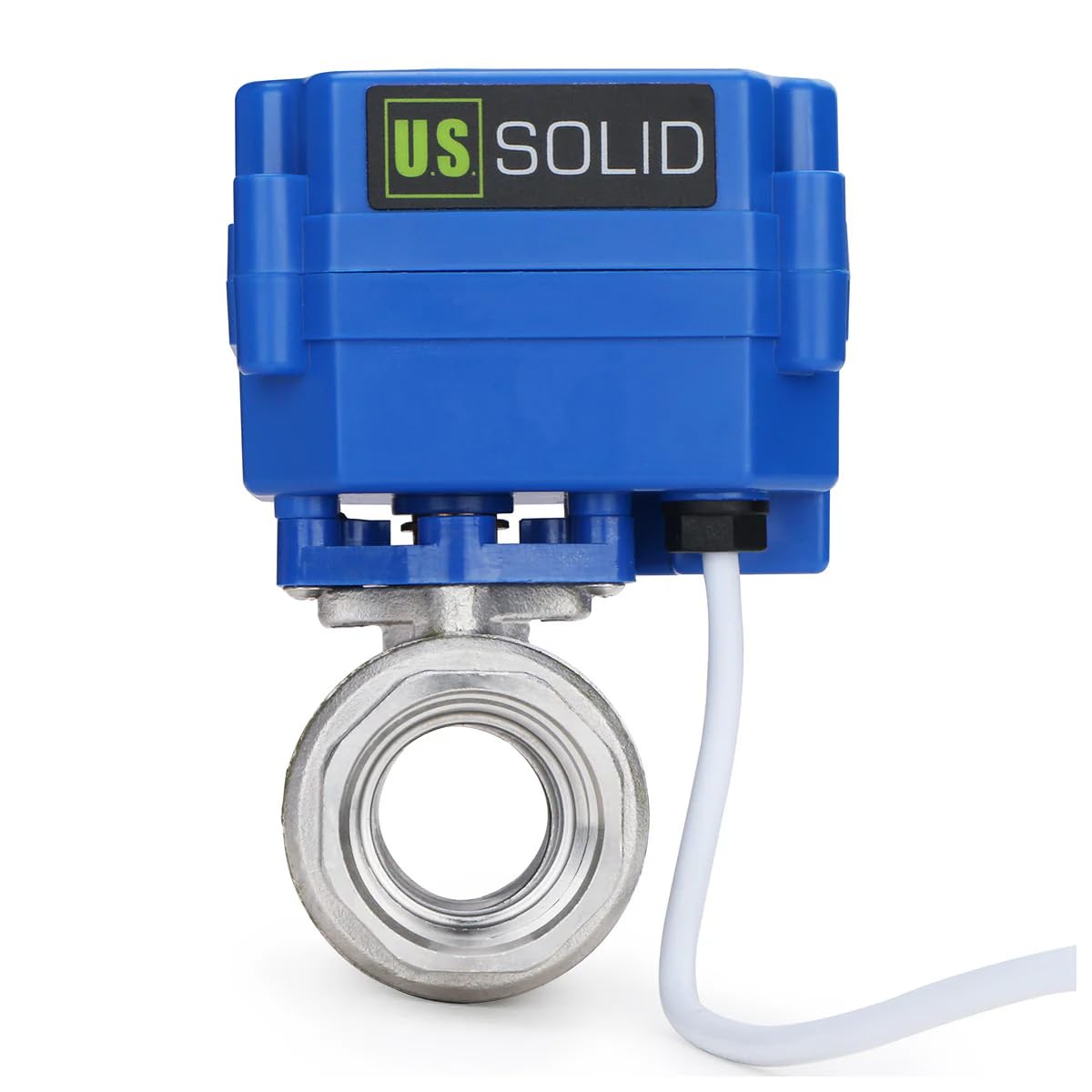

sebelah view of the U.S. Solid Motorized Ball Valve

Rajah 2: Sisi view of the valve, illustrating the compact design of the actuator and the threaded valve connections.

Internal circuit board of the motorized actuator

Gambar 3: Dalaman view of the actuator's circuit board, showing electronic components and wiring connections.

3.3 Spesifikasi

Dimensions of the U.S. Solid Motorized Ball Valve

Figure 4: Product dimensions, showing approximate measurements of the valve and actuator assembly.

Spesifikasi	Nilai
Nombor Model	USS-MSV00072
bahan	Keluli Tahan Karat (304)
Saiz	0.75 Inch (3/4")
Inlet/Outlet Connection Size	3/4 Inci
Inlet/Outlet Connection Type	Paip Kebangsaan Tirus (NPT)
Voltage	9-24V AC / DC
Tekanan Operasi Maksimum	10 Bar (145 PSI)
Bilangan Pelabuhan	2
Masa Aktuasi	3-5 saat
Jangka Hayat	80,000 to 100,000 cycles
Penilaian Perlindungan	IP65
Berat Barang	12.7 auns
Dimensi Produk (L x W x H)	3.66 x 2.68 x 2.48 inci

Figure 5: Explanation of the IP65 ingress protection rating, indicating dust-tightness and protection against water jets.

4. Persediaan dan Pemasangan

4.1 Pemasangan Mekanikal

Ensure the system is depressurized and drained before installation.
Apply PTFE (Teflon) tape to the male pipe threads to ensure a watertight seal. Wrap the tape clockwise around the threads, typically 3-5 layers.

Figure 6: Illustration of applying Teflon tape to male pipe threads for a secure, leak-free connection.

Screw the valve firmly into the piping system. Do not overtighten, as this can damage the threads or valve body.
Ensure the valve is installed in an accessible location for future maintenance.

4.2 Electrical Wiring (2-Wire Auto Return Setup)

This valve features a 2-wire auto return setup, meaning it will return to its fully open position if power is removed. It is a Normally Open (NO) valve, which means it is open when no power is applied.

Untuk Kuasa DC: Connect the red wire to the positive (+) terminal and the black wire to the negative (-) terminal of your 9-24V DC power supply. Applying power will close the valve. Removing power will cause the valve to automatically return to its open position.
Untuk Kuasa AC: Connect the red wire to one AC line and the black wire to the other AC line of your 9-24V AC power supply. Applying power will close the valve. Removing power will cause the valve to automatically return to its open position.

2-Wire Auto Return Wiring Diagram for DC and AC

Figure 7: Wiring diagram for the 2-wire auto return setup, illustrating connections for both DC and AC power sources.

5. Operasi

The U.S. Solid Motorized Ball Valve is designed for simple on/off control. As a Normally Open (NO) valve, its default state without power is open.

Untuk Menutup Injap: Apply 9-24V AC/DC power to the red and black wires. The actuator will rotate, closing the ball valve. Once fully closed, an internal limit switch will cut power to the motor, preventing overheating.
Untuk Membuka Injap: Remove the 9-24V AC/DC power from the red and black wires. The actuator will automatically return to its original position, opening the ball valve.

Figure 8: Diagram illustrating the 'Normally Open' operation, showing the valve's state with and without power.

6. Penyelenggaraan

The U.S. Solid Motorized Ball Valve is designed for minimal maintenance. Regular inspection can help ensure long-term reliable operation.

Pemeriksaan Berkala: Visually inspect the valve and actuator for any signs of damage, corrosion, or leaks. Check electrical connections for tightness and integrity.
Pembersihan: If necessary, clean the exterior of the valve and actuator with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no water enters the actuator housing.
Pemeriksaan Penggerak: Periodically cycle the valve (open and close) to ensure smooth operation. Listen for any unusual noises during actuation.

7. Penyelesaian masalah

If you encounter issues with your motorized ball valve, refer to the following troubleshooting guide:

Masalah	Kemungkinan Punca	Penyelesaian
Valve does not actuate (open/close)	Tiada kuasa atau vol tidak betultage Sambungan pendawaian longgar Kerosakan motor	Verify power supply (9-24V AC/DC) and connections. Check for secure wiring. Ensure correct polarity for DC. If power is present and connections are secure, the motor may be faulty. Contact support.
Valve does not fully open or close	Obstruction in valve Kuasa tidak mencukupi Internal gear damage (as noted in some user experiences)	Inspect the valve for debris. Ensure adequate power supply. If the issue persists, the internal mechanism may be damaged. Contact support.
Injap bocor	Benang yang tidak dimeterai dengan betul Damaged valve body or seals	Ensure PTFE tape was applied correctly and connections are tight. If the leak is from the valve body itself, the valve may be damaged and require replacement.
Actuator makes unusual noise	Internal gear wear or damage	This may indicate internal wear. Monitor operation; if performance degrades, consider replacement.

8. Waranti dan Sokongan

U.S. Solid offers a 1-year warranty or money-back promise on its products, ensuring customer satisfaction. For technical support, warranty claims, or further assistance, please visit the official U.S. Solid store or contact their customer service department.

U.S. Solid Store: https://www.amazon.com/stores/USSolid/page/29AB675D-2238-4826-BDE2-09EFEAB81AA6
