pengenalan
Thank you for choosing the CORN HB001 Bluetooth Wireless Headphones. This manual provides essential information for setting up, operating, and maintaining your headphones. Please read it carefully before use to ensure optimal performance and longevity of your device. Keep this manual for future reference.
Produk Selesaiview
The CORN HB001 headphones offer a comfortable on-ear design with wireless Bluetooth connectivity, allowing you to enjoy high-quality audio without the constraints of cables. They also feature a 3.5mm audio jack for wired connection when wireless is not preferred or battery is low.
Komponen Fon Kepala

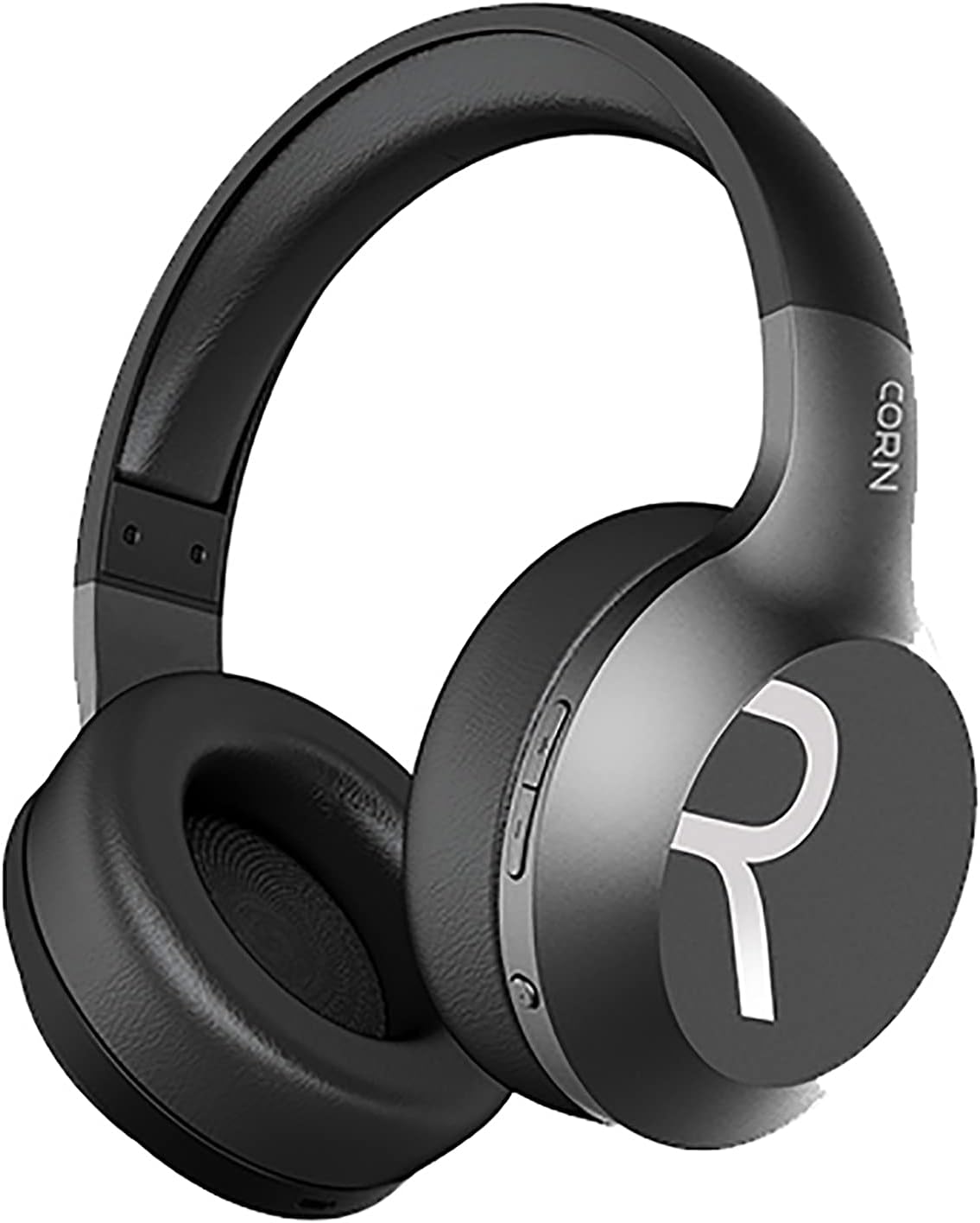

Imej 1: Keseluruhannya view of the CORN HB001 Bluetooth Wireless Headphones. The image displays the black on-ear headphones with adjustable headband and earcups, featuring the 'CORN' brand logo on the side.
Kawalan Reka Letak
Imej 2: Close-up of the control buttons located on the right earcup. These typically include volume up/down and a multi-function button for power, play/pause, and call management.
Familiarize yourself with the buttons and ports on your headphones. Typically, you will find a power/multi-function button, volume controls, a charging port (e.g., USB-C), and a 3.5mm audio jack.
Persediaan
1. Mengecas Fon Kepala
Before first use, fully charge your headphones. Connect the charging cable (usually USB) to the charging port on the headphones and the other end to a USB power source (e.g., computer, wall adapter). The LED indicator will typically show red during charging and turn off or blue when fully charged.
- Masa Pengecasan: Lebih kurang 2 jam.
- Kapasiti Bateri: 300 mAh.
2. Berpasangan Bluetooth
Untuk menyambungkan fon kepala anda secara wayarles ke peranti:
- Pastikan fon kepala dicas dan dimatikan.
- Press and hold the Power/Multi-function button for approximately 5-7 seconds until the LED indicator flashes blue and red alternately, indicating pairing mode.
- Pada peranti anda (telefon pintar, tablet, komputer), dayakan Bluetooth dan cari peranti baharu.
- Select "CORN HB001" from the list of available devices.
- Once connected, the LED indicator will usually flash blue slowly or turn solid blue.
- Fon kepala akan cuba menyambung semula secara automatik ke peranti pasangan terakhir apabila dihidupkan.
Arahan Operasi
Hidupkan/Mati Kuasa
- Hidupkan kuasa: Press and hold the Power/Multi-function button for about 3 seconds until the LED indicator lights up blue.
- Matikan: Press and hold the Power/Multi-function button for about 3-5 seconds until the LED indicator turns red and then off.
Main balik Muzik
- Main/Jeda: Tekan butang Kuasa/Berbilang fungsi sekali.
- Kelantangan: Tekan butang '+'.
- Perlahankan suara: Tekan butang '-'.
- Lagu Seterusnya: Tekan dan tahan butang '+'.
- Trek Sebelumnya: Tekan dan tahan butang '-'.
Pengurusan Panggilan
- Jawab/Tamatkan Panggilan: Tekan butang Kuasa/Berbilang fungsi sekali.
- Tolak Panggilan: Press and hold the Power/Multi-function button for about 2 seconds.
- Dail Semula Nombor Terakhir: Tekan dua kali butang Kuasa/Berbilang fungsi.
Wired Mode (3.5mm Audio Jack)
You can use the headphones in wired mode even if the battery is depleted. Simply connect one end of a 3.5mm audio cable (not always included) to the headphone's 3.5mm jack and the other end to your audio source. In wired mode, Bluetooth functions are disabled, and controls on the headphones may not function.
Penyelenggaraan
Proper maintenance ensures the longevity of your headphones.
- Pembersihan: Use a soft, dry cloth to wipe the headphones. Do not use abrasive cleaners or solvents. For ear cushions, gently wipe with a damp kain dan biarkan kering sepenuhnya.
- Storan: Store the headphones in a cool, dry place away from direct sunlight and extreme temperatures. If your headphones are foldable, fold them carefully to prevent damage.
- Pendedahan Air: These headphones are not waterproof. Avoid exposure to water, moisture, or rain.
Menyelesaikan masalah
Jika anda menghadapi masalah, cuba penyelesaian berikut:
| Masalah | Penyelesaian |
|---|---|
| Fon kepala tidak dapat dihidupkan | Ensure the headphones are fully charged. Press and hold the Power button for a few seconds. |
| Tidak boleh berpasangan dengan peranti | Ensure headphones are in pairing mode (flashing blue/red). Turn off and on Bluetooth on your device. Forget previous pairings and try again. Ensure headphones are within 10m range. |
| Tiada bunyi | Check volume levels on both headphones and your device. Ensure headphones are properly paired. Try wired connection if available. |
| Kualiti bunyi yang lemah | Move closer to your device to reduce interference. Ensure no physical obstructions between headphones and device. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nama Model | HB001 |
| Nama Jenama | JAGUNG |
| Teknologi Ketersambungan | Tanpa Wayar, Bluetooth |
| Versi Tanpa Wayar | V5.0 |
| Jarak Operasi | 10 meter |
| Saiz Pemandu Speaker | Φ40mm |
| Impedans Pembesar Suara | 32Ω |
| Kuasa Speaker | 15mW |
| Kapasiti Bateri | 300 mAh |
| Masa Mengecas | Lebih kurang 2 jam |
| Masa Bekerja | Lebih kurang 8 jam |
| Faktor Bentuk Fon Kepala | Di Telinga |
| Bicu Fon Kepala | 3.5mm Jack (for wired use) |
| Komponen yang Disertakan | Kusyen Telinga |
| Penerangan Julat Umur | Dewasa |
| bahan | plastik |
| warna | Hitam |
Waranti dan Sokongan
For warranty information or technical support, please refer to the documentation included with your purchase or contact the manufacturer directly through their official weblaman web atau saluran khidmat pelanggan. Simpan bukti pembelian anda untuk tuntutan jaminan.
