OSRAM DULUX D 18 LED Lamp Manual Arahan

1. Produk Lebihview

The OSRAM DULUX D 18 LED Lamp is designed as an energy-efficient replacement for conventional 18W compact fluorescent lamps (CFLs) with a G24d-2 2-pin plug-in socket. This 7-watt LED lamp provides 700 lumens of warm white light (3000K) and can operate on either a conventional ballast (KVG) or directly on mains voltage (230V).

Key features include a rotatable base (± 90°) for flexible light direction and a long lifespan of up to 30,000 hours. It is suitable for various applications, including supermarkets, hallways, hotels, and restaurants, and can be used in outdoor luminaires if the fixture is suitable.

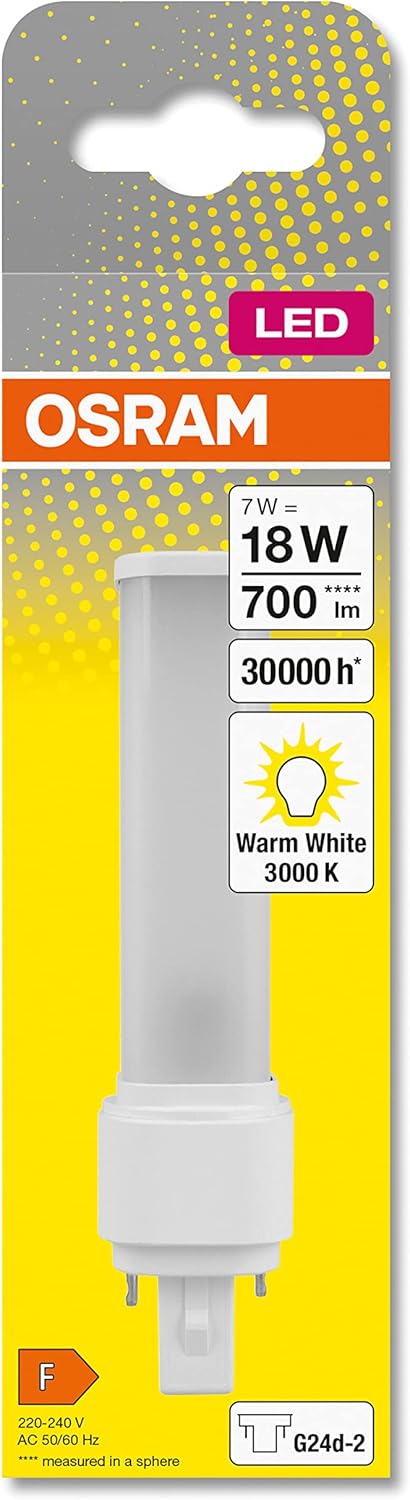

Image 1.1: OSRAM DULUX D 18 LED Lamp in its retail packaging.

2. Maklumat Keselamatan

• Keselamatan Elektrik: Always disconnect power to the luminaire before installing, removing, or servicing the lamp.
• Keserasian: Ensure the luminaire is compatible with G24d-2 2-pin LED lamps. This lamp is designed for operation with KVG (conventional ballast) or direct 230V mains voltage.
• Penggunaan Dalaman/Luar: Suitable for indoor use. For outdoor applications, ensure the luminaire provides adequate protection (e.g., IP rating) for the lamp. lamp itself has an IP20 protection class.
• Jangan Buka: Do not attempt to open or modify the lamp. Tiada bahagian yang boleh diservis pengguna di dalamnya.
• Pelupusan: Buang lamp according to local regulations for electronic waste.

3. Pemasangan

1. Putuskan Kuasa: Before beginning installation, ensure the power supply to the luminaire is completely switched off at the circuit breaker or fuse box.
2. Alih Keluar L Sedia Adaamp: Carefully remove the old compact fluorescent lamp from the G24d-2 socket.
3. Masukkan LED Lamp: Align the 2-pin base of the OSRAM DULUX D 18 LED Lamp with the G24d-2 socket in the luminaire. Gently push the lamp into the socket until it is securely seated.
4. Adjust Rotation (Optional): Lamp features a rotatable base (± 90°). Once inserted, you can carefully rotate the lamp along its longitudinal axis to direct the light as needed.
5. Pulihkan Kuasa: Sebaik sahaja lamp is securely installed, restore power to the luminaire.

Image 3.1: OSRAM DULUX D 18 LED Lamp showing its G24d-2 base.

4. Operasi

Once installed and power is restored, the OSRAM DULUX D 18 LED Lamp will illuminate instantly when the luminaire's switch is turned on. It provides a consistent warm white light at 3000 Kelvin with a brightness of 700 lumens.

No special controls or warm-up time are required for this lamp. Simply use the existing light switch of your fixture to turn the lamp hidup dan mati.

5. Penyelenggaraan

The OSRAM DULUX D 18 LED Lamp is designed for long-term, maintenance-free operation with a lifespan of up to 30,000 hours.

• Pembersihan: Untuk membersihkan lamp, pastikan kuasa dimatikan dan lamp has cooled down. Wipe gently with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• Tiada Bahagian Boleh Diservis Pengguna: LED ini lamp contains no user-serviceable components. Do not attempt to repair it.

6. Penyelesaian masalah

• Lamp Does Not Light Up:
  • Check if the power supply to the luminaire is on.
  • Pastikan lamp is correctly and securely inserted into the G24d-2 socket.
  • Verify that the luminaire itself is functioning correctly.
• Lamp Kelipan:
  • Pastikan lamp is fully compatible with the luminaire's electrical system (KVG or direct mains).
  • Check for loose connections in the socket.

If issues persist after performing these checks, contact a qualified electrician or OSRAM customer support.

7. Spesifikasi

Image 7.1: Technical drawing showing the dimensions of the OSRAM DULUX D 18 LED Lamp.

8. Waranti dan Sokongan

This OSRAM DULUX D 18 LED Lamp datang dengan a Waranti 3 tahun dari tarikh pembelian. Sila simpan bukti pembelian anda untuk tuntutan waranti.

For technical support, warranty inquiries, or further assistance, please contact OSRAM customer service through their official webtapak atau peruncit tempat produk itu dibeli.
