1. Produk Lebihview
This document provides instructions for replacing the housing of your Hormann HSE 4 Handheld Transmitter. This replacement housing is designed to restore the functionality and appearance of your existing 4-button handheld transmitter if its original housing has been damaged.
The replacement housing includes the top and bottom parts, along with a pre-assembled key fob. Please note that this product contains only the housing components; the internal electronic board is not included and must be transferred from your original transmitter.
Ciri-ciri Utama:
- Includes 1 x top housing with 4 buttons and 1 x bottom housing.
- Features a pre-assembled key fob for convenience.
- Designed for easy self-replacement of damaged transmitter housing.
Figure 1: Hormann HSE 4 Handheld Transmitter Replacement Housing, showing the black top part with four buttons and the chrome key fob, separated from the black bottom housing.

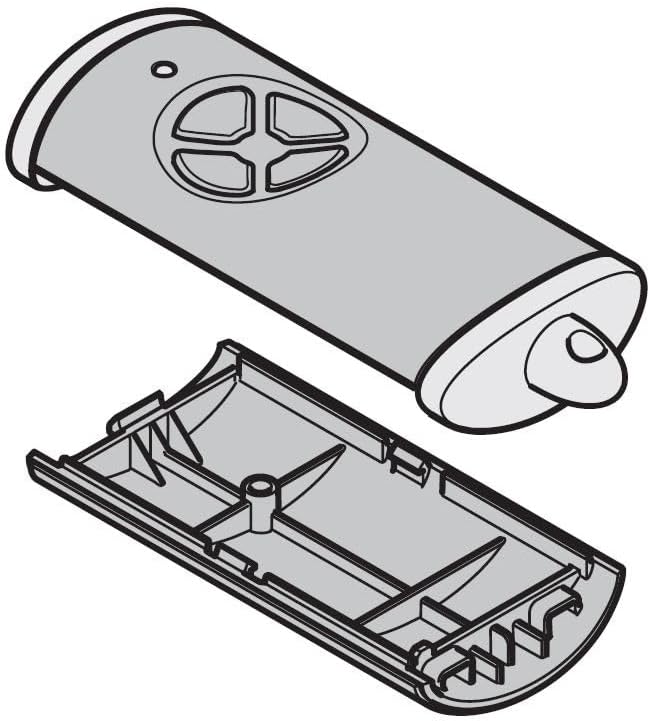

Figure 2: Diagram of the Hormann HSE 4 Handheld Transmitter Replacement Housing, illustrating the separate top and bottom components with internal structural details.
2. Arahan Pemasangan
This section outlines the steps to replace the housing of your Hormann HSE 4 Handheld Transmitter. Ensure you have a small screwdriver (if required for your specific transmitter model) and a clean, well-lit workspace.
- Open the Original Transmitter: Carefully open your existing Hormann HSE 4 handheld transmitter. This usually involves prying apart the two halves of the housing or unscrewing small screws, depending on the design. Exercise caution to avoid damaging the internal components.
- Remove the Electronic Board: Gently remove the electronic circuit board from the old housing. Handle the board by its edges to avoid touching sensitive components.
- Periksa dan Bersihkan: Before transferring, inspect the electronic board for any dust or debris. If necessary, gently clean it with a soft, dry brush or compressed air.
- Insert into New Housing: Carefully place the electronic board into the new replacement bottom housing. Ensure it sits correctly and all buttons align with their respective positions on the top housing.
- Assemble the New Housing: Align the new top housing (with buttons) with the bottom housing, ensuring the electronic board is properly seated. Press the two halves together until they securely snap or click into place. If your original transmitter had screws, reinsert and tighten them gently.
- Kefungsian Ujian: After assembly, test all buttons on the transmitter to ensure they operate correctly and the transmitter sends signals as expected.
Nota Penting: This replacement housing does not include the electronic board. You must use the existing board from your original transmitter.
3. Pertimbangan Penggunaan
The Hormann HSE 4 Handheld Transmitter Replacement Housing is designed to restore the physical integrity of your remote. Once the electronic board is transferred and the new housing is assembled, the transmitter should function identically to its original state.
To further protect your handheld transmitter and prevent future damage, consider using a protective silicone case. Hormann offers silicone cases (e.g., item number 4510869) specifically designed for HSE handheld transmitters, which can provide an additional layer of protection against drops and impacts.
4. Penyelenggaraan
The replacement housing is made of durable plastic. To maintain its appearance and functionality:
- Pembersihan: Wipe the housing periodically with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the plastic finish.
- Perlindungan: While durable, the housing can still be damaged by severe impacts or prolonged exposure to extreme conditions. Consider using a protective cover.
- Storan: Store the transmitter in a dry place, away from direct sunlight and extreme temperatures.
5. Penyelesaian masalah
If you encounter issues after replacing the housing, consider the following:
- Transmitter Not Functioning: Ensure the electronic board is correctly seated within the new housing and that all connections (if any were disturbed) are secure. Verify that the battery in your transmitter is functional.
- Butang Tidak Menjawab: Check if the buttons on the new housing align perfectly with the contact points on the electronic board. Sometimes, slight misalignment can prevent proper button press detection.
- Housing Not Closing Properly: Ensure the electronic board is fully seated and no wires or components are obstructing the closure of the two housing halves. Do not force the housing closed, as this can damage the board.
If problems persist, it may indicate an issue with the electronic board itself, rather than the housing. In such cases, consider professional assistance or replacement of the entire transmitter.
6. Spesifikasi
| Atribut | Perincian |
|---|---|
| Jenama | Hormann |
| Nama Model | HSE 4 |
| Nombor Bahagian | 4510434 |
| bahan | plastik |
| warna | Hitam/Chrome |
| Dimensi Produk (L x W x H) | 70 mm x 28 mm x 14 mm (approx. 2.76"L x 1.1"W x 0.55"H) |
| Berat Barang | 0.02 Kilogram (lebih kurang 0.704 auns) |
| Komponen yang Disertakan | 1 x Top Housing with 4 Buttons, 1 x Bottom Housing, Pre-assembled Key Fob |
| Bateri Termasuk? | Tidak |
| Bateri Diperlukan? | No (for the housing itself) |
7. Maklumat Waranti
Specific warranty details for this replacement housing are not provided in the product data. Please refer to the original product documentation for your Hormann HSE 4 Handheld Transmitter or contact Hormann customer service for warranty inquiries related to replacement parts.
8. Maklumat Sokongan
Contact information for product support is not available in the provided data. For technical assistance or further questions regarding the Hormann HSE 4 Handheld Transmitter Replacement Housing, please visit the official Hormann weblaman web atau hubungi pengedar sah mereka.
