1. Pengenalan
Thank you for choosing the Moukey MEP-110 Digital Piano. This 88-key full-size semi-weighted electric keyboard is designed for beginners and experienced players alike, offering a rich sound experience and versatile functions for practice and performance. This manual provides essential information for the proper setup, operation, and maintenance of your new digital piano.
2. Arahan Keselamatan
- Bekalan Kuasa: Gunakan hanya penyesuai kuasa yang ditentukan. Pastikan voltage sepadan dengan keperluan wilayah anda.
- Air dan Kelembapan: Do not expose the instrument to rain, moisture, or excessive humidity. Keep liquids away from the piano.
- Sumber Haba: Avoid placing the piano near heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
- Pengudaraan: Do not block any ventilation openings. Ensure proper airflow around the instrument.
- Pembersihan: Bersihkan hanya dengan kain kering. Elakkan menggunakan bahan kimia yang keras atau pembersih yang kasar.
- Pengendalian: Handle the piano with care. Avoid dropping or subjecting it to strong impacts.
- Servis: Jangan cuba servis produk ini sendiri. Rujuk semua perkhidmatan kepada pegawai perkhidmatan yang berkelayakan.
3. Kandungan Pakej
Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:
- Moukey MEP-110 Digital Piano x 1
- Penyesuai Kuasa x 1
- Sustain Pedal x 1
- Music Stand x 1
- Piano Stand x 1
- Manual Pengguna x 1
Figure 3.1: Complete package contents including the digital piano, stand, power adapter, and sustain pedal.
4. Persediaan
4.1 Assembling the Piano Stand
Carefully unpack all components. Assemble the X-style piano stand according to the included instructions. Ensure all screws are tightened securely for stability.
4.2 Placing the Digital Piano
Place the Moukey MEP-110 Digital Piano securely on the assembled stand. Ensure it is centered and stable to prevent accidental falls.
4.3 Kuasa Penyambung dan Aksesori
- Kuasa: Connect the power adapter to the DC 12V 3A port on the rear panel of the piano and then plug it into a wall outlet.
- Pedal Kekal: Insert the sustain pedal cable into the "PEDAL" or "SUSTAIN" socket on the rear panel.
- Fon kepala: For silent practice, connect 3.5mm headphones to the "PHONE" jack.
- USB-MIDI: Use a USB-MIDI cable to connect the piano to a computer or other MIDI-compatible device for recording or software integration.
- Output Audio: Connect external speakers or an amplifier to the "OUTPUT" jacks for ampbunyi yang dibesarkan.

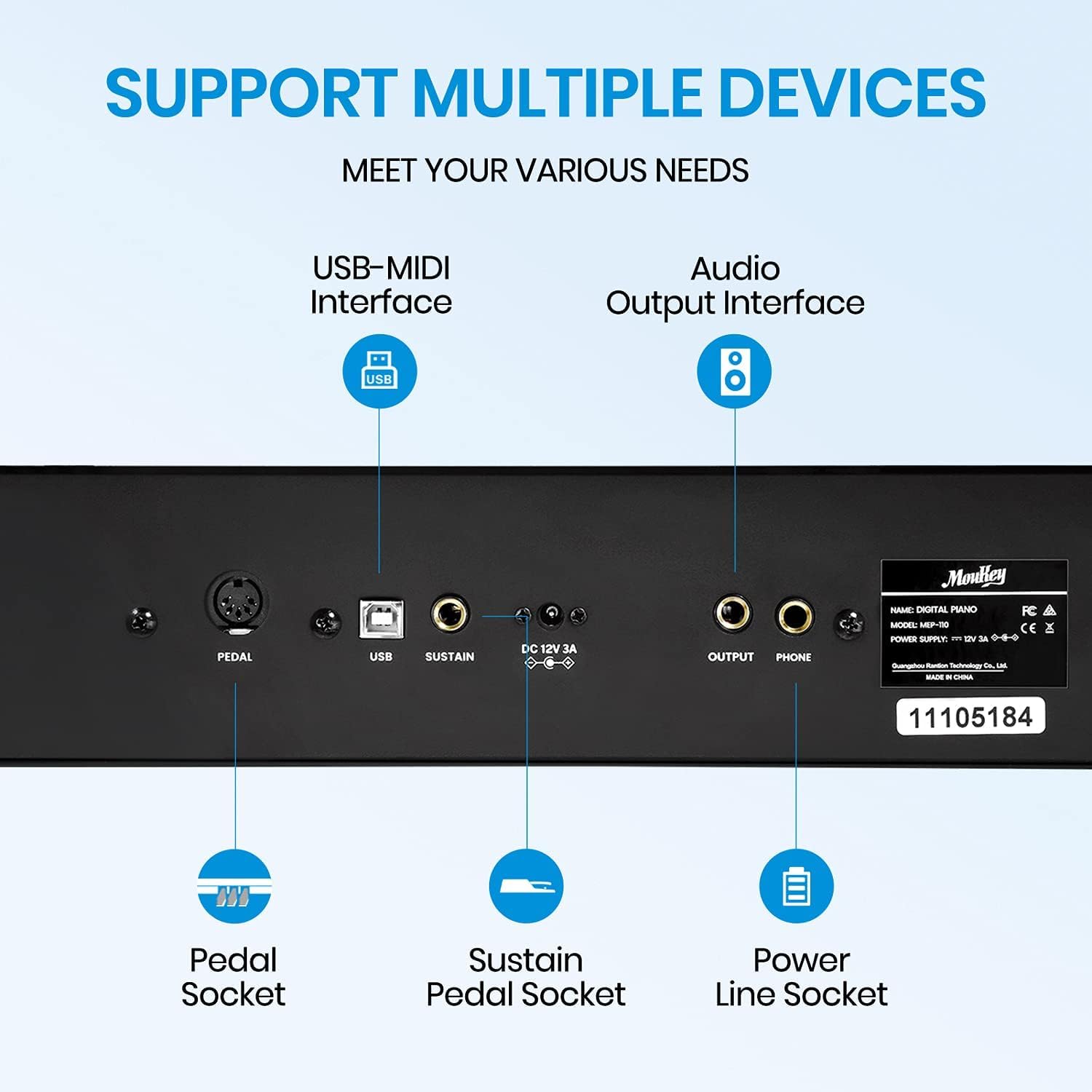

Figure 4.1: Rear panel connections for power, pedals, USB-MIDI, and audio output.
5. Arahan Operasi
5.1 Kuasa Hidup/Mati dan Kawalan Kelantangan
Press the power button to turn the piano on or off. Adjust the master volume using the dedicated volume knob on the control panel. For quiet practice, use headphones connected to the 'PHONE' jack.
Figure 5.1: Silent practice mode with headphones for undisturbed playing.
5.2 Timbre, Rhythm, and Demonstration Tracks
The MEP-110 offers a wide selection of 128 premium tones and 83 rhythms. Use the 'TONE/DEMO/RHYTHM' controls to browse and select different instrument sounds and rhythmic accompaniments. The piano also includes 43 demonstration songs for learning or enjoyment.
Figure 5.2: Explore a variety of tones, rhythms, and demo songs.
5.3 Touch Response (Semi-Weighted Keys)
The 88 semi-weighted keys provide a realistic piano feel, allowing for expressive playing. The intensity of your key press will affect the volume and nuance of the sound, mimicking an acoustic piano's dynamic range. This feature enhances the playing experience by allowing for subtle variations in musical expression.
Figure 5.3: The semi-weighted keys offer a responsive and dynamic playing experience.
5.4 Teaching Functions (Dual Keyboard Mode)
The MEP-110 is equipped with teaching functions, including a dual keyboard mode. This mode splits the keyboard into two identical pitch ranges, allowing a student and teacher to play simultaneously on the same instrument without interfering with each other's range. This is ideal for piano lessons and collaborative practice.
Figure 5.4: Utilize the dual keyboard function for effective teaching and learning.
5.5 Ciri Tambahan
- Metronom: Gunakan metronom terbina dalam untuk latihan pemasaan.
- Perkusi Papan Kekunci: Access various percussion sounds directly from the keys.
- Auto Chord: Simplify playing chords with automatic chord generation.
- Rakaman: Record your performances directly on the piano.
Figure 5.5: The piano's speaker system delivers superior sound quality, supporting various functions.
6. Penyelenggaraan
- Pembersihan: Wipe the piano's surface with a soft, dry cloth. Do not use liquid cleaners, waxes, or solvents.
- Storan: When not in use for extended periods, store the piano in a cool, dry place away from direct sunlight and extreme temperatures.
- Pengangkutan: If transporting the piano, ensure it is properly packed to prevent damage from impacts. The portable design allows for easy transport.
Figure 6.1: The lightweight and portable design makes the piano easy to transport and store.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada bunyi daripada pembesar suara/fon kepala. | Kelantangan terlalu rendah; kuasa tidak disambungkan; fon kepala tidak dipasang sepenuhnya. | Increase volume. Ensure power adapter is securely connected. Re-insert headphones firmly. |
| Keys not responding or sticking. | Dust or debris under keys; minor manufacturing imperfection. | Gently clean around the keys. If a key sticks, gently work it to free it. If problem persists, contact support. |
| Pedal sustain tidak berfungsi. | Pedal not connected properly. | Ensure the sustain pedal is fully inserted into the correct port. |
| Bunyi herot. | Volume too high; external speakers/ampisu penguat. | Lower the volume. Check connections and settings of external audio equipment. |
8. Spesifikasi
- Nama Model: Beginner Digital Piano 88 Key Full-Size Semi-Weighted Electric Keyboard
- Nombor Model: MEP-110
- Jenama: Moukey
- Bilangan Kunci: 88
- Jenis Kunci: Separuh Berat
- Dimensi: 58.4 x 17 x 6.7 inci (Saiz Pakej)
- Berat Barang: 19.8 paun (9 Kilogram)
- Sumber Kuasa: Corded Electric (DC 12V 3A)
- Ketersambungan: MIDI USB, Auxiliary, 3.5mm Headphone Jack
- Nada: 128 Premium Tones
- Irama: 83 Irama
- Lagu Demo: 43 Demonstration Songs
- Ciri Khas: Adjustable Touch Response, Weighted Keyboard, Dual Keyboard Function, Teaching Mode, Metronome, Keyboard Percussion, Auto Chord, Recording.
- UPC: 611851736477
9. Waranti dan Sokongan
For warranty information and technical support, please refer to the warranty card included in your product packaging or visit the official Moukey webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk sebarang tuntutan waranti.
Sumber Dalam Talian: For additional resources, FAQs, and software updates, please visit the Moukey support page or contact their customer service directly.
