MASINGO Soprano X1 Portable Karaoke Machine User Manual

1. Pengenalan

This manual provides detailed instructions for the safe and effective operation of your MASINGO Soprano X1 Portable Karaoke Machine. Please read this manual thoroughly before using the product and retain it for future reference. The Soprano X1 is a versatile portable PA speaker system designed for karaoke and audio playback, featuring wireless microphones, various input options, and integrated lighting effects.

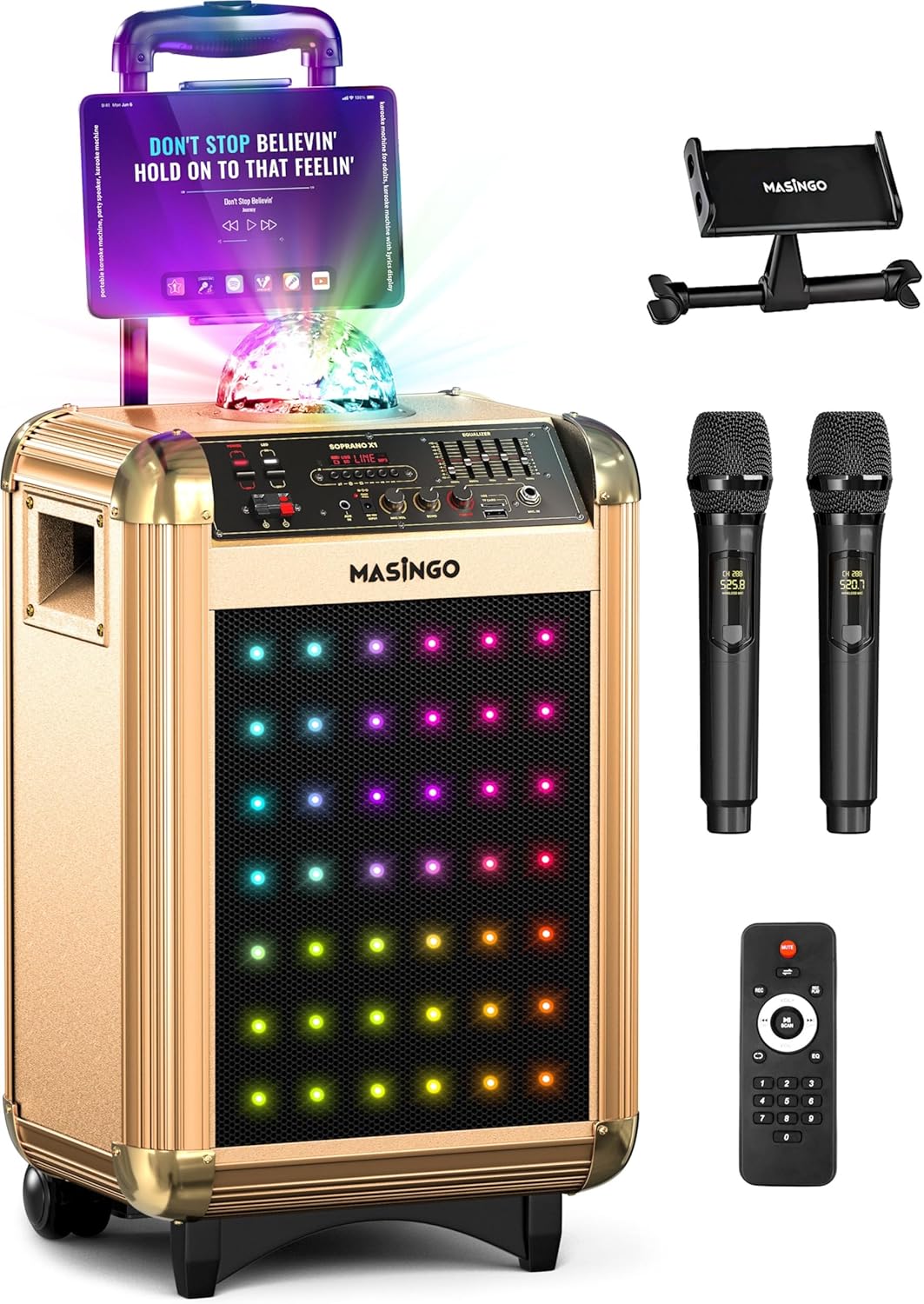

Imej 1.1: MASINGO Soprano X1 Portable Karaoke Machine, showcasing its main unit, tablet holder, two wireless microphones, and remote control.

2. Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda. Jika ada item yang hilang atau rosak, sila hubungi sokongan pelanggan.

• Soprano X1 Karaoke Machine (Main Unit)
• 2 Mikrofon Tanpa Wayar
• Manual Pengguna (dokumen ini)
• Pemegang Tablet
• Power Plug (AC adapter)
• Auxiliary Cable (3.5mm)
• TV Cable (AUX-RCA)
• Car Plug (for 12V car charging)
• Alat Kawalan Jauh

Image 2.1: Visual representation of the Soprano X1 main unit and all included accessories: two wireless microphones, 3.5mm AUX cable, AUX-RCA TV cable, 15V charging cable, device holder, and remote control.

3. Produk LebihviewKawalan dan Port

Familiarize yourself with the various controls and connection ports on your Soprano X1 unit.

Image 3.1: Close-up of the Soprano X1 control panel, indicating the location of various inputs, controls, and switches.

• Suis kuasa: Menghidupkan atau mematikan unit.
• LED Lights Switch: Activates or deactivates the front LED lights.
• Disco Ball Switch: Turns the top disco ball light on or off.
• Butang Mod: Cycles through input modes (Bluetooth, USB, Micro-SD, AUX, FM Radio).
• Tombol Kelantangan Mikrofon: Melaraskan kelantangan mikrofon yang disambungkan.
• Tombol Gema Mikrofon: Controls the echo effect applied to microphone audio.
• Tombol Kelantangan Induk: Melaraskan jumlah output keseluruhan sistem.
• Equalizer (EQ) Sliders: Fine-tune audio frequencies (bass, mid, treble).
• Port USB: Untuk main balik pemacu USB.
• Slot Kad Micro-SD: For Micro-SD card playback.
• Input AUX (3.5mm): For connecting external audio devices via auxiliary cable.
• TV Audio Input (RCA): For connecting to a TV for audio output.
• Input DC 15V: Untuk menyambungkan penyesuai kuasa AC.
• EXT DC 12V Input: For connecting the car charger.

Image 3.2: The two wireless microphones included with the Soprano X1, highlighting their individual displays for settings like volume, echo, and EQ.

4. Persediaan

4.1. Charging the Main Unit

1. Connect the provided AC power adapter to the DC 15V input port on the Soprano X1.
2. Pasangkan penyesuai ke soket dinding standard.
3. The unit will begin charging. A full charge typically takes several hours. The battery indicator on the unit will show charging status.
4. For car charging, use the provided car plug and connect it to the EXT DC 12V input.

4.2. Persediaan Mikrofon

1. Unscrew the bottom cap of each wireless microphone.
2. Insert two AA batteries (not included) into each microphone, observing the correct polarity (+/-).
3. Gantikan penutup bawah.
4. Press and hold the power button on each microphone to turn it on. The microphone will automatically connect to the Soprano X1 when the main unit is powered on.

4.3. Installing the Tablet Holder

1. Locate the mounting slot on the top of the Soprano X1 unit.
2. Insert the tablet holder into the slot until it is securely in place.
3. Adjust the holder to accommodate your tablet or smartphone for lyrics display.

5. Arahan Operasi

5.1. Hidupkan/Mati Kuasa

• To power on the Soprano X1, toggle the main power switch to the 'ON' position.
• To power off, toggle the main power switch to the 'OFF' position.

5.2. Berpasangan Bluetooth

1. Turn on the Soprano X1. The unit will automatically enter Bluetooth pairing mode, indicated by a flashing Bluetooth icon on the display.
2. Pada telefon pintar, tablet atau peranti lain yang didayakan Bluetooth anda, navigasi ke tetapan Bluetooth.
3. Select "MASINGO Soprano X1" from the list of available devices.
4. Once paired, the Bluetooth icon on the Soprano X1 display will become solid, and you can play audio wirelessly from your device.

5.3. Media Playback (USB, Micro-SD, AUX)

• USB/Micro-SD: Insert a USB drive or Micro-SD card containing audio files into the respective port/slot. Press the 'Mode' button until 'USB' or 'SD' is displayed. The unit will automatically begin playing compatible audio files.
• Input AUX: Connect an external audio device (e.g., MP3 player, laptop) to the 3.5mm AUX input using the provided auxiliary cable. Press the 'Mode' button until 'AUX' is displayed.
• TV Audio: Connect your TV's audio output to the RCA TV Audio input using the provided TV cable. Select the appropriate input mode on the Soprano X1.

5.4. Microphone Adjustments

• Kelantangan Mikrofon: Use the 'Mic Volume' knob on the main unit to adjust the overall volume of both microphones.
• Gema Mikrofon: Use the 'Mic Echo' knob to add or reduce the echo effect on your vocals.
• Individual Microphone Settings: Each wireless microphone has its own controls for volume, echo, and EQ, accessible via its display. Adjust these settings directly on the microphone for personalized sound.

5.5. Mod Cahaya

• Lampu LED Depan: Toggle the 'LED Lights' switch on the control panel to activate or deactivate the colorful LED lights on the front speaker grille.
• Disco Ball: Toggle the 'Disco Ball' switch to turn the top-mounted disco ball light on or off.

5.6. Radio FM

• Press the 'Mode' button until 'FM' is displayed.
• Use the playback control buttons (e.g., Play/Pause, Next/Previous) to scan for and select FM radio stations.

5.7. Mudah alih

The Soprano X1 features a telescoping handle and wheels for easy transport. Extend the handle and tilt the unit to roll it to your desired location.

Image 5.1: The Soprano X1 being transported with its integrated wheels and extendable handle, highlighting its design for on-the-go use.

6. Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan bahagian luar unit. Jangan gunakan pembersih cecair atau bahan kasar.
• Storan: Apabila tidak digunakan, simpan unit di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
• Penjagaan Bateri: If storing for extended periods, it is recommended to fully charge the unit every 3-6 months to maintain battery health. Remove batteries from microphones if not used for a long time.

7. Penyelesaian masalah

8. Spesifikasi

• model: Soprano X1
• Berat Barang: 24 paun
• Dimensi Produk: 13.2 x 15.4 x 24 inci
• Kuasa pembesar suara: 40 watt
• Kiraan Pembesar Suara: 1 (three-way woofer)
• Jenis Bateri: Asid Plumbum 12V
• Kapasiti Bateri: 7.4V 6000 mAh (approx. 2-3 hours run time)
• Sumber Kuasa: Battery Powered / 15V DC (AC adapter) / 12V DC (Car plug)
• Ketersambungan: Bluetooth, USB, Micro-SD, 3.5mm AUX, RCA (TV Audio)
• Ciri Khas: Portable, Rechargeable, Wireless Microphones, Disco Ball, LED Lights, FM Radio

9. Waranti dan Sokongan

MASINGO Soprano X1 Karaoke Machine comes with a 60-day warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

For technical support, warranty claims, or any questions regarding your product, please refer to the contact information provided on the MASINrasmi GO website or your purchase documentation. Please have your model number (Soprano X1) and proof of purchase ready when contacting support.
