1. Produk Lebihview
The Sharp ES-T127AP-Z is a 12Kg Twin Tub Semi-Automatic Washing Machine designed for efficient and convenient laundry care. It features separate tubs for washing and spin-drying, offering flexibility and control over your wash cycles. This model is equipped with Aerojet Technology and a high pulse drive Antibacterial pulsator for thorough cleaning.

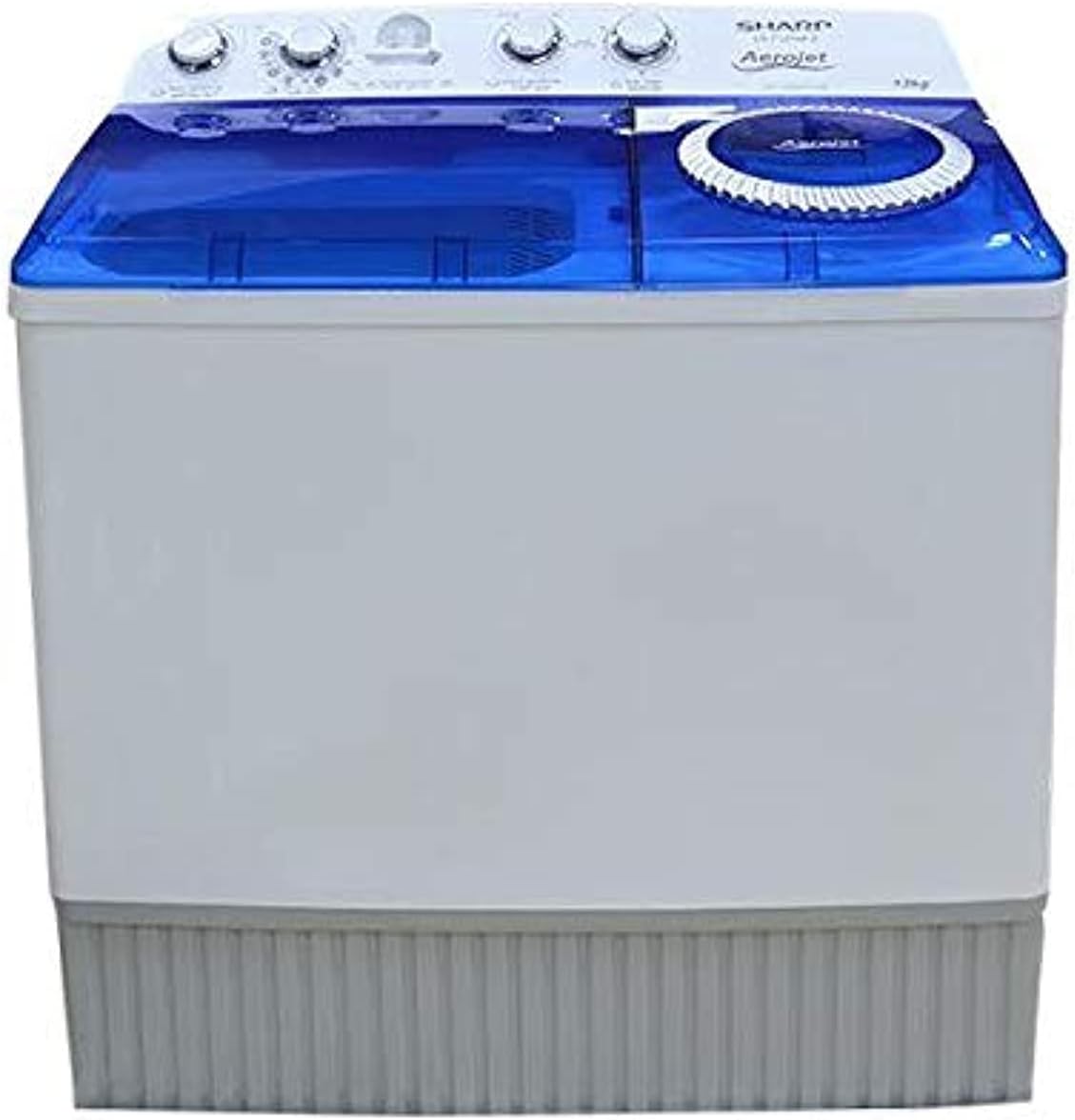

Rajah 1: Depan view of the Sharp 12Kg Twin Tub Washing Machine, showcasing its white and blue design with control panel on top.
2. Persediaan dan Pemasangan
2.1 Membongkar
Carefully remove the washing machine from its packaging. Inspect for any damage incurred during transit. Retain packaging materials for future transport or service if necessary.
2.2 Penempatan
Place the washing machine on a firm, level surface to minimize vibration and noise during operation. Ensure adequate space around the unit for ventilation and access. The dimensions of the unit are approximately 50 cm (D) x 99 cm (W) x 85 cm (H).
Rajah 2: Sisi view of the washing machine with approximate dimensions (Depth 50cm, Width 99cm, Height 85cm) indicated.
2.3 Sambungan Air
Connect the water inlet hose to a cold water tap. Ensure the connection is secure to prevent leaks. The machine requires a standard water supply.
2.4 Sambungan Kuasa
Palamkan kord kuasa ke salur keluar elektrik yang dibumikan. Sahkan bahawa voltage and frequency of your power supply match the specifications of the washing machine.
3. Arahan Operasi
3.1 Panel Kawalan Selesaiview
The control panel features rotary knobs for selecting wash programs, wash time, and spin time, along with a water supply selector.
Rajah 3: Terperinci view of the control panel with knobs for Wash Selector, Wash Timer, Water Supply Selector, and Spin Timer.
3.2 Memuatkan Dobi
Open the lid of the wash tub. Place clothes loosely into the wash tub, ensuring not to exceed the 12Kg capacity. For optimal washing, distribute the load evenly.
Rajah 4: Atas view showing the wash tub (left) and spin tub (right) with their respective lids open.
3.3 Program Pencucian
Select one of the three available washing programs using the Wash Selector knob:
- Biasa: For everyday laundry with moderate dirt.
- lembut: For delicate fabrics requiring a softer wash.
- Soak Wash: For heavily soiled items, providing continuous soaking and scrubbing action for up to 25 minutes with Super Soak Technology.
3.4 Setting Wash and Spin Times
- Gunakan Basuh Pemasa knob to set the desired washing duration.
- After washing, transfer clothes to the spin tub. Use the Pemasa Putaran knob to select the desired spin duration (up to 900 RPM).
3.5 Aerojet Technology
The Aerojet Technology, combined with the high pulse drive Antibacterial pulsator, ensures powerful water circulation and effective cleaning, removing tough dirt and maintaining fabric hygiene.
4. Penyelenggaraan
4.1 Pembersihan Penapis Lin
The washing machine is equipped with a lint filter to collect lint and debris during the wash cycle. Regularly remove and clean the lint filter to ensure efficient operation and prevent lint from redepositing on clothes. Refer to the internal diagram for filter location.
4.2 Pembersihan Luaran
Lap bahagian luar mesin dengan lembut, damp cloth. The durable fiber resin body is designed for easy cleaning. Avoid using abrasive cleaners or solvents that could damage the surface.
4.3 Pengeringan
Ensure the drain hose is properly positioned to allow water to drain freely after each wash and rinse cycle. Periodically check the drain hose for blockages.
5. Penyelesaian masalah
This section provides solutions to common operational issues. If the problem persists, contact customer support.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Mesin tidak bermula | Kord kuasa dicabut; keluarkan kuasatage; penutup tidak ditutup dengan betul. | Check power connection; verify power supply; ensure lids are fully closed. |
| Tiada isi air | Water tap closed; water inlet hose kinked or blocked. | Buka pili air; luruskan hos; periksa jika terdapat penyumbatan. |
| Getaran / bunyi yang berlebihan | Machine not level; uneven load distribution. | Adjust machine to be level; redistribute laundry evenly in the tub. |
| Air tidak mengalir | Drain hose kinked or blocked; drain pump issue. | Check and clear drain hose; contact service if pump is suspected. |
6. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | tajam |
| Nombor Model | ES-T127AP-Z |
| Kapasiti Basuh | 12 Kilogram |
| Spin Dry Capacity | 7 Kilogram |
| Kelajuan Putaran Maksimum | 900 RPM |
| Dimensi Produk (D x W x H) | 50 x 99 x 85 cm |
| Berat Barang | 27 Kilogram |
| Jenis Pemasangan | Freestanding |
| Konsol Kawalan | Tombol |
| Jenis Bahan | ABS (Durable Fiber Resin Body) |
| Ciri Khas | Soak Time Function, Aero Jet Technology, High pulse drive Antibacterial pulsator |
| Kitaran Standard | 3 (Normal, Gentle, Soak Wash) |
7. Waranti dan Sokongan
7.1 Maklumat Waranti
This product comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact Sharp customer service. Extended warranty options may be available from your retailer, such as 1-Year or 2-Year Extended Warranty plans.
7.2 Sokongan Pelanggan
For technical assistance, service requests, or inquiries regarding your Sharp washing machine, please contact Sharp customer support. Contact details can typically be found on the manufacturer's official webtapak atau dalam dokumentasi produk anda.
Please have your model number (ES-T127AP-Z) and purchase date ready when contacting support.
